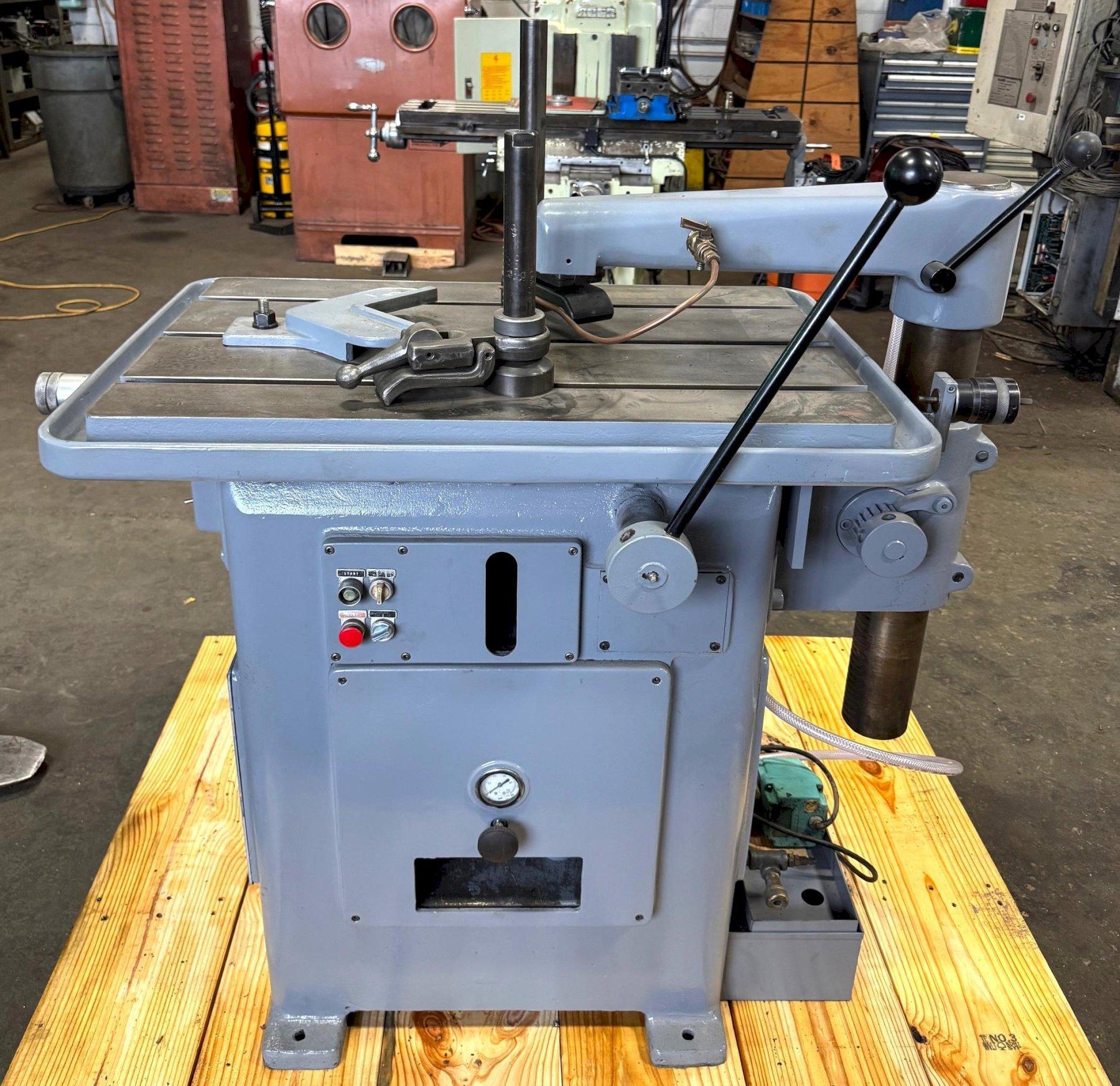

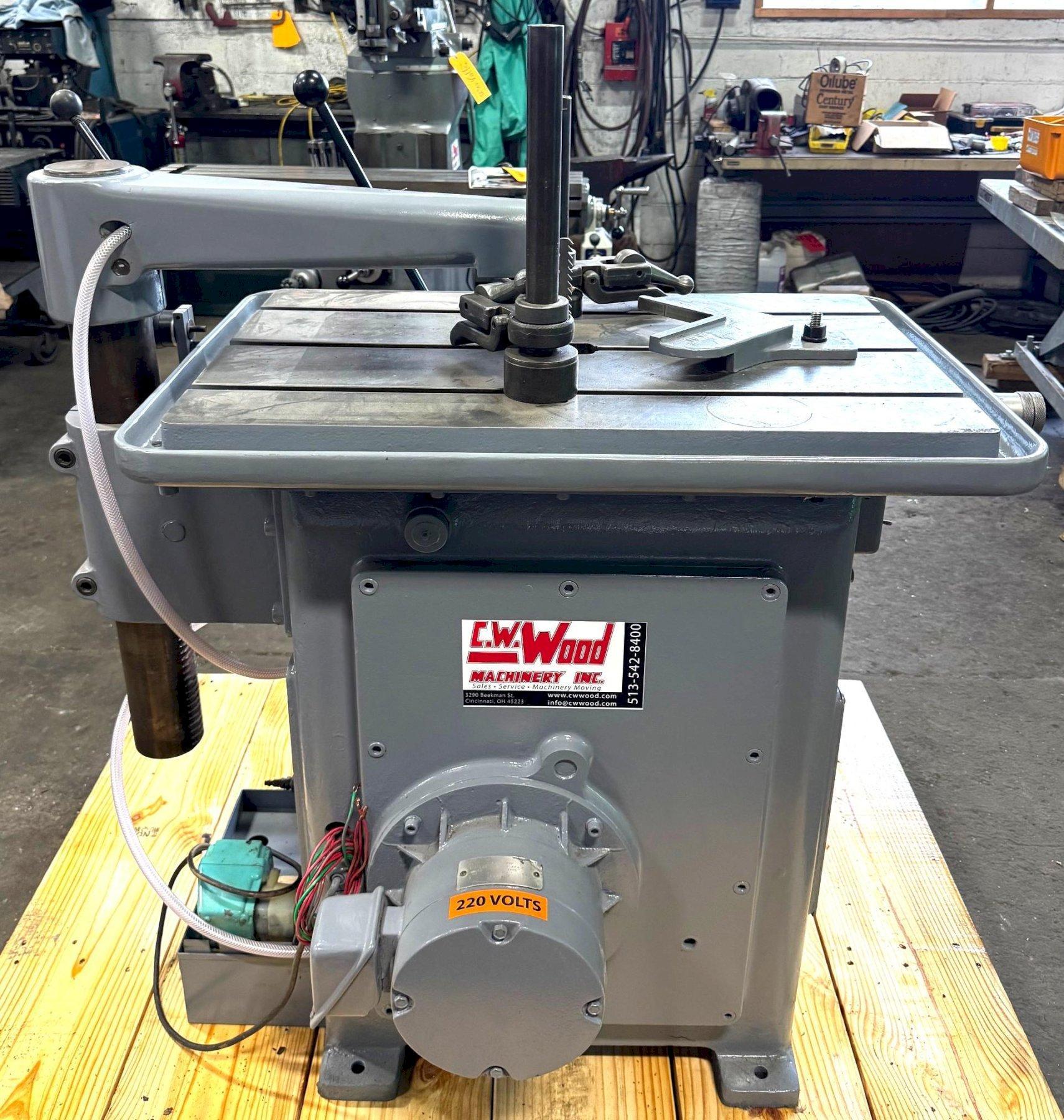

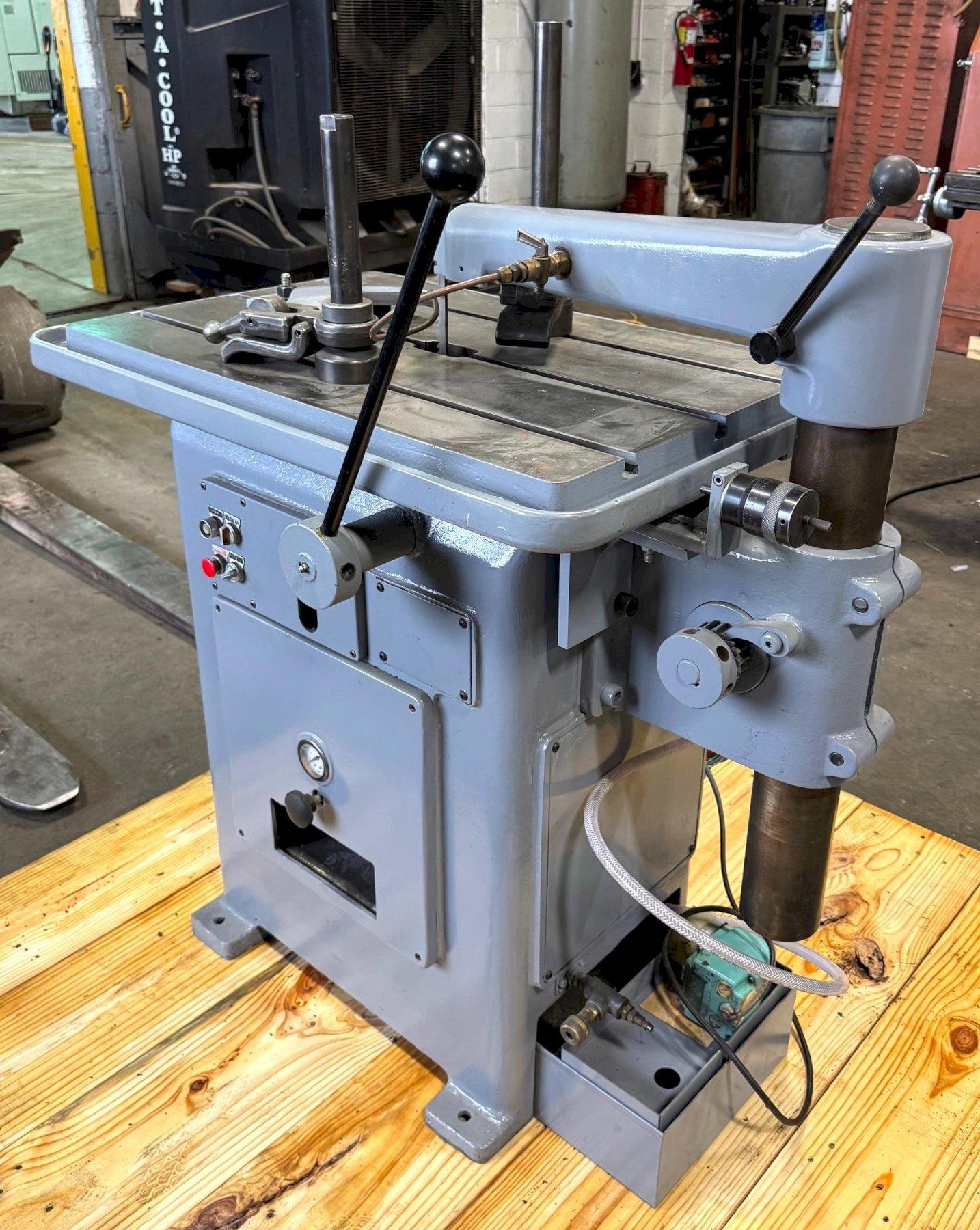

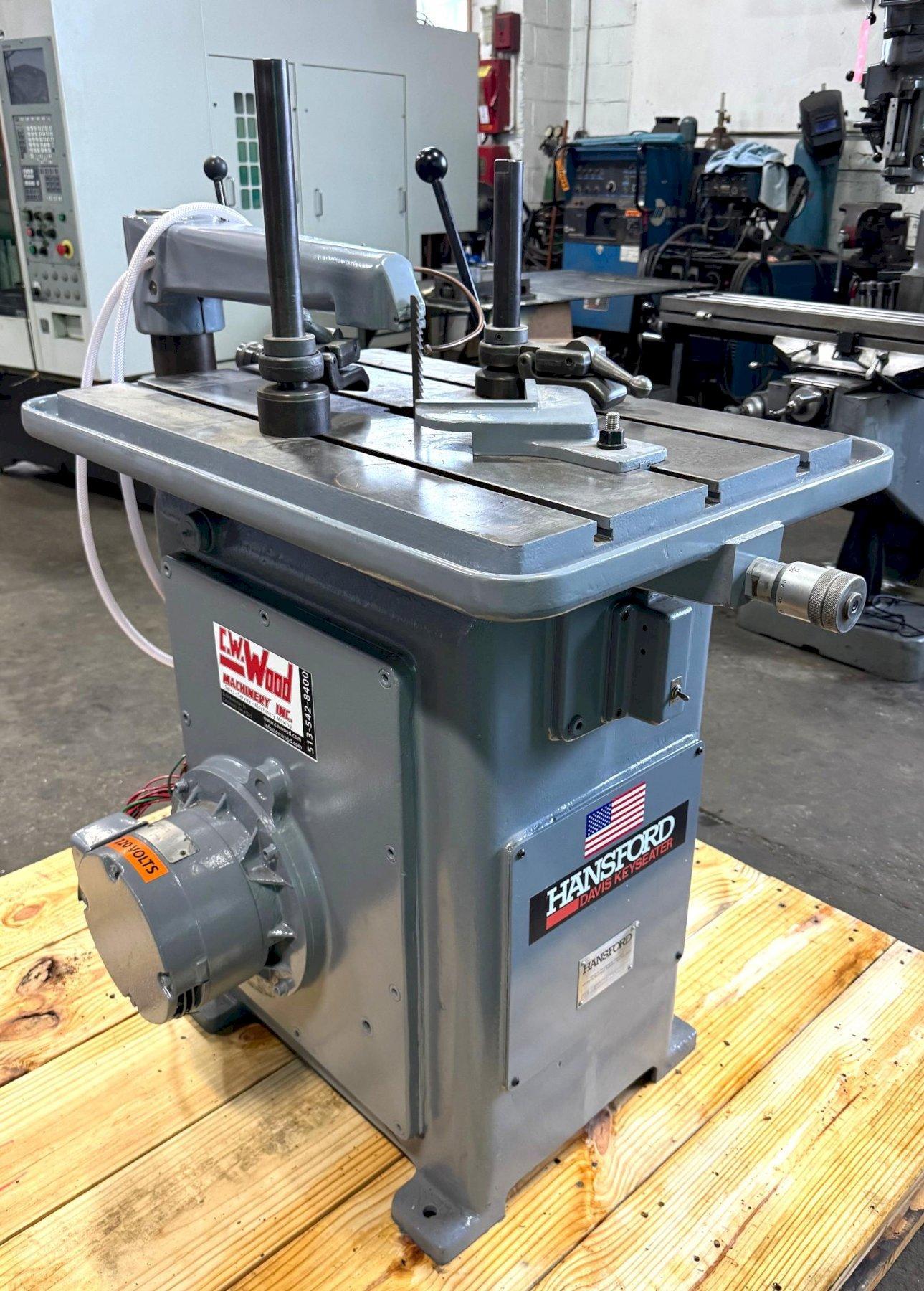

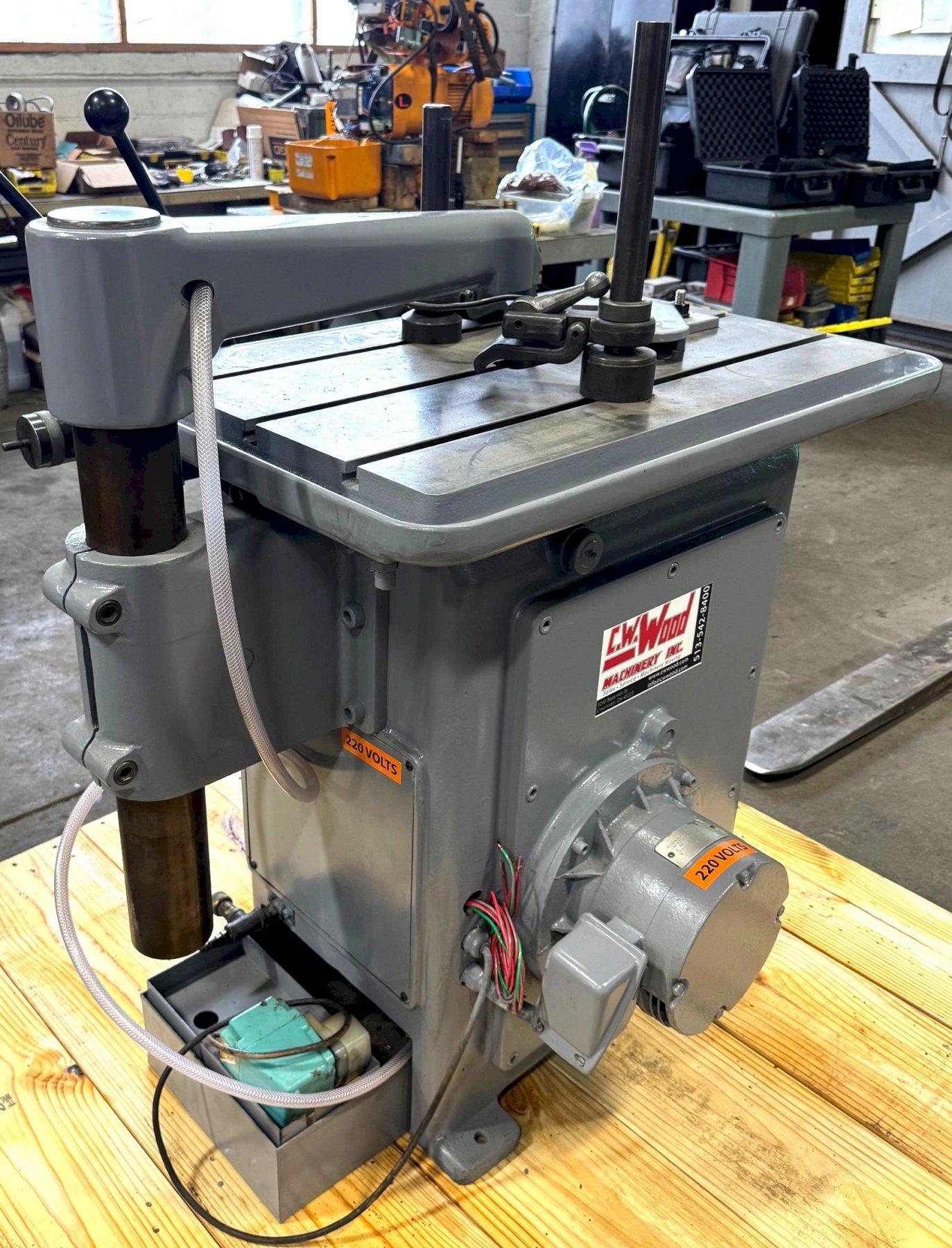

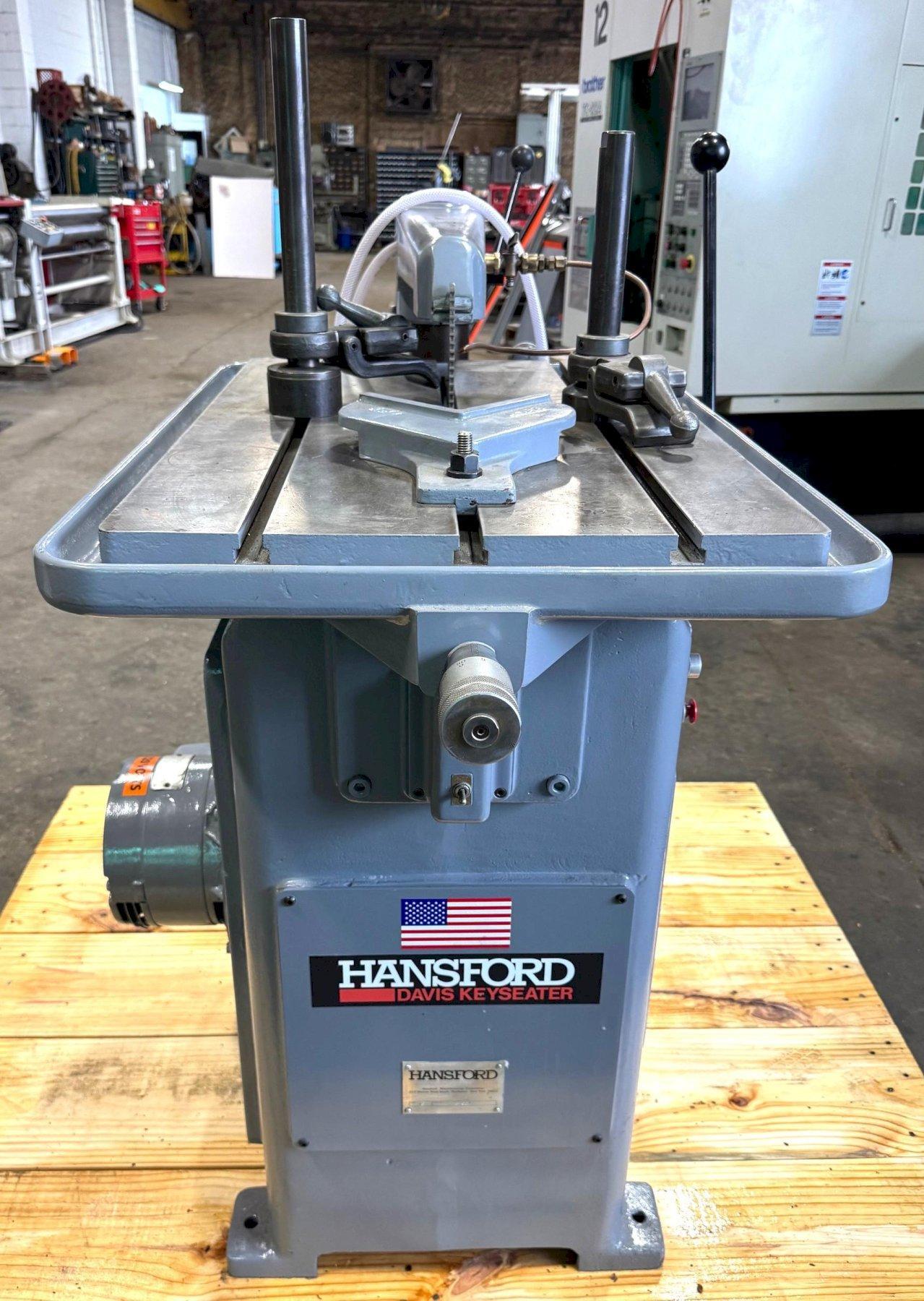

HANSFORD DAVIS KEYSEATER

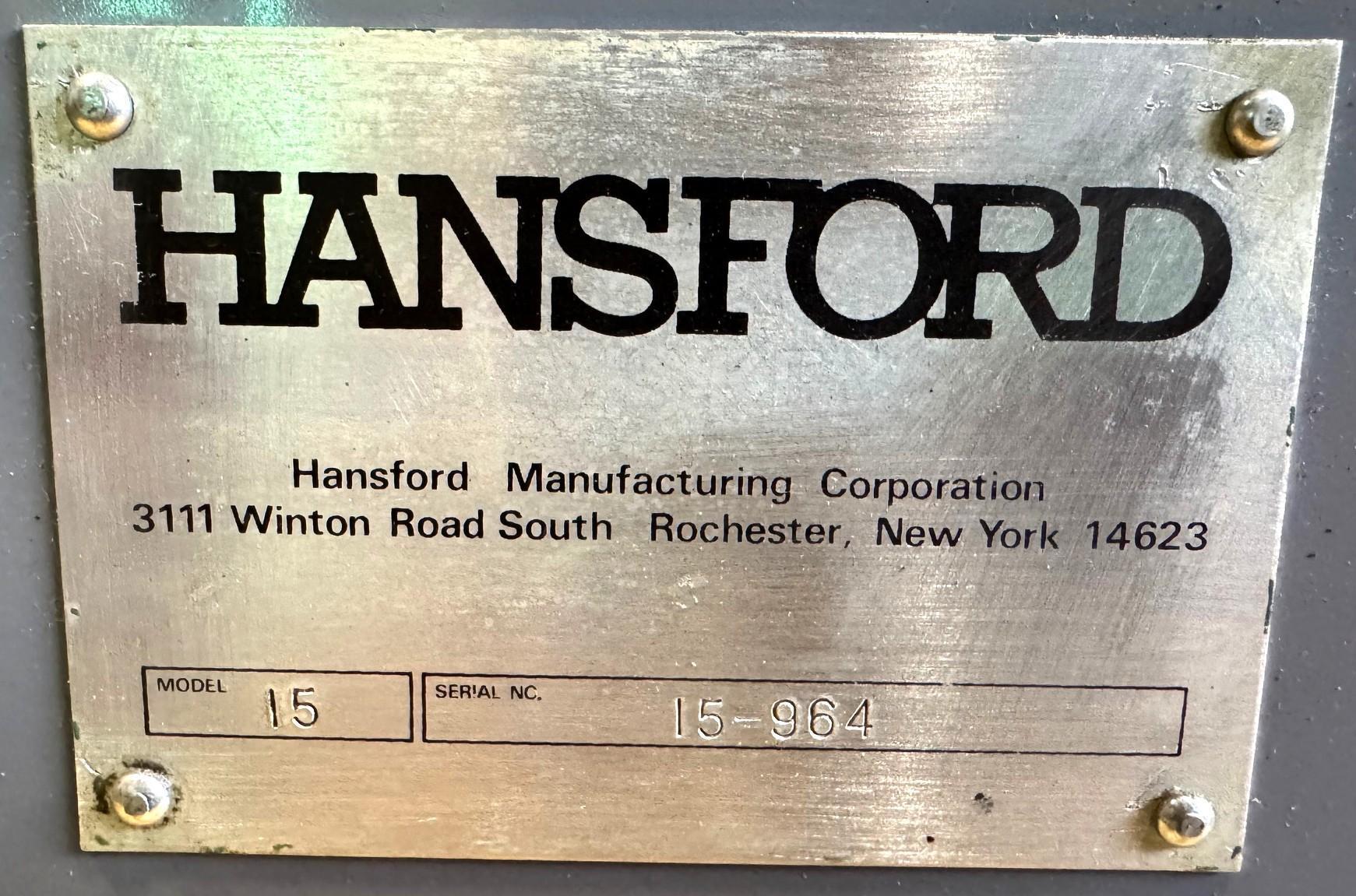

MODEL: No. 15
SERIAL NUMBER: 15-964

GENERAL SPECIFICATIONS

Keyway Cutting Capacity: 1/16" to 1-1/2"
Maximum Length Of Cut
 16" Long Cutter: 4"
 20" Long Cutter: 8"
 24" Long Cutter: 12"
 30" Long Cutter: 18"
Throat Depth, Face Of Cutter To Arm Post: 19"
Maximum Height Of Work From Table Surface: 12"

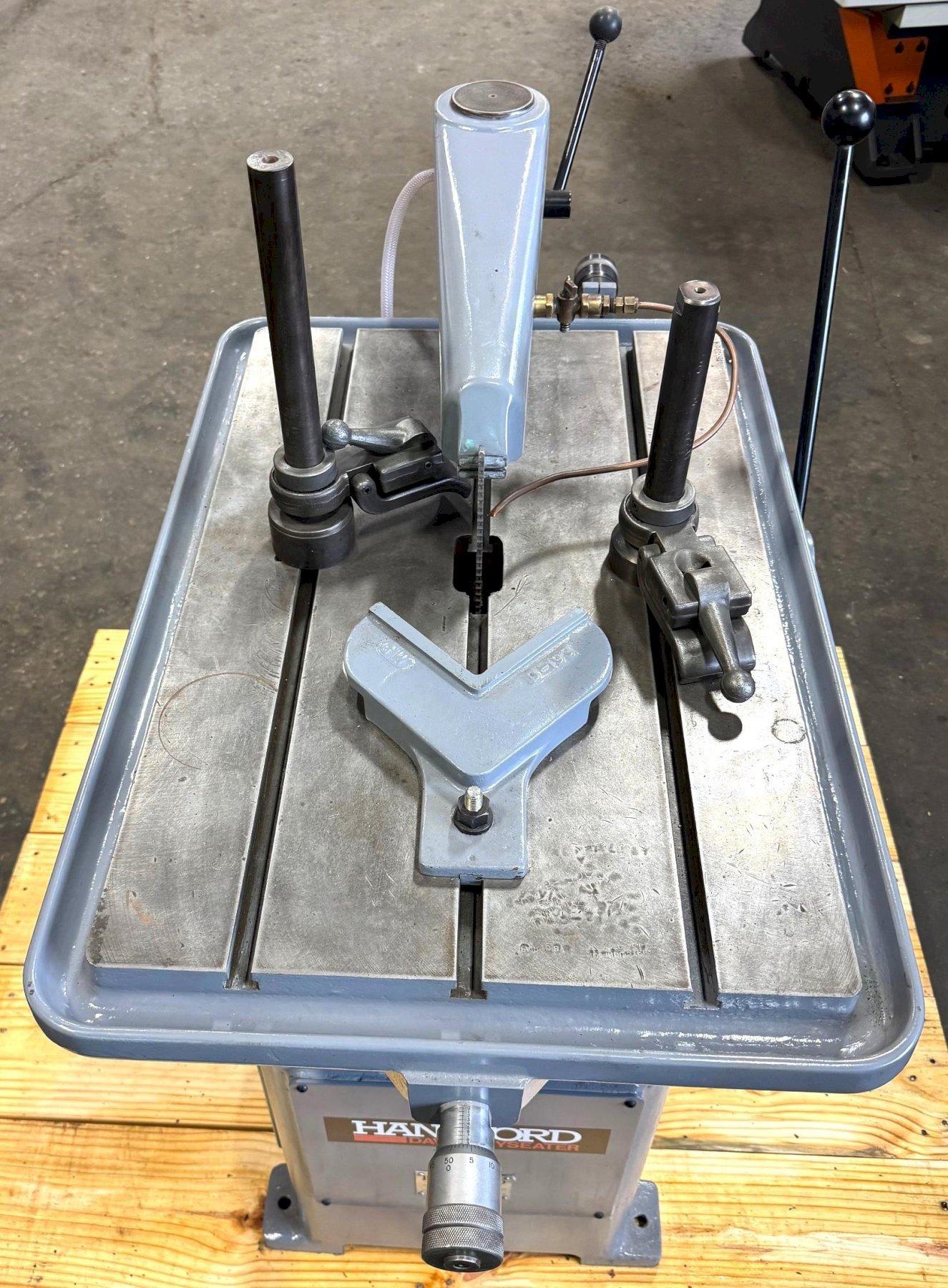

Table Size: 20" X 31"
Table Movement: 1-1/2"
Stroke: 4-1/2"
Strokes Per Minute: 45
Air Pressure Required: 80 PSI
Air Consumption: 3 SCM

EQUIPPED WITH

2 HP Motor

Approximate Weight: 1250 Lbs.

F.O.B. Cincinnati, Ohio

All SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
