Specifications
Equipped With

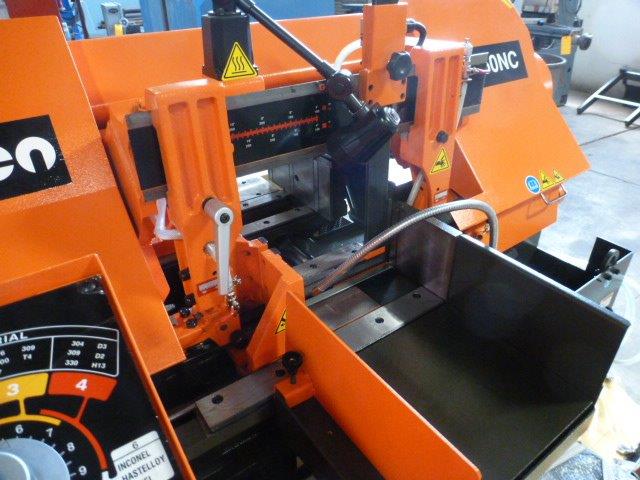

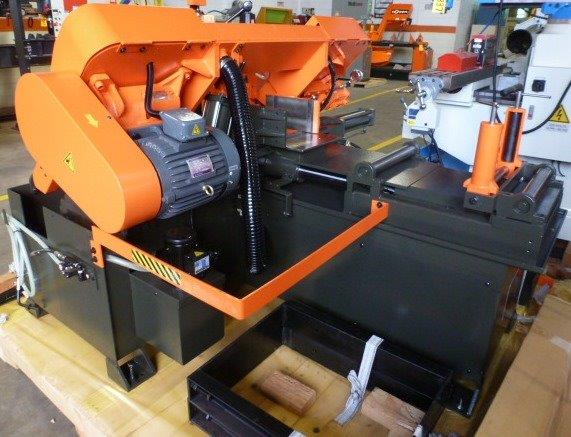

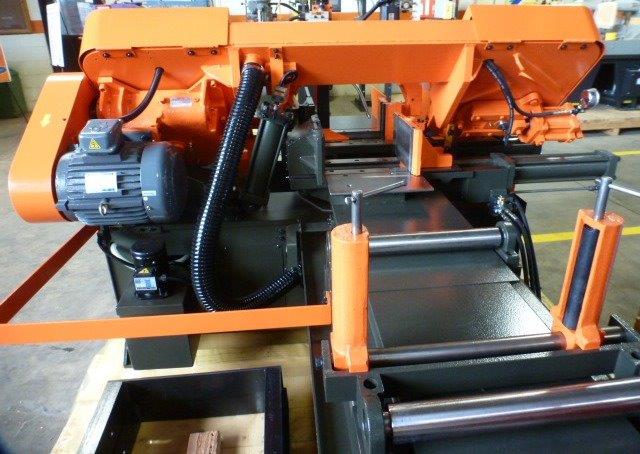

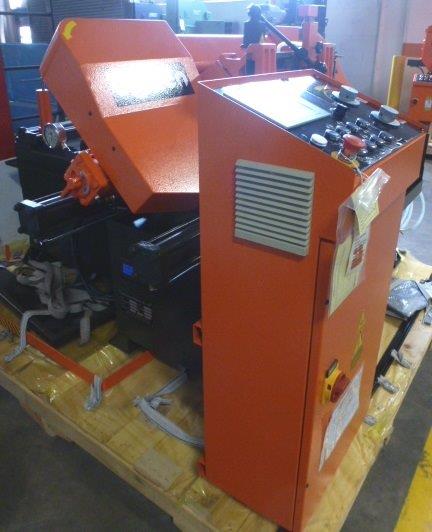

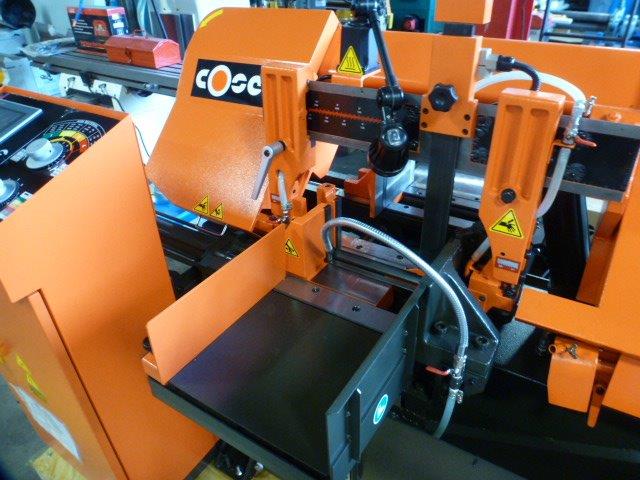

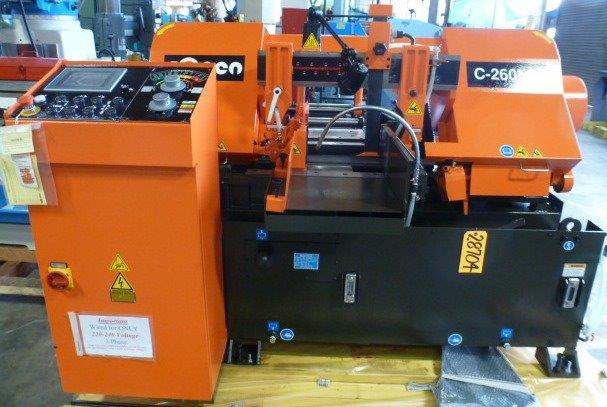

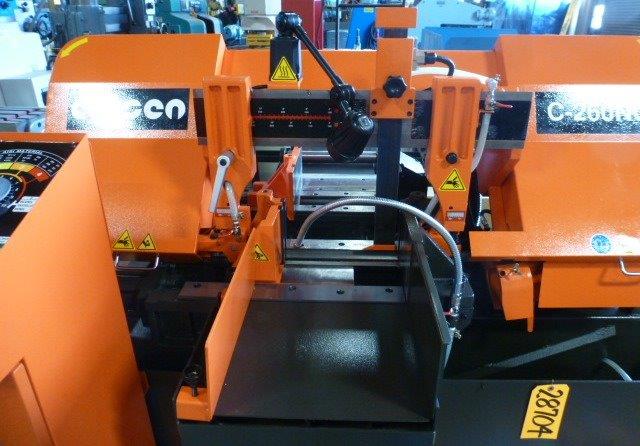

(NEW) COSEN FULLY PROGRAMMABLE AUTOMATIC FEED HORIZONTAL BAND SAW
MODEL: C-260NC
SERIAL NUMBER:
FACTORY SPECIFICATIONS
Capacity, Rounds: 10.2"
Capacity, Square: 10.2" x 10.2
Capacity, Rectangle: 10.2" x 11.8"
Bundle Capacity (With Optional Top Clamps): 6.1"W x 4.7"H
Blade Speeds, Infinitely Variable: 66 - 328 FPM
Blade Size: 144" x 1-1/4" x .043"
Automatic Feed, Job Storage: Up To 100 Jobs
Automatic Feed, Single Index Stroke: 0 to 15.9"
Automatic Feed, Multiple Stroke Indexing: 0" to 999"
EQUIPPED WITH
5 HP Blade Drive Motor
1 HP Hydraulic Motor
SNC-100 Touch Screen Control: Provides most of the benefits of NC controlled saws at a fraction of the cost. The SNC control is programmable up to 100 different jobs including quantity and length of cut. The control automatically compensates for kerf loss after data input and requires no manual calculation of number of times to index. The control automatically shuts down the machine once the
programmed number of cuts or out of stock situation has been achieved. The system includes an error feedback function enabling rapid troubleshooting through an error code to be displayed in the event of a malfunction.
Mitsubishi PLC Control
Hydraulic Full Stroke Vises w/Double Retracting Rear Vise
Hydraulic Chip Auger
Automatic Kerf Compensation
LED Readout For Setting Of Blade Speed
Automatic Hydraulic Blade Tensioning
Hydraulic Vise Control
Heavy Duty Roller Table 7' Long w/Vertical Rollers
Discharge Table
Vertical Alignment Rollers
Coolant System
Carbide Blade Guides
Floor Space: 85" x 86" x 60"H
Approximate Weight: 3100 Lbs.
F.O.B. Charlotte, North Carolina
FACTORY SPECIFICATION SUBJECT TO CHANGE AND/OR MODIFICATION
