Specifications
Equipped With

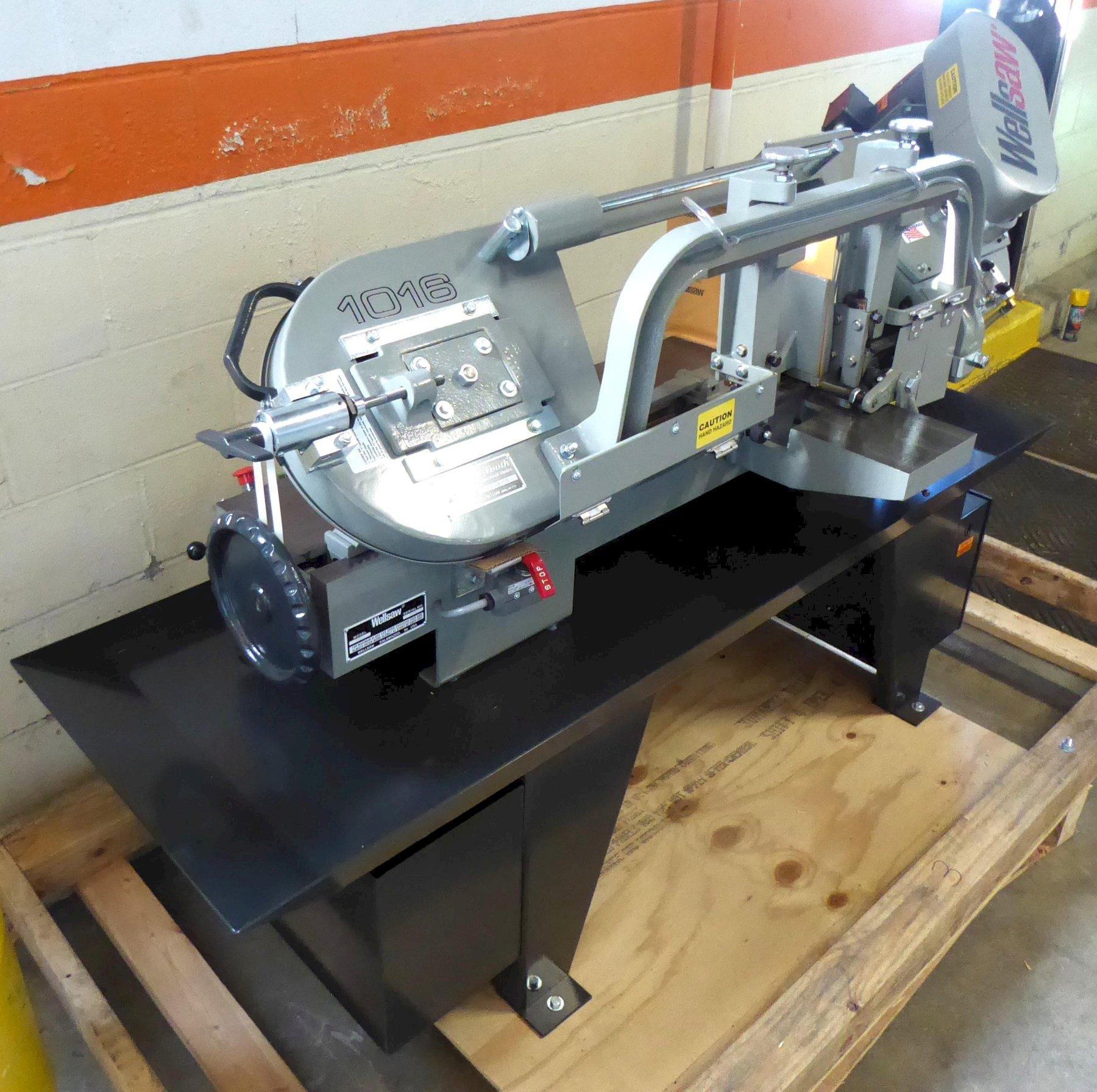

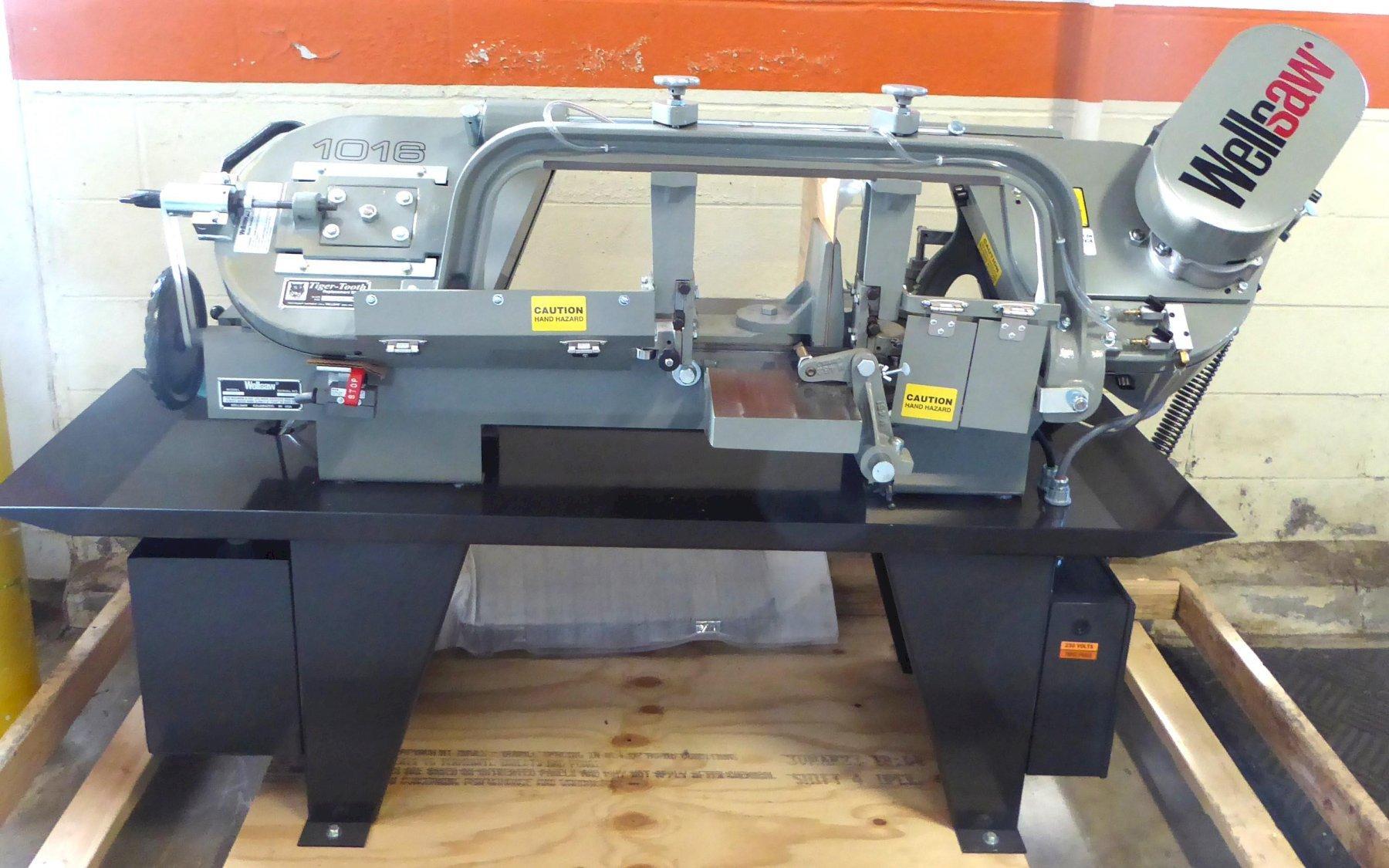

(NEW) WELLSAW HORIZONTAL BAND SAW
MODEL: 1016
GENERAL SPECIFICATIONS
Capacity, Round: 10.5" Diameter
Capacity, Flat: 10"H x 16"W
Capacity, Flat, 45 Degrees: 10"H x 9"W
Blade Size: 1" x .035" x 11'6"
Blade Speeds: (4) 50 to 275 FPM
Coolant System Tank Capacity: 8 Gallons
Band Wheels: 15" Diameter Cast Iron
Bed Height: 29"
EQUIPPED WITH
2 HP Blade Drive Motor (Presently wired 230 Volt, 3 Phase)
Variable Hydraulic Down Feed Control
Carbide Guides With Back-Up Rollers
Manual "Rite-Tension" Blade Tension
Rotary Blade Brush

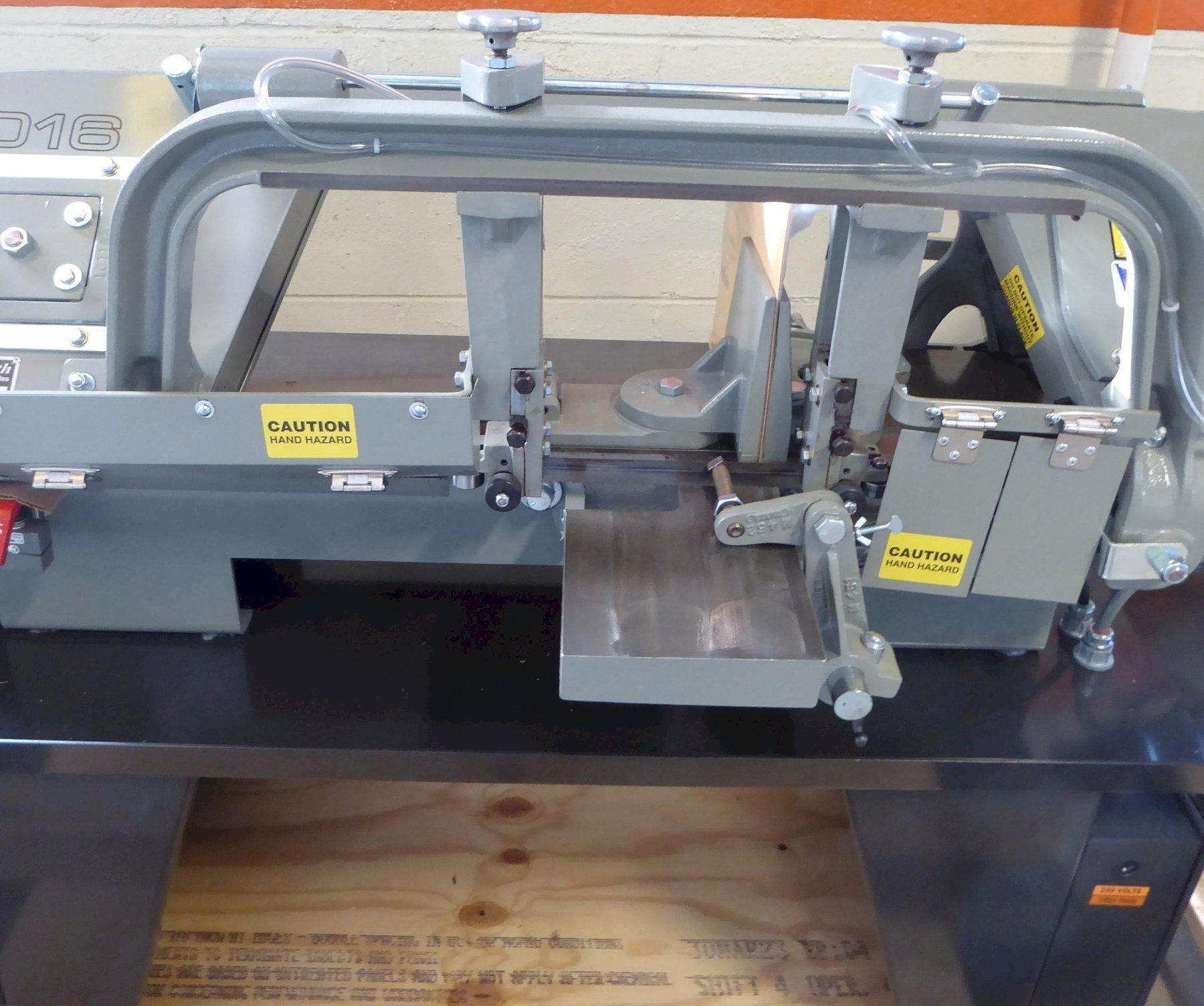

Quick Acting Vise-To 45 Degrees
Positive Frame Lock
Auto Shut-Off At End Of Cut
Overload and Under Voltage Protection

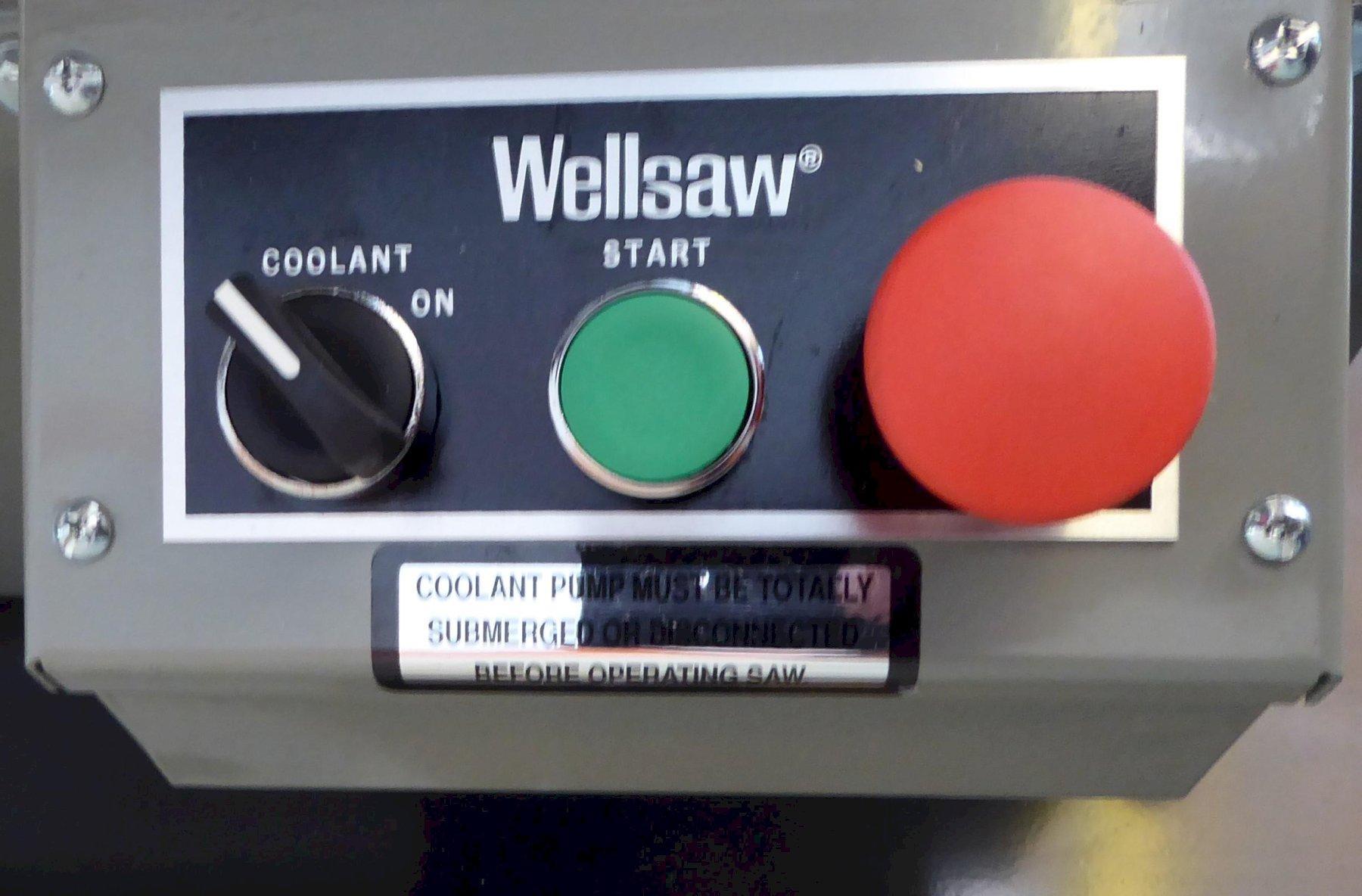

Coolant System
Approximate Weight: 900 Lbs.
Location: Cincinnati, Ohio
Note: Price does not include incoming freight charge from Kalamazoo, MI to Cincinnati, OH
FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
