Specifications
| Tonnage |
110 tons |
| Stroke |
15 inches |
| Daylight |
36.5 inches |
| CNC Control |
no |
| Weight |
2200 pounds |
Equipped With

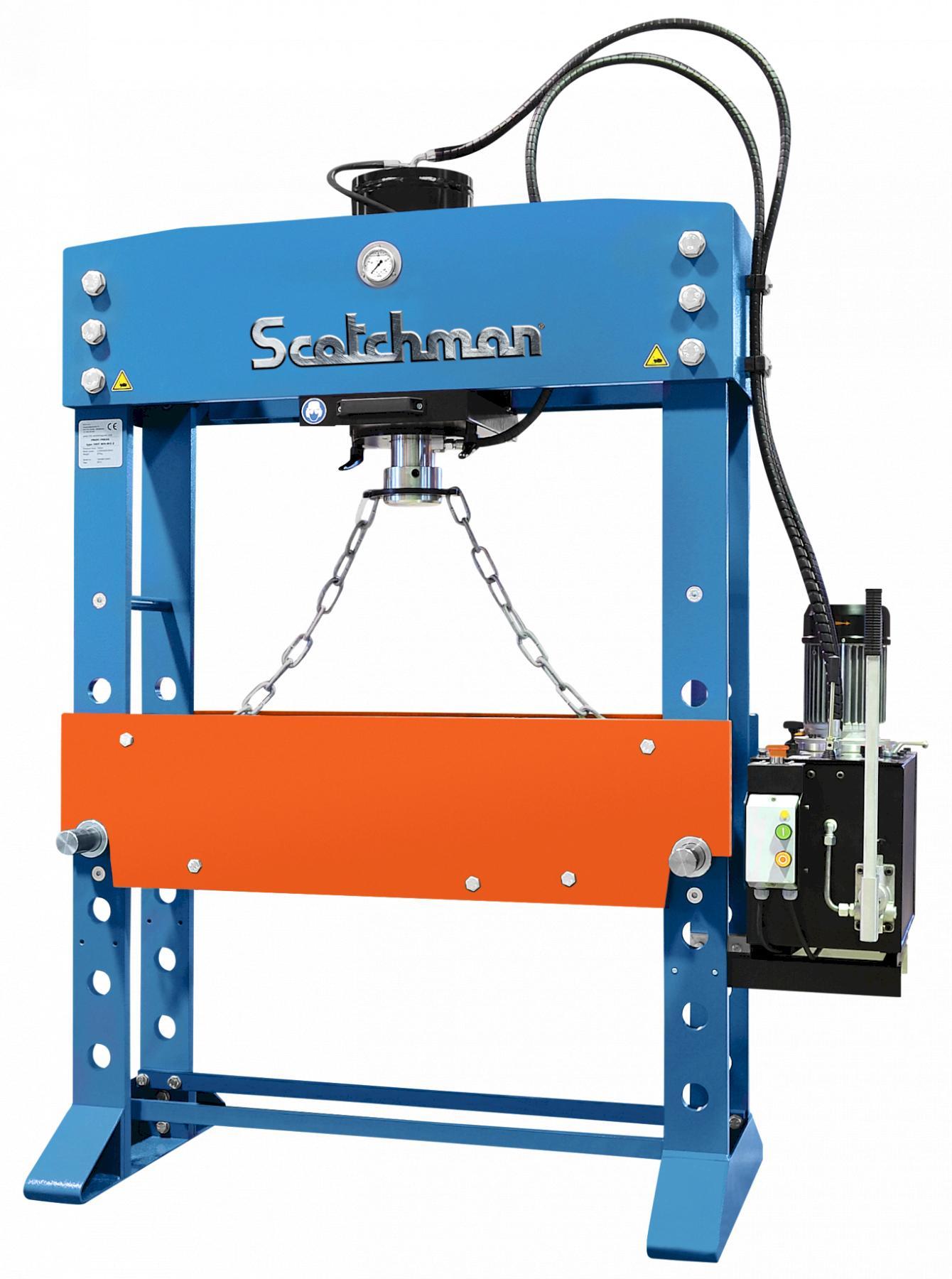

(NEW) SCOTCHMAN H-FRAME HYDRAULIC PRESS
MODEL: PressPro 110
*Heavy Duty All-Steel Construction
*Industrial Grade Hydraulic System
*Ram Moves Laterally For Added Versatility
*Three Ram Speeds
FACTORY SPECIFICATIONS
Press Force: 110 Tons
Stroke: 15"
Open Height, Minimum: 7"
Open Height, Maximum: 36-1/2"
Width Between Uprights: 43-1/4"
Width Between Table Channels: 11-3/4"
Ram Speed, Approach: 18 IPM
Ram Speed, Press: 6 IPM
Ram Speed, Return: 21 IPM
EQUIPPED WITH
3.5 HP Motor 230/60/3
Set Of V-Blocks
Pressure Gauge
Adjustable Table Height w/Hydraulic Assist
Joystick Operation /Manual Jog
Removable Ram Cap To Accept A Wide Variety Of Tooling
Three-Year Warranty
F.O.B. Philip, South Dakota
FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
