Brand
CHEVALIER
Model
FSG-3A1224H
Type
Grinders, Surface, Recip.
Stock #
31980
Condition
Used
Year
Location
CINCINNATI, Ohio
United States

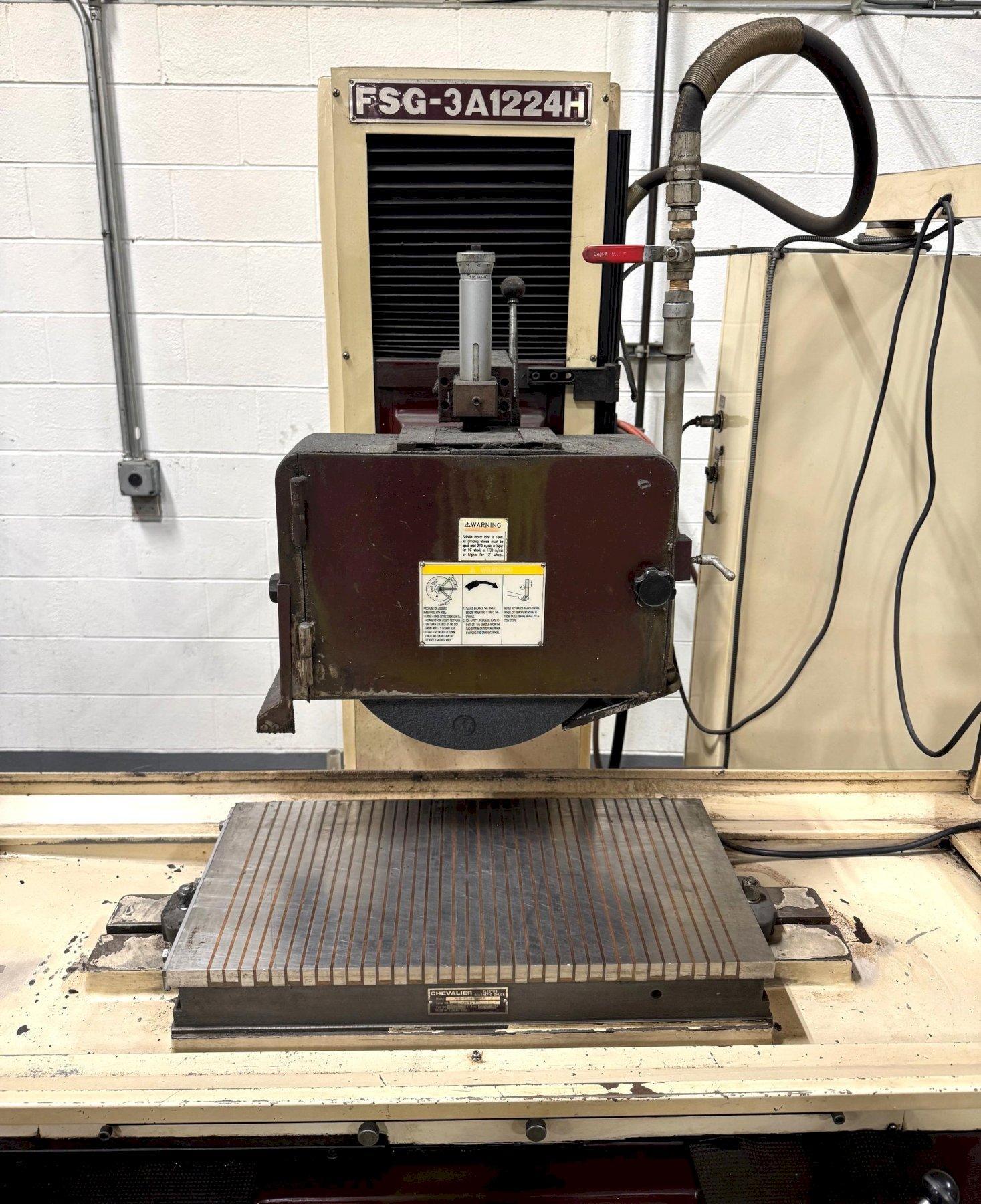

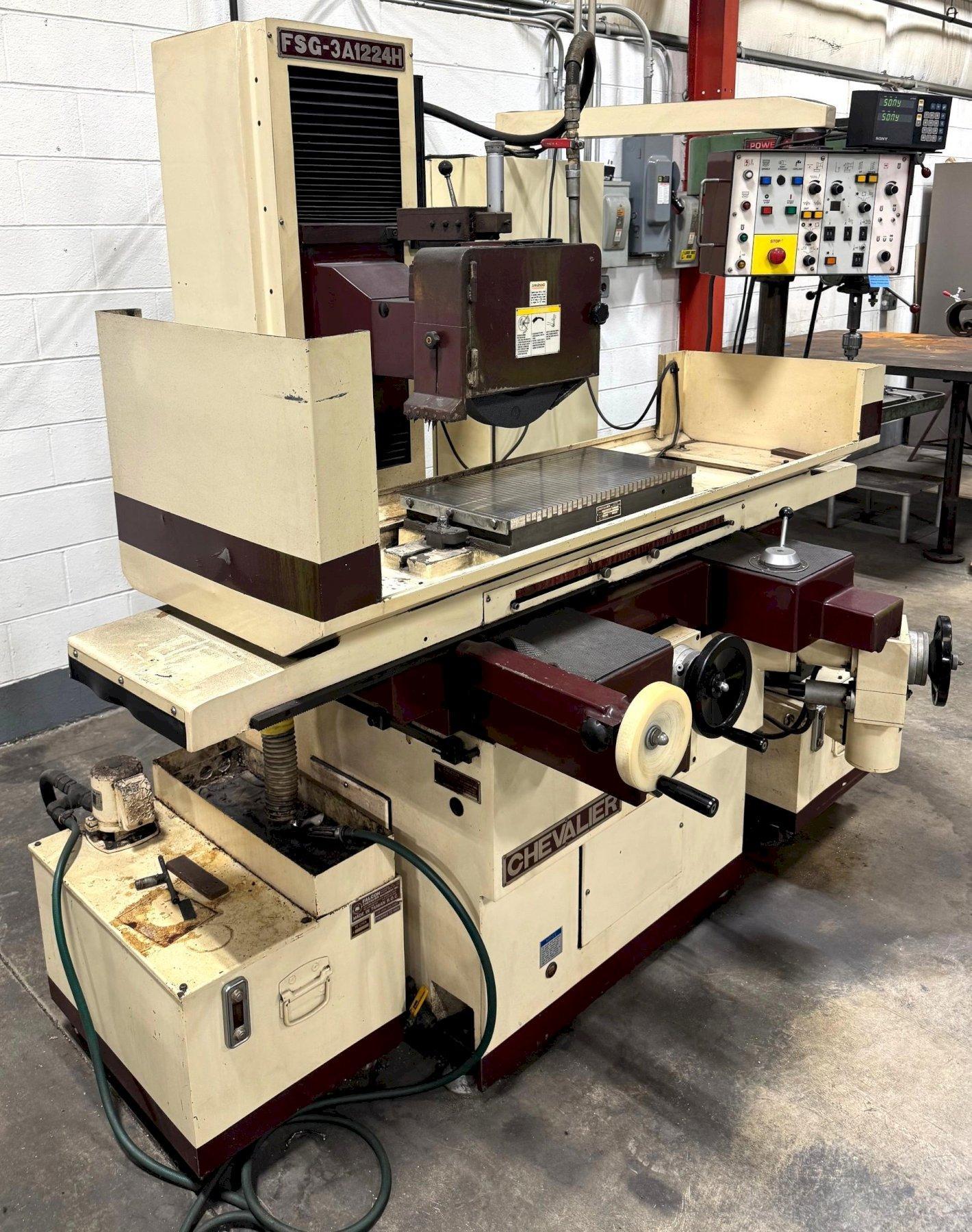

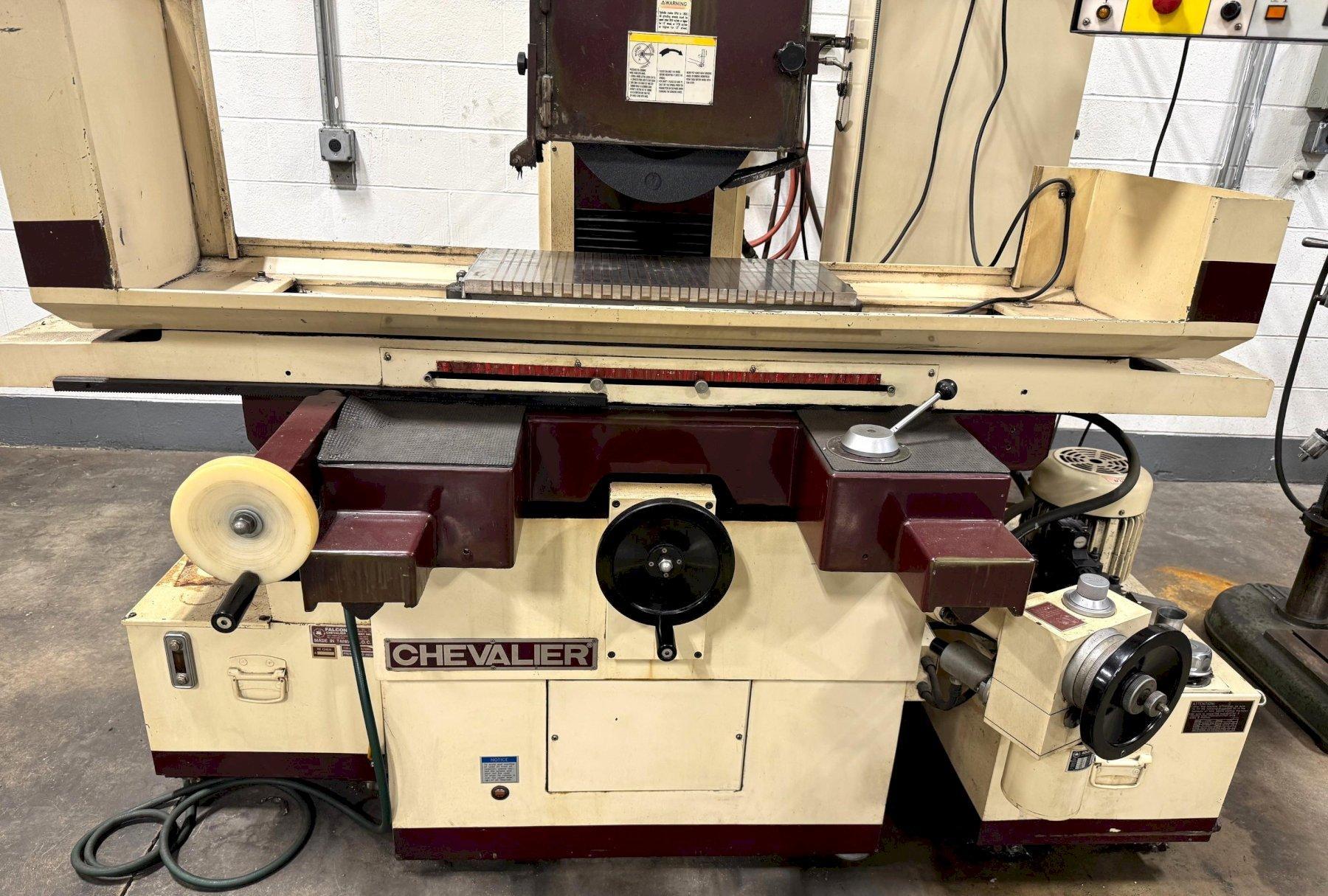

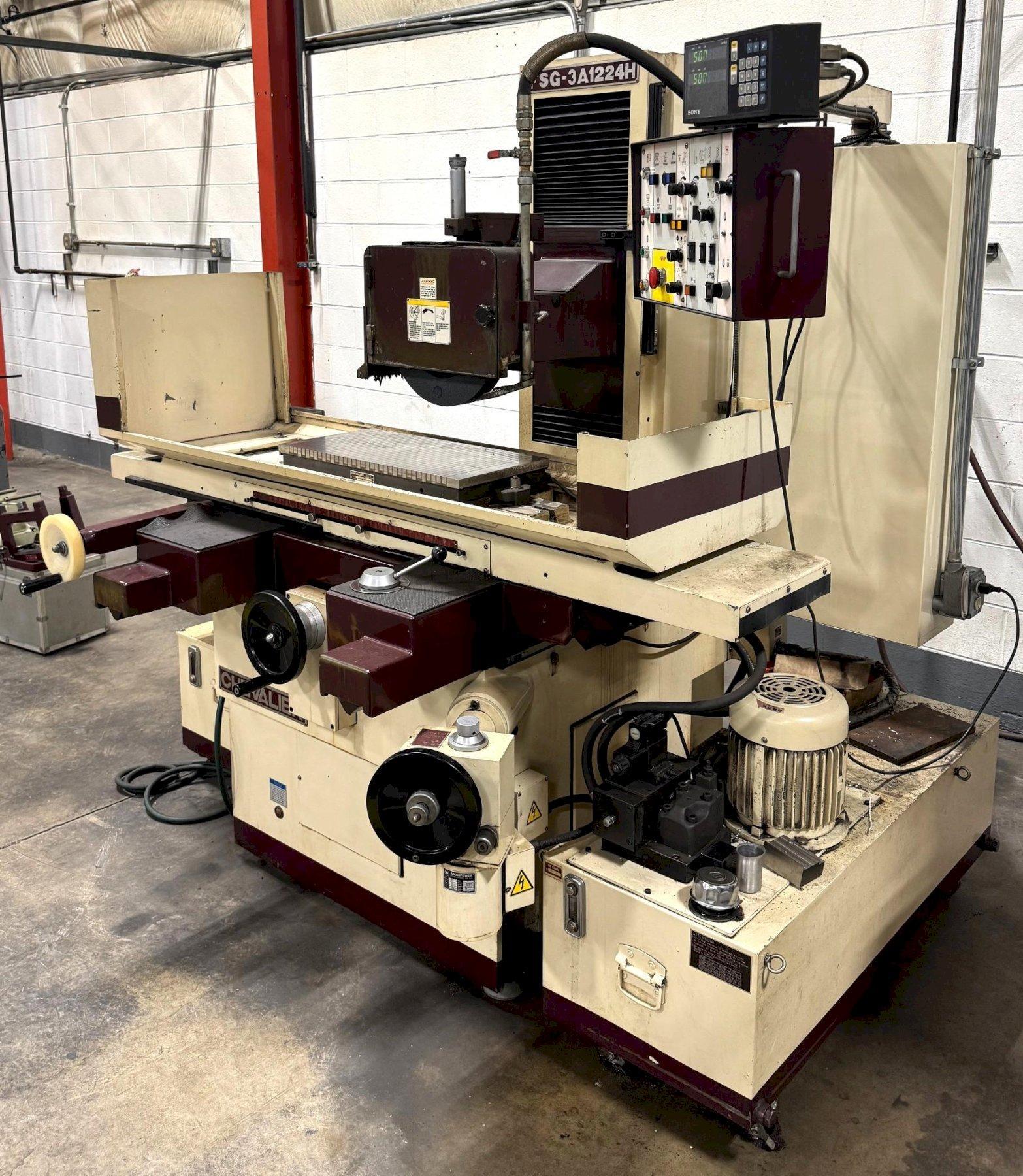

CHEVALIER SURFACE GRINDER
MODEL: FSG-3A1224H

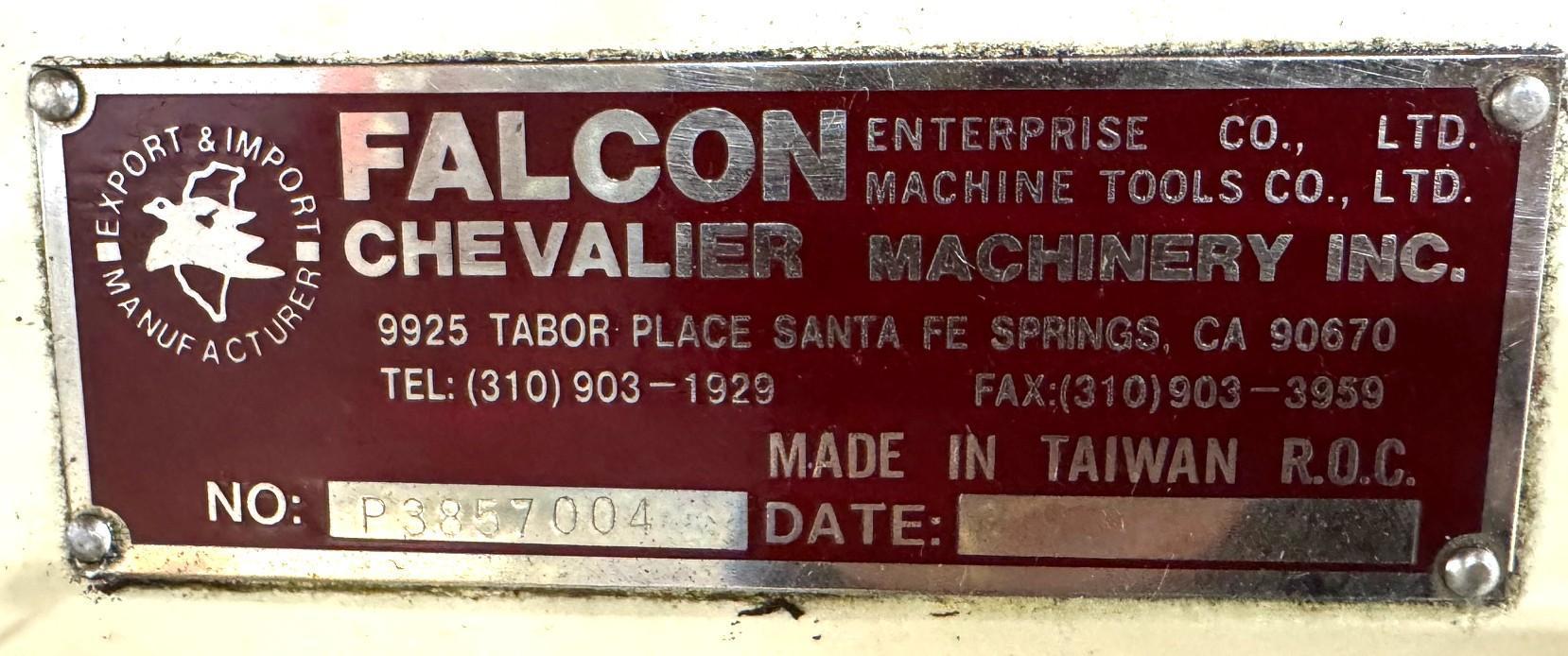

SERIAL NUMBER: P3857004
GENERAL SPECIFICATIONS
Table Size: 12" x 24"
Maximum Grinding Length: 24"
Maximum Grinding Width: 12"
Maximum Distance From Table Surface To Spindle Centerline: 24-3/8"
Table Speed, Infinitely Variable: 16 - 82 FPM
Longitudinal Travel, Hydraulic: 25-5/8"
Maximum Table Travel, Manual: 27-1/2"
Cross Transverse Travel
Rapid Travel, Approximate: 12 FPM
Automatic Transverse Increment: 1/8" - 2"
Maximum Automatic Transverse Travel: 12"
Maximum Manual Transverse Travel: 13-3/4
Handwheel Per Revolution: 0.25"
Handwheel Per Graduation: 0.0025"
Wheelhead Vertical Infeed
Automatic Infeed: .00005" - .002"
Handwheel Per Revolution: 0.05"
Handwheel Per Graduation: 0.0005"
Grinding Wheel Speed: 1750 RPM
Grinding Wheel Size: 14" x 2" x 5" Bore
EQUIPPED WITH
5 HP Spindle Motor
12" x 24" Electromagnetic Chuck w/Variable Chuck Control
Incremental Down Feed

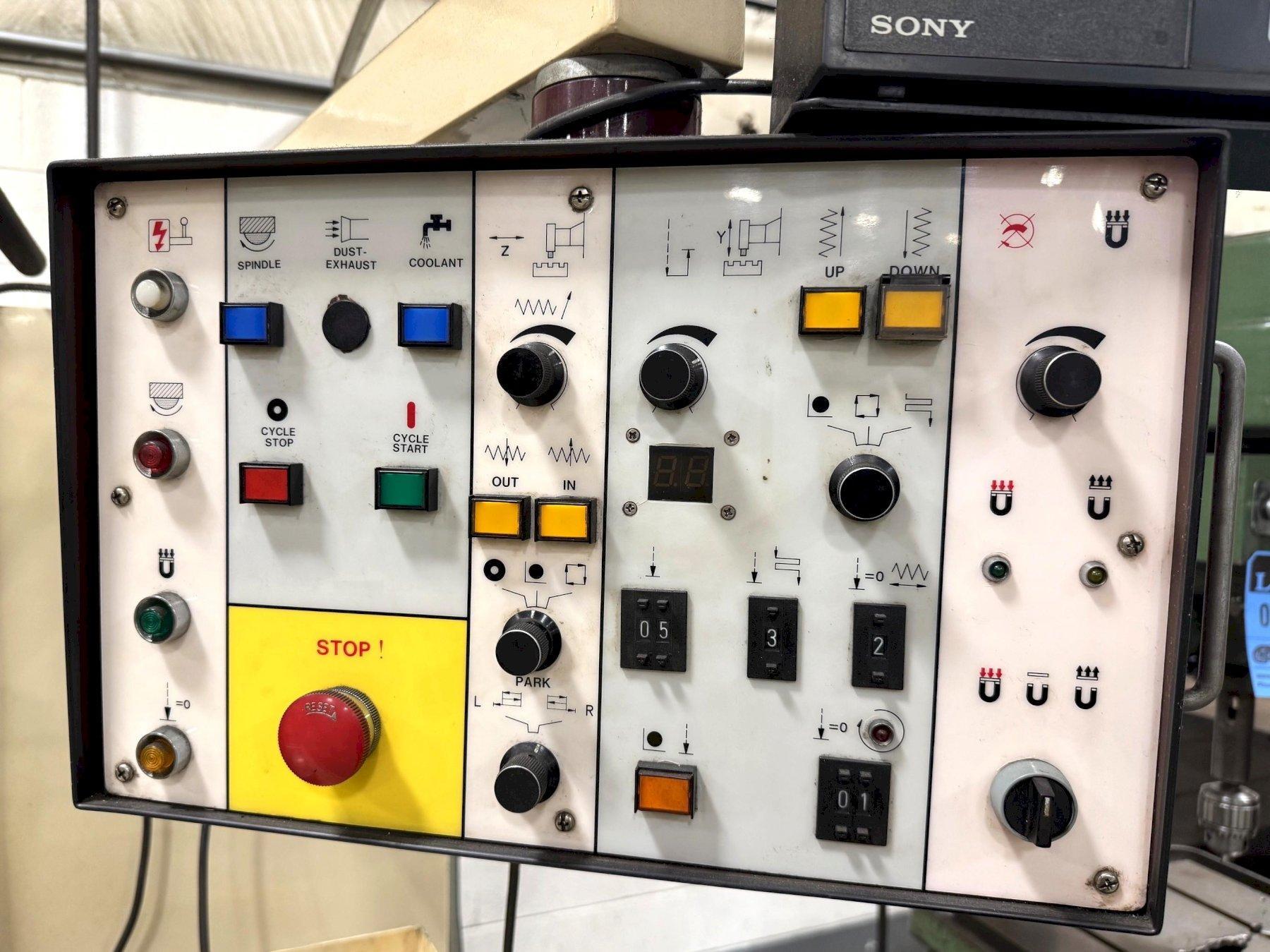

Sony Digital Readout
Coolant System
Dresser
Approximate Weight: 5000 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPEPCIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
