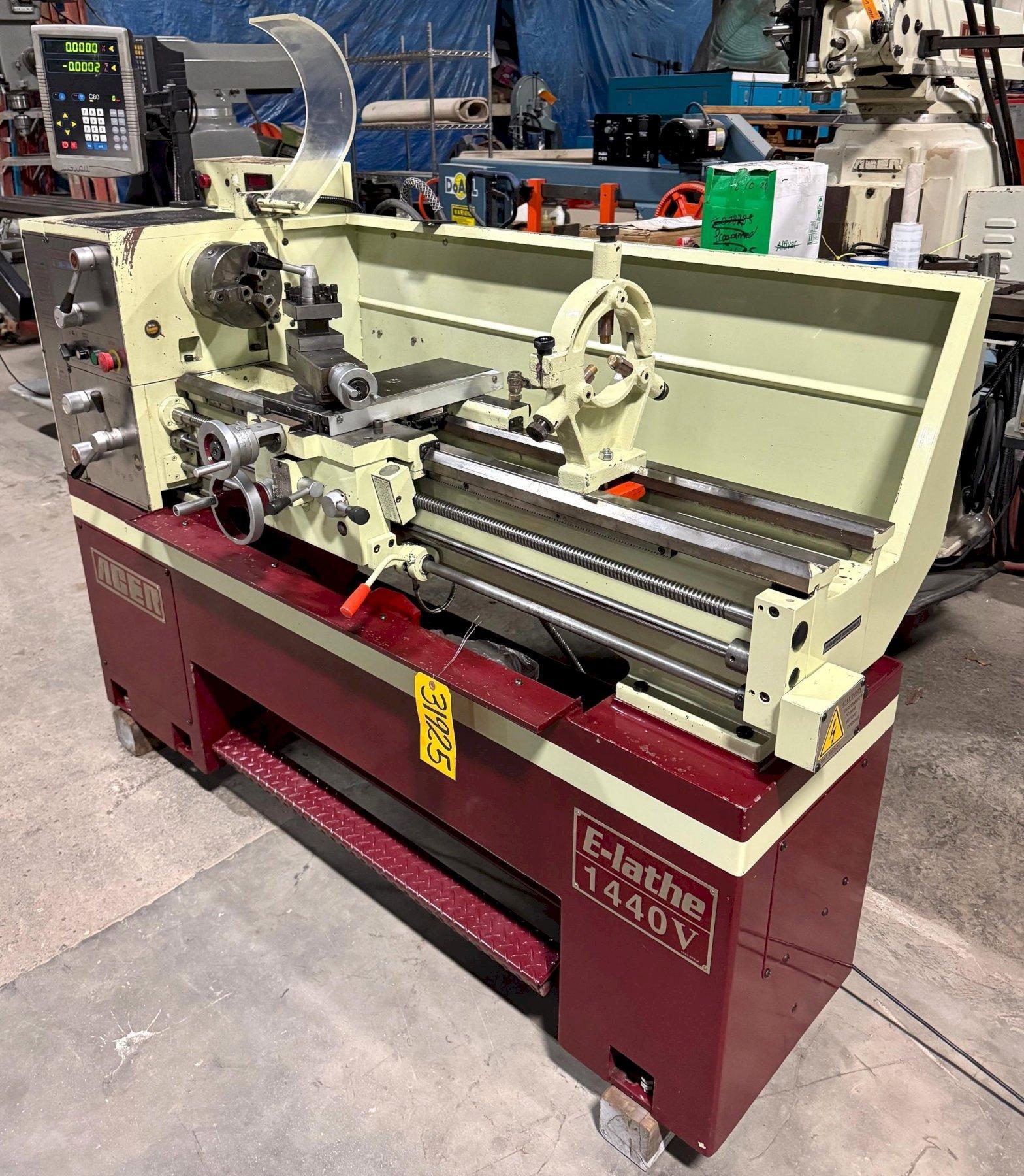

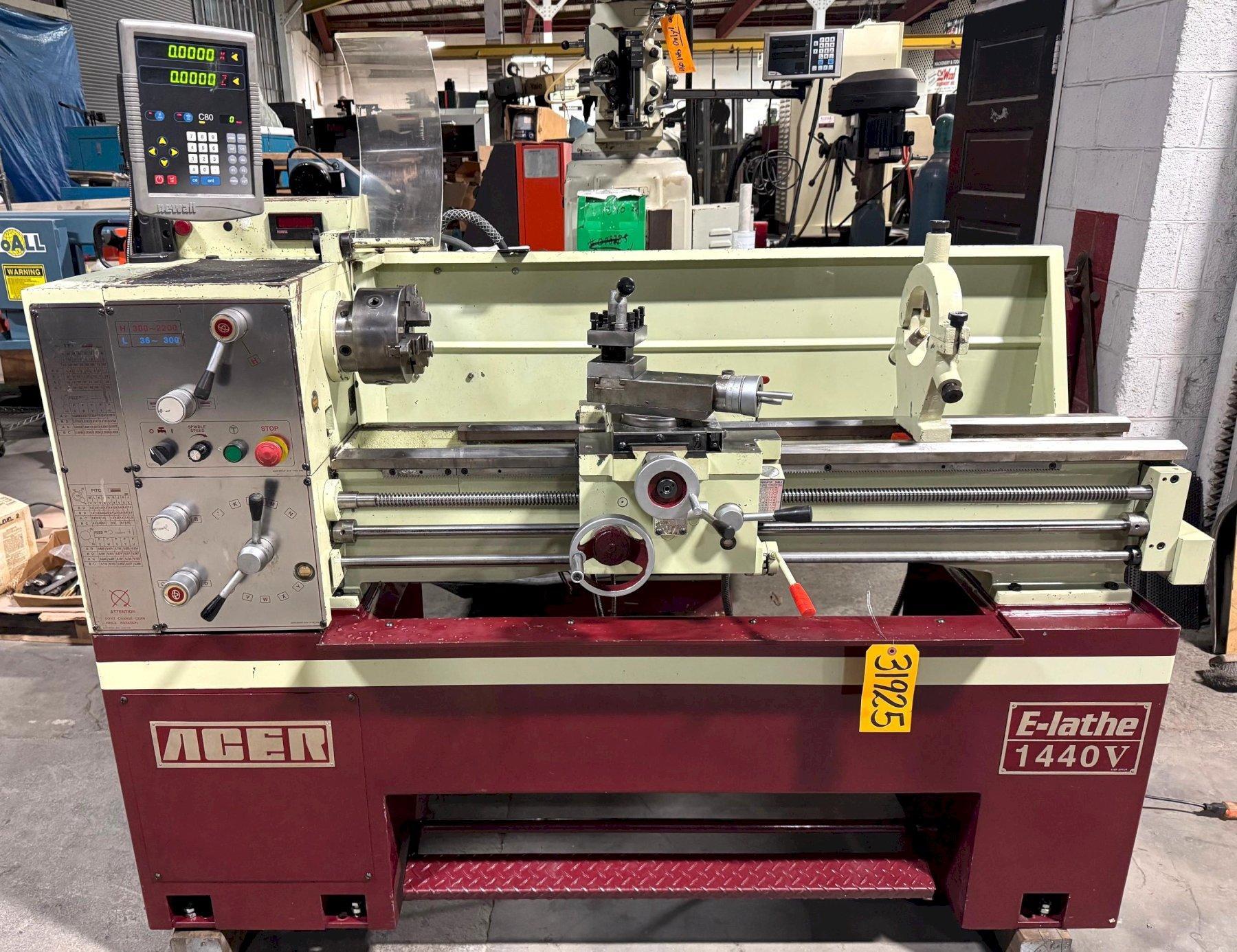

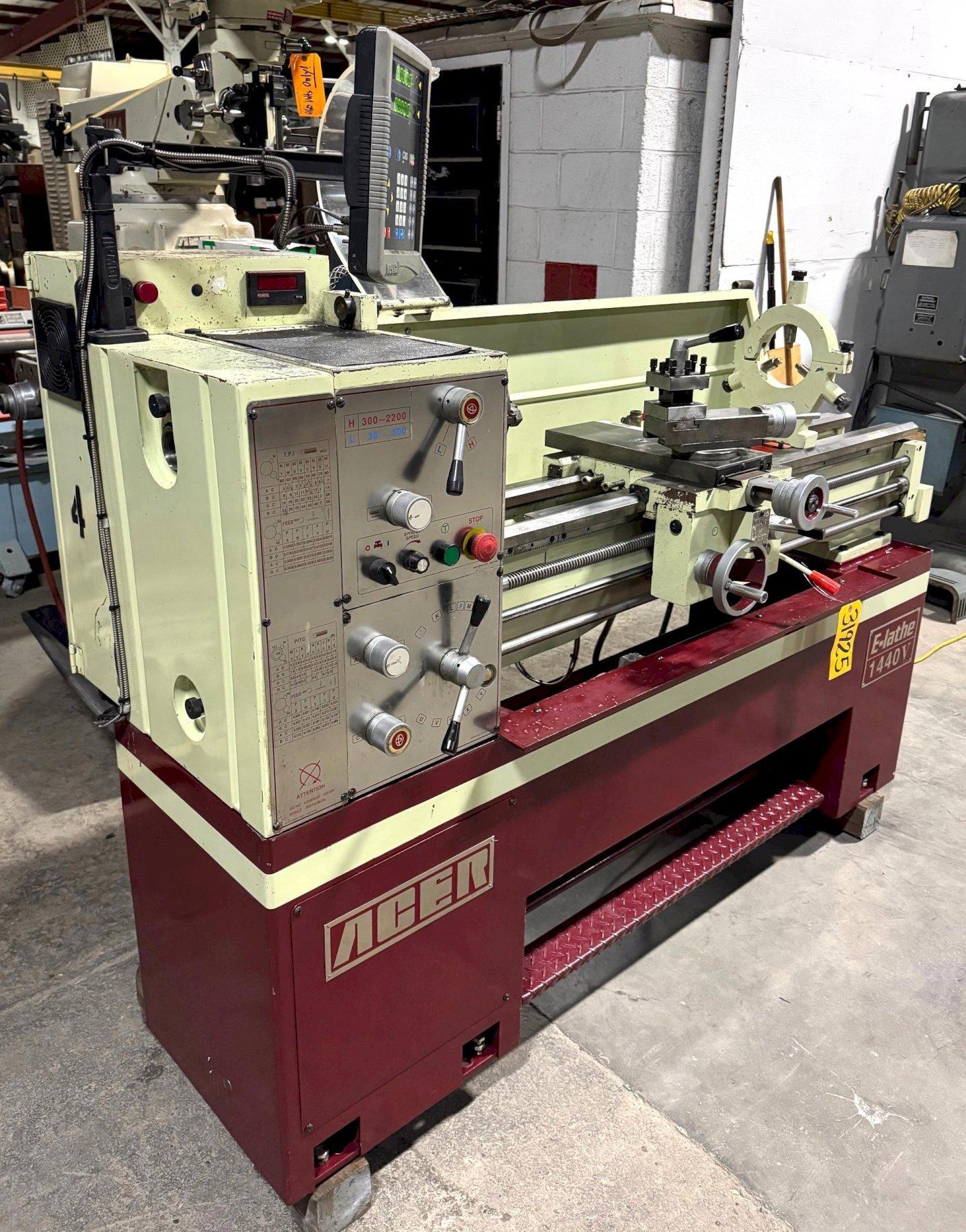

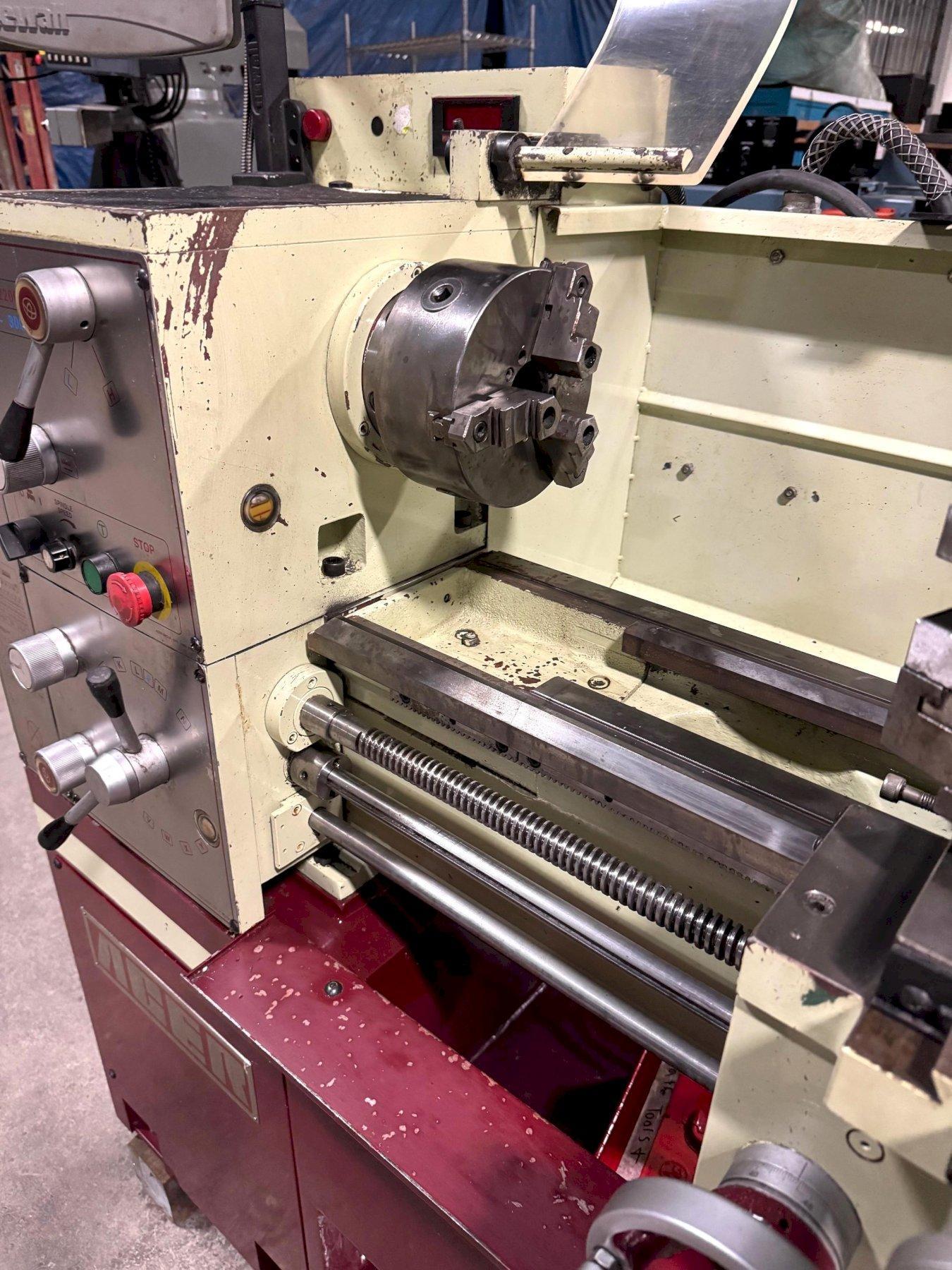

ACER GAP BED ENGINE LATHE
MODEL: Dynamic E-Lathe 1440V

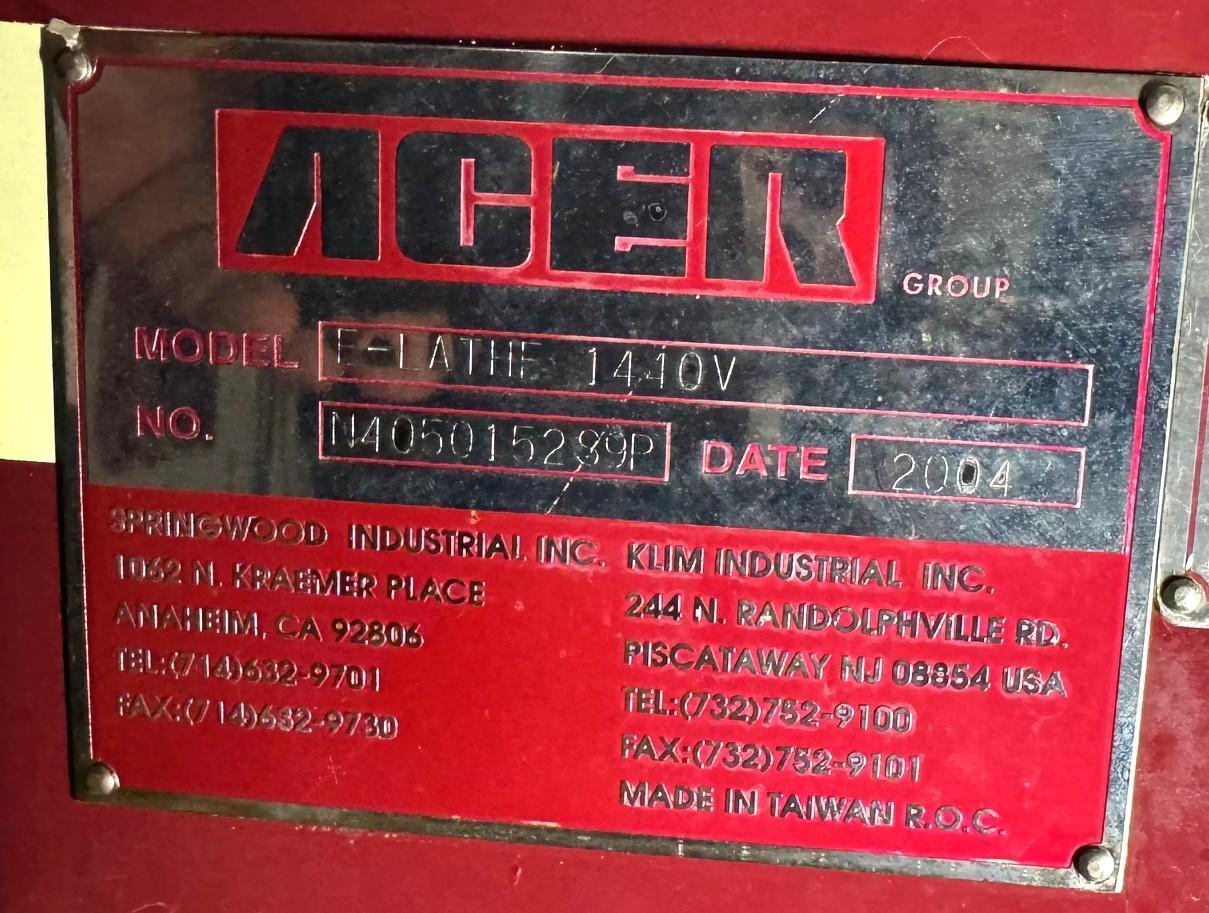

SERIAL NUMBER: N4050152S9P
GENERAL SPECIFICATIONS
Swing Over Bed: 14"
Swing Over Gap: 20-3/4"
Swing Over Cross Slide: 8-3/4"
Distance Between Centers: 40"
Spindle Bore Diameter: 1-1/2"

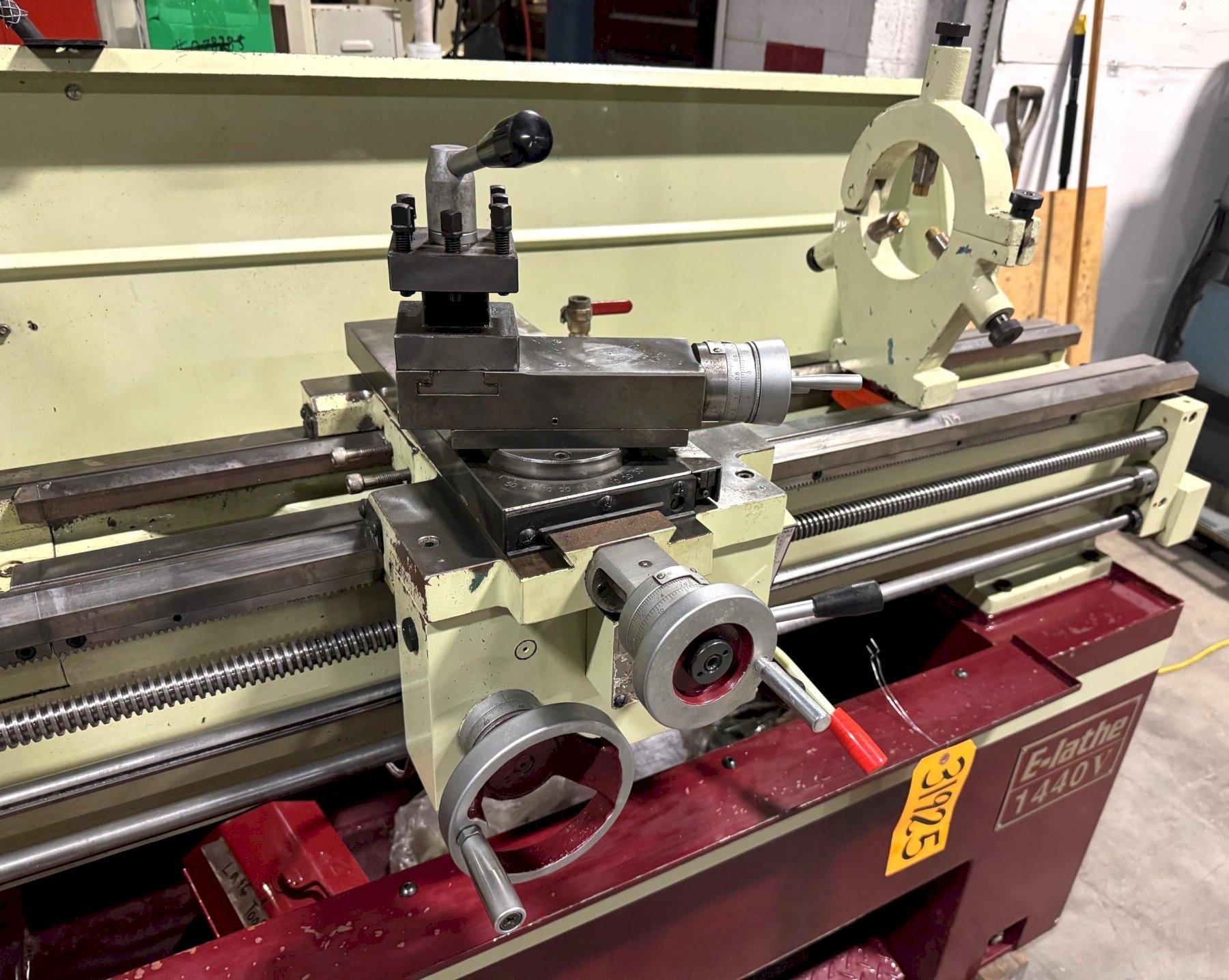

Cross Slide Travel: 8-5/8"
Spindle Nose: D1-4 Cam Lock

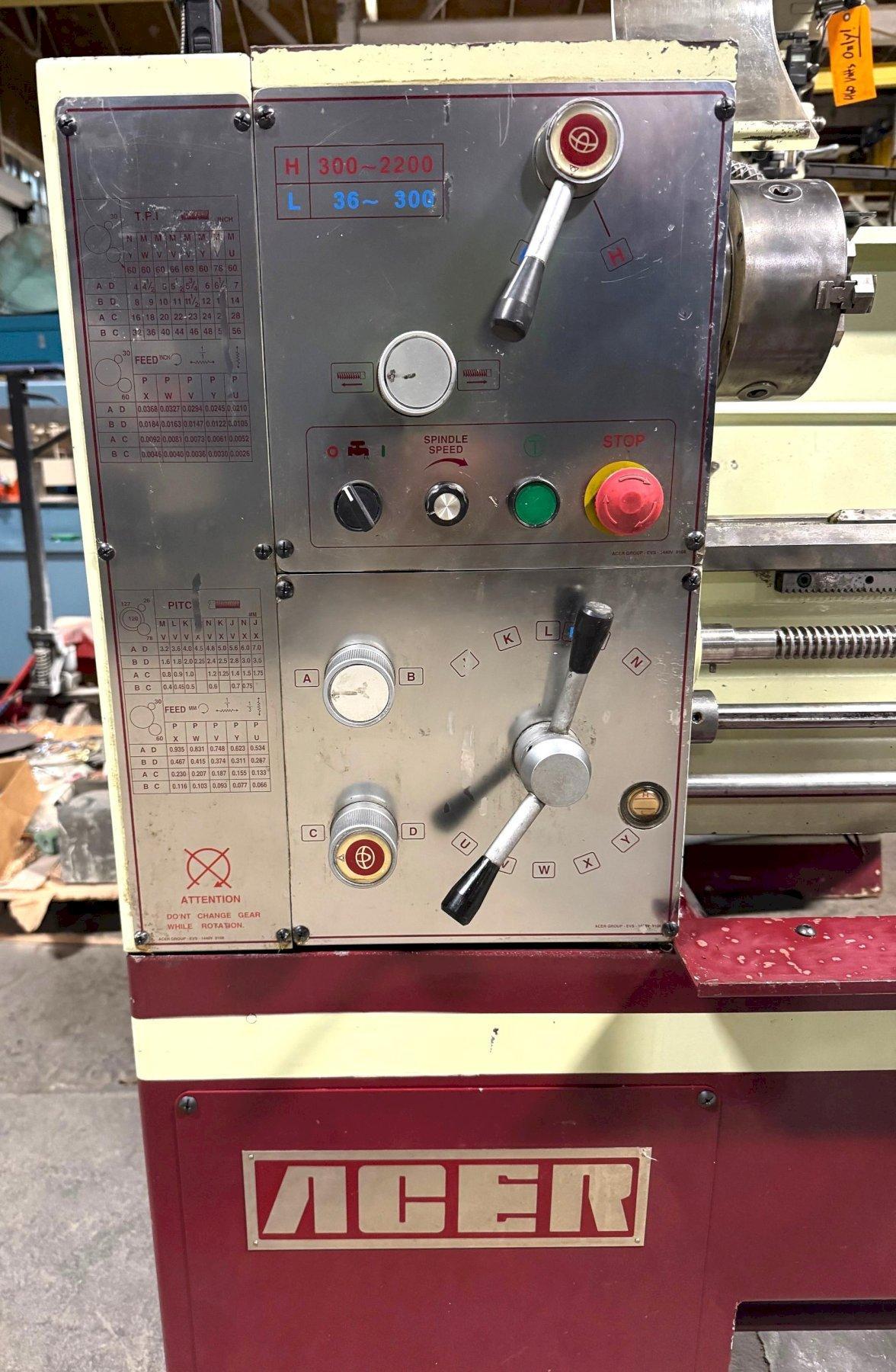

Spindle Speeds, Infinite: 36 to 2200 RPM
Longitudinal Feed Range: .0016" to .03"/Rev
Cross Feed Range: .0008" to .015"/Rev
English Threads: (32) 3 to 56 TPI
Metric Threads: (30) .4 to 7 mm
EQUIPPED WITH
3 HP Main Drive Motor

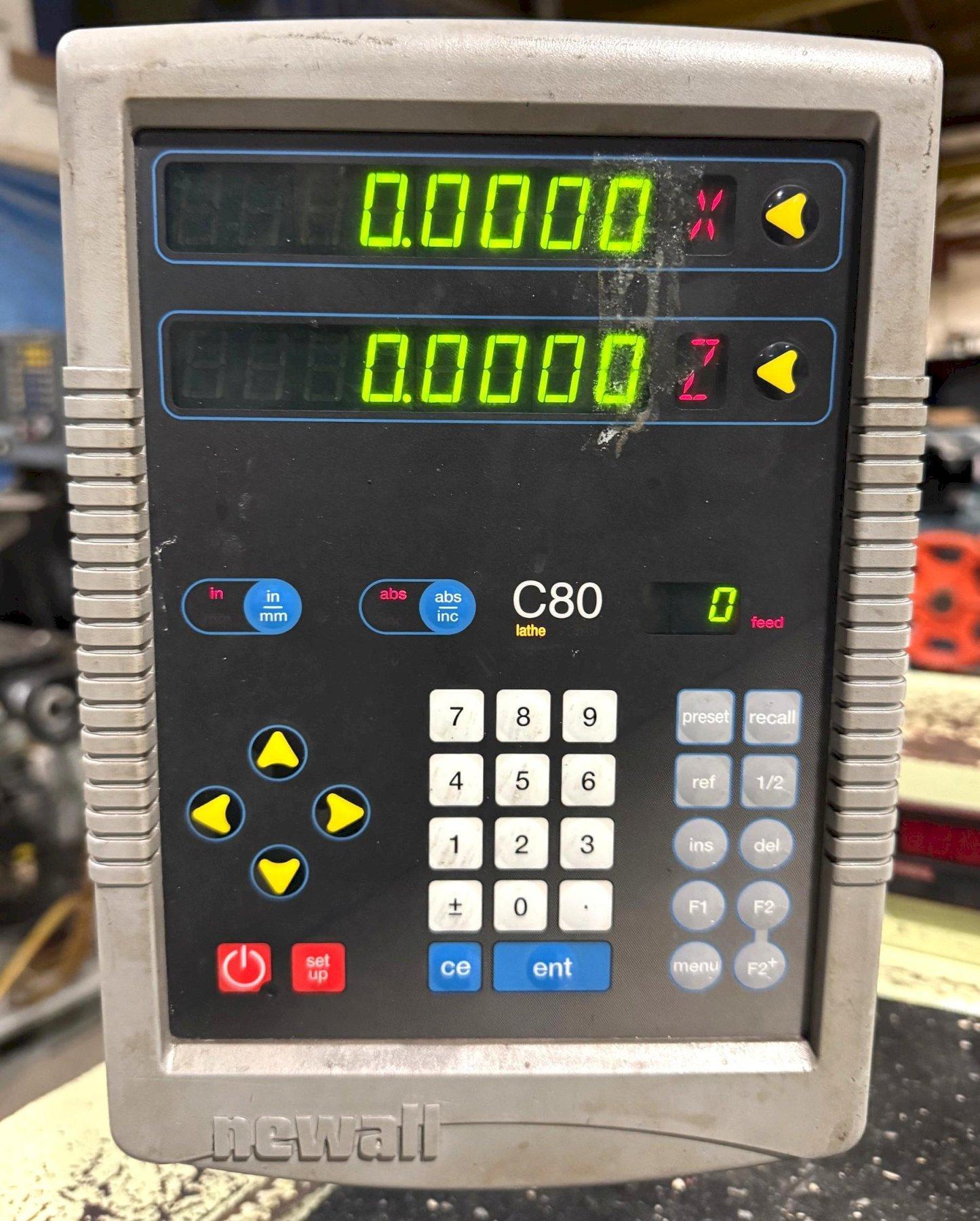

Newall C-80 Two Axis Digital Readout
3-Jaw Chuck

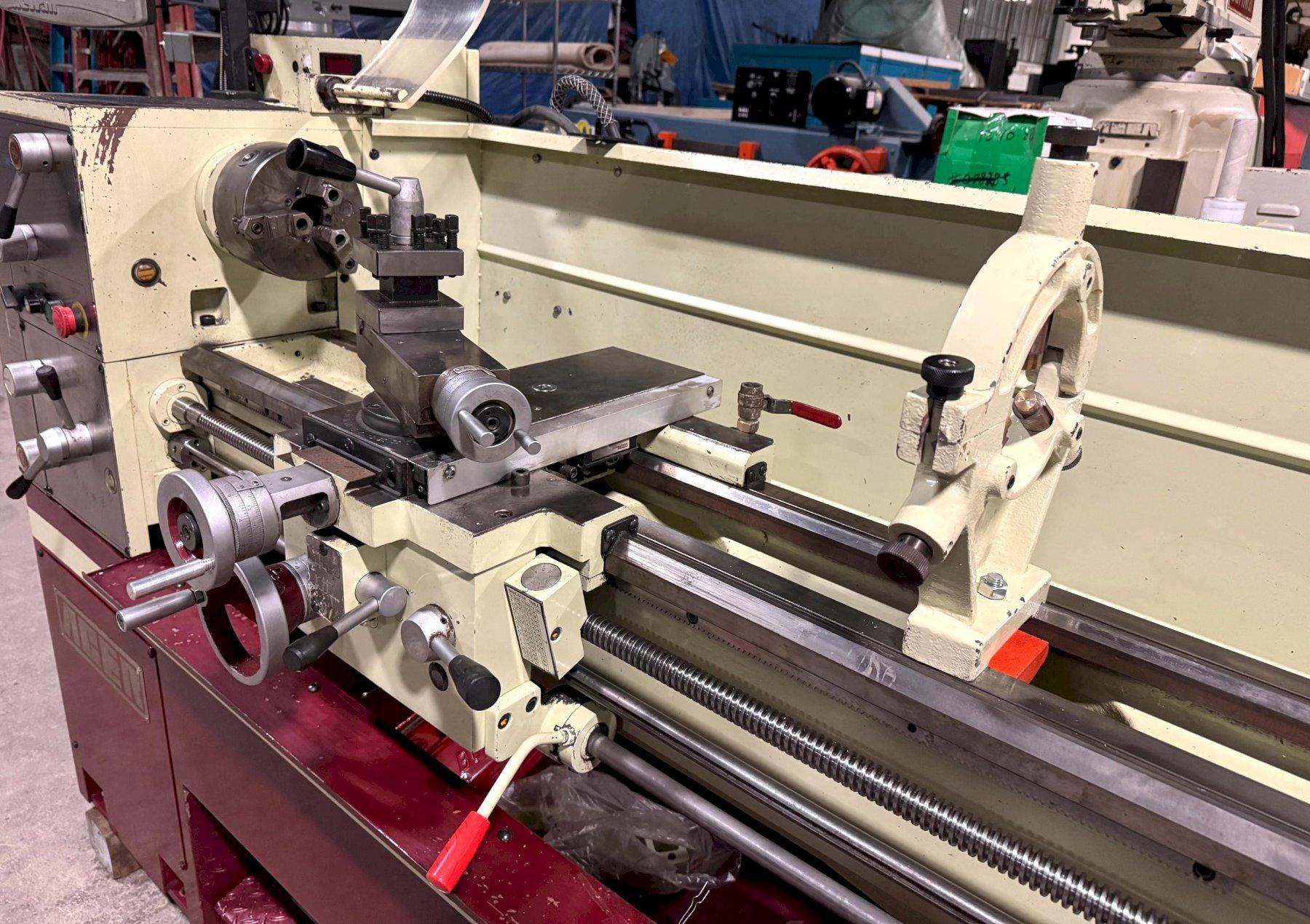

Steady Rest
Thread Dial
Inch/Metric Threading
Full Length Splash Guard
Foot Brake
Coolant System
Approximate Weight: 1600 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
