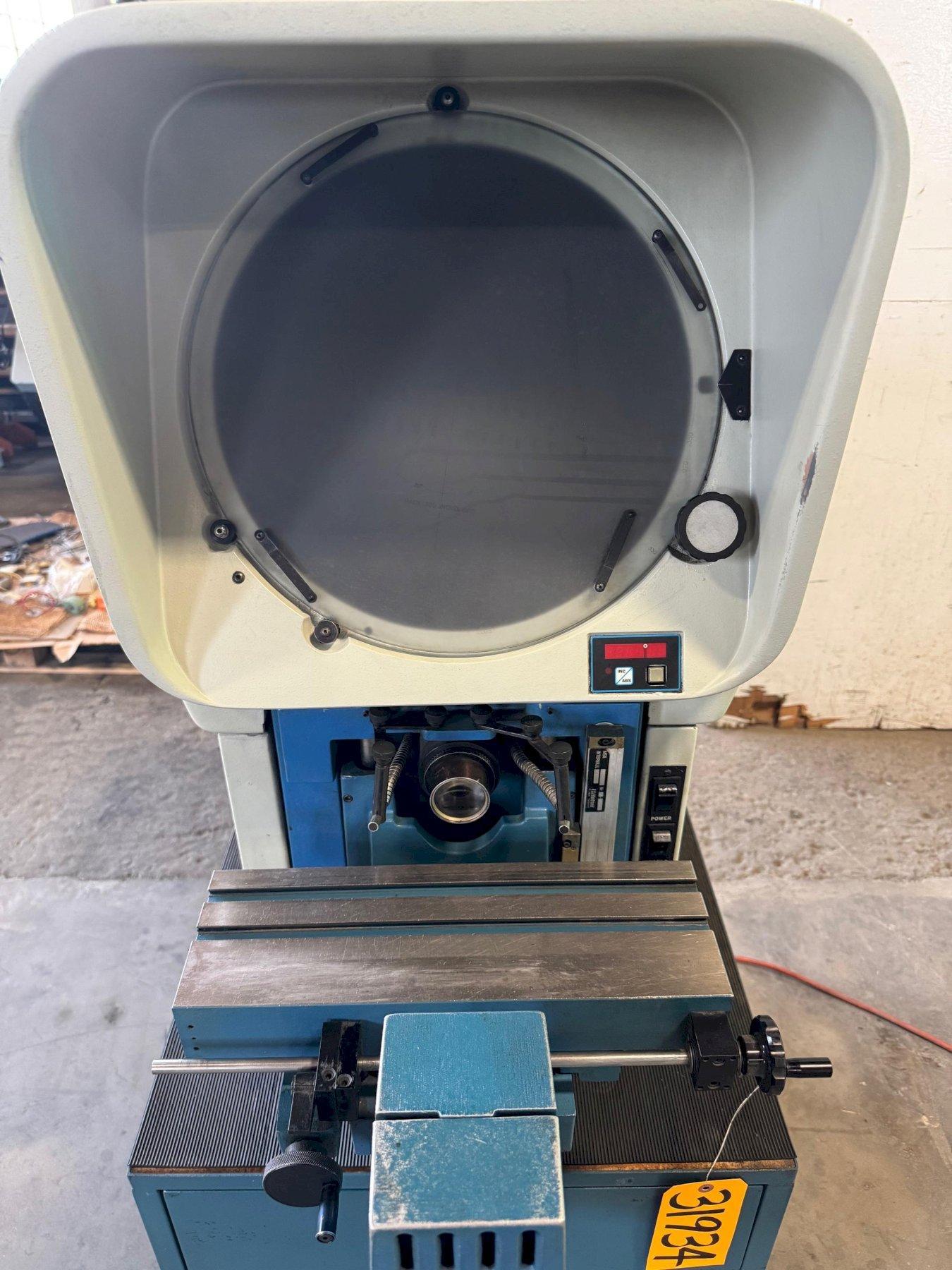

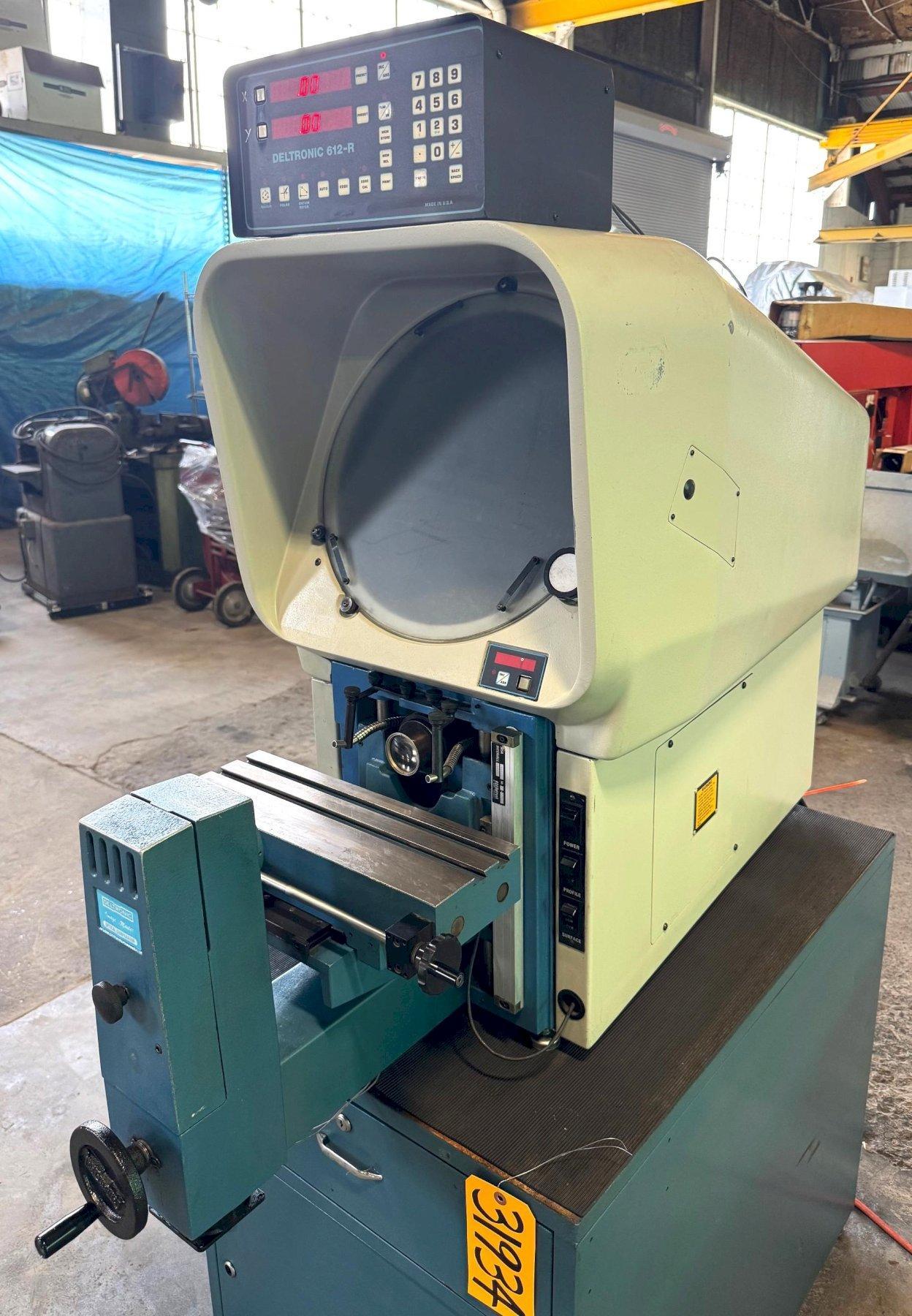

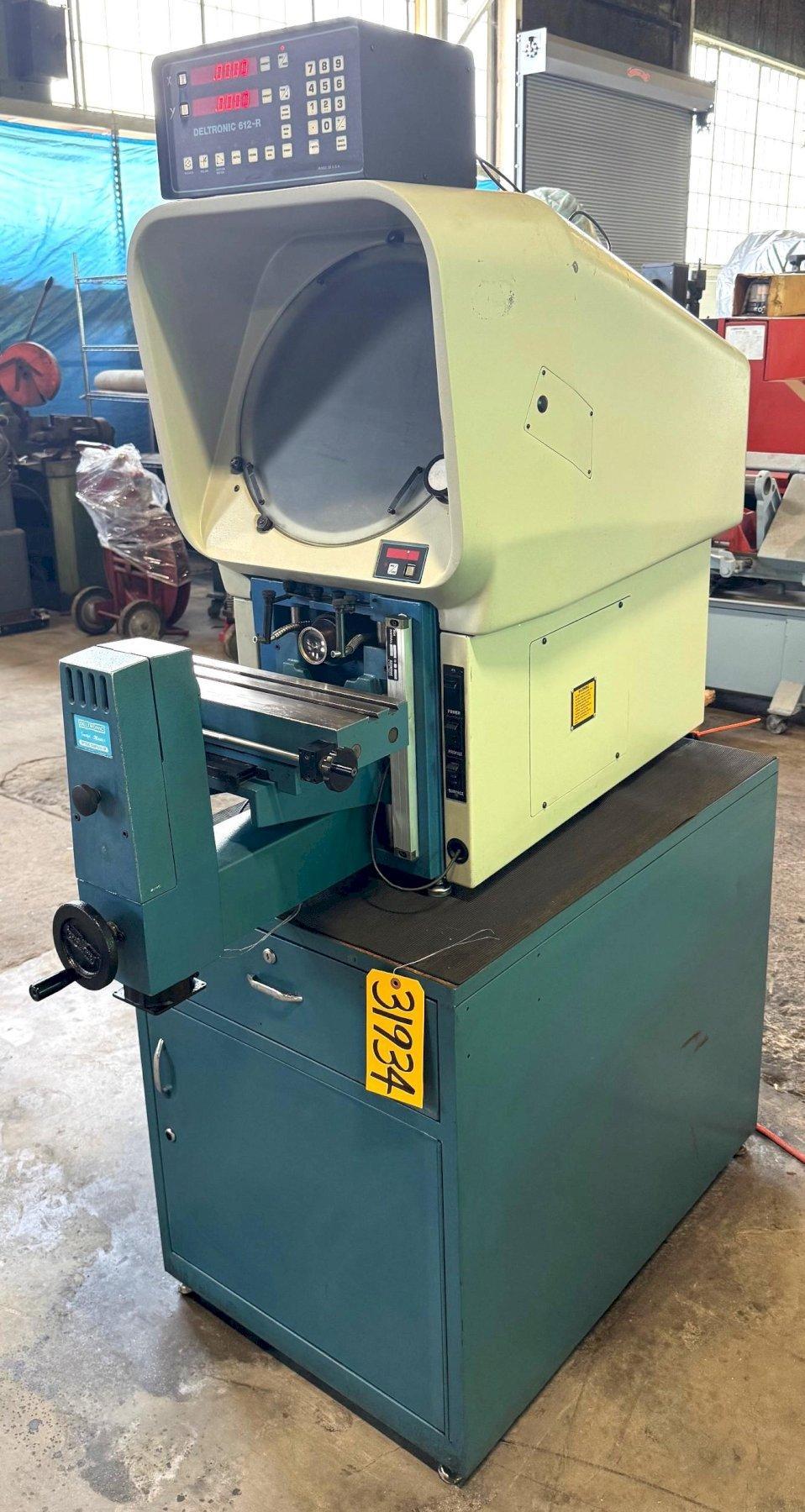

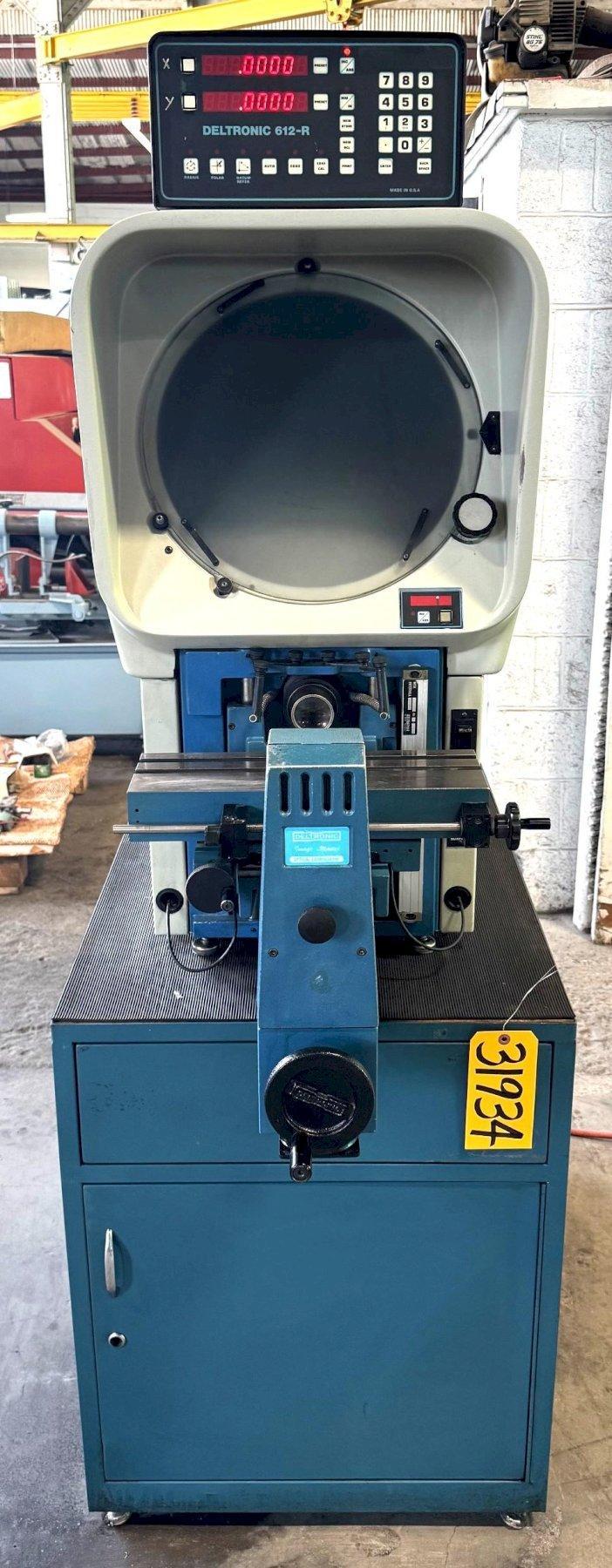

14" Deltronic Optical Comparator DH14-MPC, Surface Illumination, DRO

Brand
DELTRONIC

Model
DH14-MPC

Type
Comparators

Stock #
31934

Condition
Used

Year

Location
Cincinnati, Ohio
United States

Request Quote

Specifications

Dia. of Screen 15.5 inches
CNC Control no

Equipped With

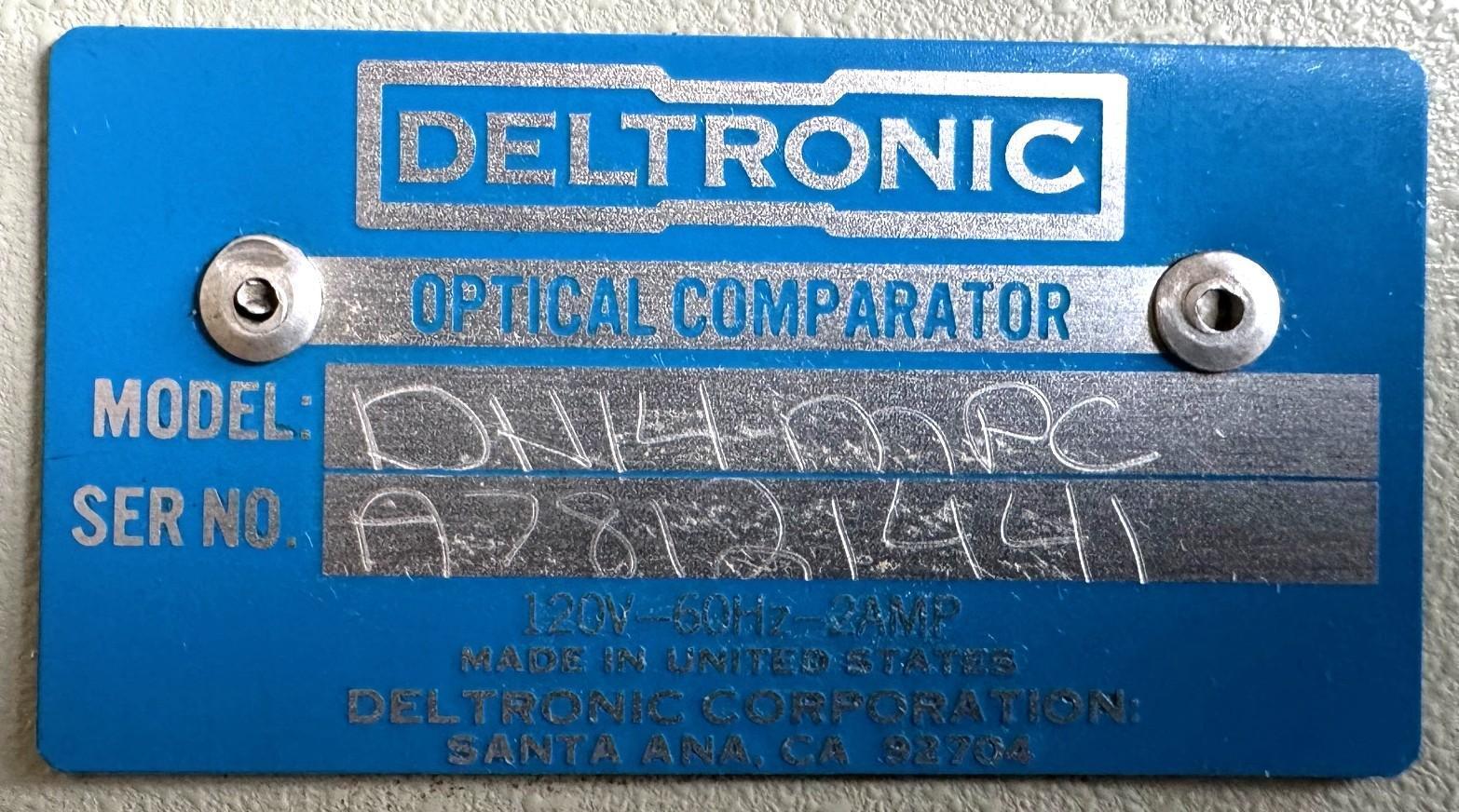

DELTRONIC OPTICAL COMPARATOR & MEASURING MACHINE

MODEL: DH14-MPC
SERIAL NUMBER: A78121441

GENERAL SPECIFICATIONS

Screen Diameter: 15.5"
Size Of Work Table: 5" x 15"
Longitudinal Table Travel (X-Axis) : 6.5"
Vertical Table Travel Z-Axis): 4.1"
Cross Travel For Focusing: 3:
Electrical: 120/60/1

EQUIPPED WITH

Tungsten Halogen Projection
Fiber Optic Surface Illuminator
10X Lens, 20X Lens
Digital Angle Display-360 Degree Rotation

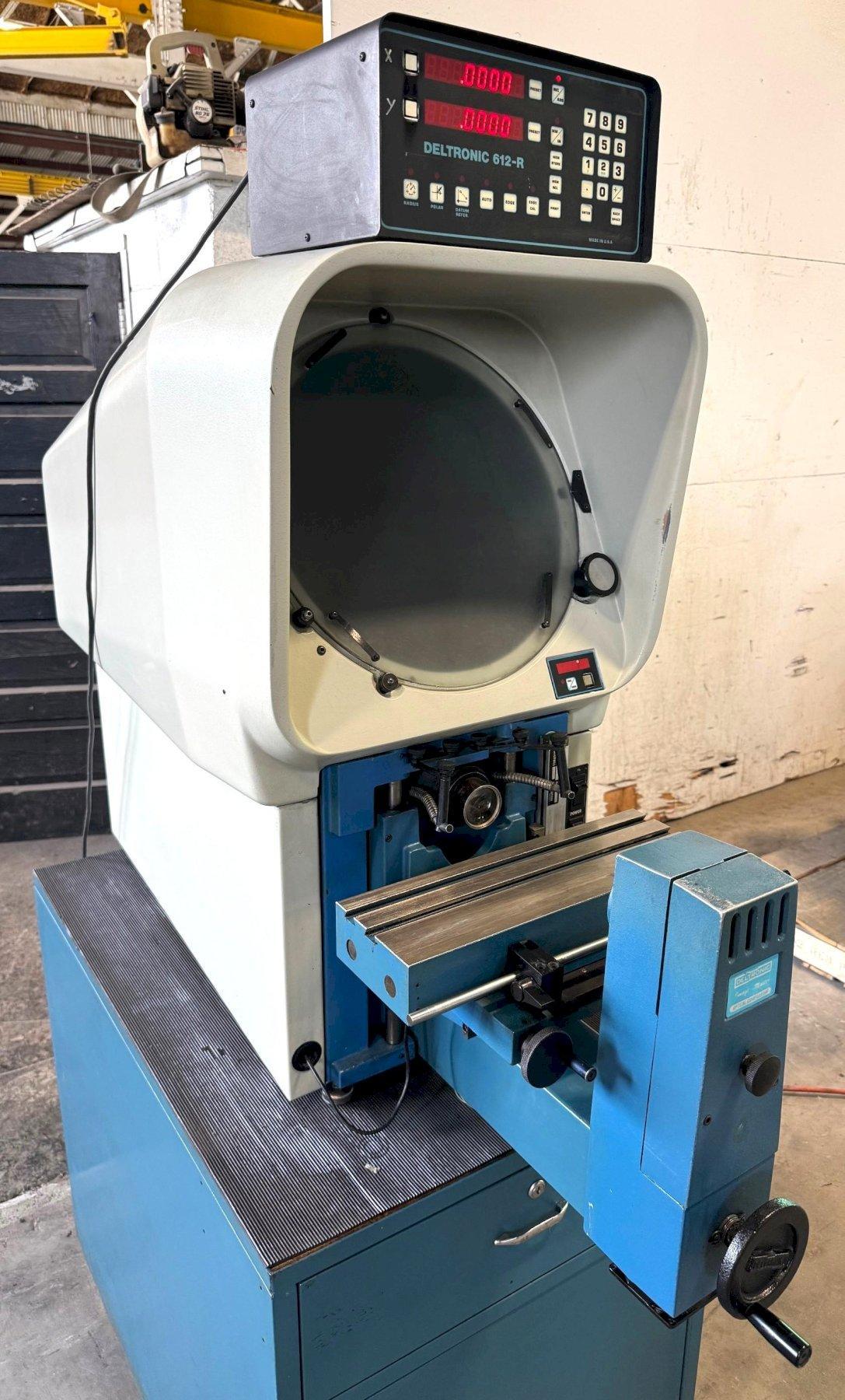

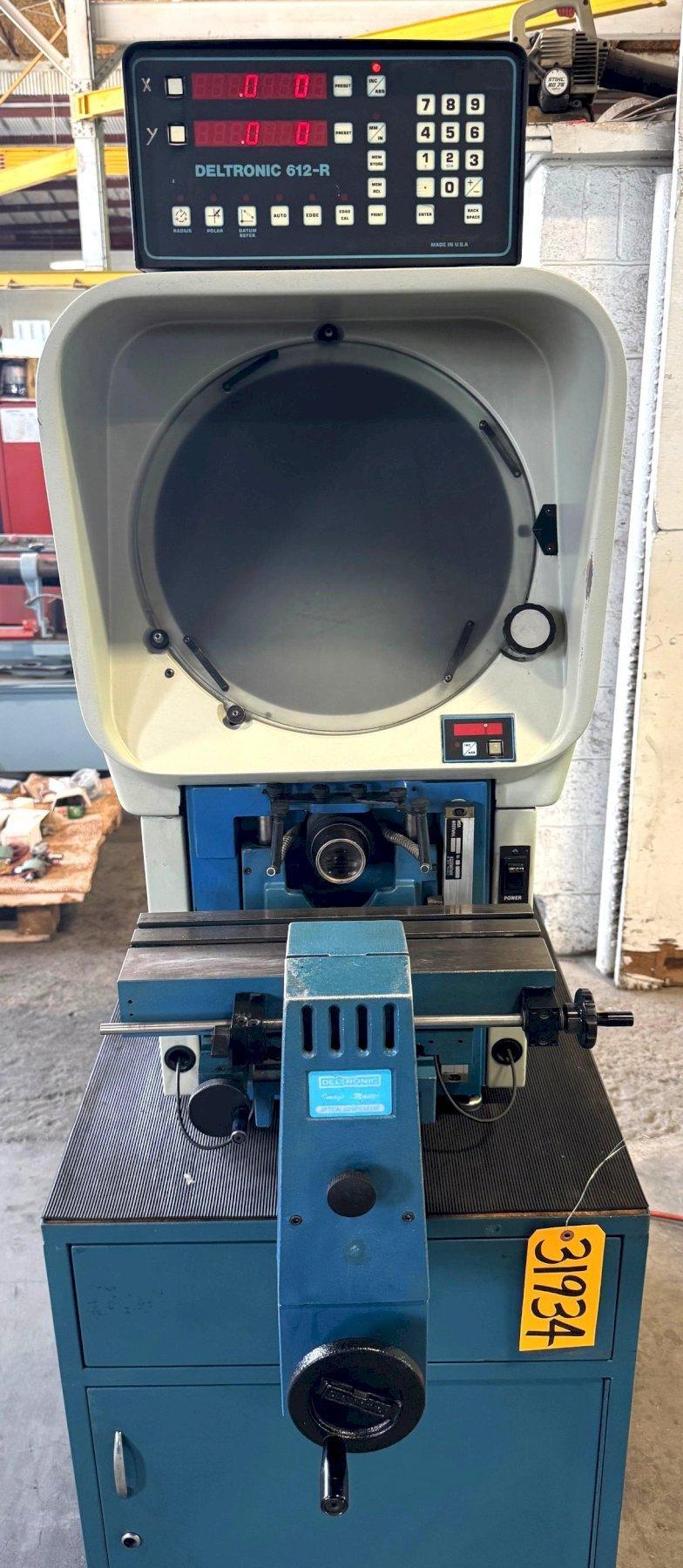

Deltronic 612-R Computational Two-Axis Digital Readout System w/Glass Scales
Cabinet Base

Floor Space: 30" L-R x 55" F-B x 66"H
Approximate Weight: 300 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
