Specifications
Equipped With

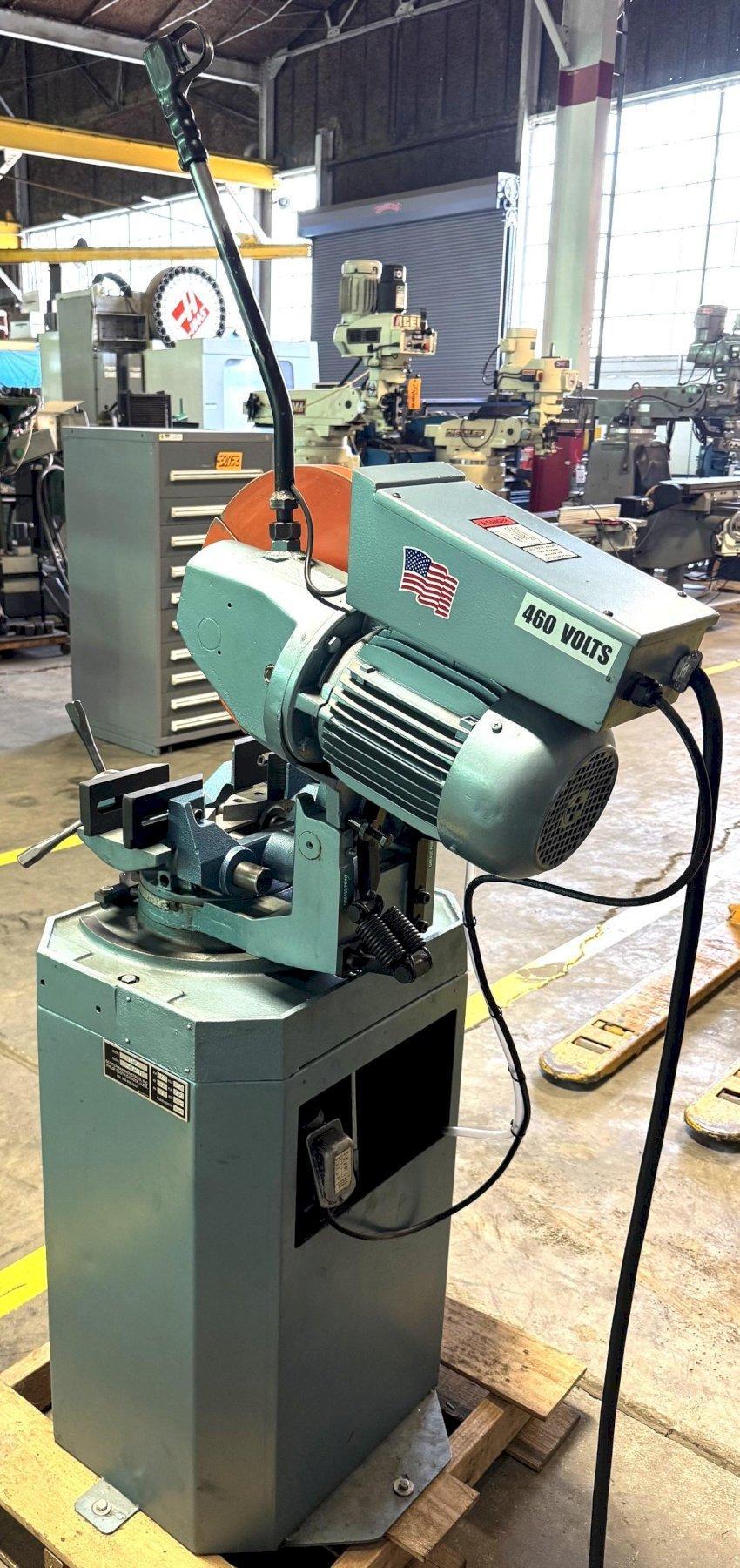

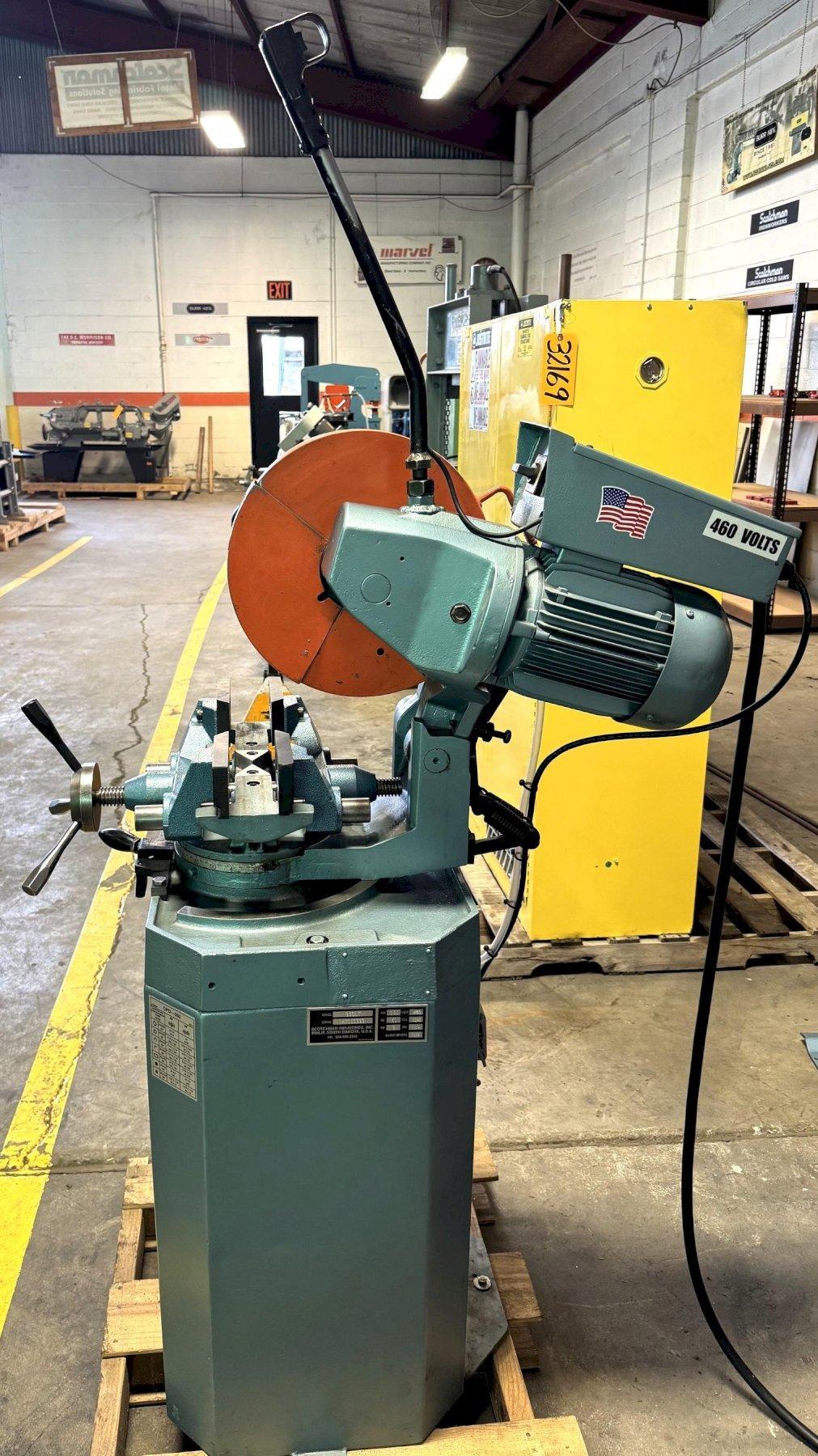

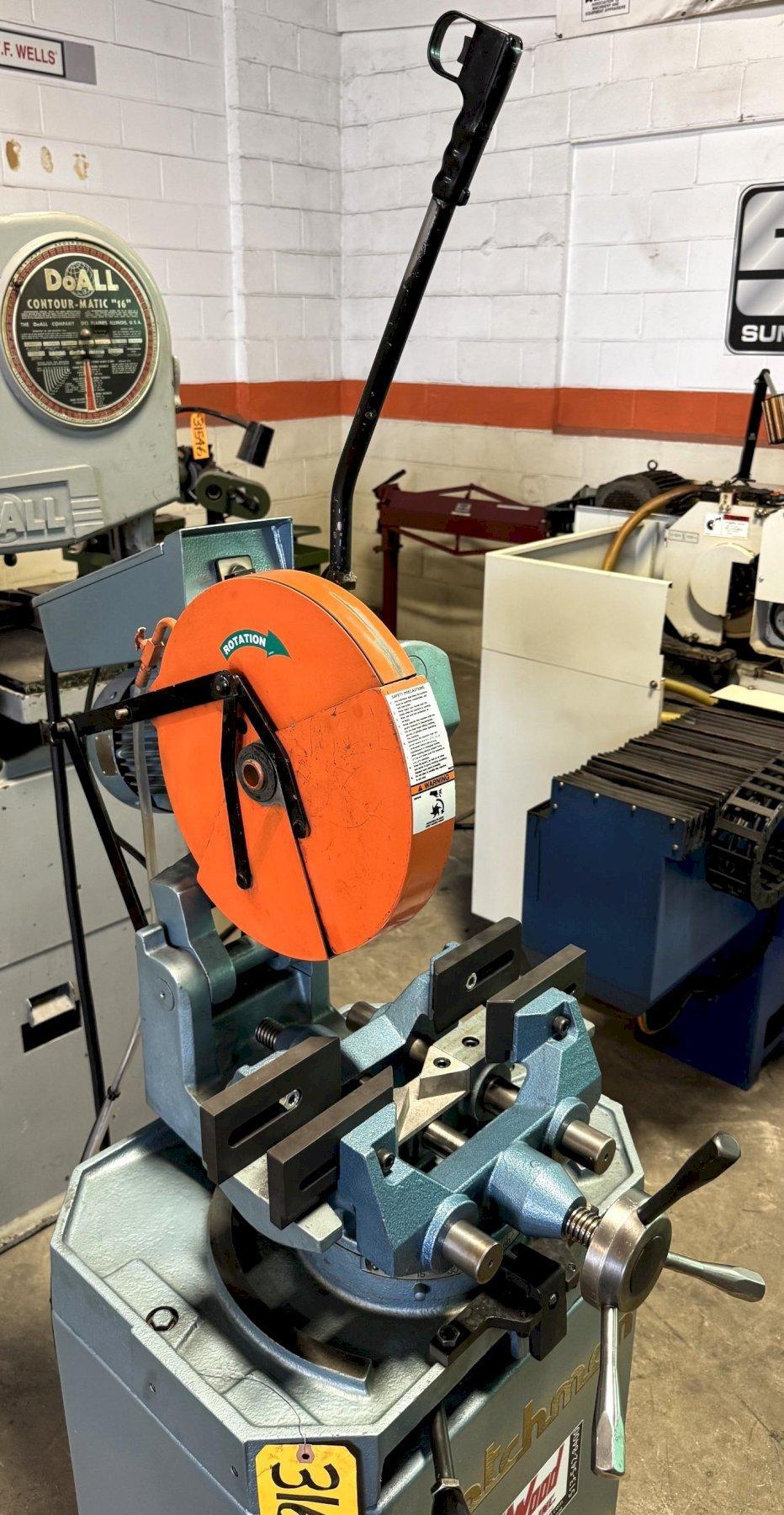

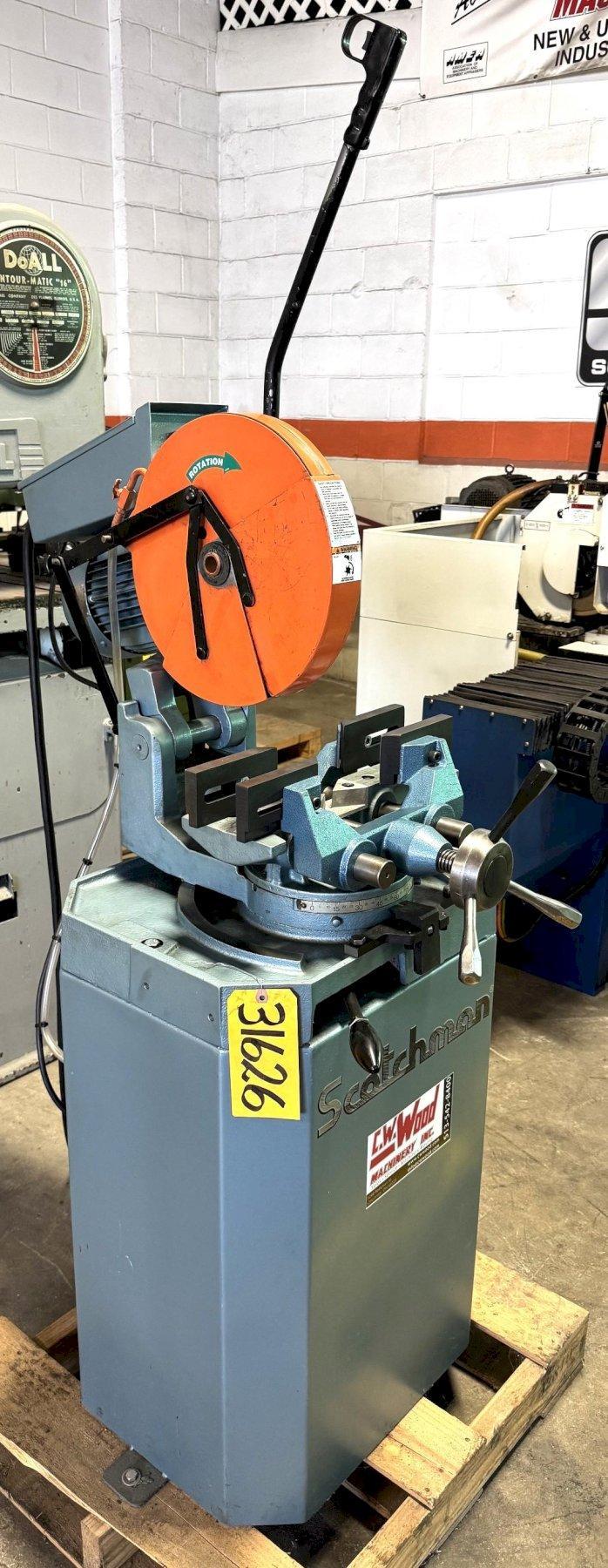

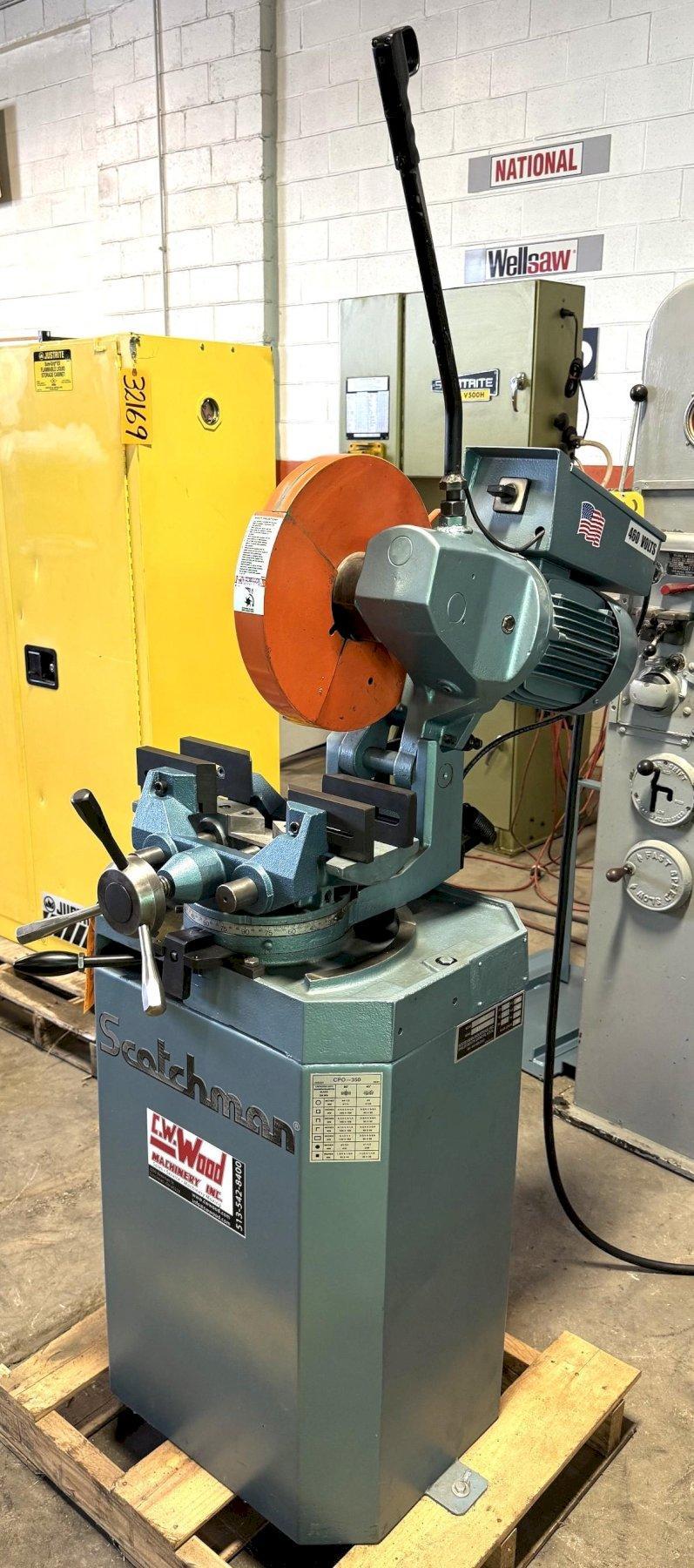

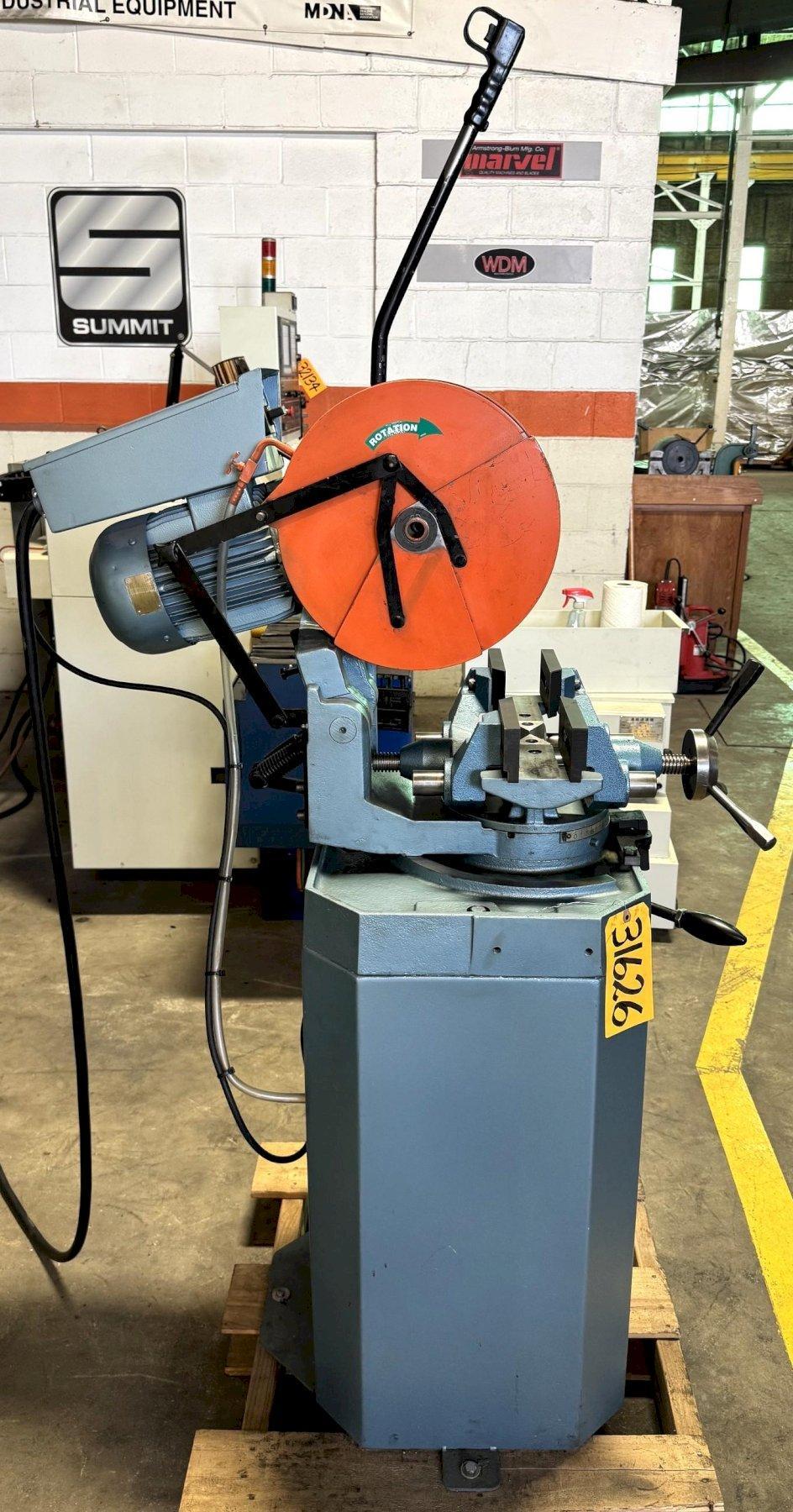

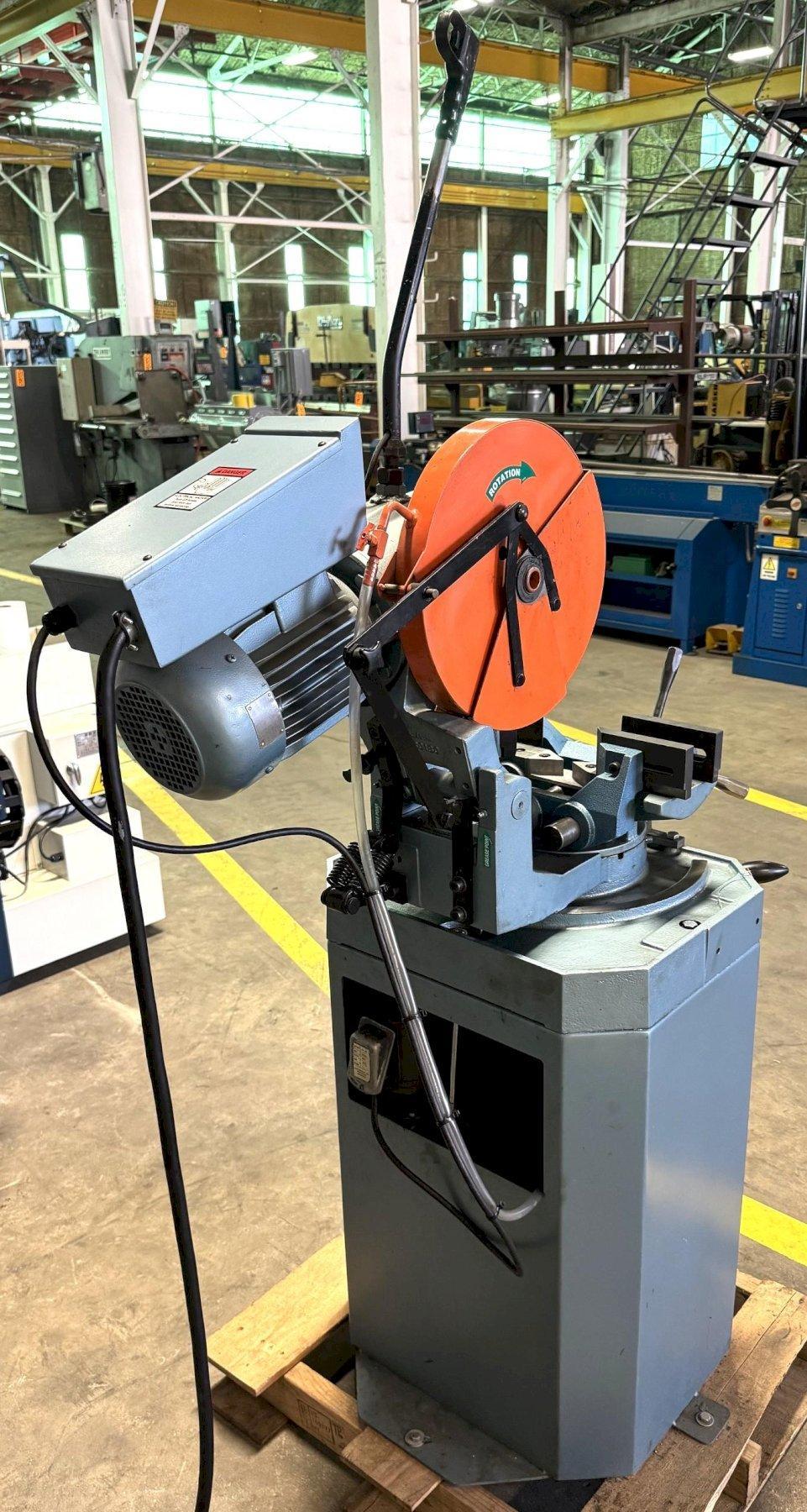

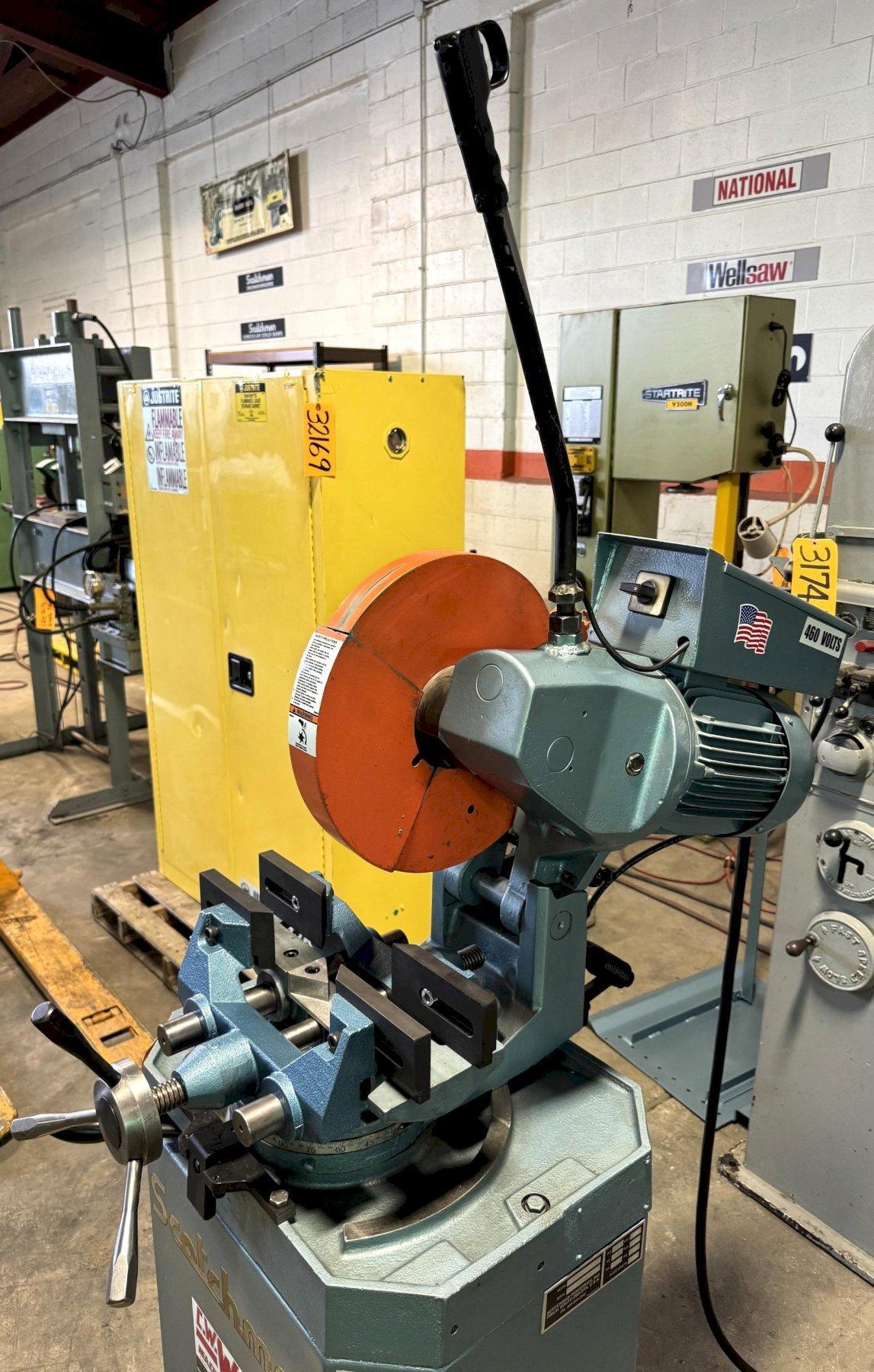

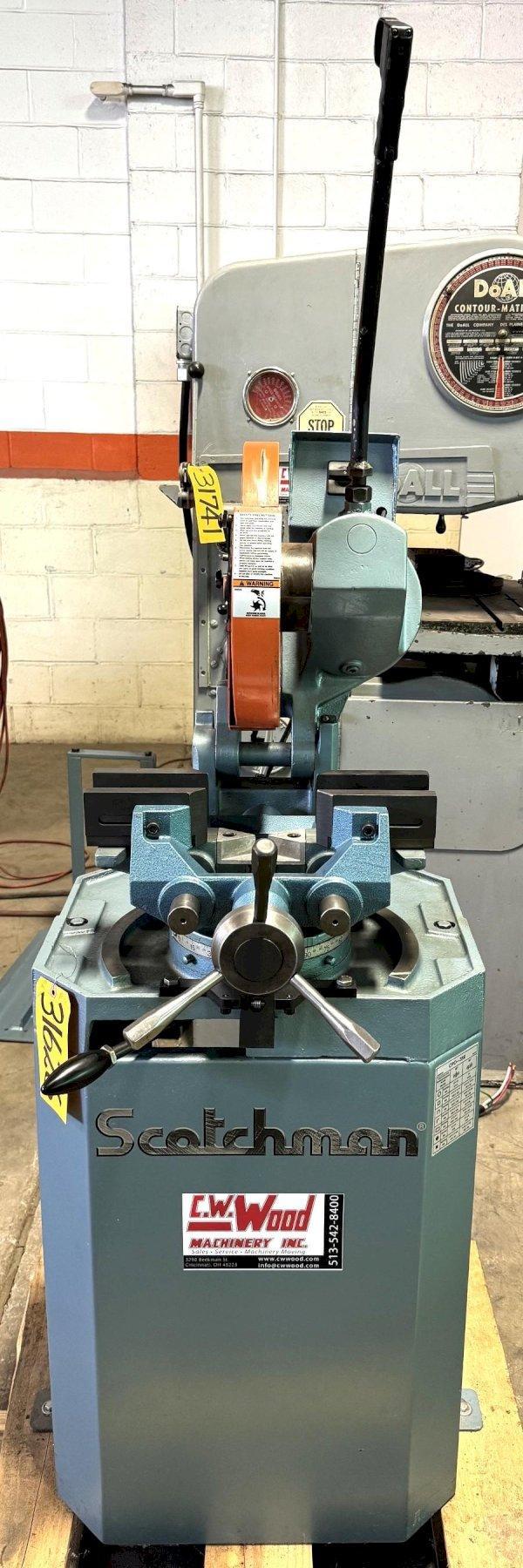

SCOTCHMAN COLD SAW
MODEL: CPO 350 LT

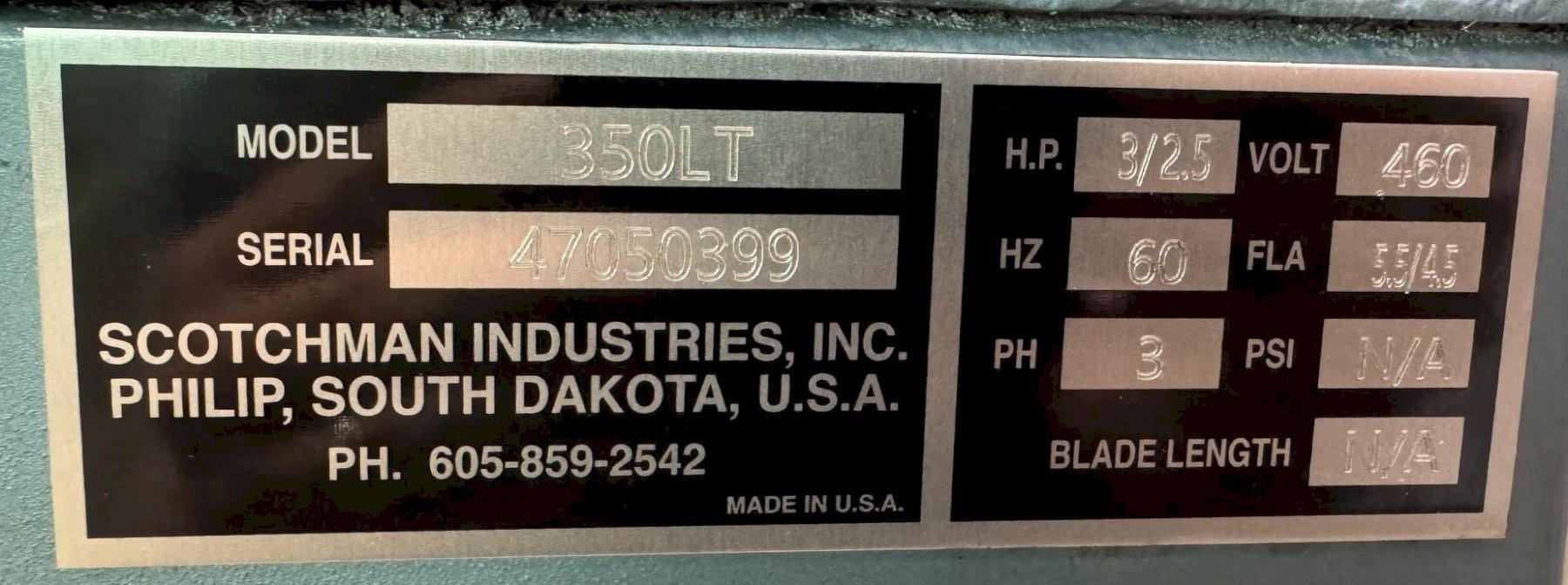

SERIAL NUMBER: 47050399 Year: 1999*
Reconditioned 2024
GENERAL SPECIFICATIONS
Maximum Blade Diameter: 14"
Arbor Bore: 1-9/16"
Cutting Speeds: 22 & 44 RPM
Miter Capabilities: 45 Degrees Left To 45 Degrees Right
Miter Locking Device: Quick Accurate Setting-Stops At 45 Degrees Left, 90
Degrees, and 45 Degrees Right
Maximum Capacities
Round Tubing, 90 Degrees: 4-7/8"
Round Tubing, 45 Degrees: 4-3/8"
Square Tubing, 90 Degrees: 4-3/8" x 4-3/8"
Square Tubing, 45 Degrees: 4" x 4"
Rectangle Tubing, 90 Degrees: 5-1/2" x 4"
Rectangle Tubing, 45 Degrees: 4" x 4"
Round Solids, 90 Degrees: 2"
Round Solids, 45 Degrees: 1-3/4"
Square Solids, 90 Degrees: 2" x 2"
Square Solids, 45 Degrees: 1-3/4" x 1-3/4"
EQUIPPED WITH
.75/1.5 KW Two Speed Motor, 440/60/3

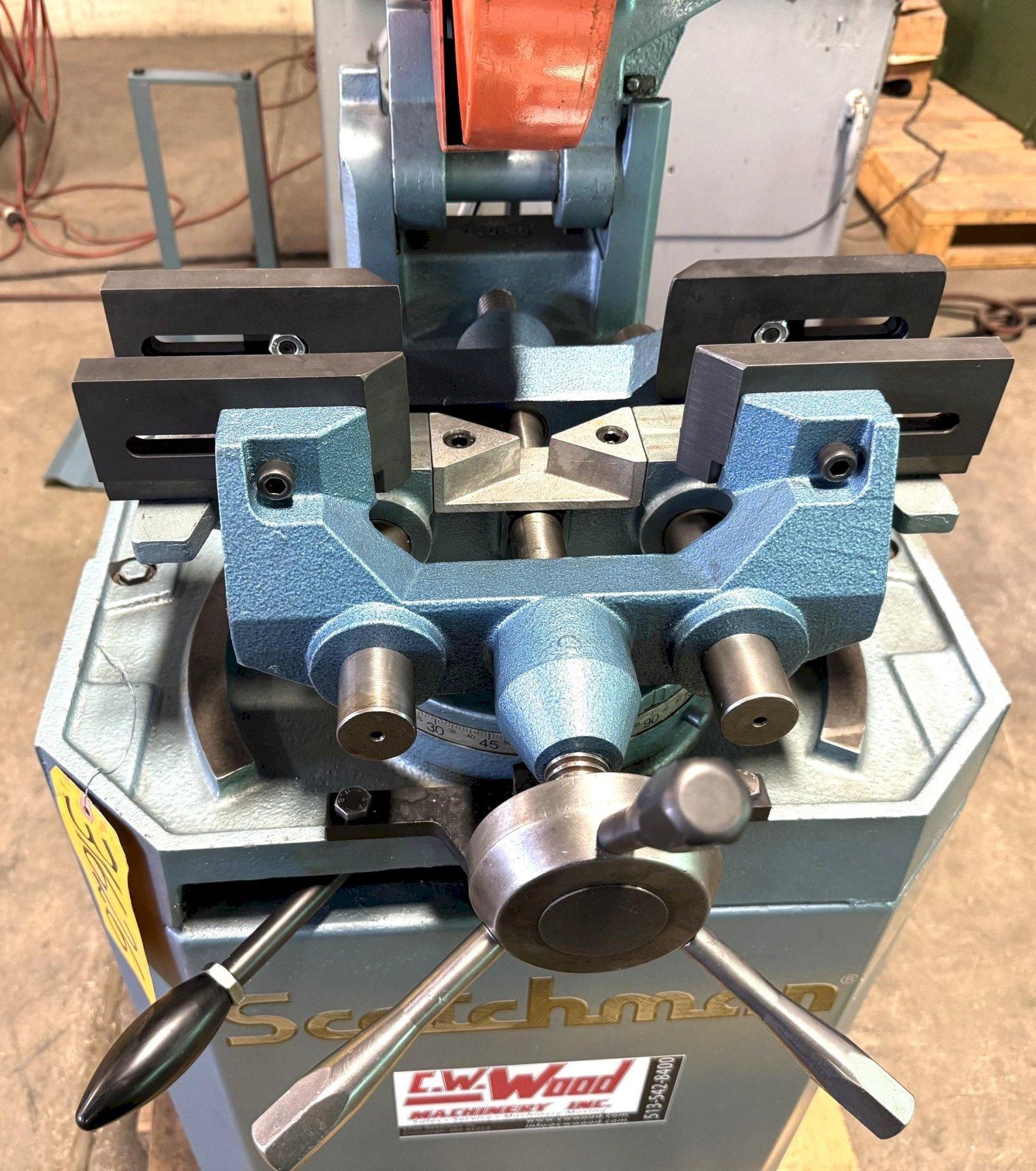

Double Self-Centering Vise
Hardened and Ground Worm and Wheel Gear Box
Coolant System
2024 New Price: $8990.00
Approximate Weight: 600 Lbs.
Shipping Dimensions: 31" x 44" x 59" H
F.O.B. Cincinnati, Ohio 45223
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
