Specifications
Equipped With

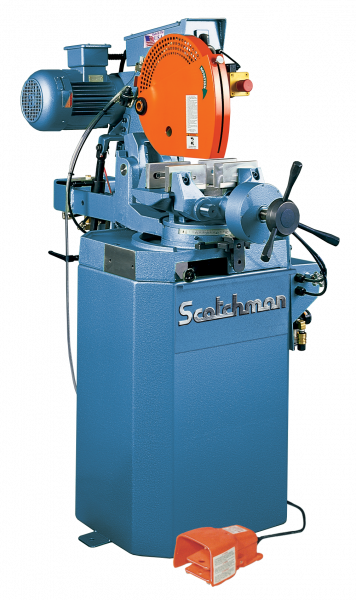

MODEL: CPO 350 NFPKPD
GENERAL SPECIFICATIONS
Semi-Automatic Saw
*Air-Operated Clamp For Material Vise
*Pneumatic Power Down Feed With Electric Controls
*Sepearate Feed Controls For Rate and Pressure
*Capable Of Slotting
*Positive Cog Belt Driven
Maximum Blade Diameter: 14"
Arbor Bore: 1-9/16"
Cutting Speeds: 1500 & 3000 RPM
Miter Capabilities: 45 Degrees Left To 45 Degrees Right
Maximum Capacities
Round Tubing, 90 Degrees: 4-1/2"
Round Tubing, 45 Degrees: 4-1/4"
Square Tubing, 90 Degrees: 4-1/4" x 4-1/4"
Square Tubing, 45 Degrees: 4" x 4"
Rectangle Tubing, 90 Degrees: 5-1/2" x 4"
Rectangle Tubing, 45 Degrees: 4" x 4"
Round Solids, 90 Degrees: 3"
Round Solids, 45 Degrees: 2-1/2"
Square Solids, 90 Degrees: 3" x 3"
Square Solids, 45 Degrees: 2-1/2" x 2-1/2"
EQUIPPED WITH
3/3.8 HP Motor
Double Self-Centering Vise
Hardened and Ground Worm and Wheel Gear Box
Coolant System
30" Material Length Stop
Emergency Stop Button
One Year Warranty
Made In USA
F.O.B. Philip, South Dakota
SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
