Specifications
Max Dia. Blade |
14 inches |
CNC Control |
no |
Equipped With

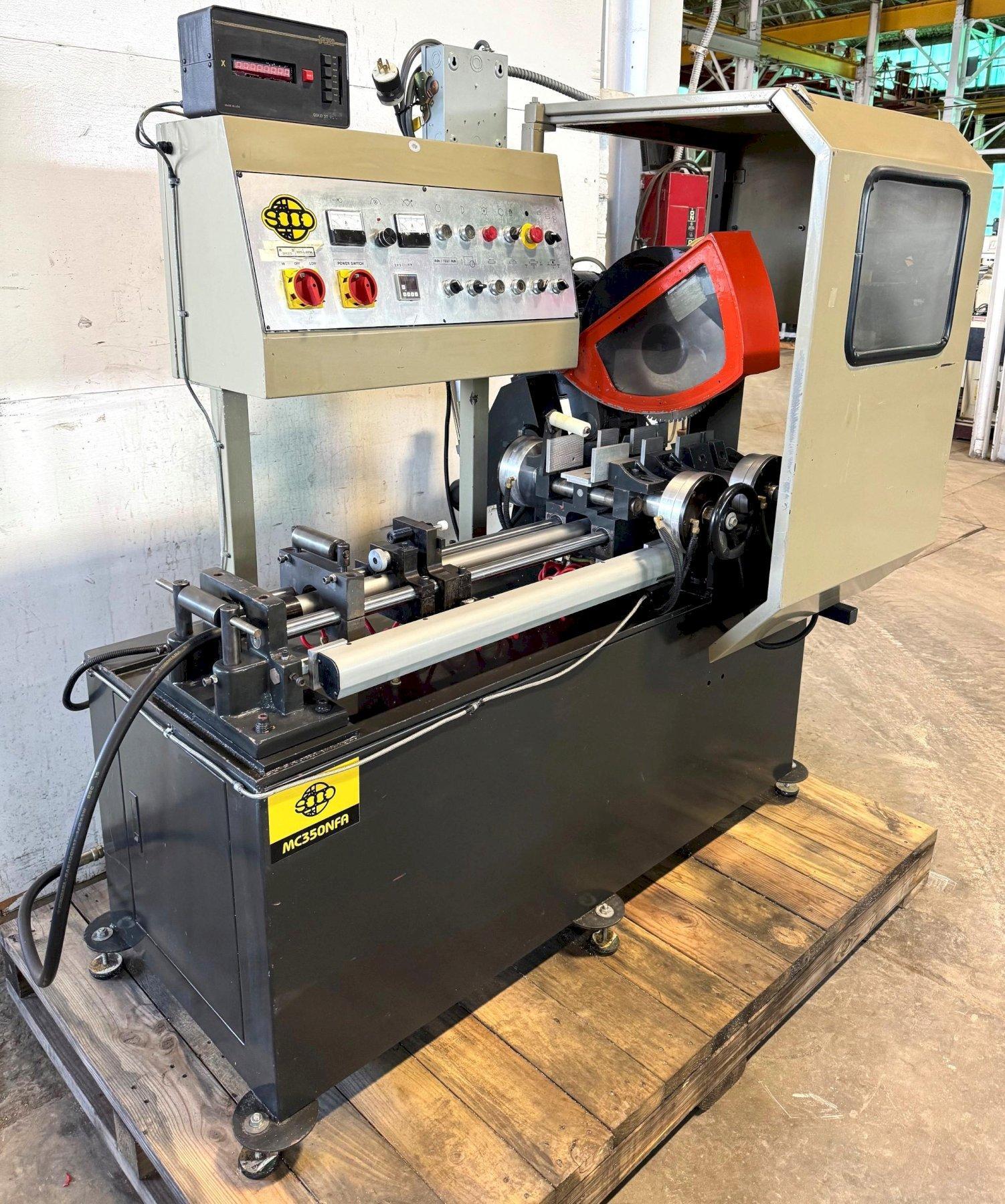

SOCCO HIGH SPEED NON-FERROUS AUTOMATIC CUT-OFF SAW
MODEL: MC-350NFA
SERIAL NUMBER: 95MND35001661
GENERAL SPECIFICATIONS
Maximum Saw Blade Diameter: 14"
Cutting Capacity, Round Solid @ 90 Degrees: 4-1/4"
Cutting Capacity, Square Solid @ 90 Degrees: 4" x 4"
Cutting Capacity, Round Tube @ 90 Degrees: 4-1/4"
Cutting Capacity, Rectangular Tube @ 90 Degrees: 3" x 5"
Blade Speed: 1730 RPM
Automatic Feed Length (One Stroke): 1/4" - 27", Up to 54" (Double Stroke)
Shortest Cut-Off Length (Automatic): 1/4"
Air Requirements: 85 PSI
EQUIPPED WITH
5 HP Motor, 220/60/3
Automatic Feed

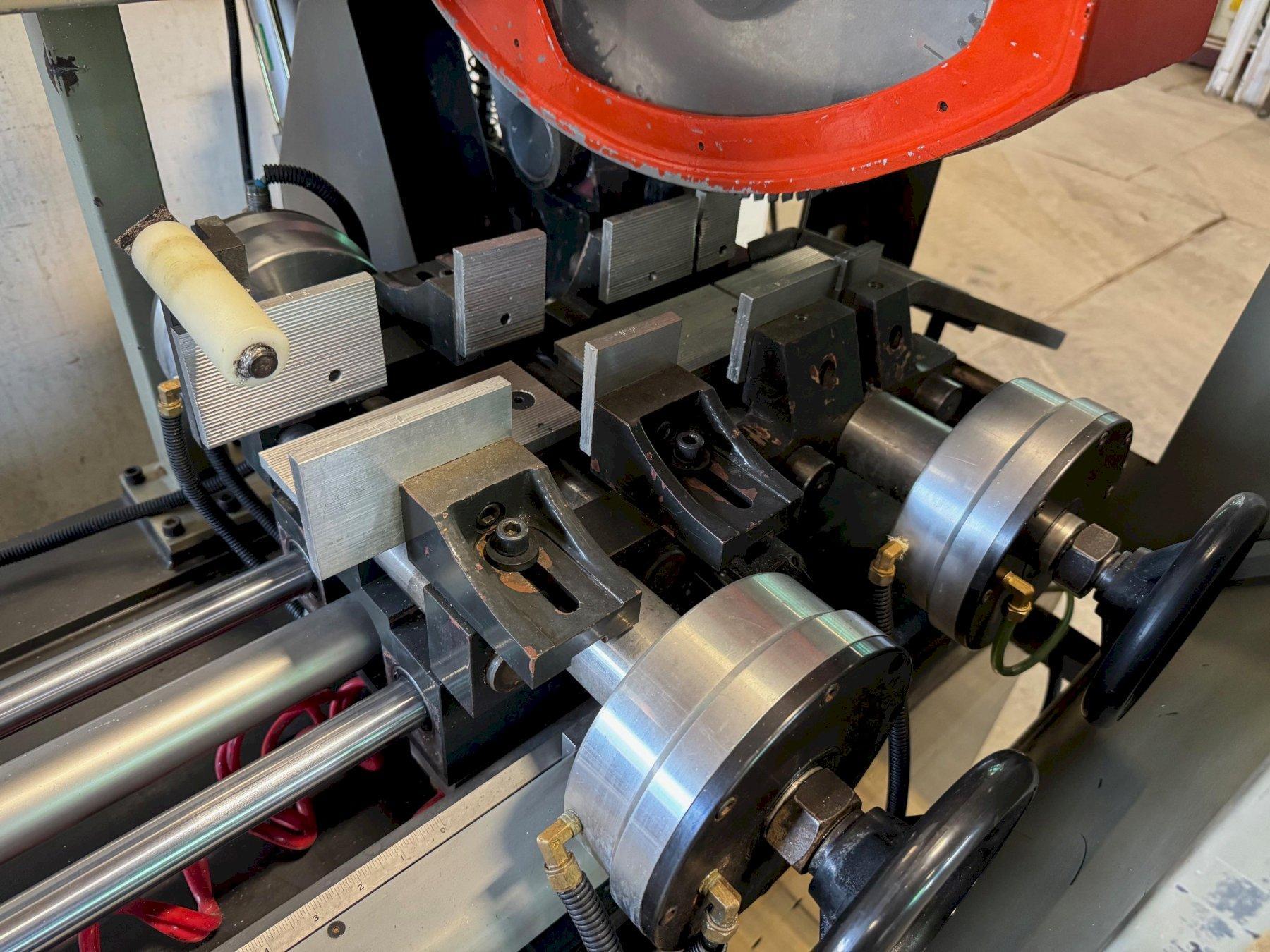

Pneumatic Vise
Approximate Weight: 2000 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
