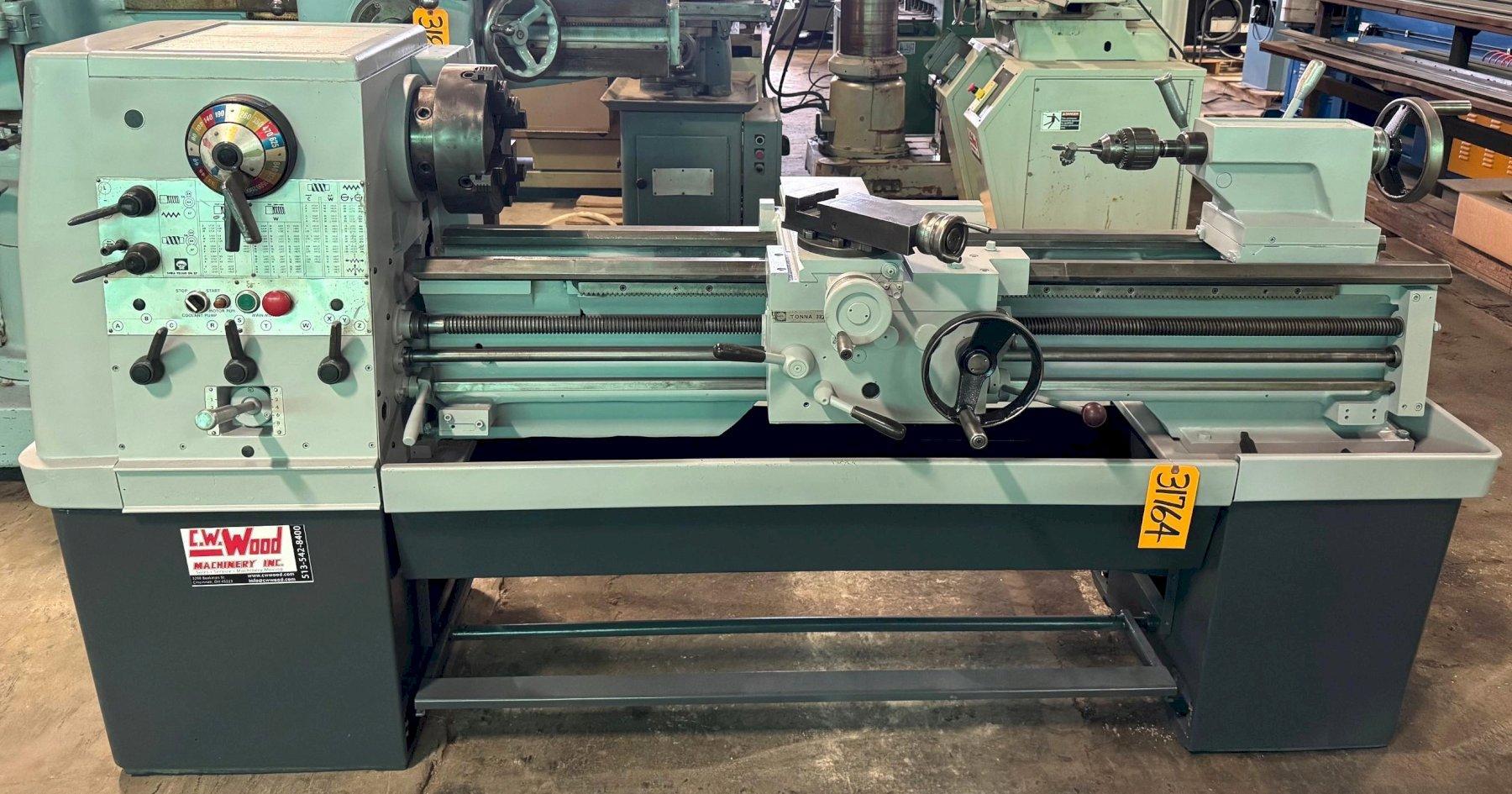

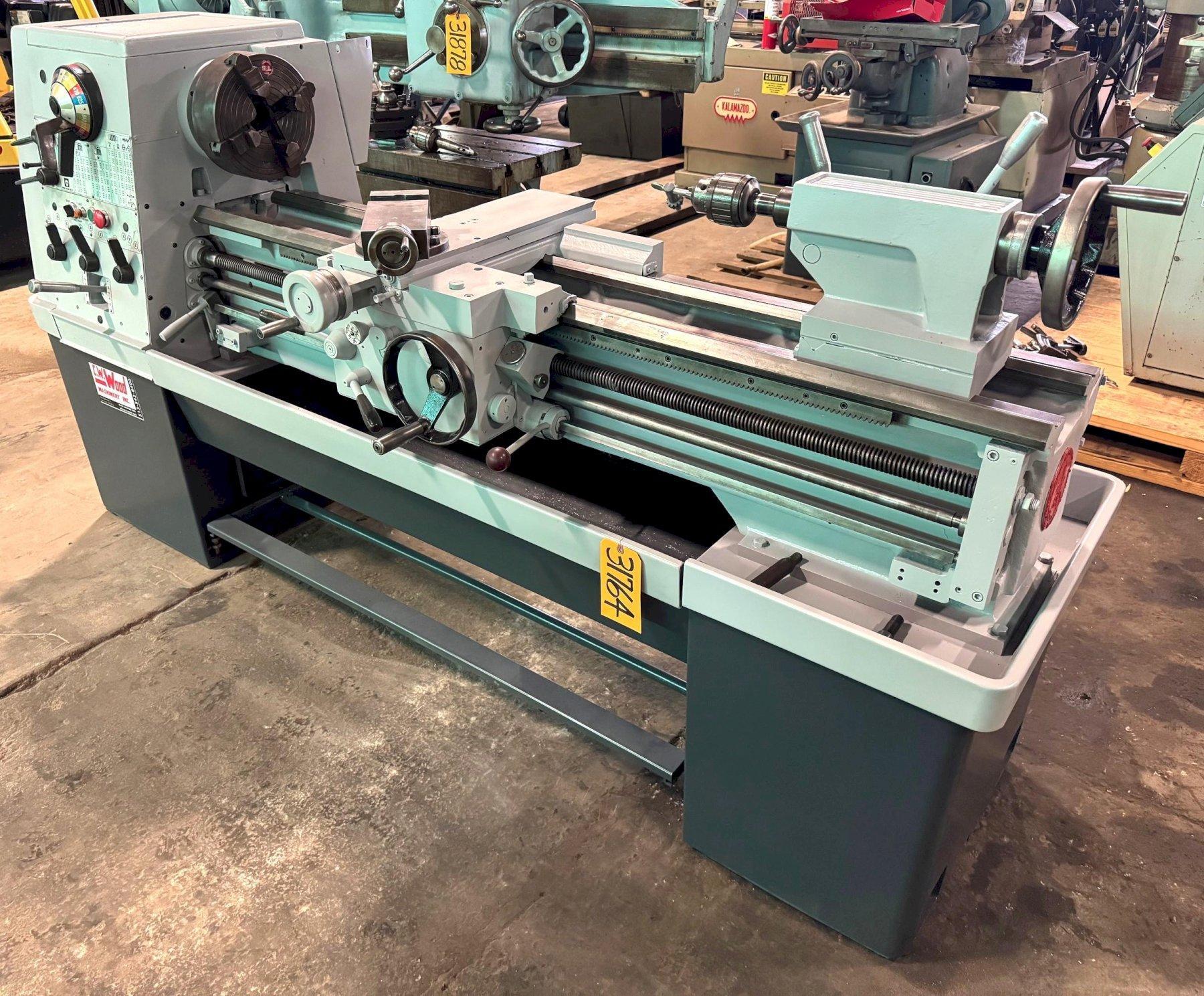

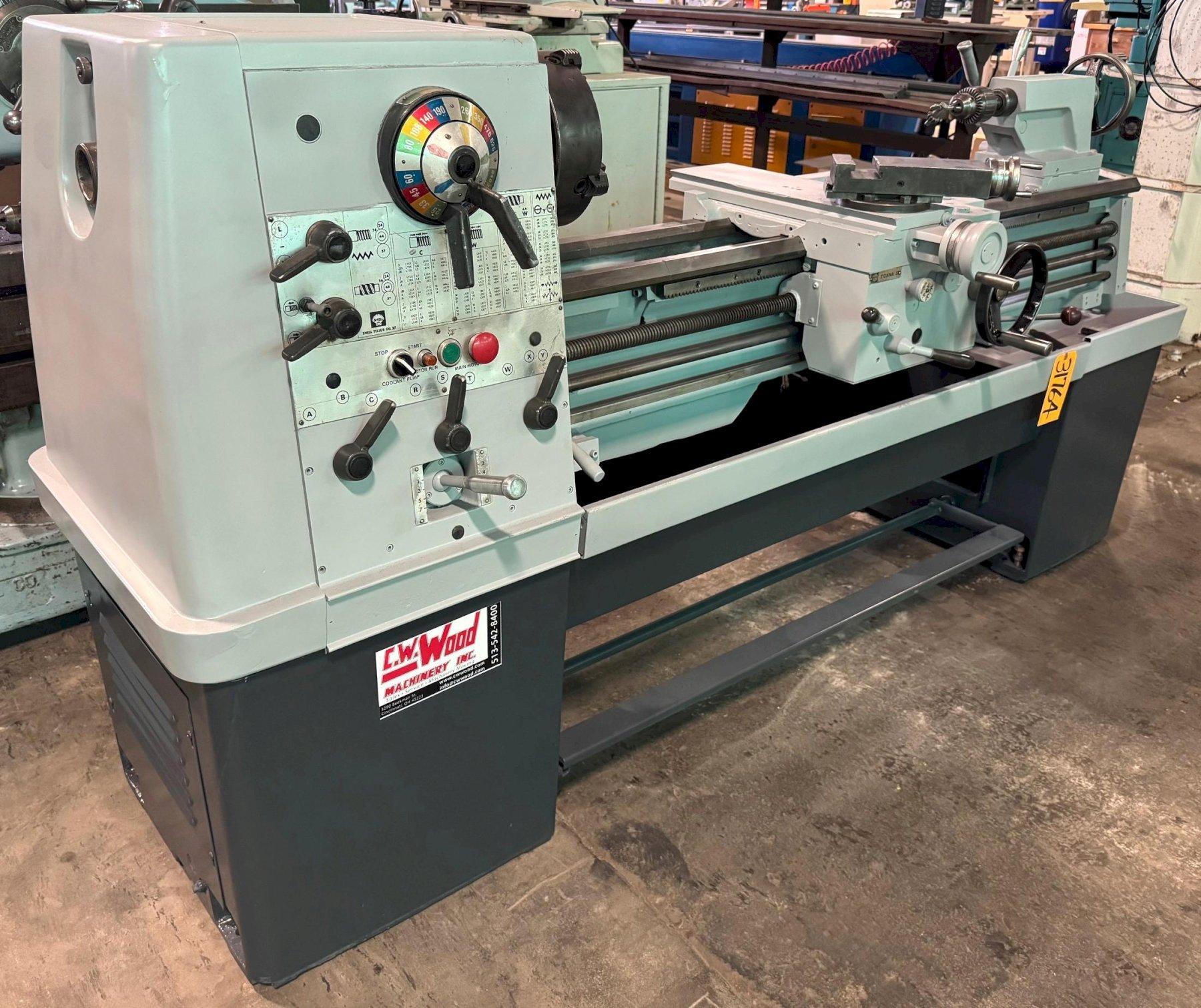

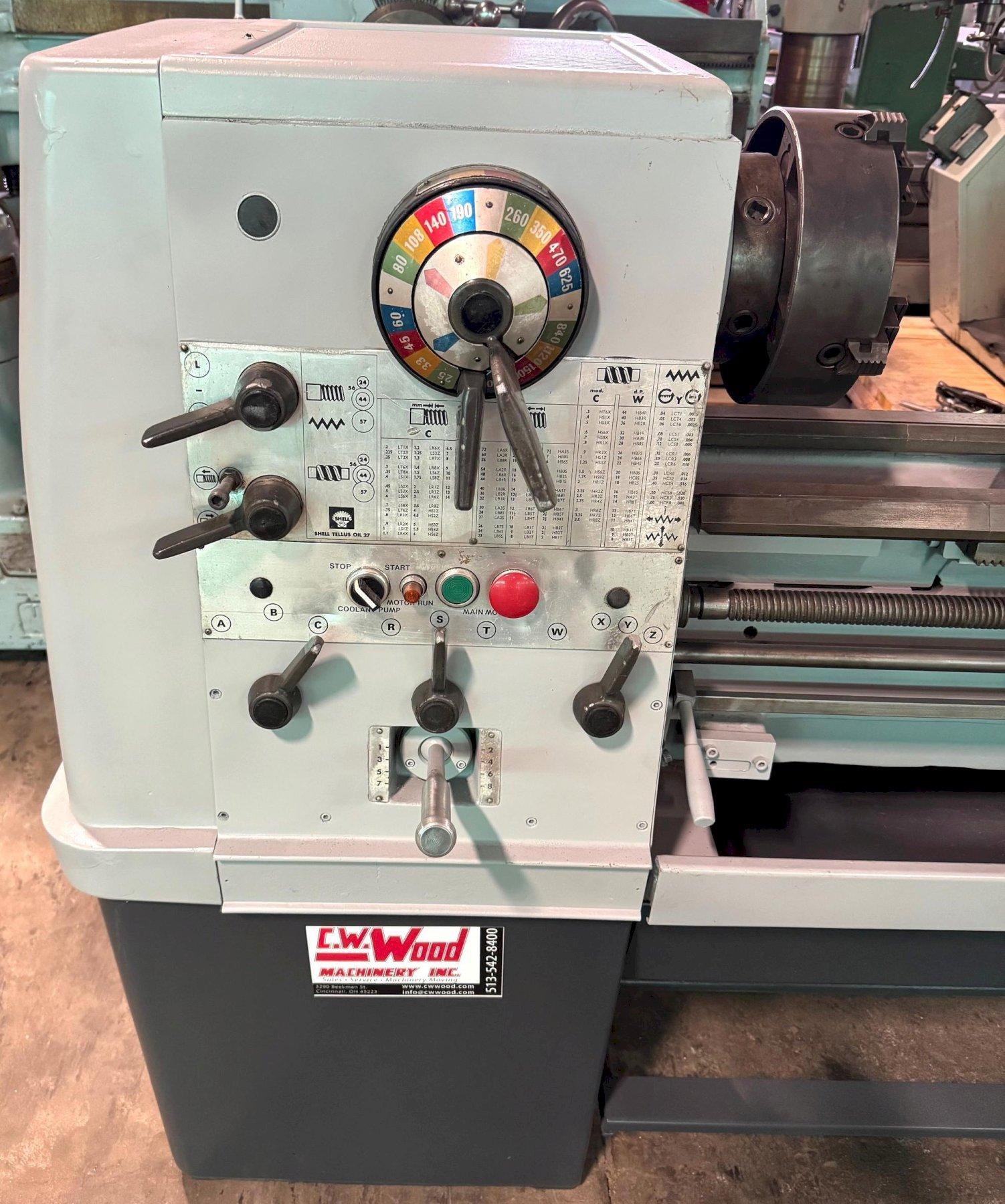

CLAUSING COLCHESTER GAP BED ENGINE LATHE
MODEL: 15"
SERIAL NUMBER: 6/0016/09563
GENERAL SPECIFICATIONS
Swing Over Bed and Saddle Wings: 15-1/4"
Swing Over Cross Slide: 9-1/2"
Swing In Gap: 23"
Bar Capacity Thru Spindle: 2-1/8"
Distance Between Centers: 50"
Spindle Nose: 6" D1 Camlock
Spindle Speeds: (16) 25 to 2000 RPM
Threads, U.S.: (45) 2 to 72
Threads, Metric: (39) .2 to 14
Longitudinal Feeds: .0015" to .040"
Cross Feeds: .00075" to .020"
Lead Screw, Diameter: 1-1/4"-4 Acme
EQUIPPED WITH
7-1/2 HP Main Motor, 230/460/60/3
Thread Dial
Hard Ways
Removable Chip Pan
Approximate Weight: 3200 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
