15" x 48" Cincinnati Hydrashift Lathe, 37-1470 RPM, Taper, 5 HP, Low Price

Brand
CINCINNATI INC

Model
15

Type
Lathes, Engine

Stock #
32095

Condition
Used

Year

Location
Cincinnati,
United States

Request Quote

Specifications

Equipped With

CINCINNATI HYDRASHIFT LATHE

MODEL: 15
SERIAL NUMBER: IW3H5M-217

GENERAL SPECIFICATIONS

Swing Over Bed: 16-7/8"
Swing Over Cross Slide: 9-5/8"
Distance Between Centers: 48"
Spindle Speeds: (12) 37 - 1470 RPM
Spindle Nose: L-1
Spindle Hole: 1-3/4"
Number Of Thread and Feed Changes: 48
Thread Range: 1-1/2 to 92 TPI
Feed Range: .0019" to .1215"
Cross Slide Travel: 12"
Top Slide Travel: 3-1/4"
Tailstock Spindle Travel: 5"
Tailstock Spindle Diameter: 2-1/4"

EQUIPPED WITH

5 HP Motor, 220/440/60/3
12" 3-Jaw Chuck

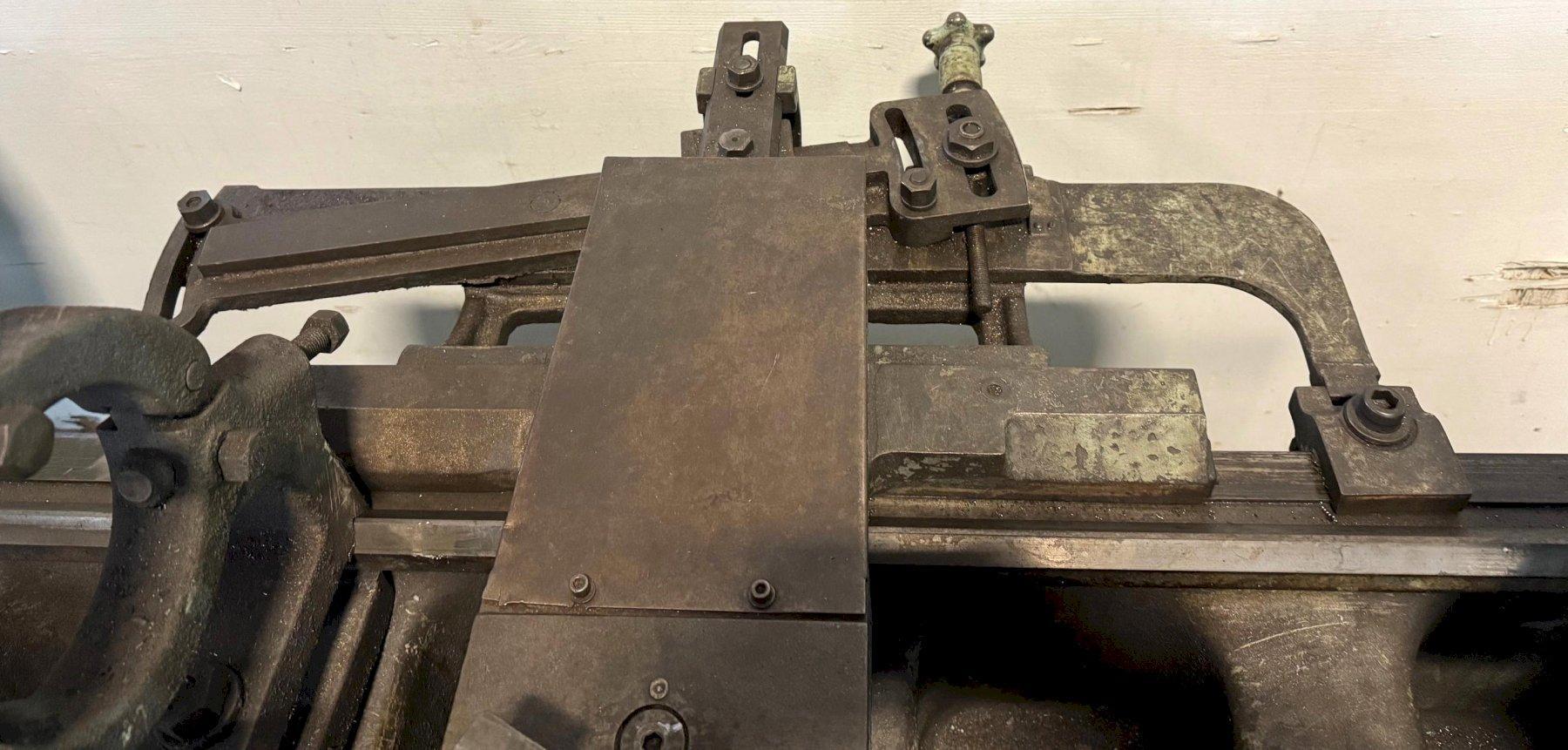

Taper Attachment
Steady Rest
Four-Position Length and Depth Stop
Chip Pan

Approximate Weight: 3200 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
