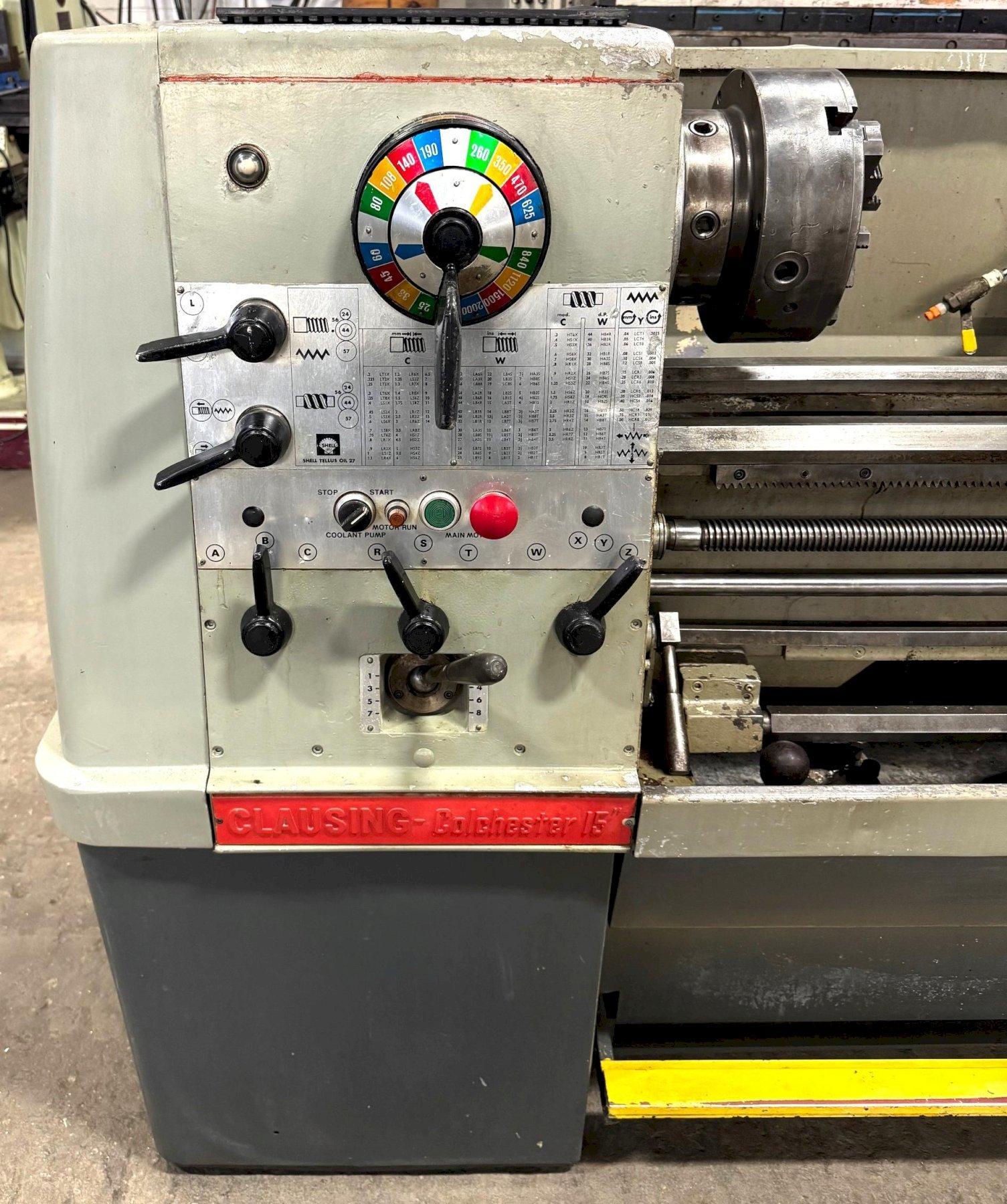

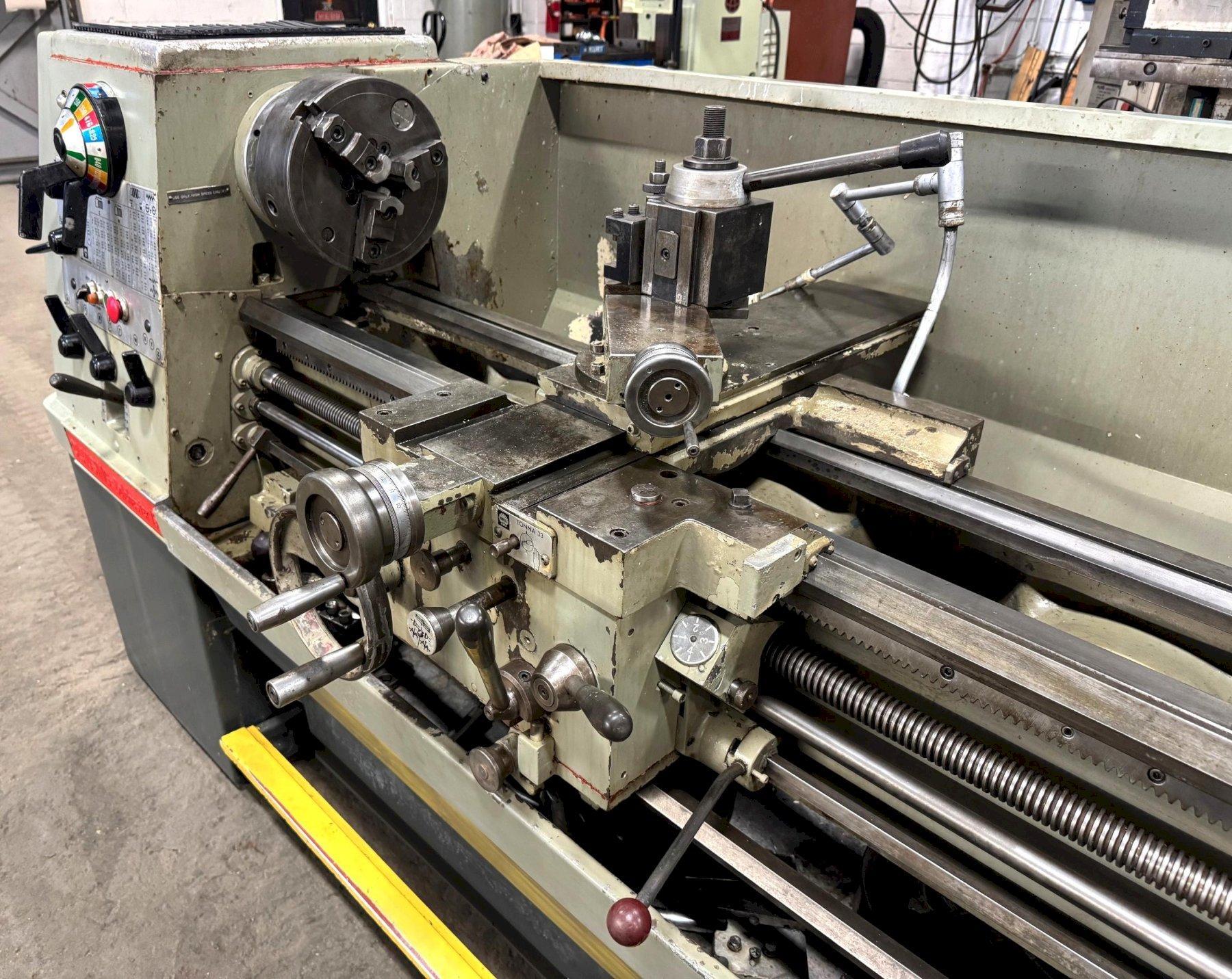

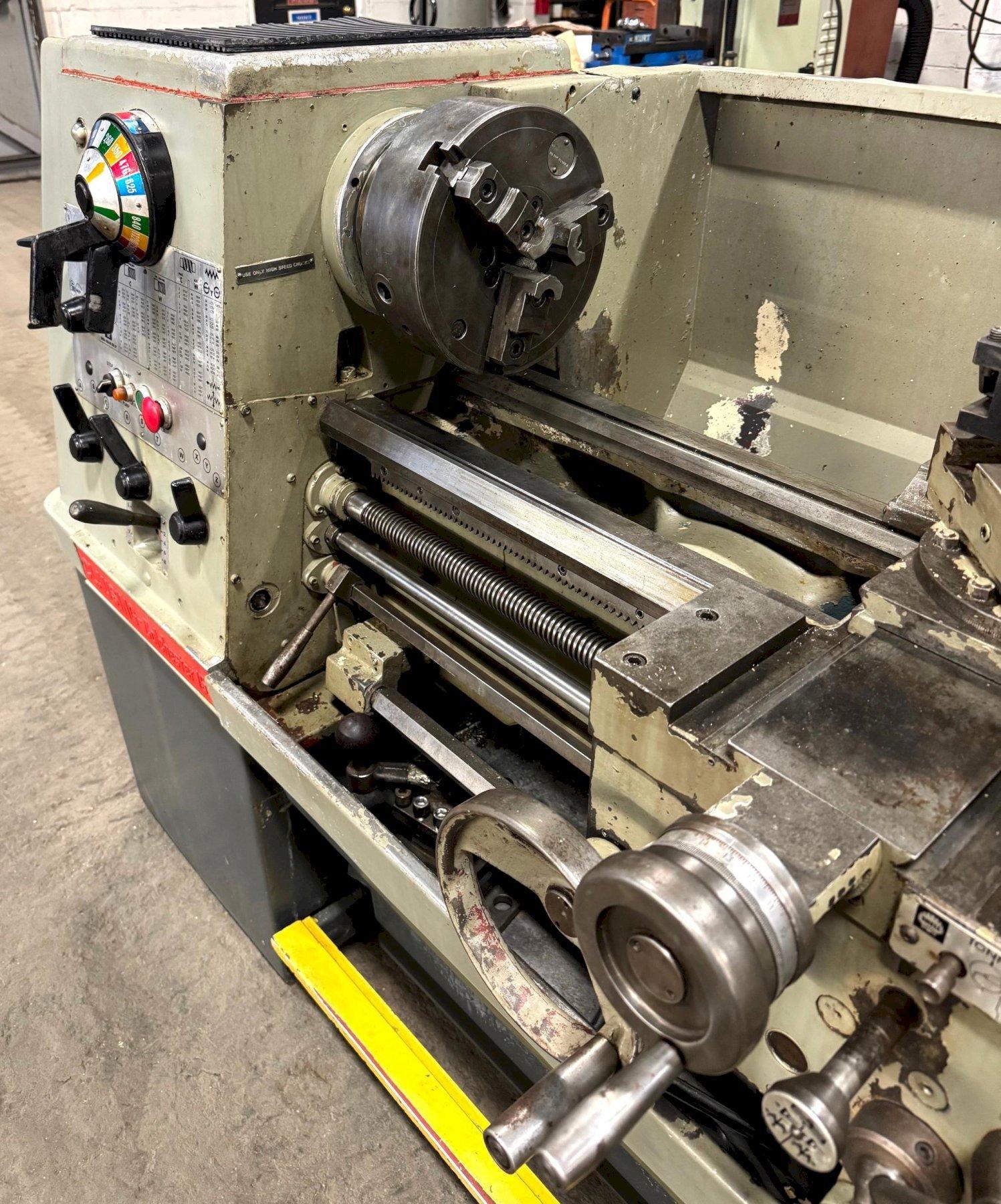

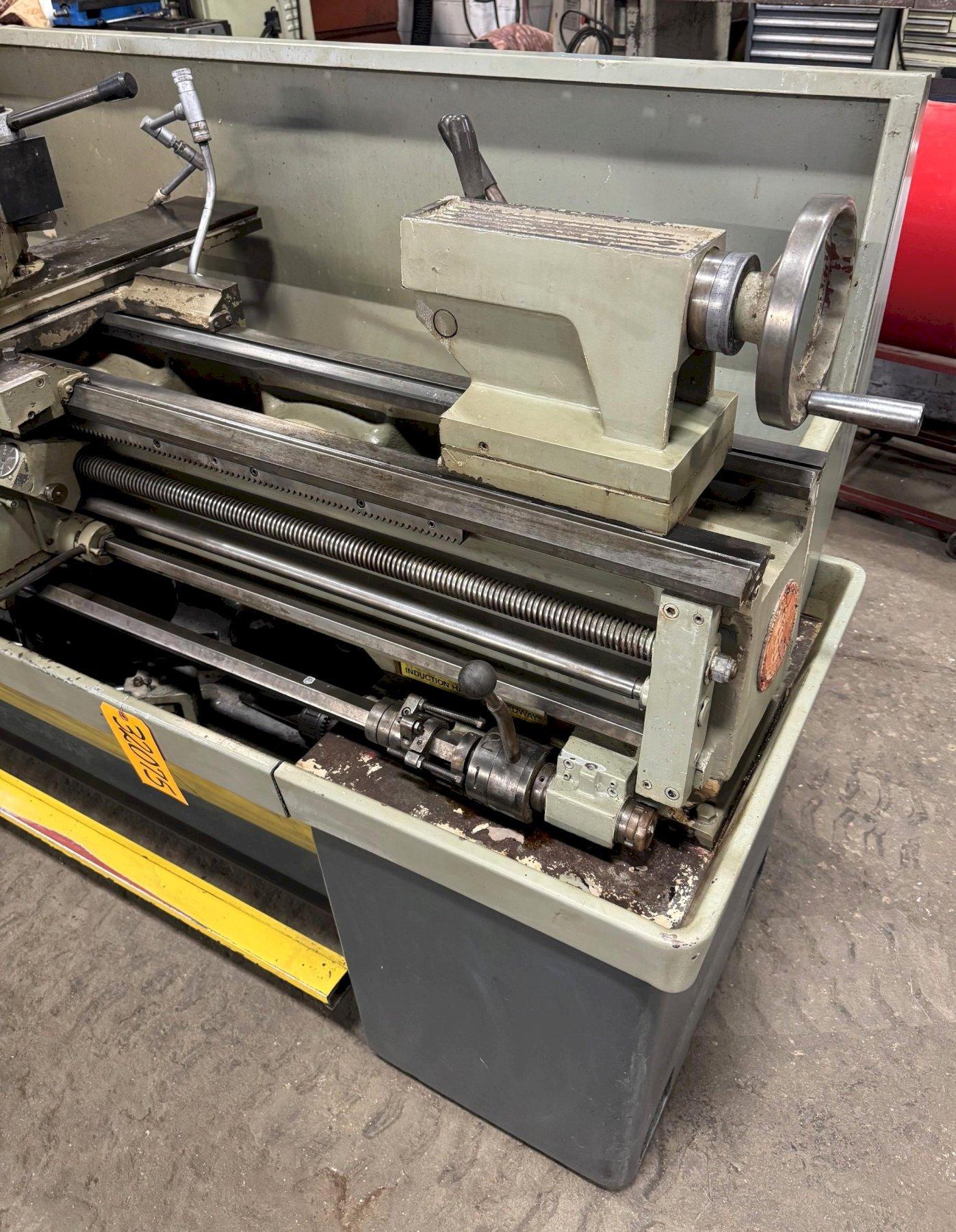

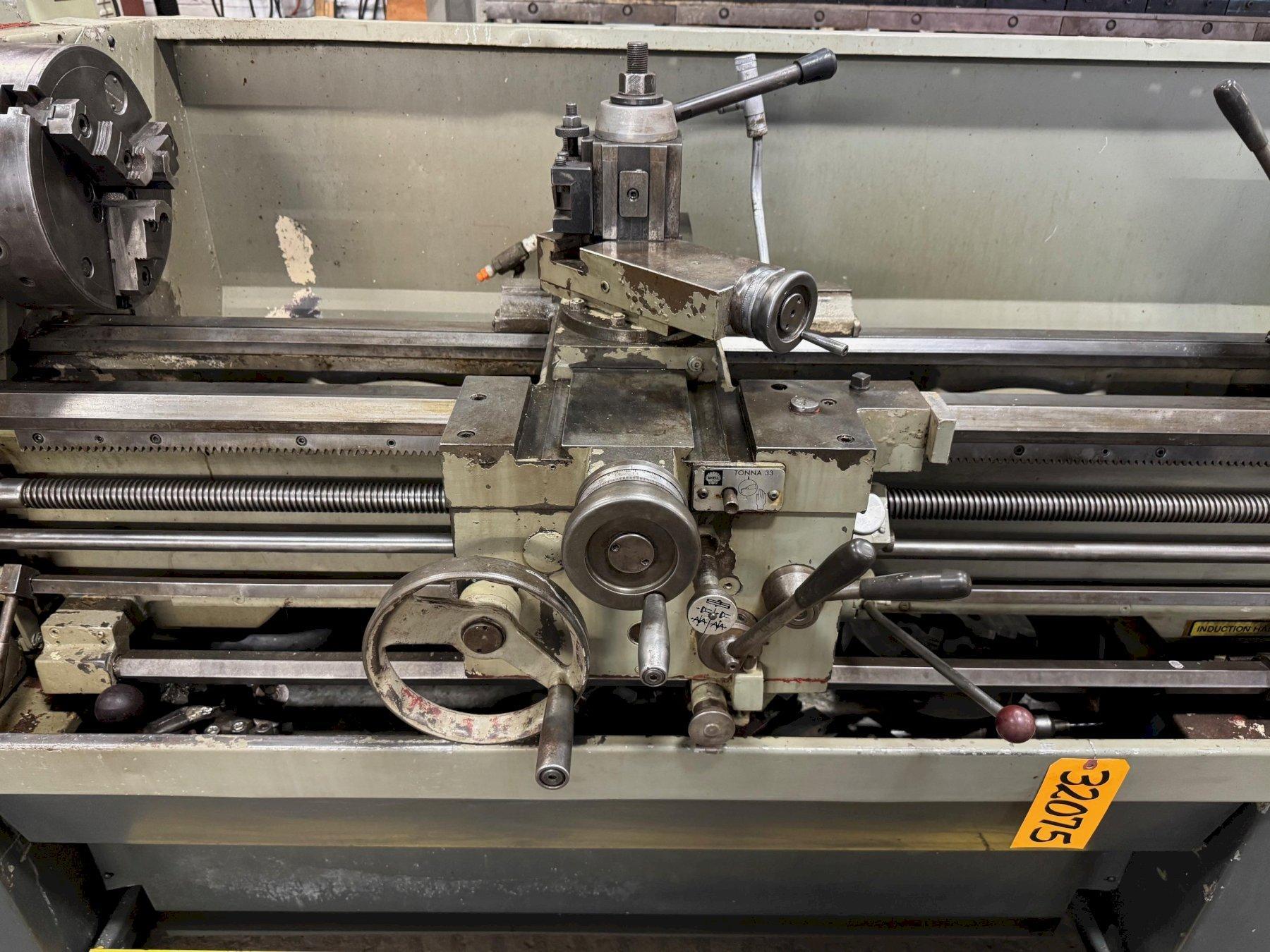

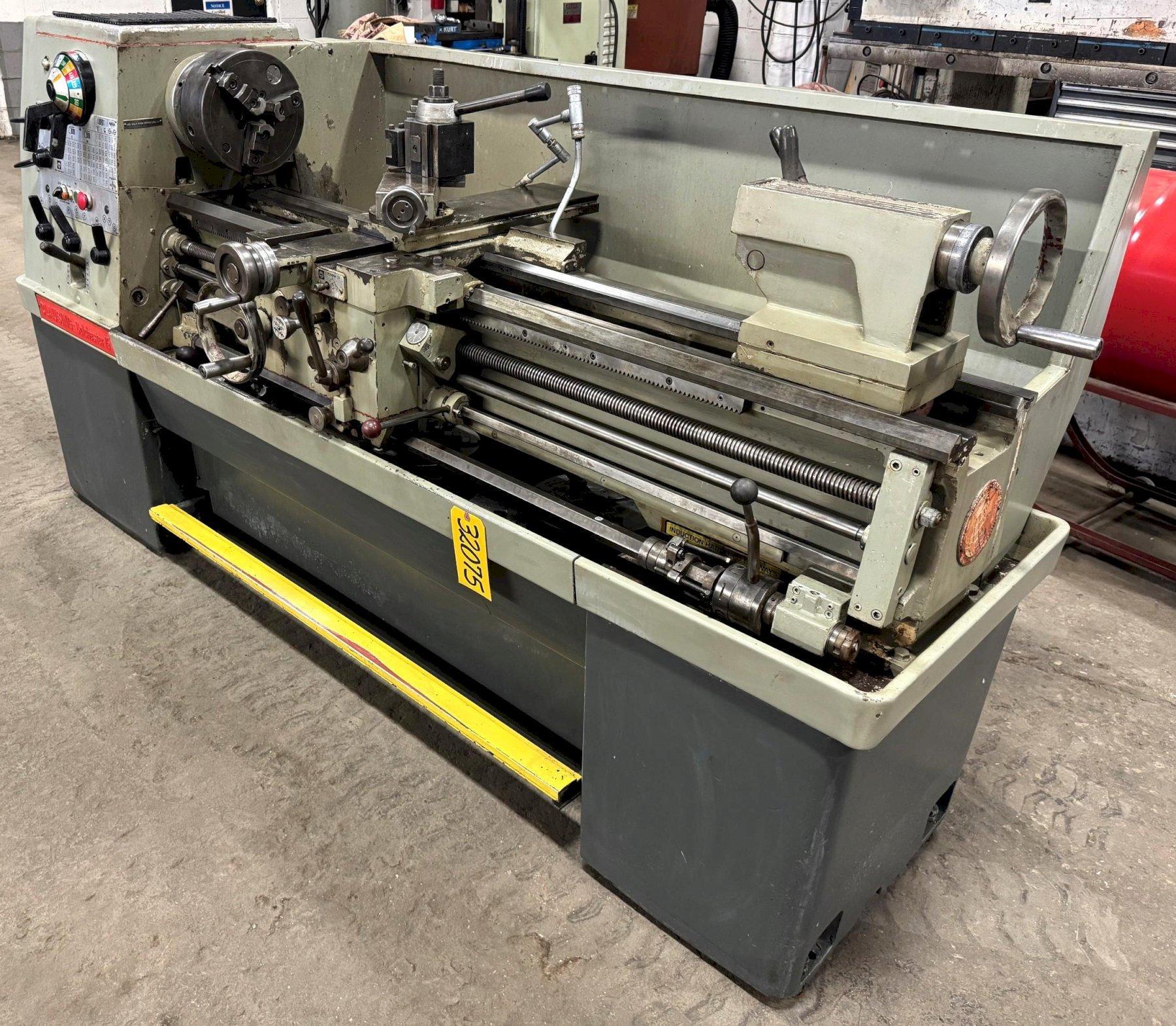

15" x 50" Clausing Colchester Lathe, Inch/mm, 2000 RPM, 7-1/2 HP

Brand
CLAUSING COLCHESTER

Model
15"

Type
Lathes, Engine

Stock #
32075

Condition
Used

Year

Location
Cincinnati, Ohio
United States

Request Quote

Specifications

Equipped With

CLAUSING COLCHESTER LATHE

MODEL: 15"
SERIAL NUMBER: 6-0015-18033

GENERAL SPECIFICSTIONS

Swing Over Bed and Saddle wings: 15-1/4"
Swing Over Cross Slide: 9-1/2"
Distance Between Centers: 50"
Bar Capacity Through Spindle: 2-1/8"
Spindle Nose: D1-6" Camlock
Spindle Speeds: (16) 25 - 2000 RPM
Threads, Inch: (45) 2 - 72
Threads, Metric: (39) .2 - 14
Longitudinal Feeds: .0015" - .040"
Cross Feeds: .00075" - .020"
Lead Screw, Diameter: 1-1/4" -4 Acme

EQUIPPED WITH

7-1/2 HP Motor, 230/460/60/3
10" 3-Jaw Chuck, 10" 6-Jaw Chuck, 10" 4-Jaw Chuck
Quick Change Tool Post
Thread Dial
Hard Ways

Approximate Weight: 3200 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
