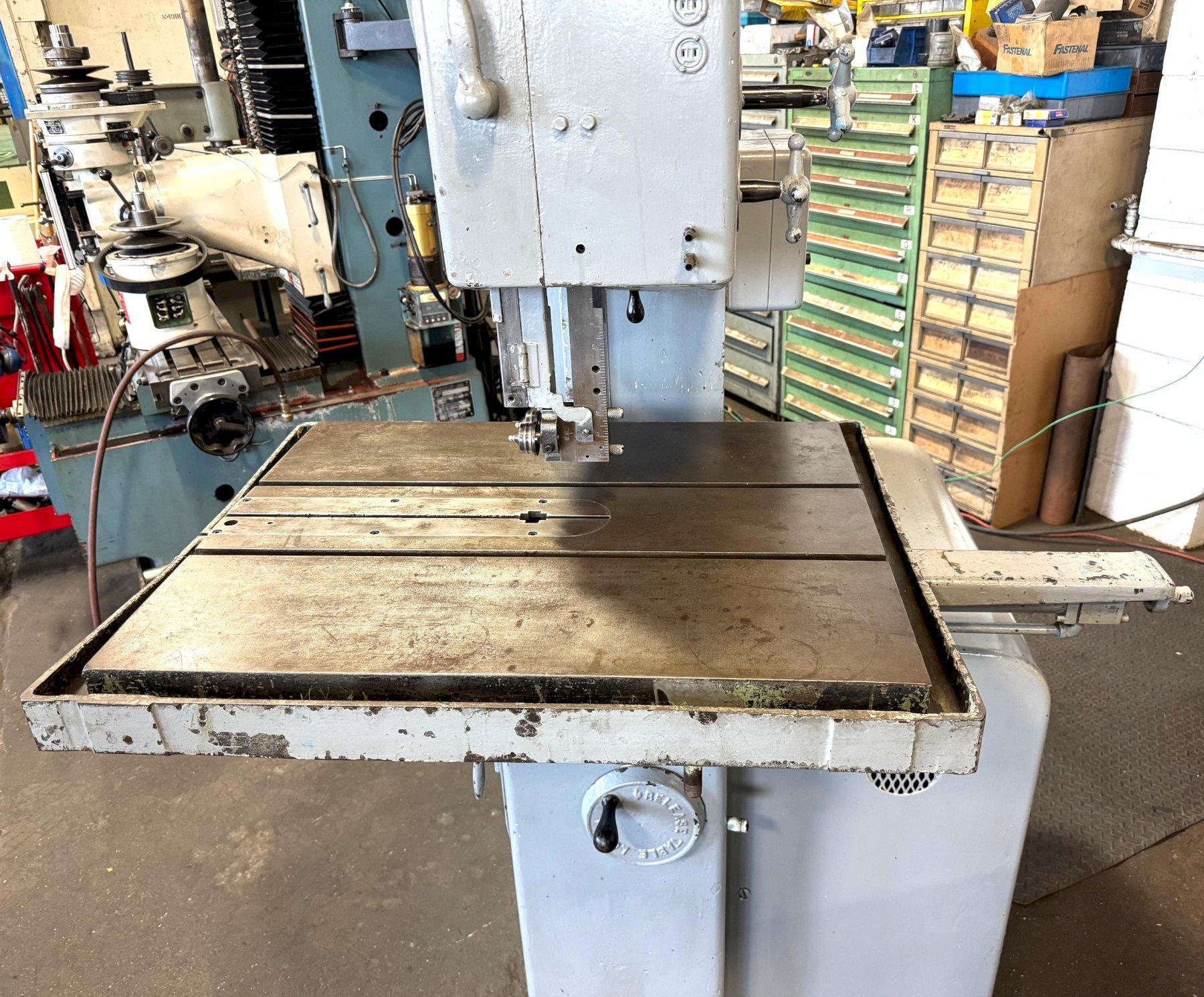

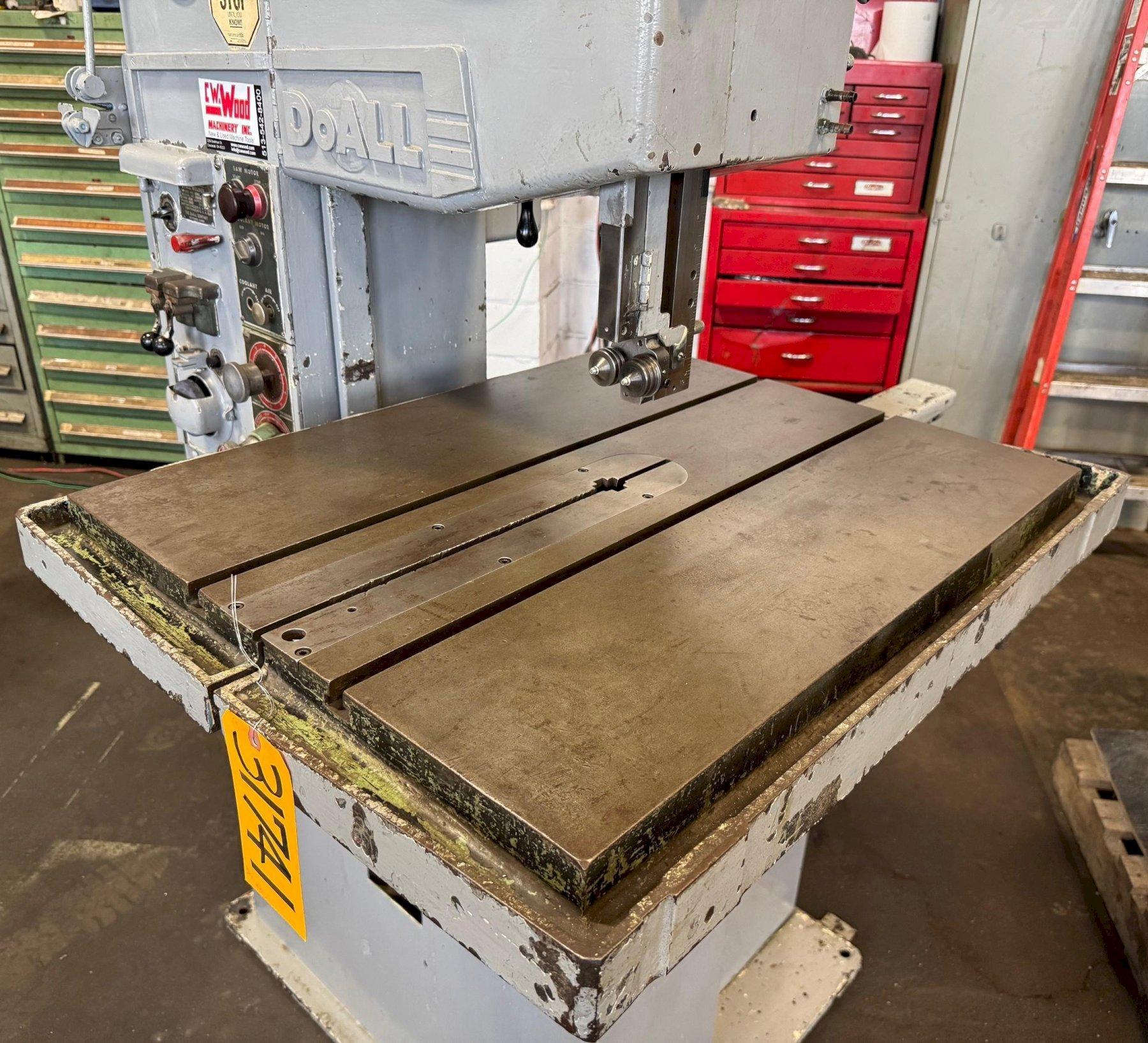

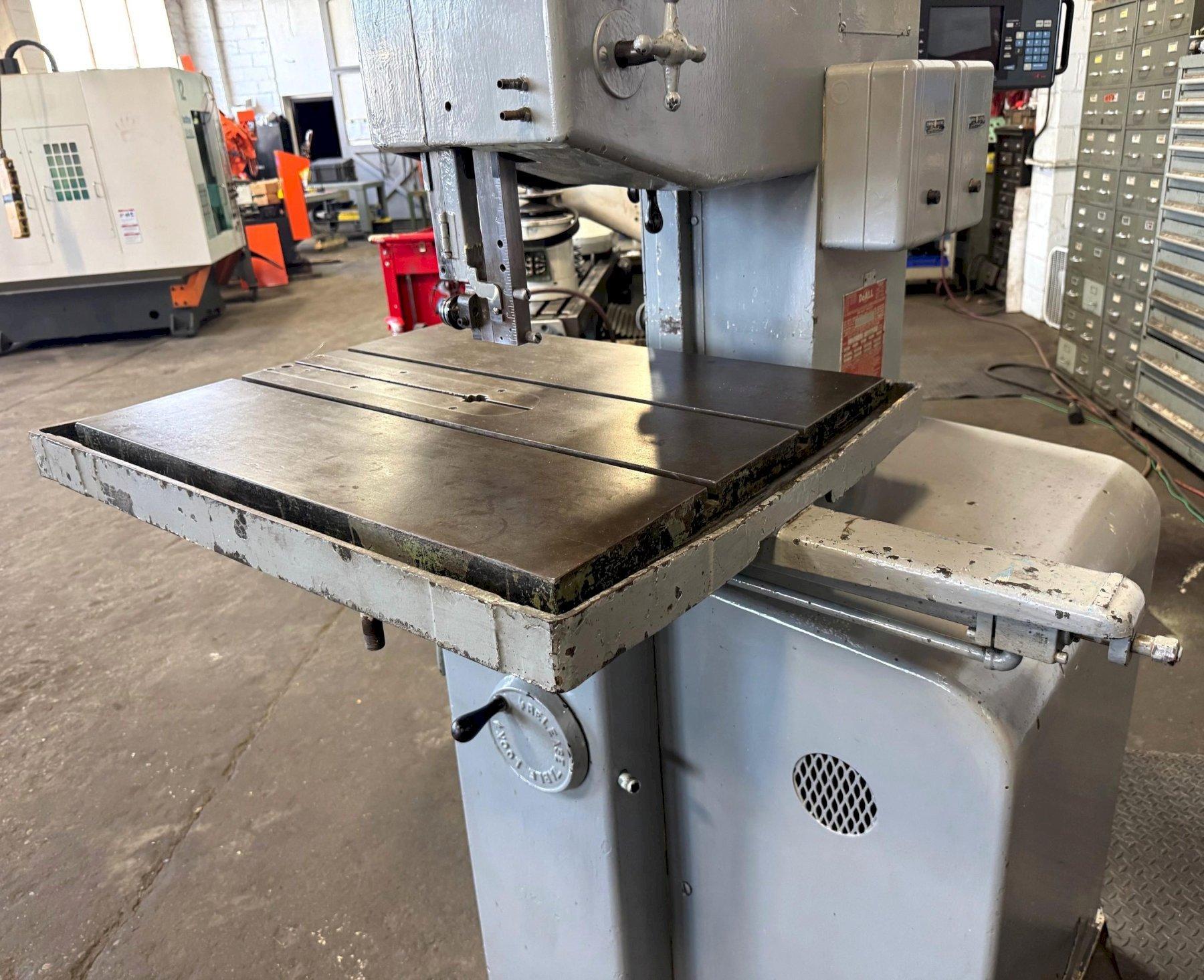

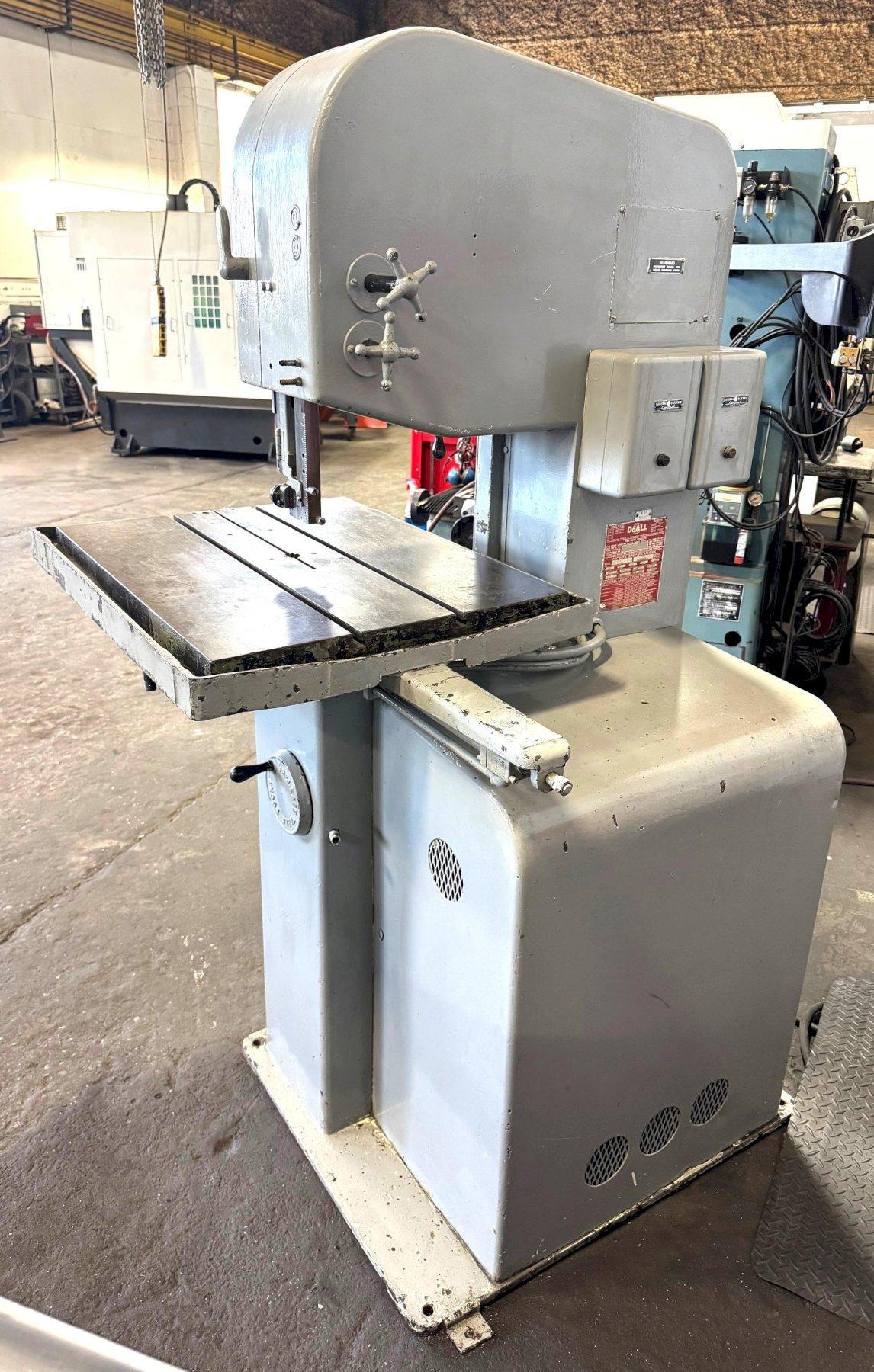

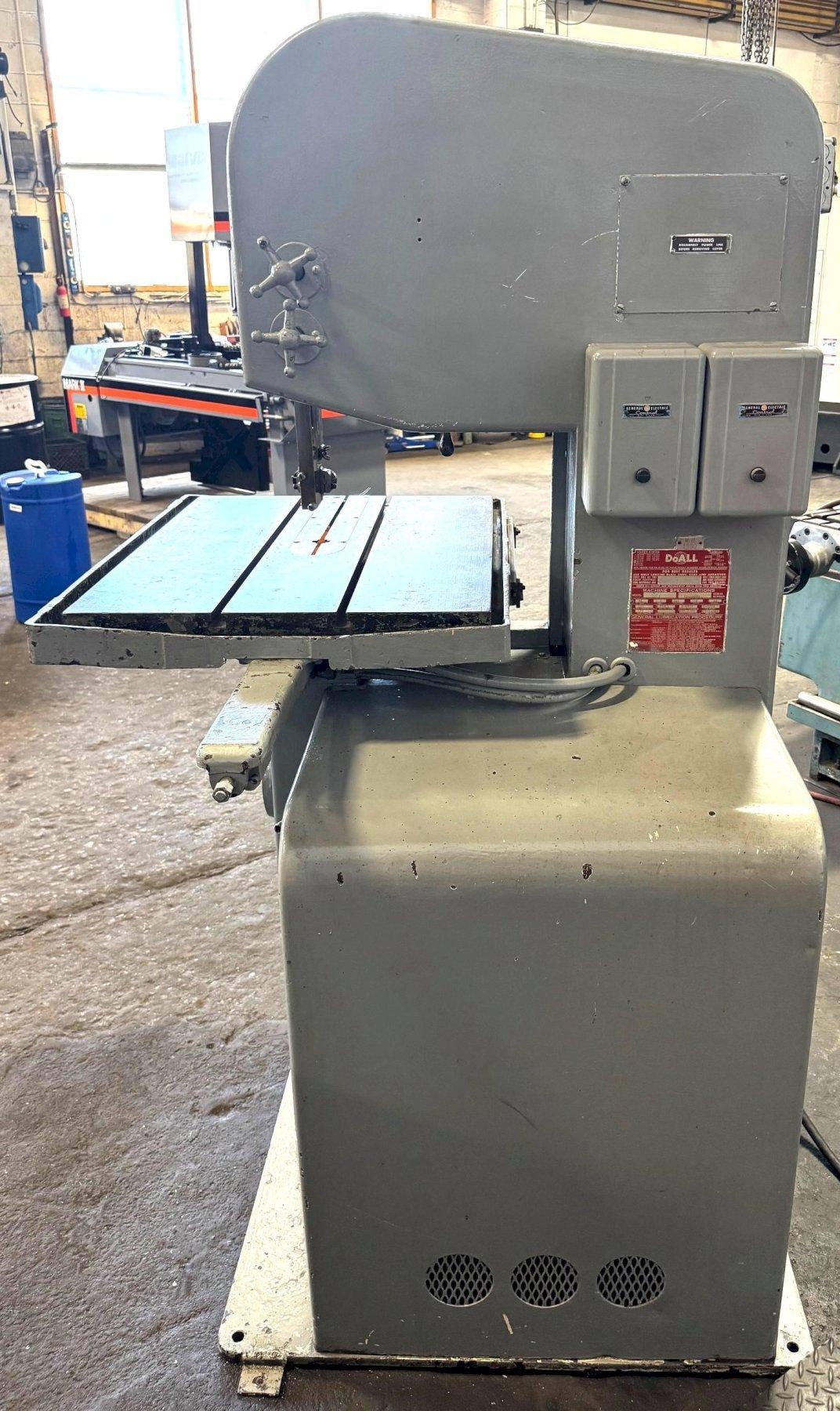

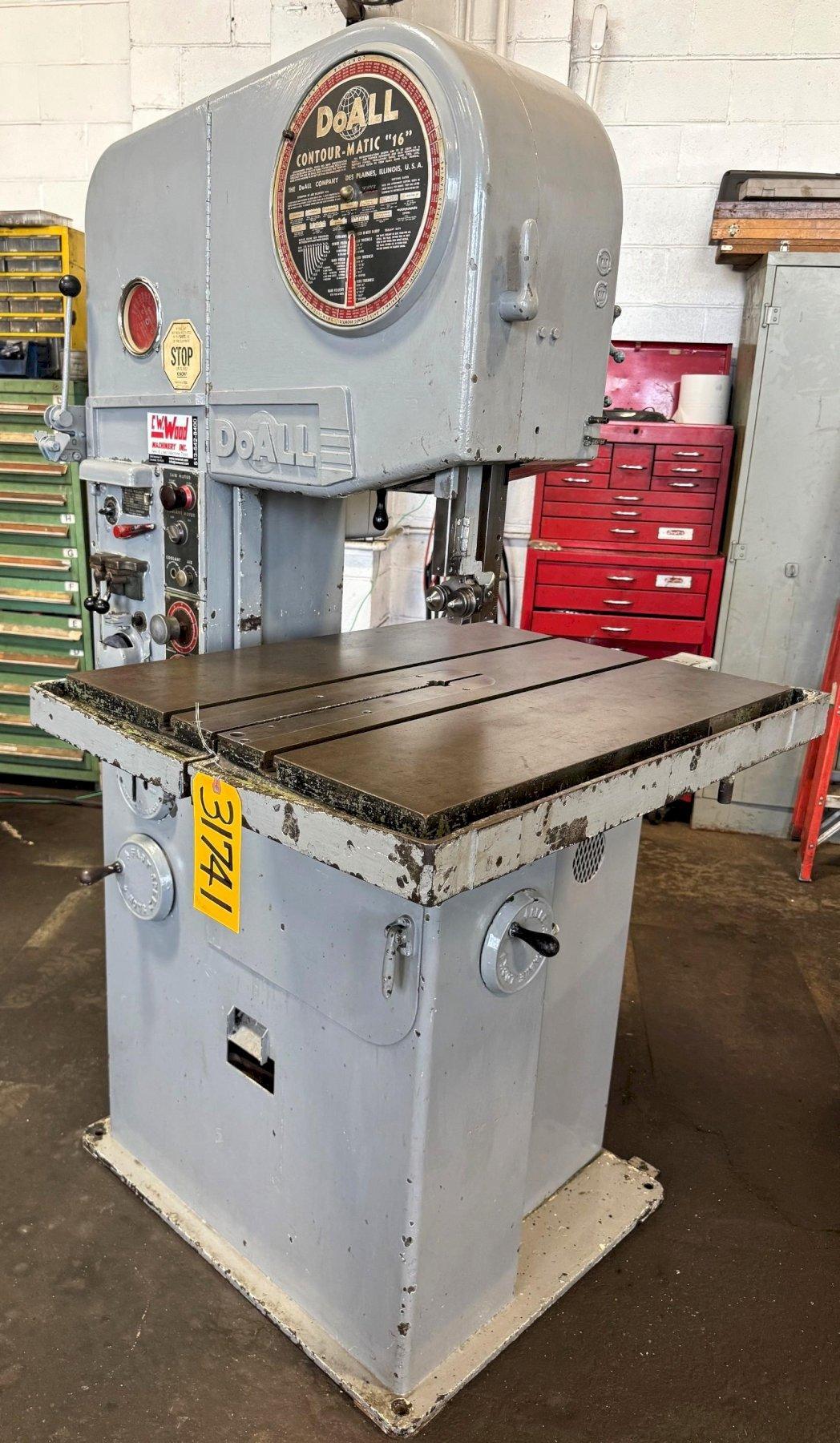

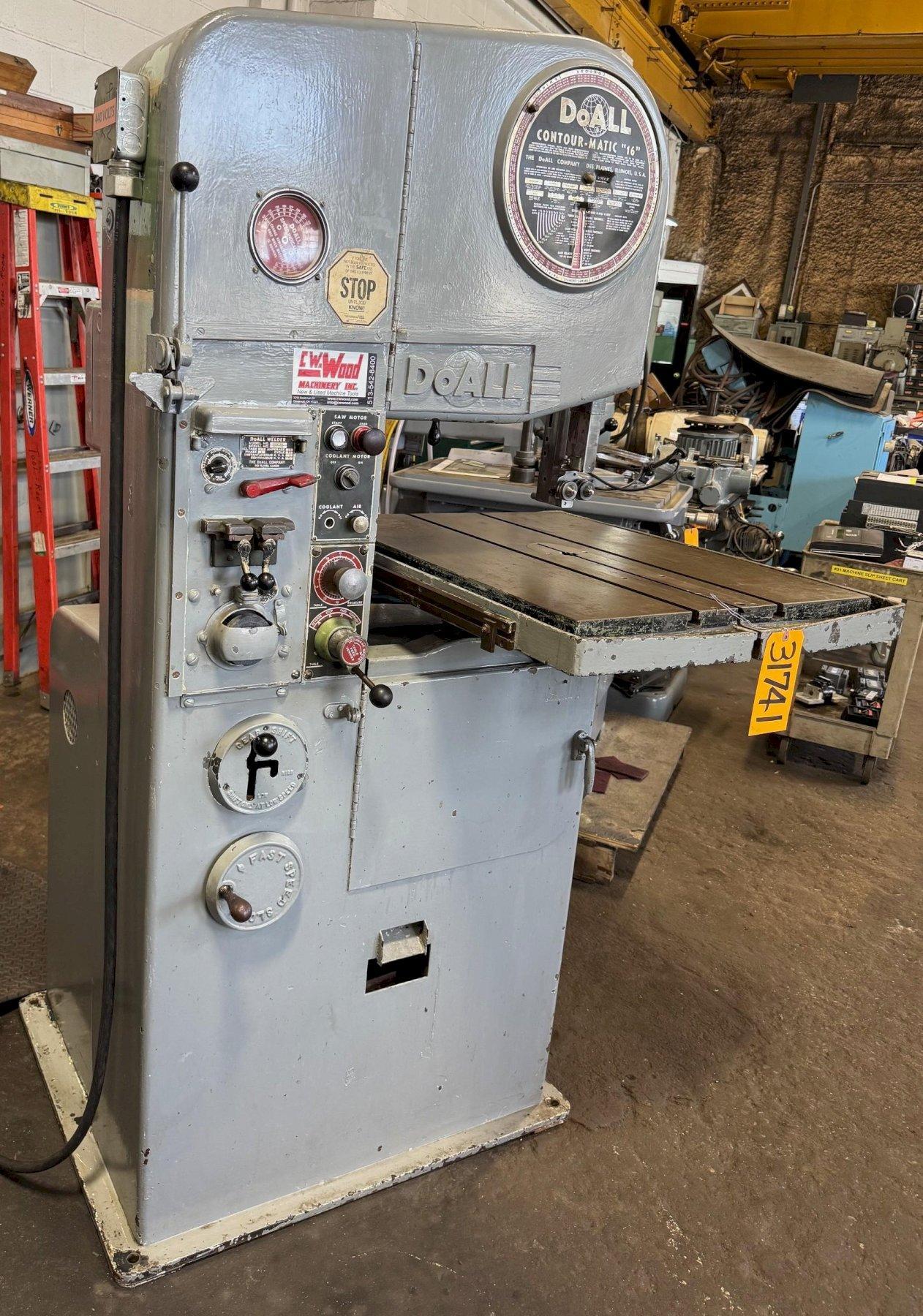

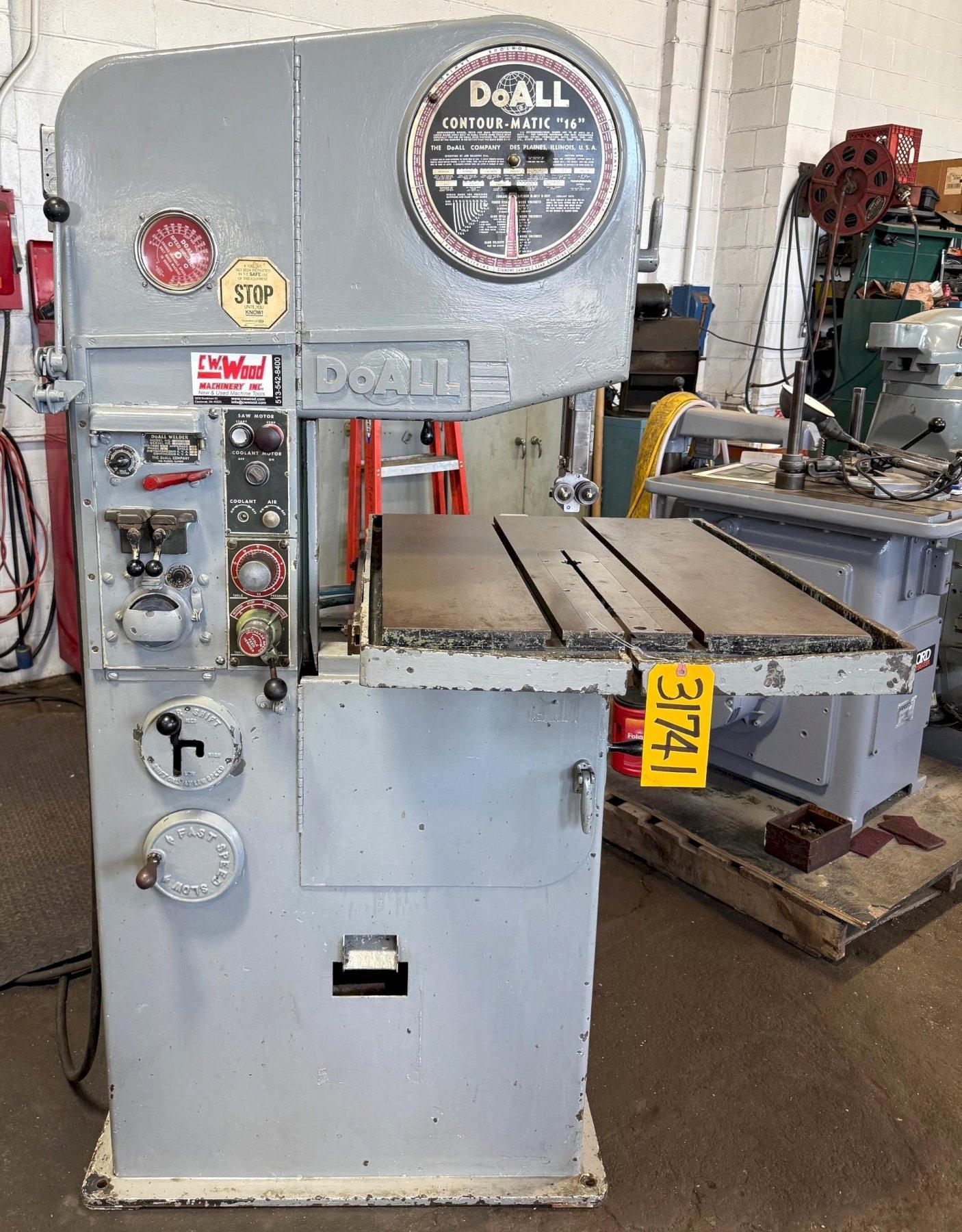

16" Doall Vertical Band Saw 16-3, 6000 FPM, Hyd. Table Feed, 3 HP

Brand
DOALL

Model
16-3

Type
Saws, Band, Vertical

Stock #
31741

Condition
Used

Year

Location
Cincinnati, Ohio
United States

Request Quote

Specifications

Equipped With

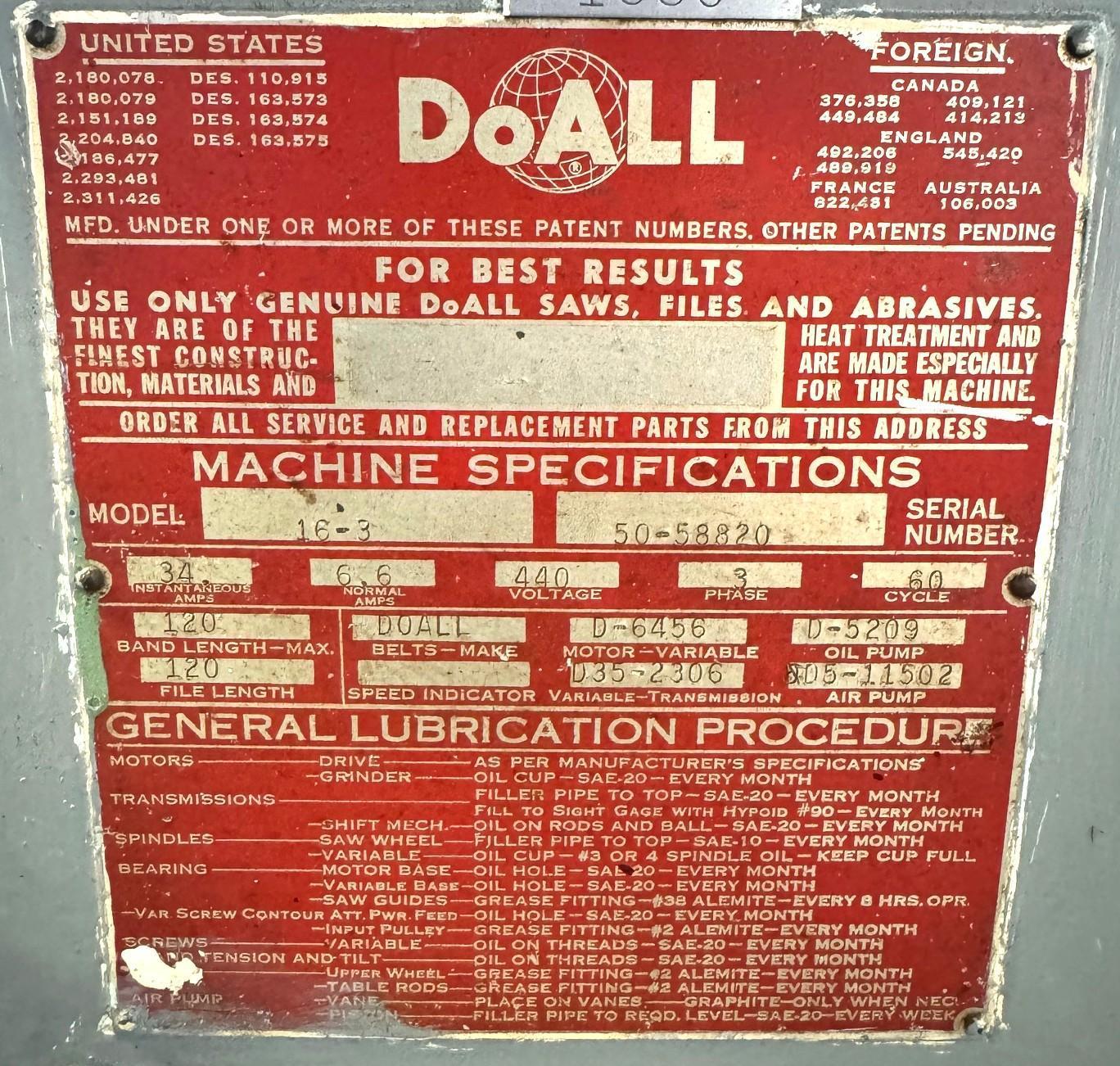

DOALL VERTICAL BAND SAW

MODEL: 16-3
SERIAL NUMBER: 50-58820

GENERAL SPECIFICATIONS

Depth of Throat: 16"
Work Thickness Capacity: 8-3/4"
Table Size: 26-1/2" x 33-1/2"
Table Tilt: 45 Degrees Right, 10 Degrees Left
Hydraulic Table Feed: 12" Maximum Stroke
Variable Speed of Table Travel: 0 to 20 FPM
Variable Table Feed Pressure: 0 to 200 Lbs. Per Inch
Maximum Blade Width: 1"
Maximum Length: 120"
Blade Speed Range, Infinitely Variable: 25 to 6000 FPM

EQUIPPED WITH

3 HP Drive Motor, 220/440/60/3
Hydraulic Table Feed
DoAll Blade Welder w/Grinder and Blade Shear*
*Blade welder is operational but is NOT covered under 30-Day Return Privilege
Three Speed Transmission

Approximate Weight: 1800 Lbs.
Shipping Dimensions: 48" x 48" x 76"H

F.O.B. Cincinnati, Ohio 45223

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
