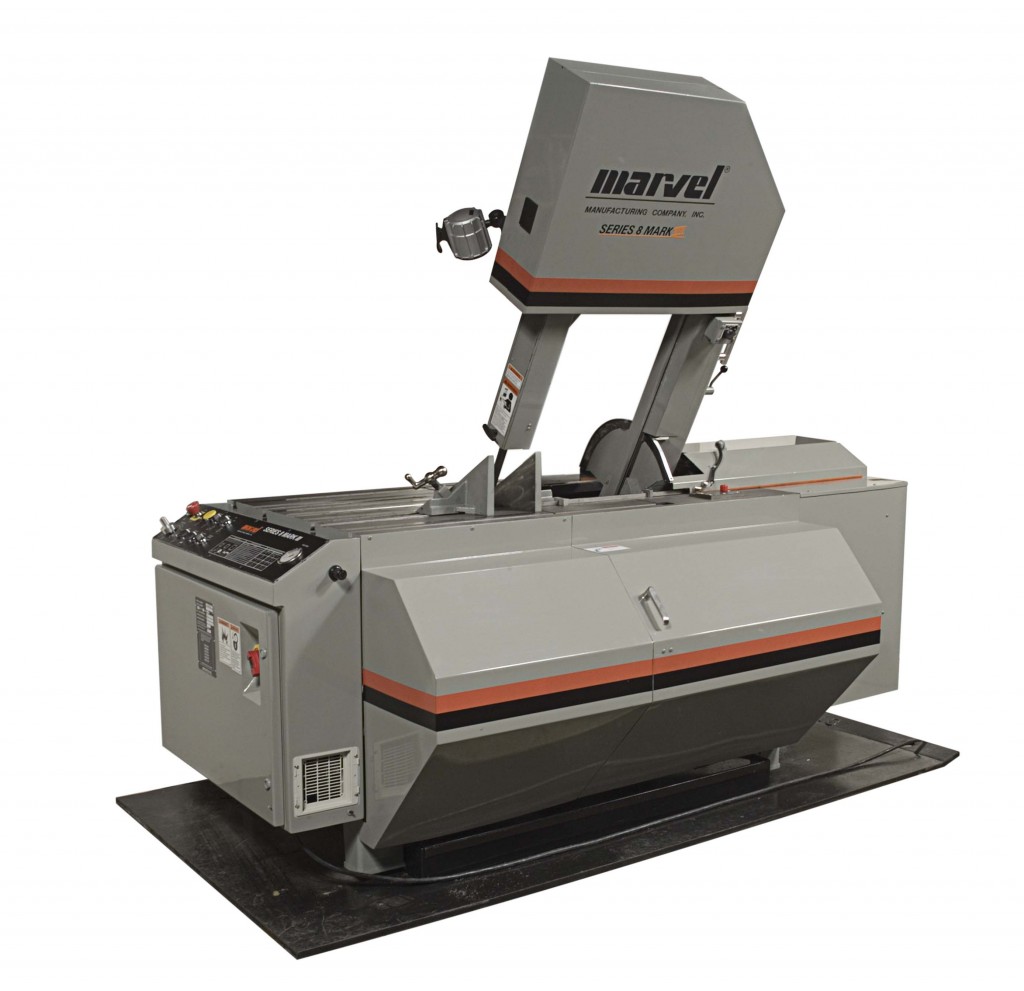

(NEW) MARVEL TILT FRAME VERTICAL BAND SAW
MODEL: Series 8 Mark III
FACTORY SPECIFICATIONS
*Tilting Column For Straight and Miter Cutting
*Miter Cutting: Column and Blade Tilt Up To 60 Degrees Right and Left of Vertical
*Work Always Stationary. Built-In Protractor.
Capacity, Blade At 90 Degrees: 18" Horizontal, 22" Vertical
Capacity, Blade At 45 Degrees Right: 18" Horizontal, 14-1/2" Vertical
Capacity, Blade At 45 Degrees Left: 18" Horizontal, 13" Vertical
Capacity, Blade At 60 Degrees Right: 18" Horizontal, 9.7" Vertical
Capacity, Blade At 60 Degrees Left: 18" Horizontal, 7.3" Vertical
Capacity, Column In 3 Degree Forward Cant Position: 17.5" Horizontal, 22" Vertical
Blade Speed Range: 50 to 450 FPM, Infinitely Variable With Inverter Drive
Feed Range: 0 - 250 Lbs., Infinitely Variable
Wheel Diameter: 19"
Table Height: 34.5"
T-Slotted Work Table: 33" x 24.25"
Maximum Vise Opening: 18"
EQUIPPED WITH
5 HP Drive Motor
Automatic Column Return
Coolant System: Built-In With Flood System.
1/8 HP Coolant Pump
Flushing Hose
Quick-Action Vise: Jaws Can Be Shifted To Either Right Or Left Side Of Blade
Jaws Are 6" High, 12" Wide
Power Chip Brush
Automatic Stops: Adjustable Stops Can Be Pre-Set To Stop Advance and Return Of
Blade, and Also To Stop Motor At Any Location Within The 18" Travel Of The Blade
Front Mounted Speed Control: Allows Blade Speed To Be Adjusted From Operator's
Control Station
Controls: IEC Fused Disconnect Switch and Magnetic Starters, With Overload and Low-Voltage Protection. Disconnect Is NFPA79 Compliant. DC Power Supply Provides Low Voltage Control (24 Volts) To All Push Buttons At Operator's Control Panel and Machine Lighting Circuits. PLC Control and Components Mounted In Moisture Proof NEMA 12 Compartment. Electrical Panel Is UL Labeled.
Approximate Weight: 3100 Lbs.
F.O.B. Oshkosh, Wisconsin
FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
