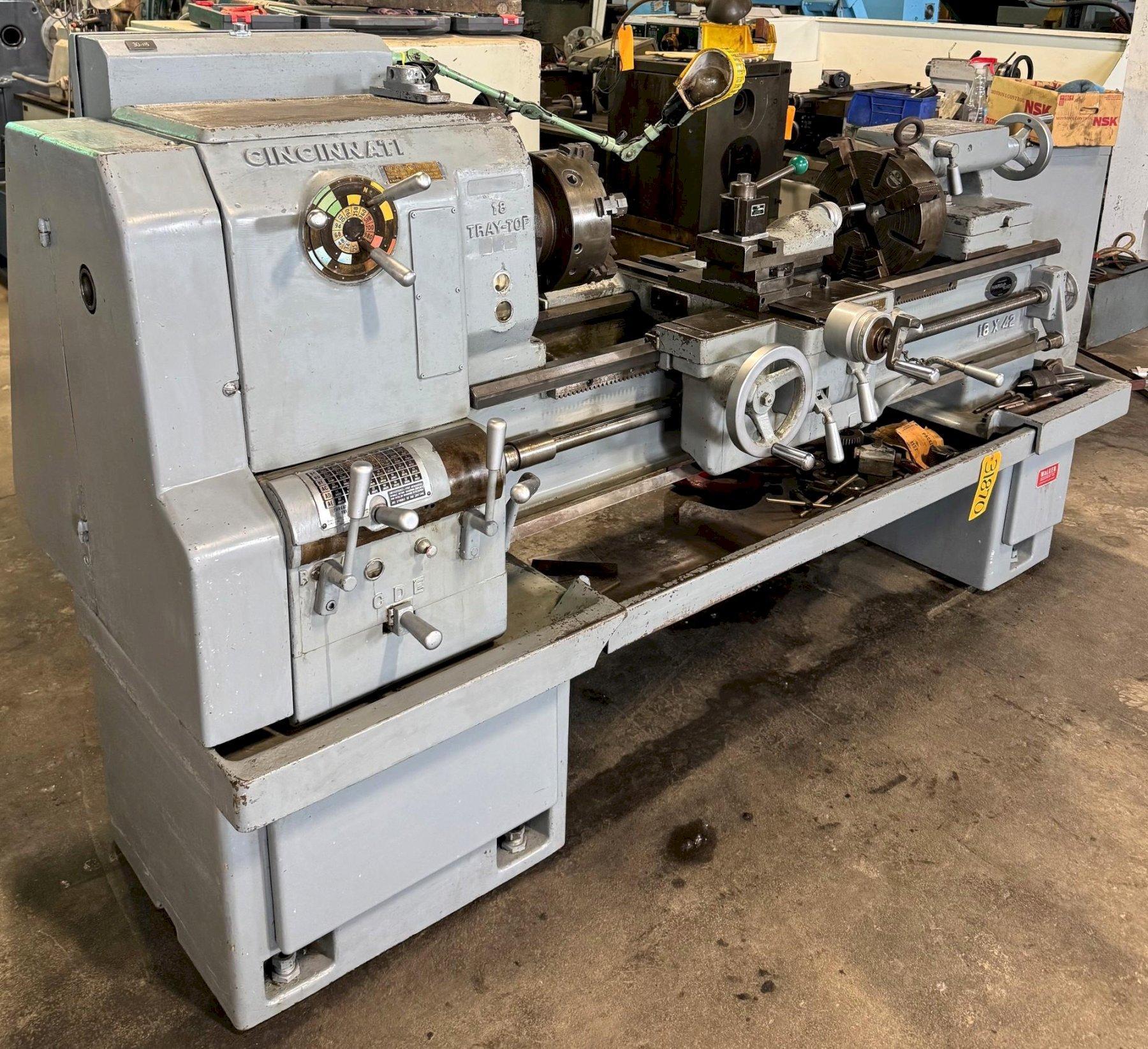

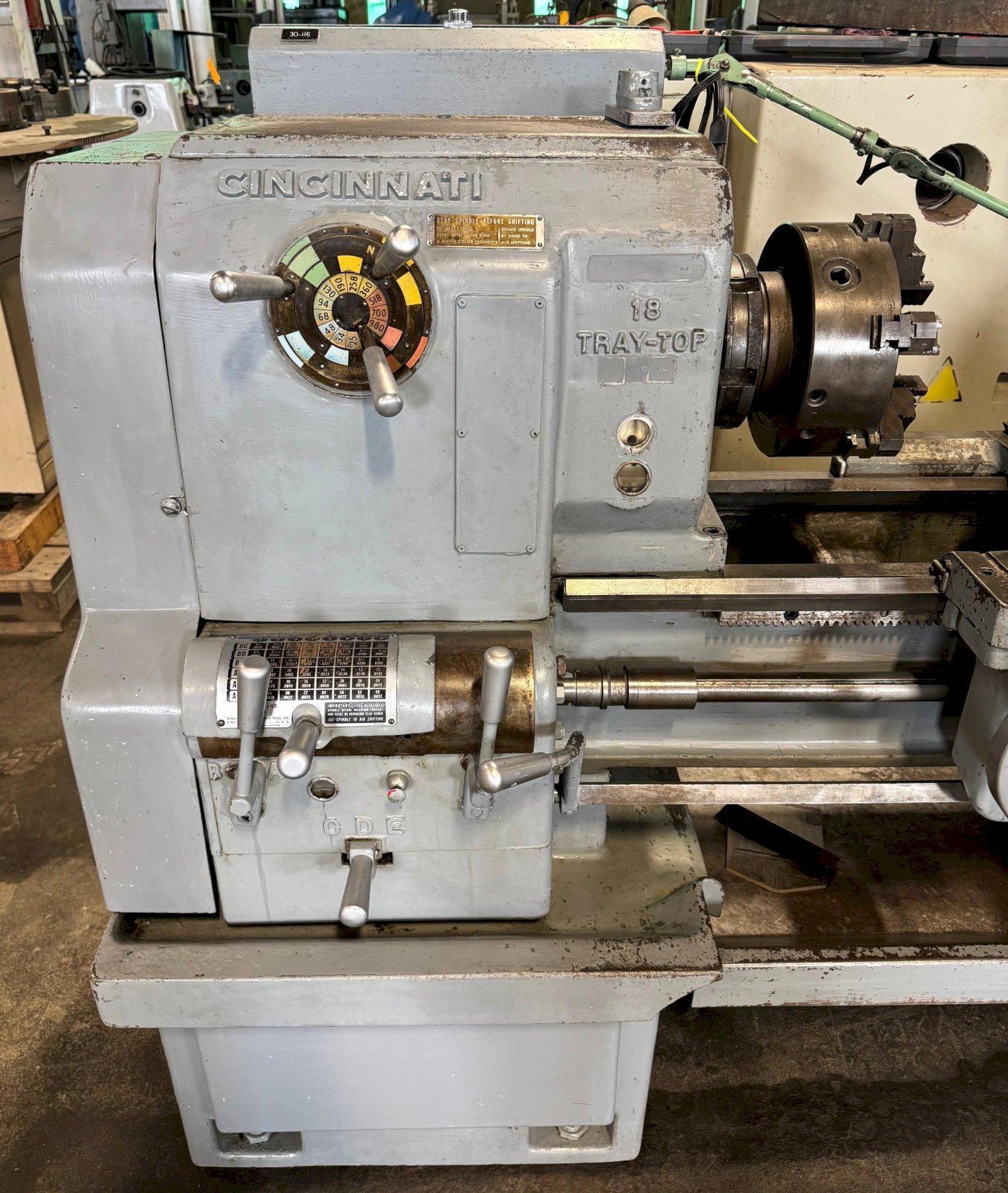

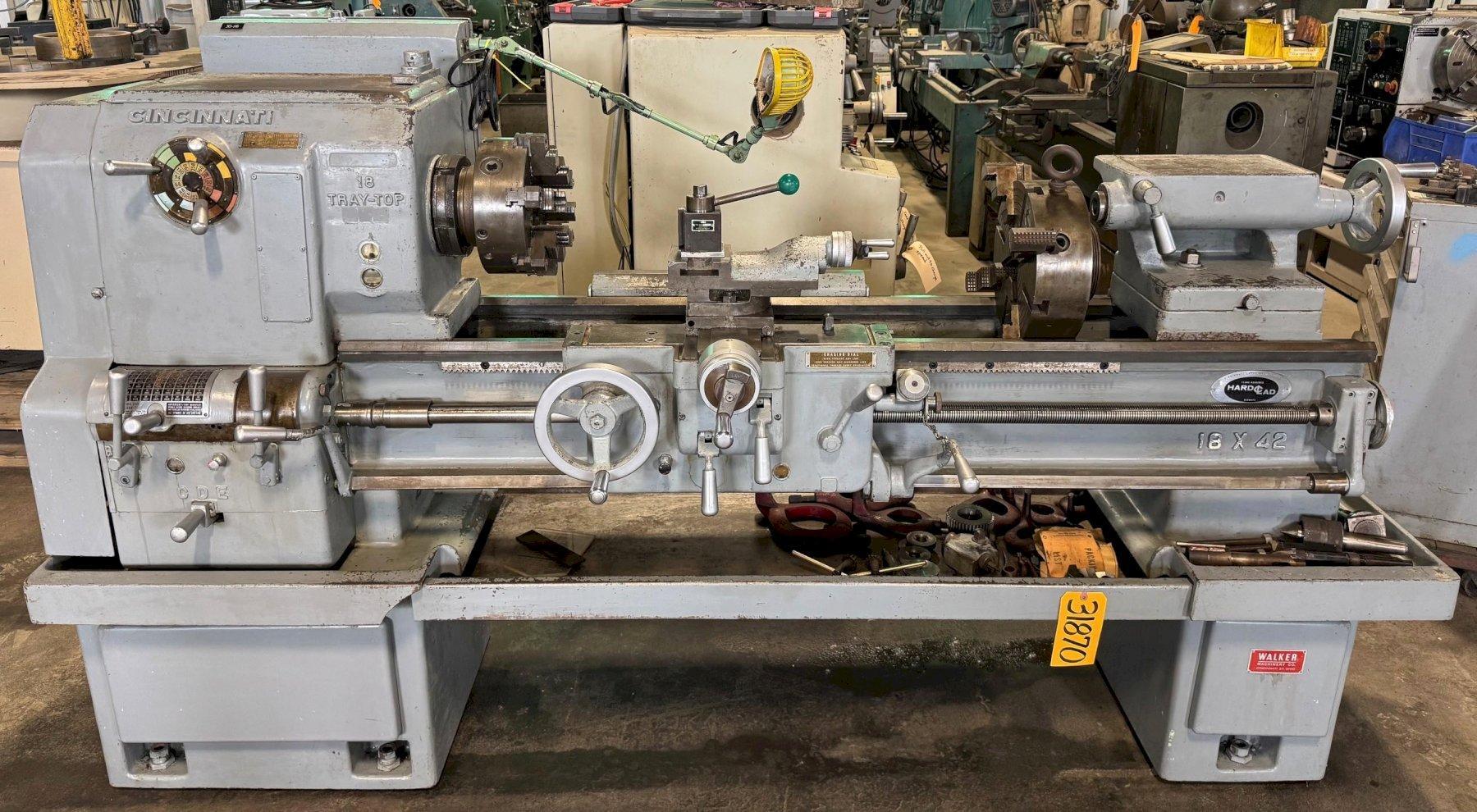

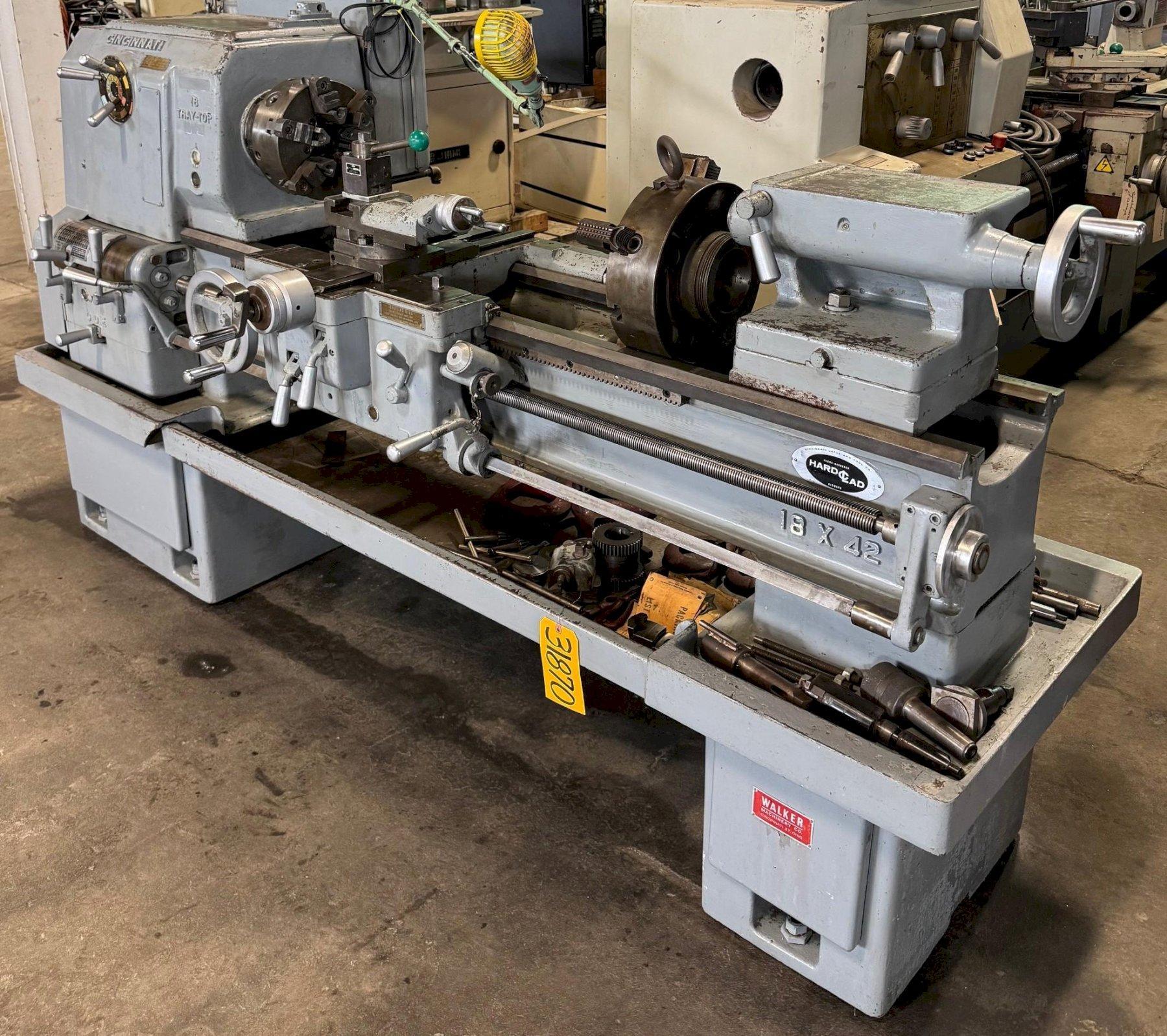

18" x 42" Cincinnati Tray-Top Lathe, 980 RPM, Chucks, 3 HP

Brand
CINCINNATI

Model
18" Tray-Top

Type
Lathes, Engine

Stock #
31870

Condition
Used

Year

Location
Cincinnati, Ohio
United States

Request Quote

Specifications

Weight 3000 pounds
Main Motor 3 HP
Swing Over Cross Slide 11.75 inches
Power 3 horsepower
Spindle Bore 1.75 inches
Centers 42 inches

Equipped With

CINCINNATI LATHE

MODEL: 18" Tray-Top
SERIAL NUMBER: 1W4E5D-7

GENERAL SPECIFICATIONS

Swing Over Bed: 18-3/4"
Swing Over Cross Slide: 11-3/4"
Distance Between Centers: 42"
Swing Over Gap: 27"

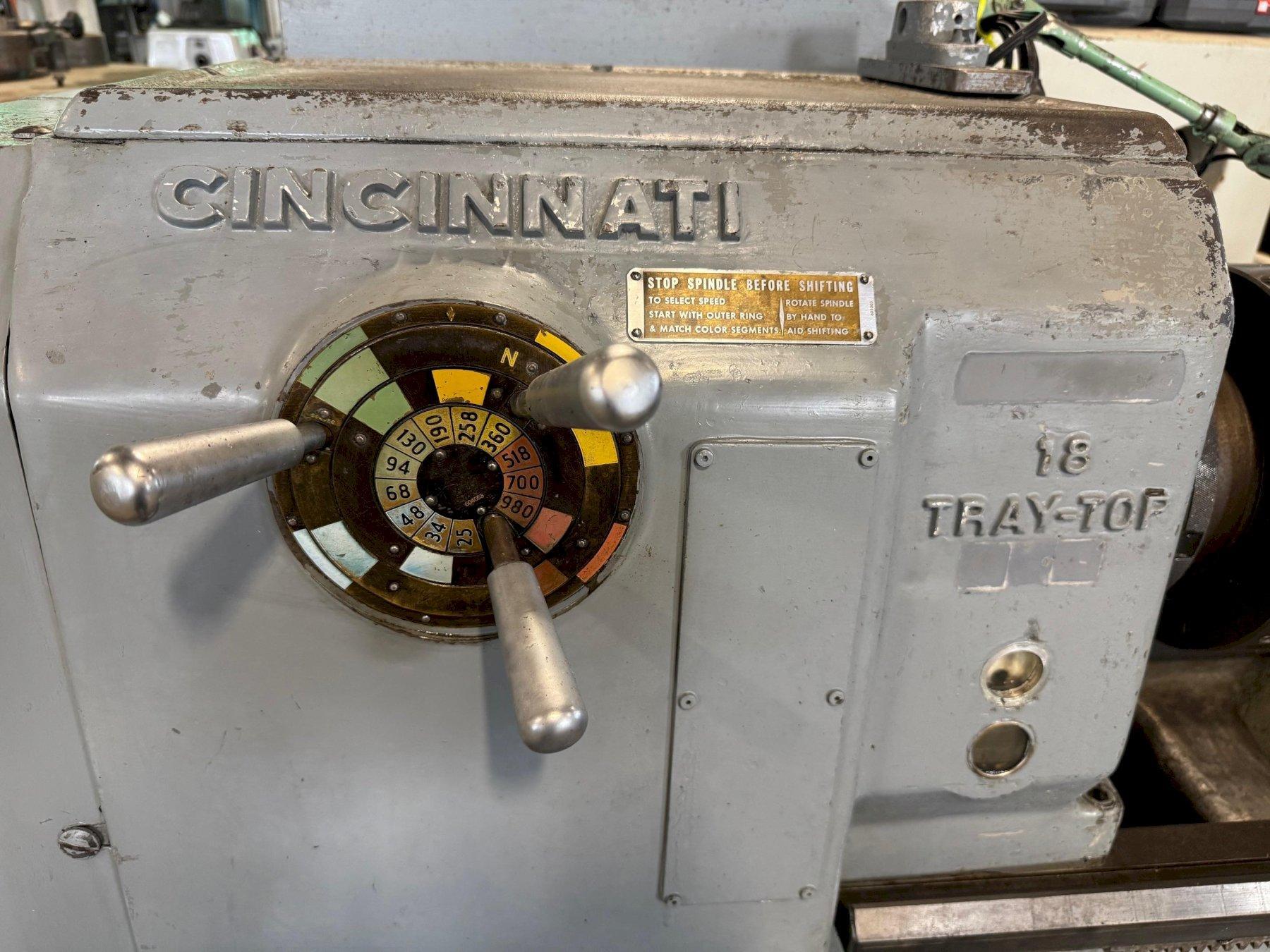

Spindle Speeds: (12) 25 - 980 RPM
Spindle Nose: L-1
Spindle Hole: 1-3/4"
Number Of Thread and Feed Changes: 48"
Thread Range: 1-1/2 to 92 TPI
Feeds, Carriage: .0019" - .1215"
Feeds, Cross Slide: .0009: - .0578"
Leadscrew Diameter: 1-3/8"-6
Cross Slide Travel: 12"
Top Slide Travel: 3-1/4"
Tailstock Spindle Travel: 6"
Tailstock Spindle Diameter: 2-1/4"
Tailstock Spindle: No. 4 M.T.

EQUIPPED WITH

3 HP Drive Motor

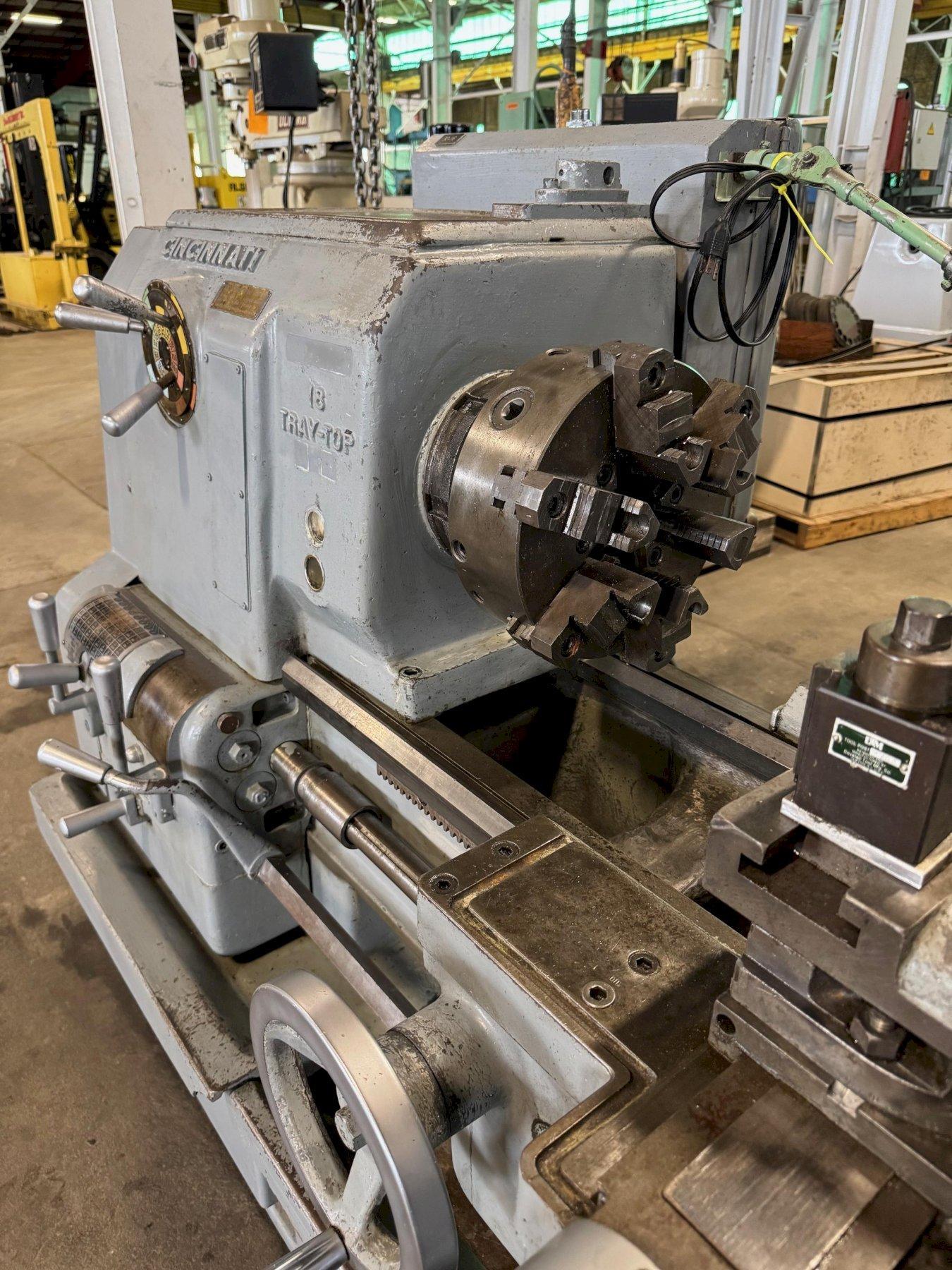

10" 6-Jaw Chuck
12" 4-Jaw Chuck
Thread Dial

Approximate Weight: 3000 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
