15" x 54" Leblond Tool & Die Makers Lathe, Servo-Shift, DRO, Well Tooled

Brand
LEBLOND

Model
Tool & Die Makers

Type
Lathes, Engine

Stock #
31822

Condition
Used

Year

Location
Cincinnati, Ohio
United States

Request Quote

Specifications

Equipped With

LEBLOND LATHE

MODEL: TOOL & DIE MAKERS LATHE
SERIAL NUMBER: 6HC 500

GENERAL SPECIFICATIONS

Swing Over Bed: 15"
Swing Over Cross Slide: 9"
Distance Between Centers: 54"
Spindle Speeds: (16) 31 - 2400 RPM
Spindle Nose: D-1 6" Camlock
Thread Changes: (48) 4 to 224 TPI
Tailstock Spindle Diameter: 2-3/16"
Tailstock Spindle Travel: 8"
Tailstock Taper: No. 4 M.T.

EQUIPPED WITH

5 HP Motor, 230/460/60/3
Servo-Shift

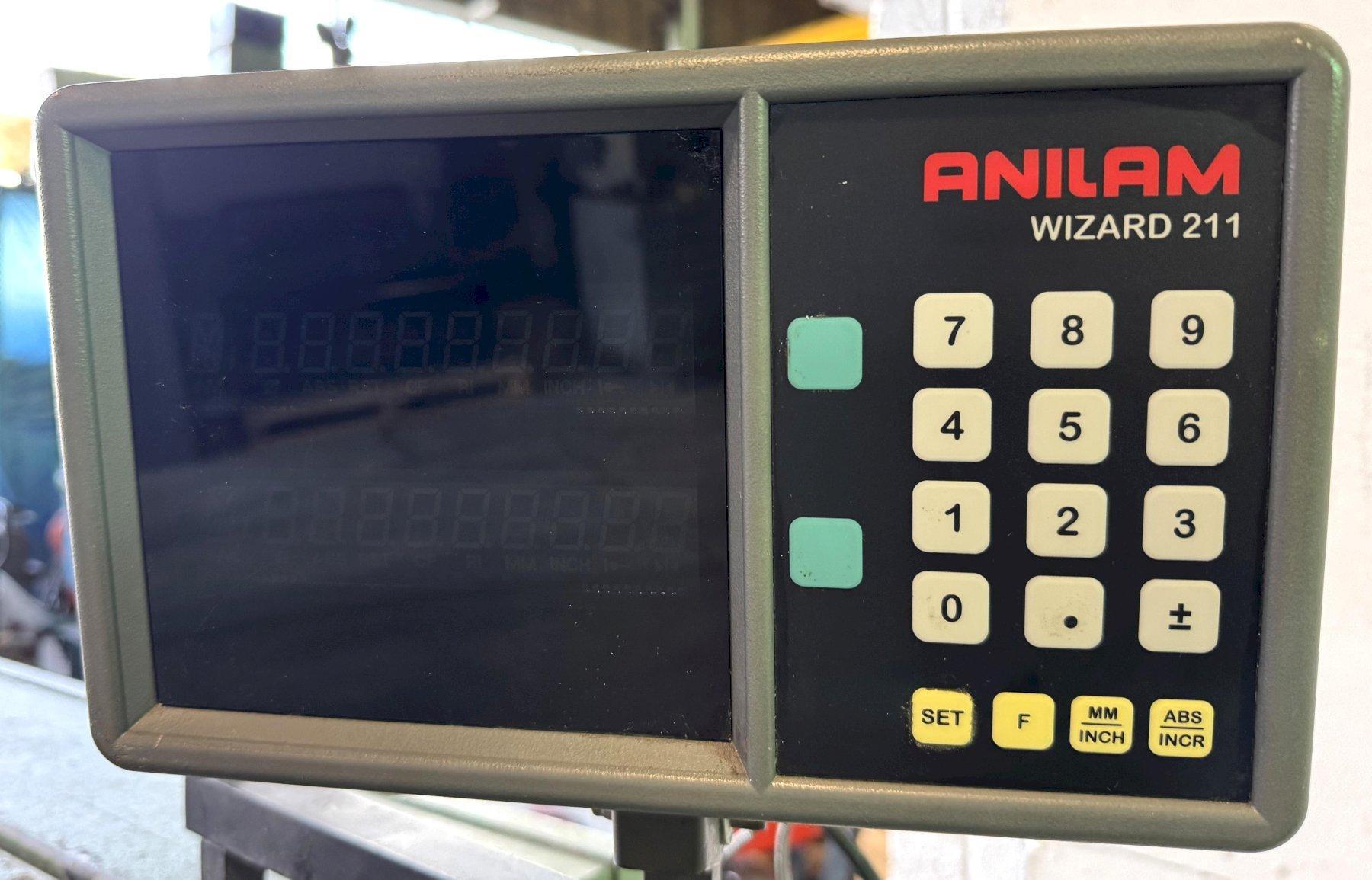

Anilam Wizard 211 Two Axis Digital Readout
15" 4-Jaw Chuck, 10" 3-Jaw Chuck
Collet Chuck w/Collets
Steady Rest, Follow Rest
Dorian Quick Change Tool Post w/Holders
Thread Dial
Hardened Ways
Chip Pan

Approximate Weight: 3500 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
