2 Ton Caldwell Portable A-Frame Gantry Crane K90WLF-2-16/12, Like New
2 Ton Caldwell Portable A-Frame Gantry Crane K90WLF-2-16/12, Like New
  • 2 Ton Caldwell Portable A-Frame Gantry Crane K90WLF-2-16/12, Like New
  • 2 Ton Caldwell Portable A-Frame Gantry Crane K90WLF-2-16/12, Like New

2 Ton Caldwell Portable A-Frame Gantry Crane K90WLF-2-16/12, Like New

Brand
CALDWELL

Model
K90WLF-2-16/12

Type
Cranes, Gantry, Bridge Type

Stock #
31932

Condition
Excellent

Year

Location
Cincinnati, Ohio
United States

Request Quote

Specifications

Tonnage 2 tons
CNC Control no
Weight 1300 pounds

Equipped With

CALDWELL A-FRAME PORTABLE GANTRY CRANE

MODEL: K90WLF-2-16/12
SERIAL NUMBER: 1-145818-1

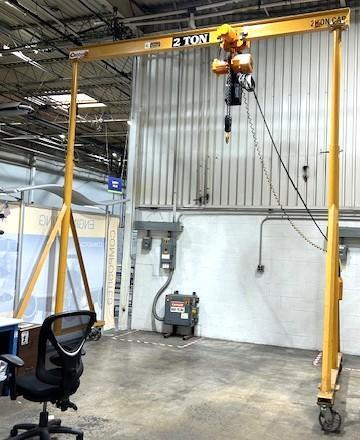

NOTE: Hoist shown in photos is NOT included with crane.

GENERAL SPECIFICATIONS

Adjustable Height
Capacity: 4000 Lbs.
Height Under Beam: 10' to 16'
Maximum Height Under Beam: 16'-3"
Minimum Height Under Beam: 10'-3"
Distance Between Stops: 11'-1"
Overall I-Bean Length: 13'-6"
Adjustable Increments: 12"

EQUIPPED WITH

(4) 8" Swivel Locking Steel Casters
Floor Locks

Approximate Weight: 1300 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
