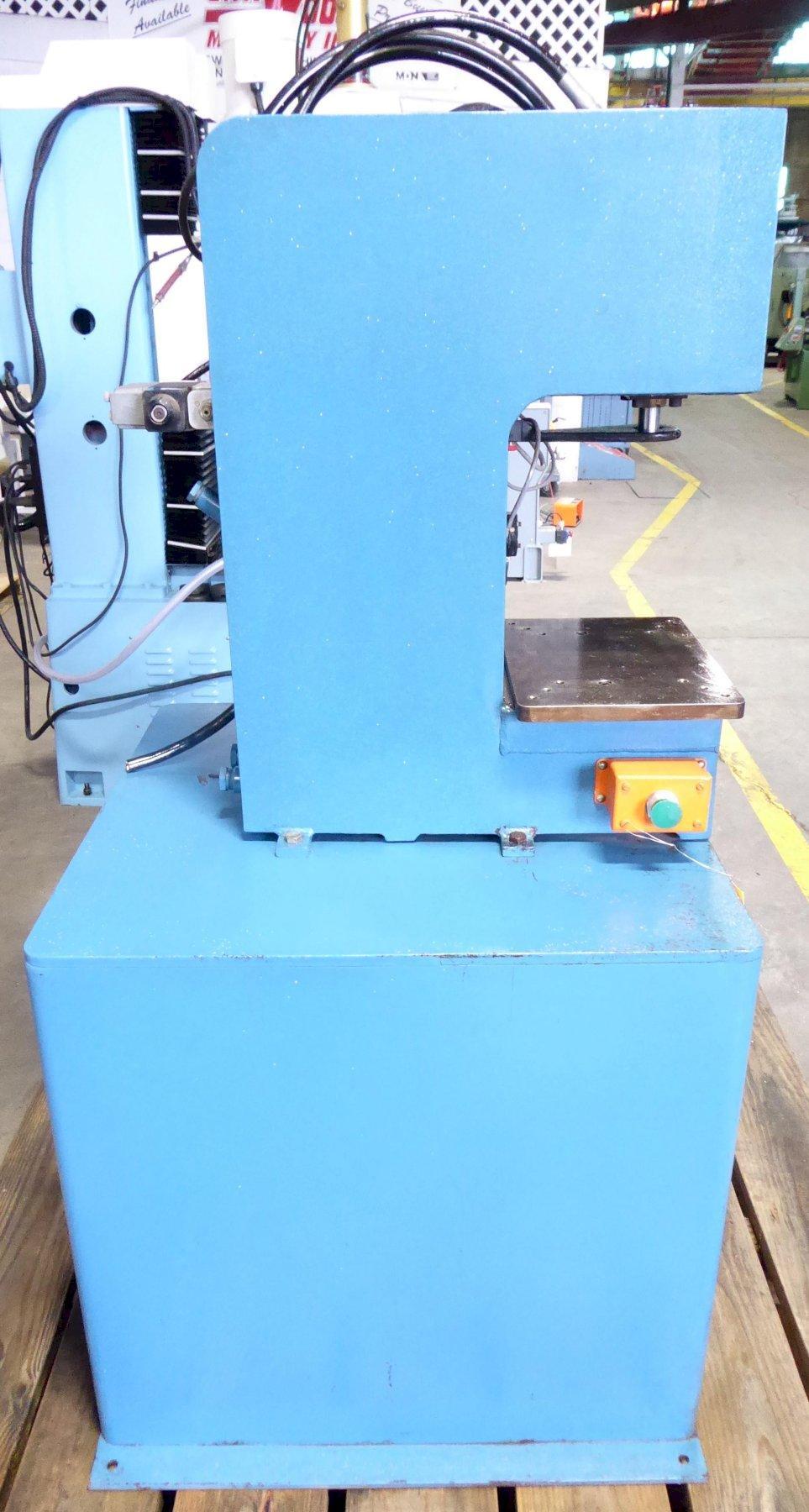

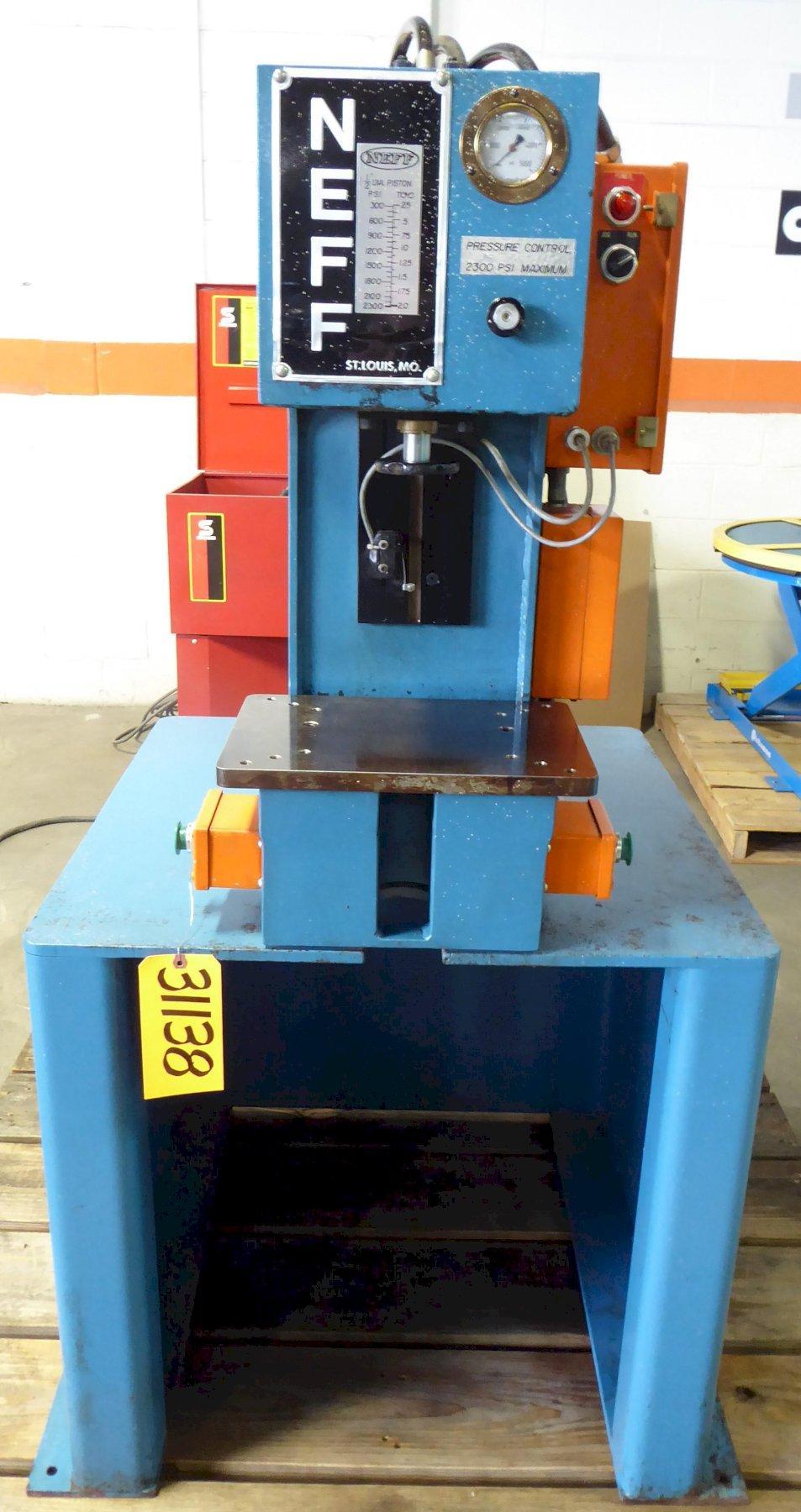

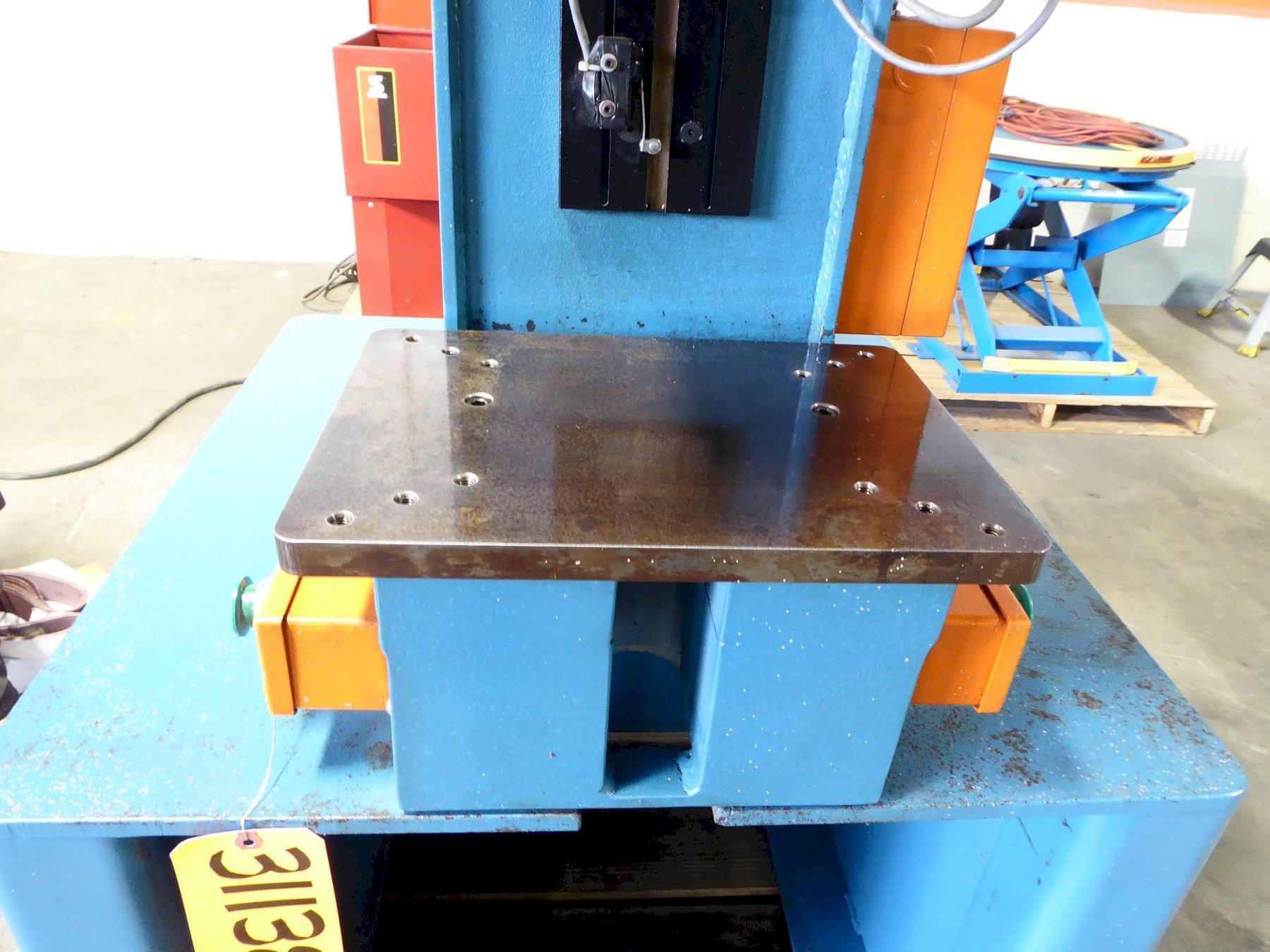

2 Ton NEFF Gap Frame Hydraulic Press D2-2M, 6" Str., 12" DL, Stand

Brand
NEFF

Model
D2-2M

Type
Presses, Hydraulic

Stock #
31138

Condition
Very Good

Year
1987

Location
Cincinnati, Ohio
United States

Request Quote

Specifications

Equipped With

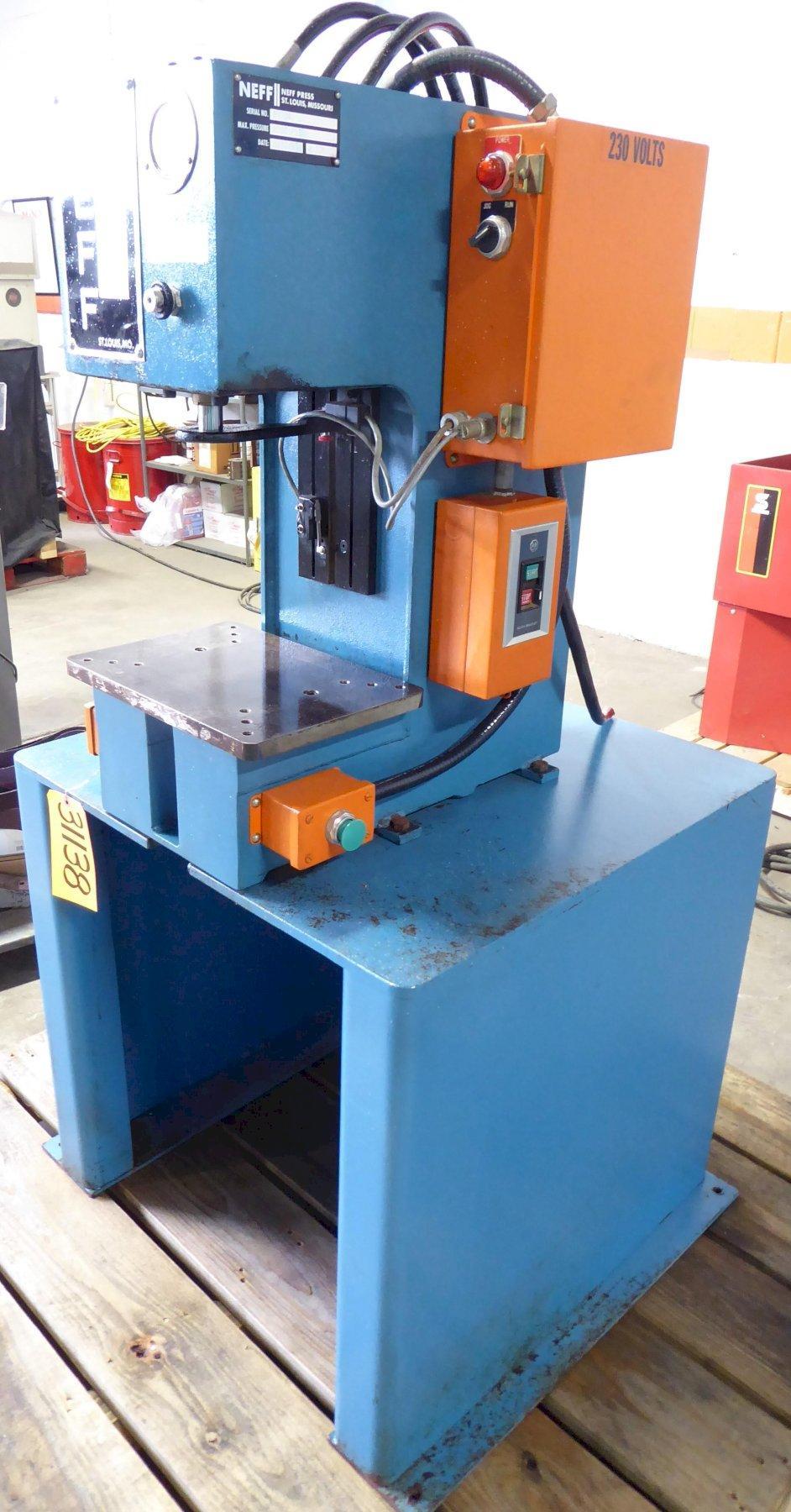

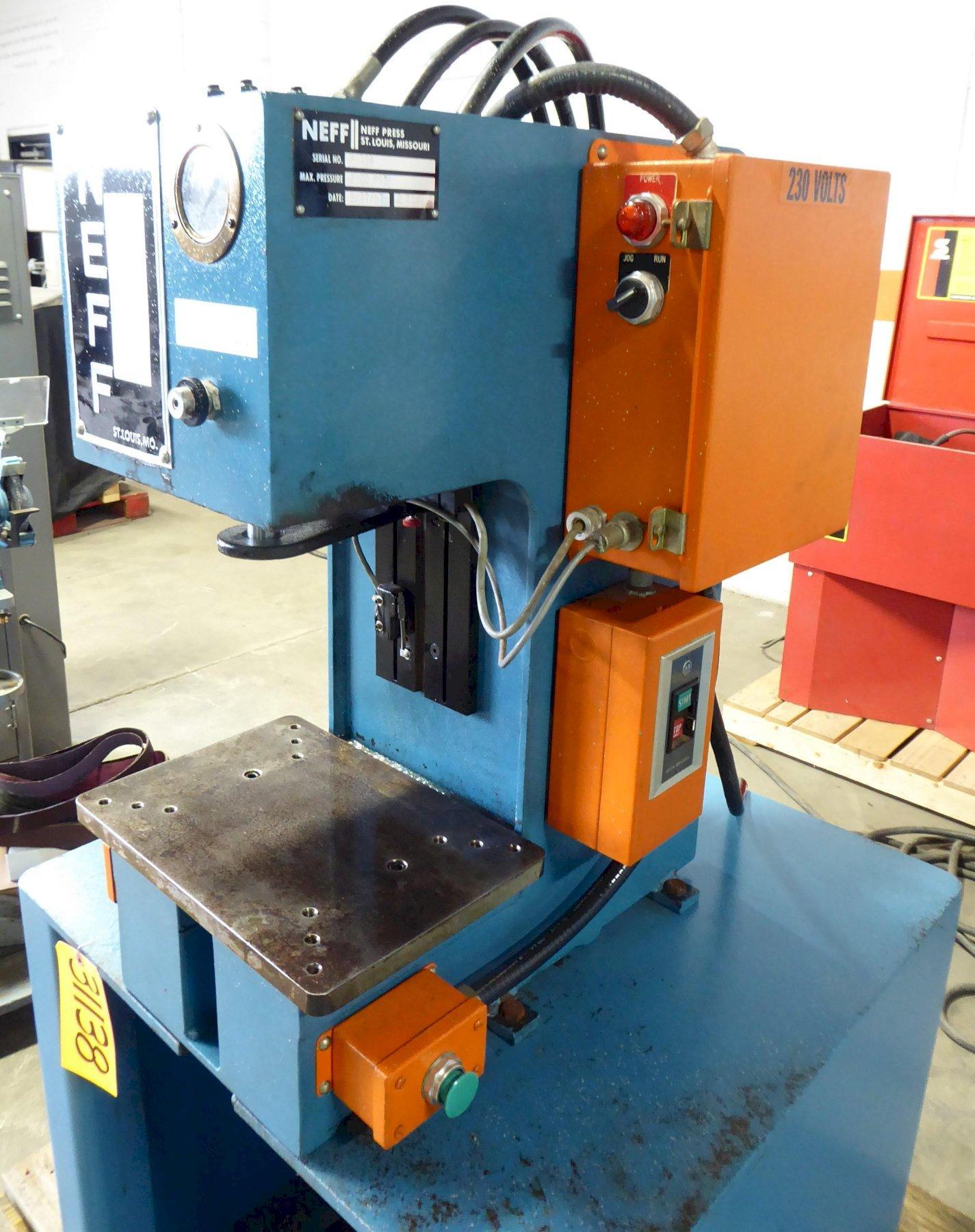

NEFF GAP FRAME HYDRAULIC PRESS

MODEL: D2-2M
SERIAL NUMBER: P8784

GENERAL SPECIFICATIONS

Capacity: 2 Tons
Maximum Stroke: 6"
Daylight: 12"
Throat: 6-3/4"
Minimum Operating Pressure: 200 PSI
Maximum Operating Pressure: 2300 PSI
Ram Speed, Approach: 580 IPM
Ram Speed, Press: 260 IPM
Ram Speed, Return: 470 IPM
Piston Diameter: 1-1/2"
Reservoir Capacity: 7 Gallons

EQUIPPED WITH

2 HP Motor
Dual Palm Button Operation

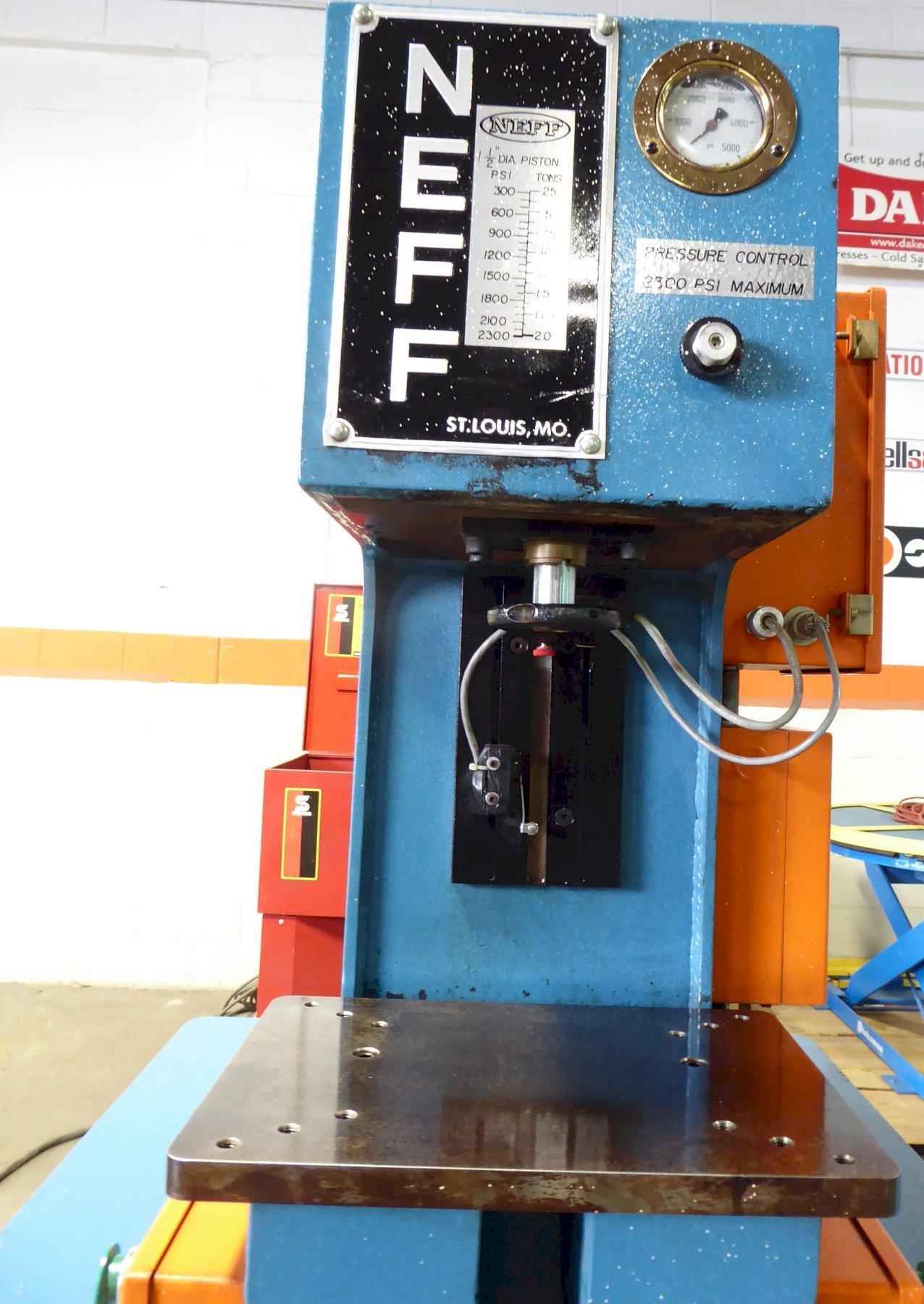

Tonnage Control

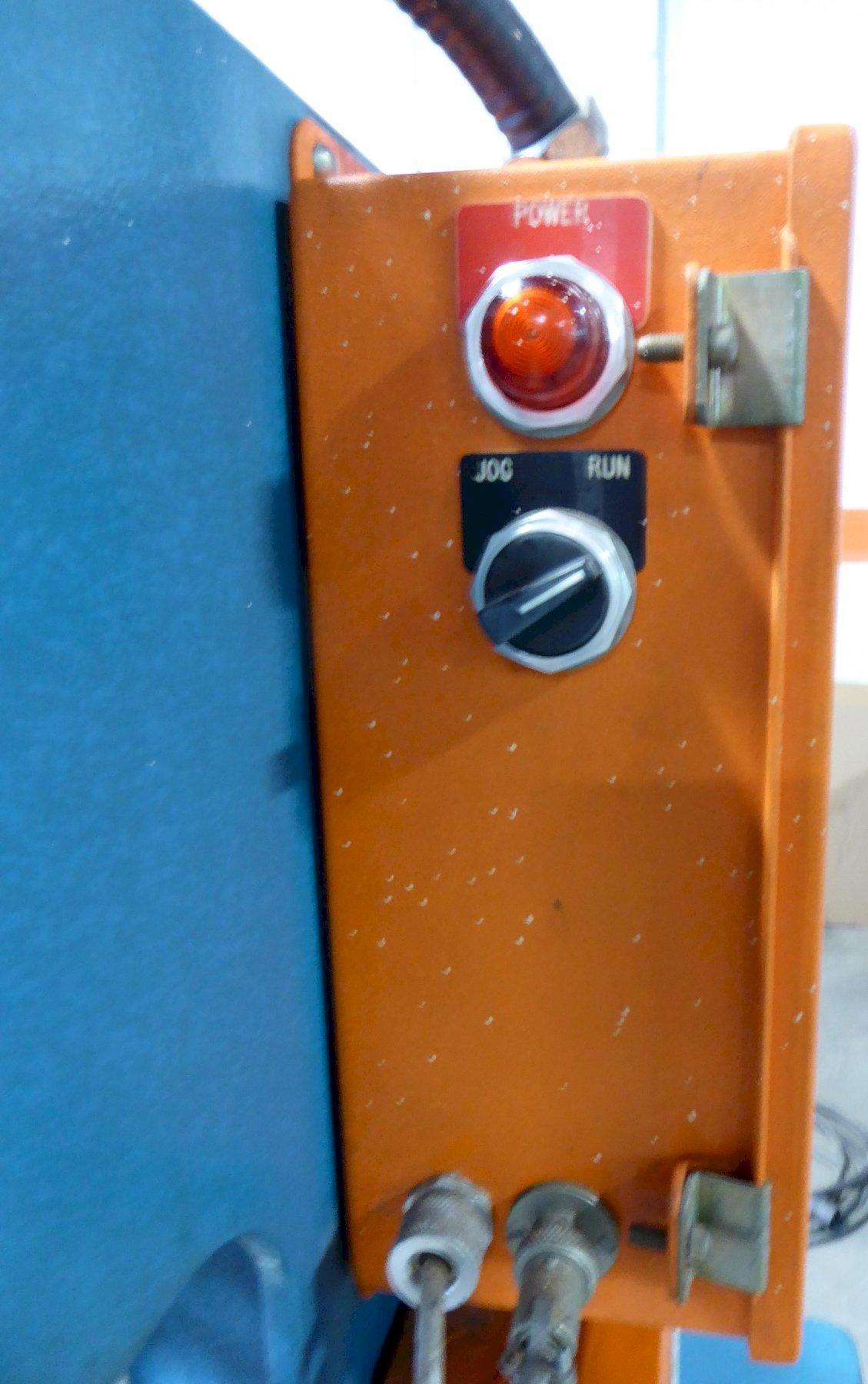

Run/Jog Selector Switch

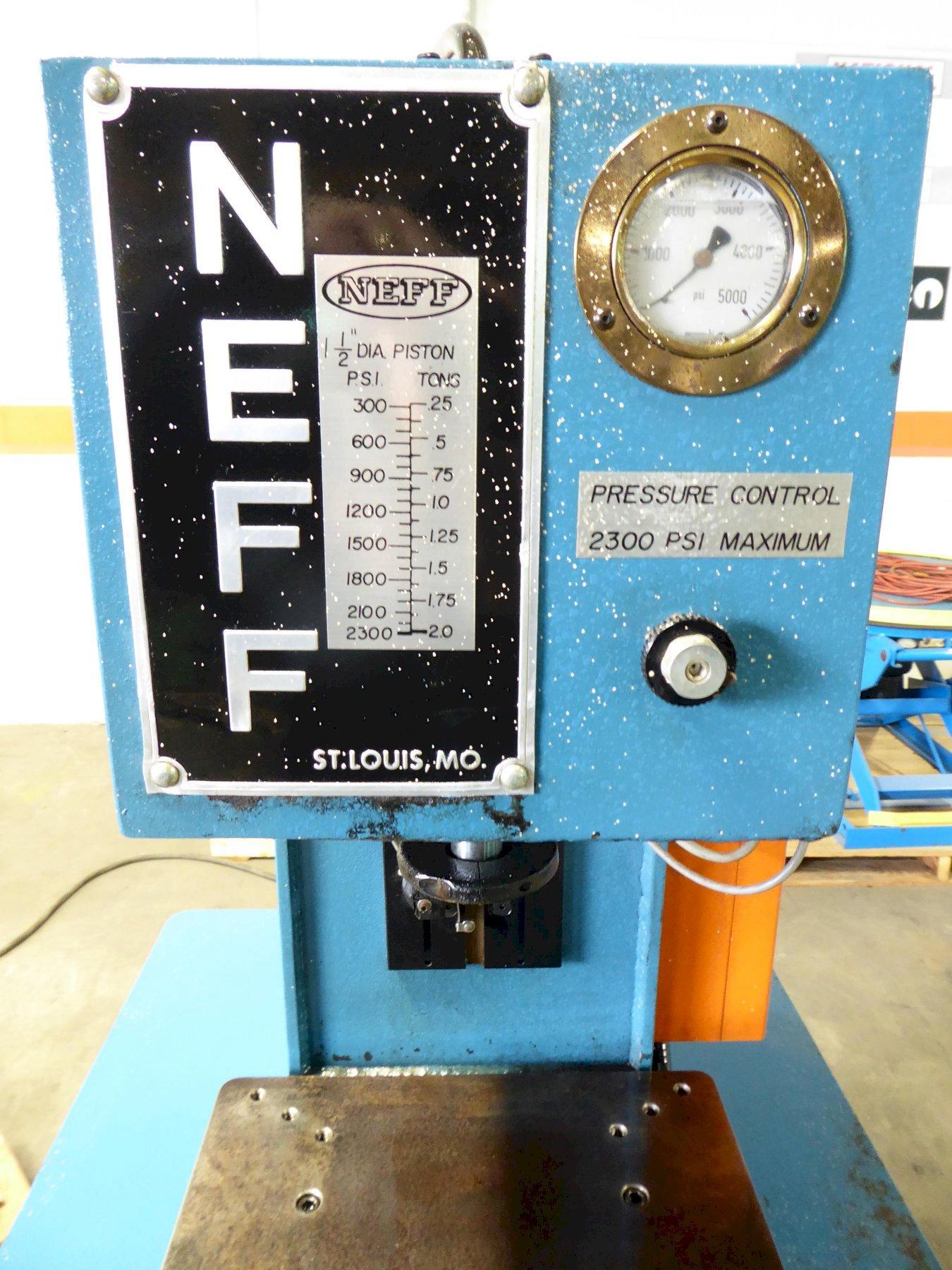

Pressure Gauge
Oil Level Gauge

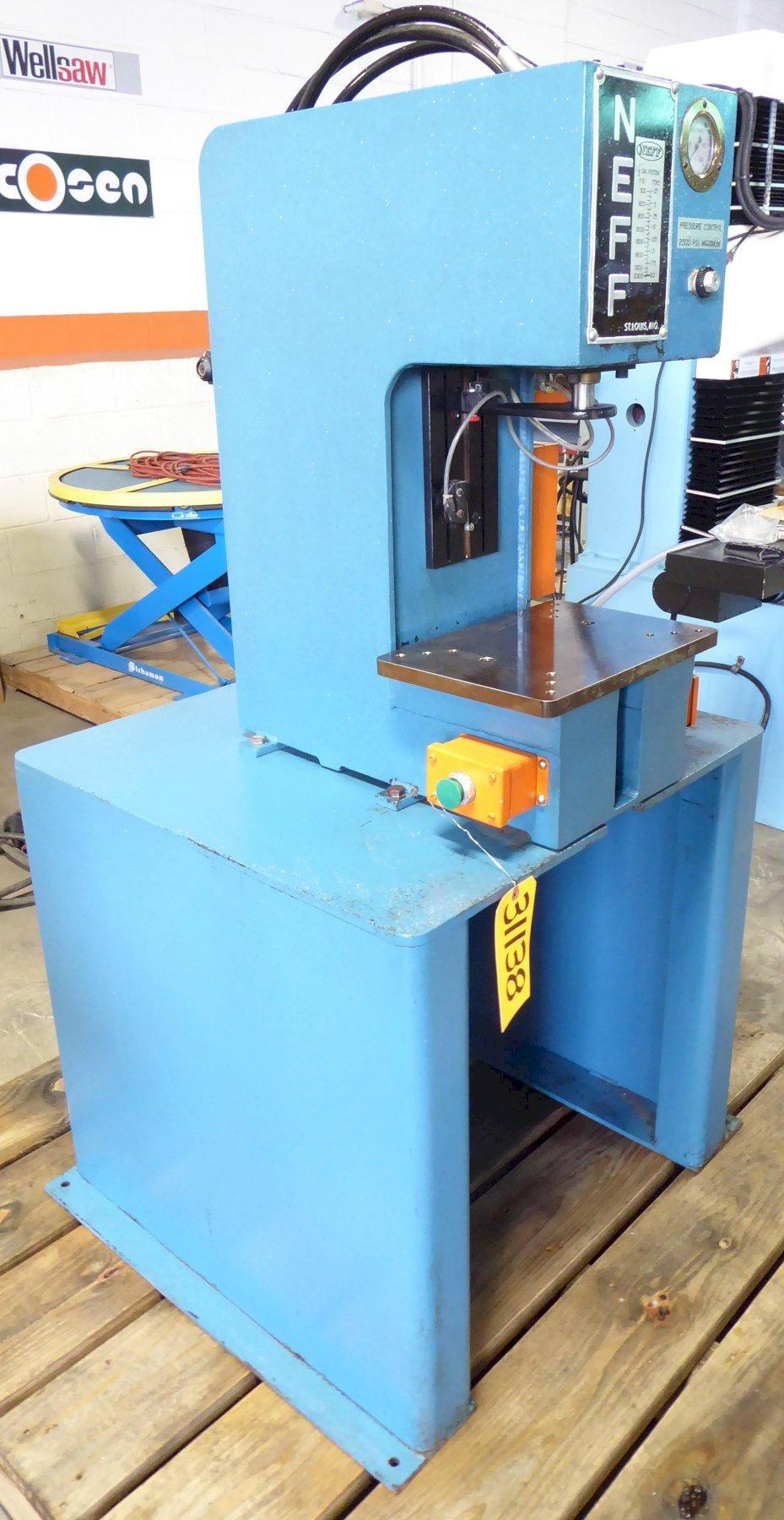

Heavy Duty Factory Stand

Approximate Weight: 500 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
