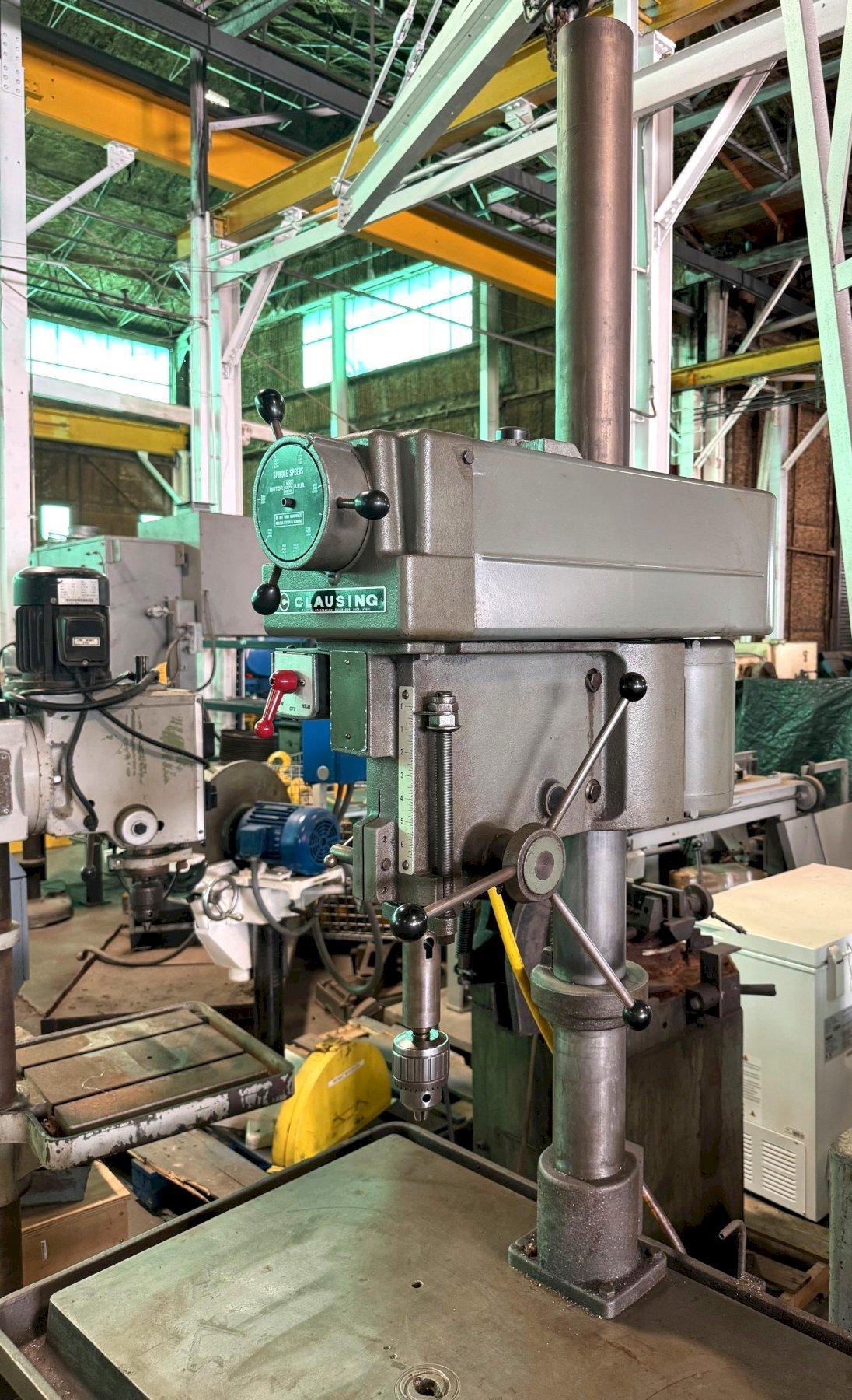

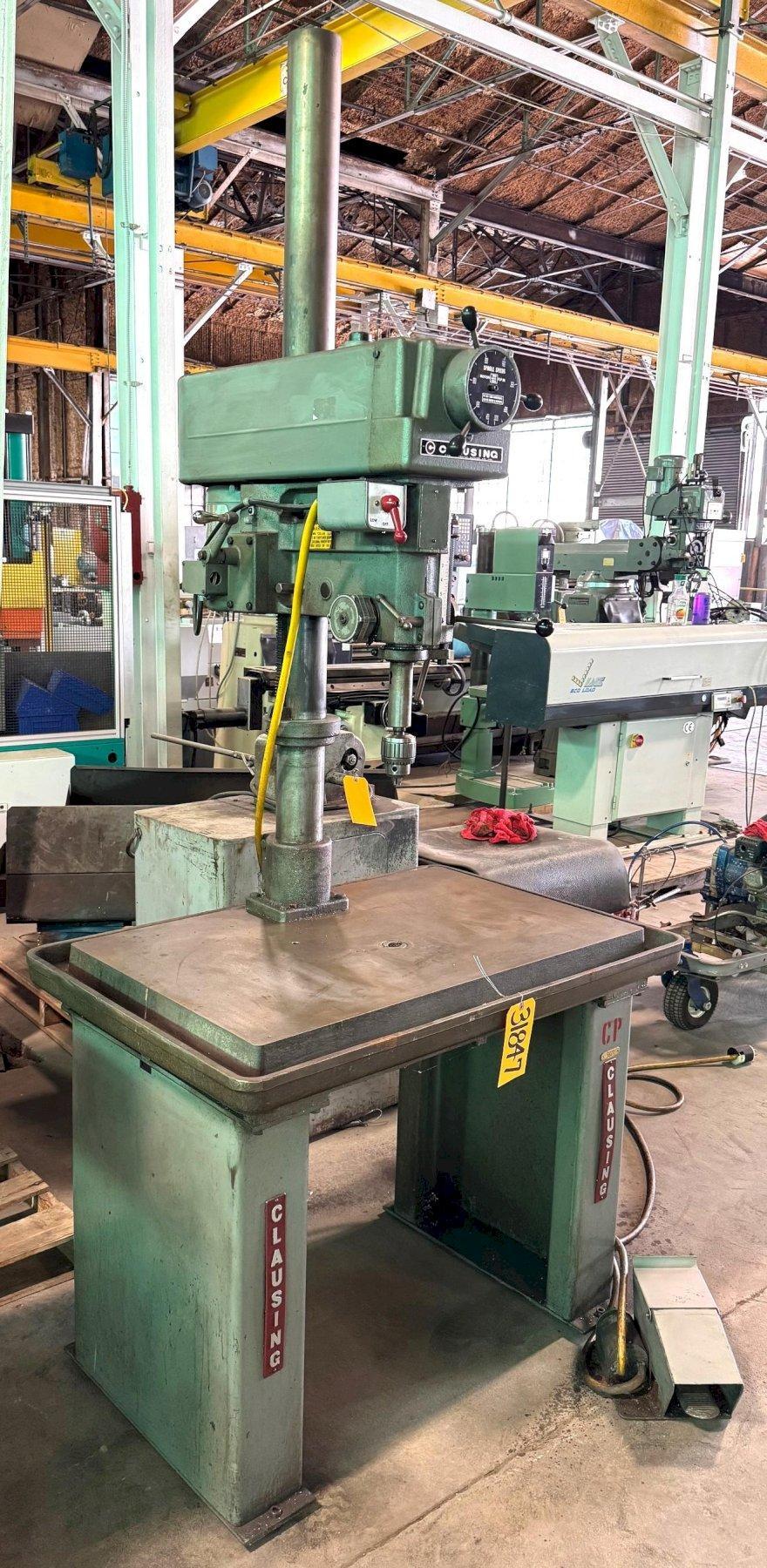

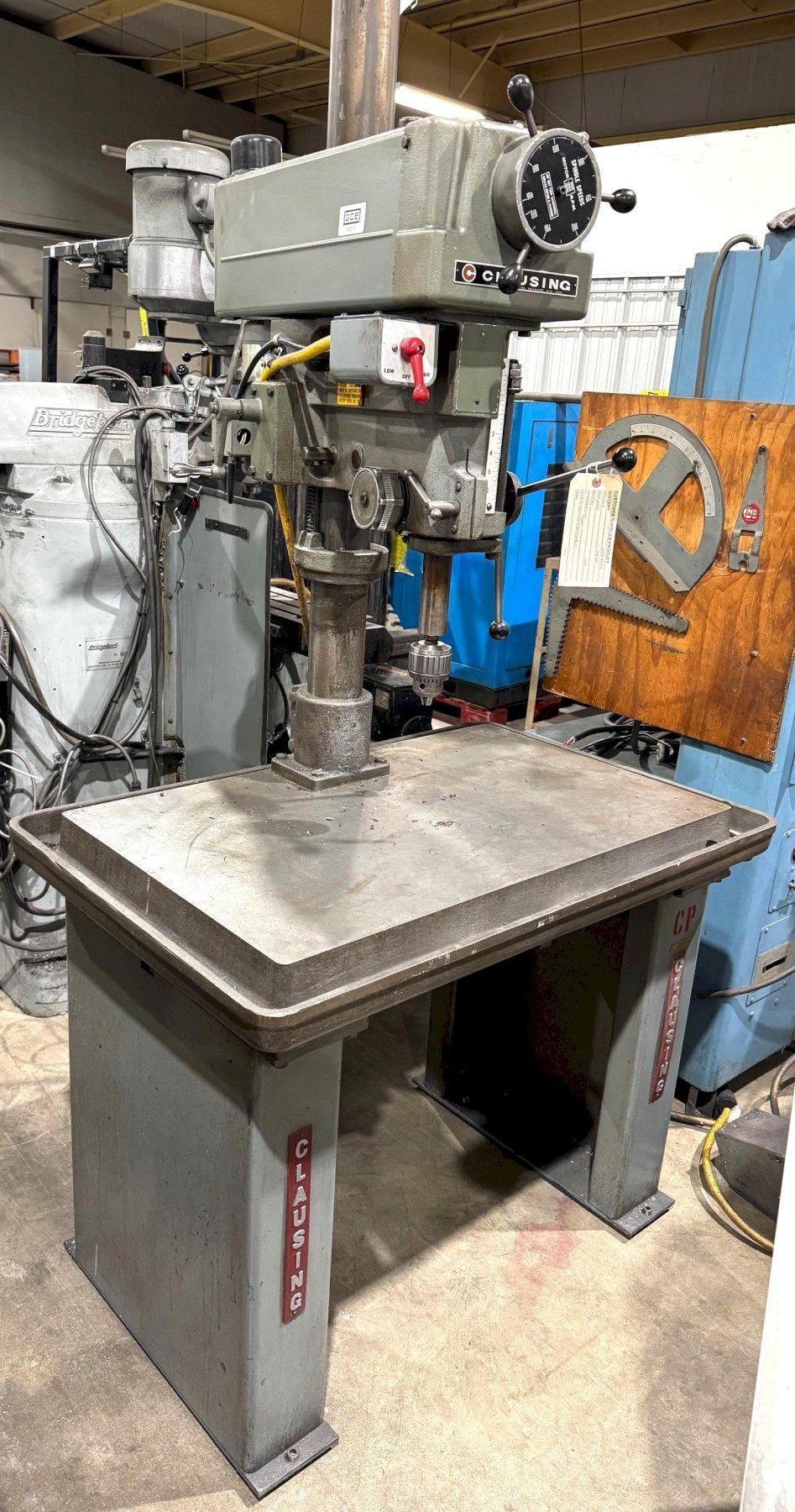

20" Clausing Single Spindle Drill, V-Speed 150-2000 RPM, 24" x 40" Tbl., 3 MT, 1.5 HP
20" Clausing Single Spindle Drill, V-Speed 150-2000 RPM, 24" x 40" Tbl., 3 MT, 1.5 HP
20" Clausing Single Spindle Drill, V-Speed 150-2000 RPM, 24" x 40" Tbl., 3 MT, 1.5 HP
20" Clausing Single Spindle Drill, V-Speed 150-2000 RPM, 24" x 40" Tbl., 3 MT, 1.5 HP
20" Clausing Single Spindle Drill, V-Speed 150-2000 RPM, 24" x 40" Tbl., 3 MT, 1.5 HP
  • 20" Clausing Single Spindle Drill, V-Speed 150-2000 RPM, 24" x 40" Tbl., 3 MT, 1.5 HP
  • 20" Clausing Single Spindle Drill, V-Speed 150-2000 RPM, 24" x 40" Tbl., 3 MT, 1.5 HP
  • 20" Clausing Single Spindle Drill, V-Speed 150-2000 RPM, 24" x 40" Tbl., 3 MT, 1.5 HP
  • 20" Clausing Single Spindle Drill, V-Speed 150-2000 RPM, 24" x 40" Tbl., 3 MT, 1.5 HP
  • 20" Clausing Single Spindle Drill, V-Speed 150-2000 RPM, 24" x 40" Tbl., 3 MT, 1.5 HP

20" Clausing Single Spindle Drill, V-Speed 150-2000 RPM, 24" x 40" Tbl., 3 MT, 1.5 HP

Brand
CLAUSING

Model
2286

Type
Drills, Heavy Duty & Sensitive, Single Spindle

Stock #
31847

Condition
Used

Year

Location
CINCINNATI, Ohio
United States

Request Quote

Specifications

Equipped With

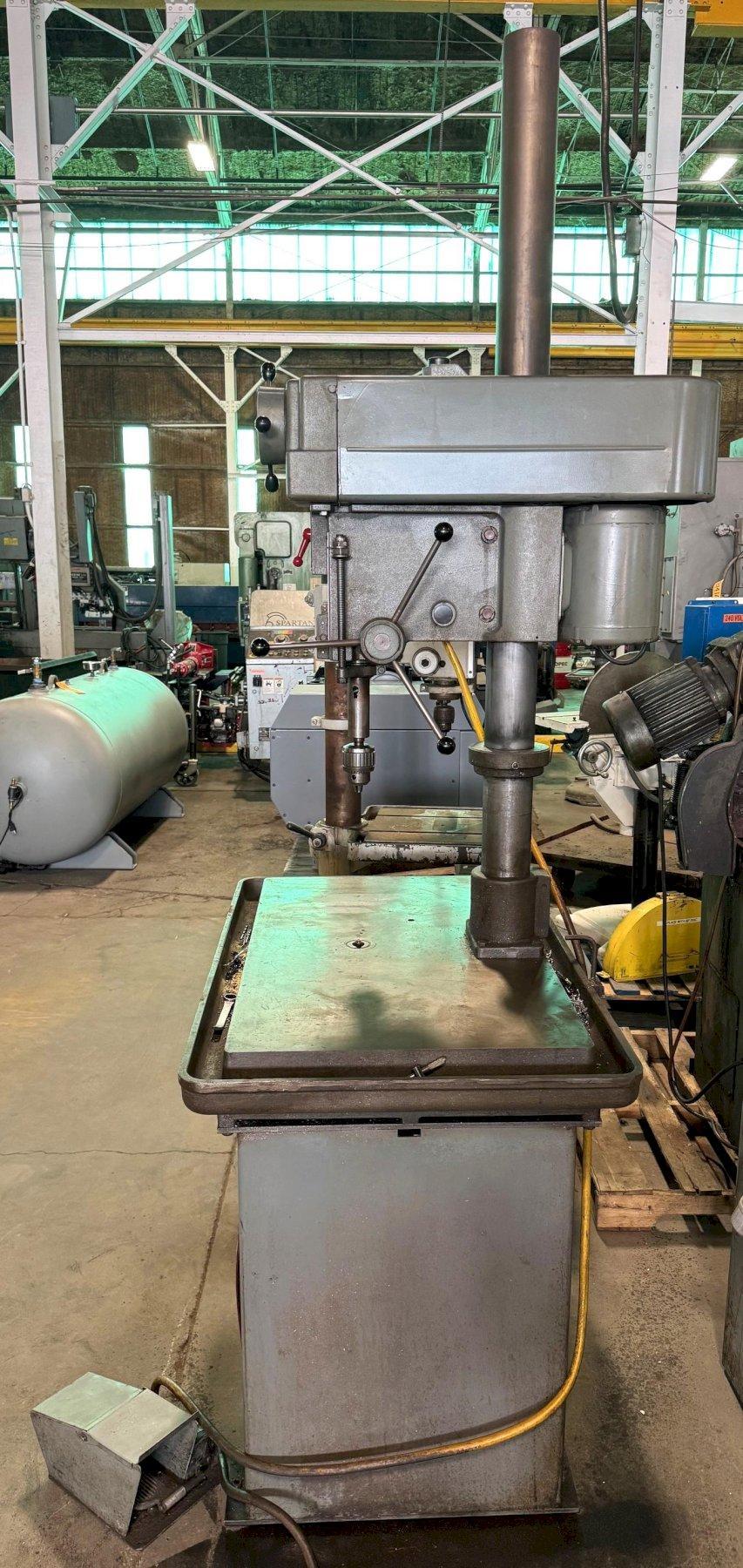

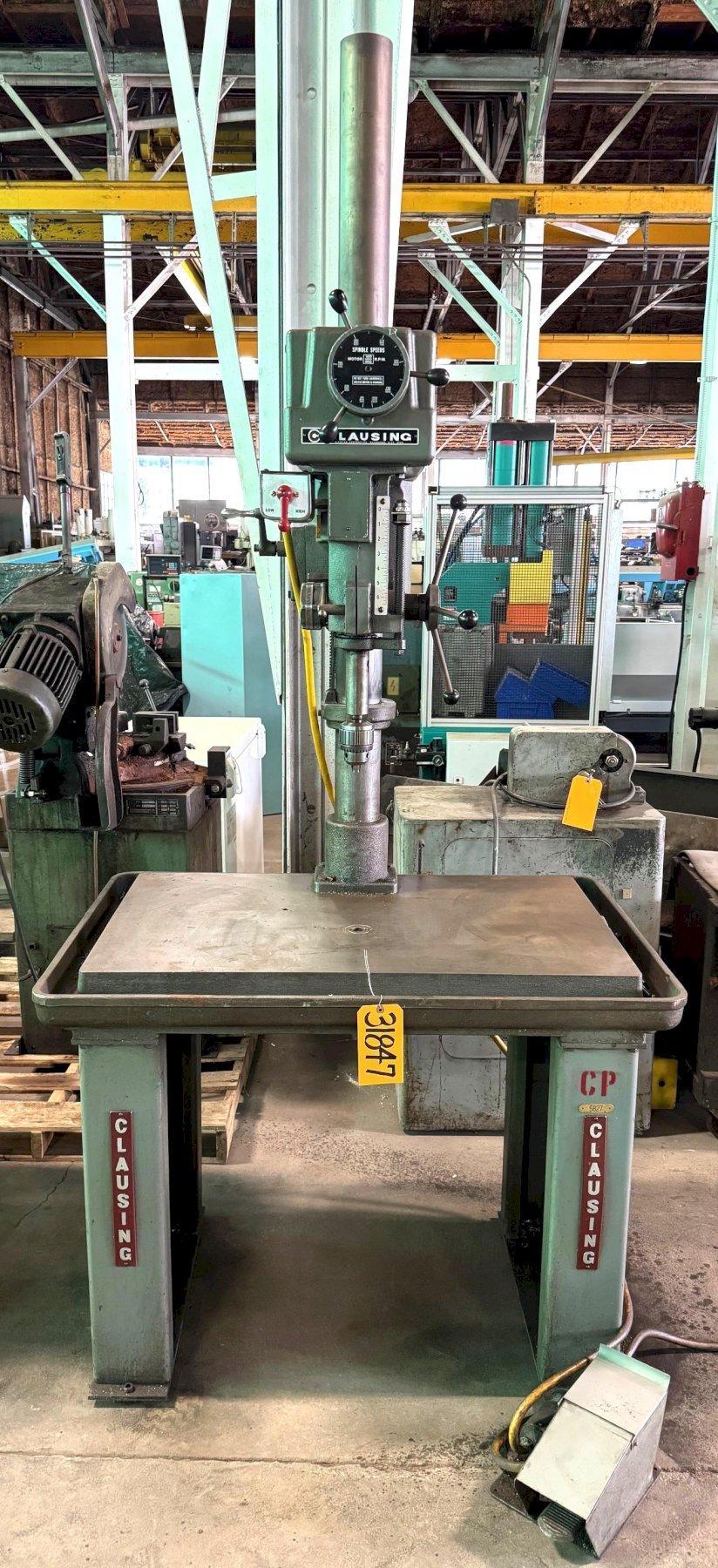

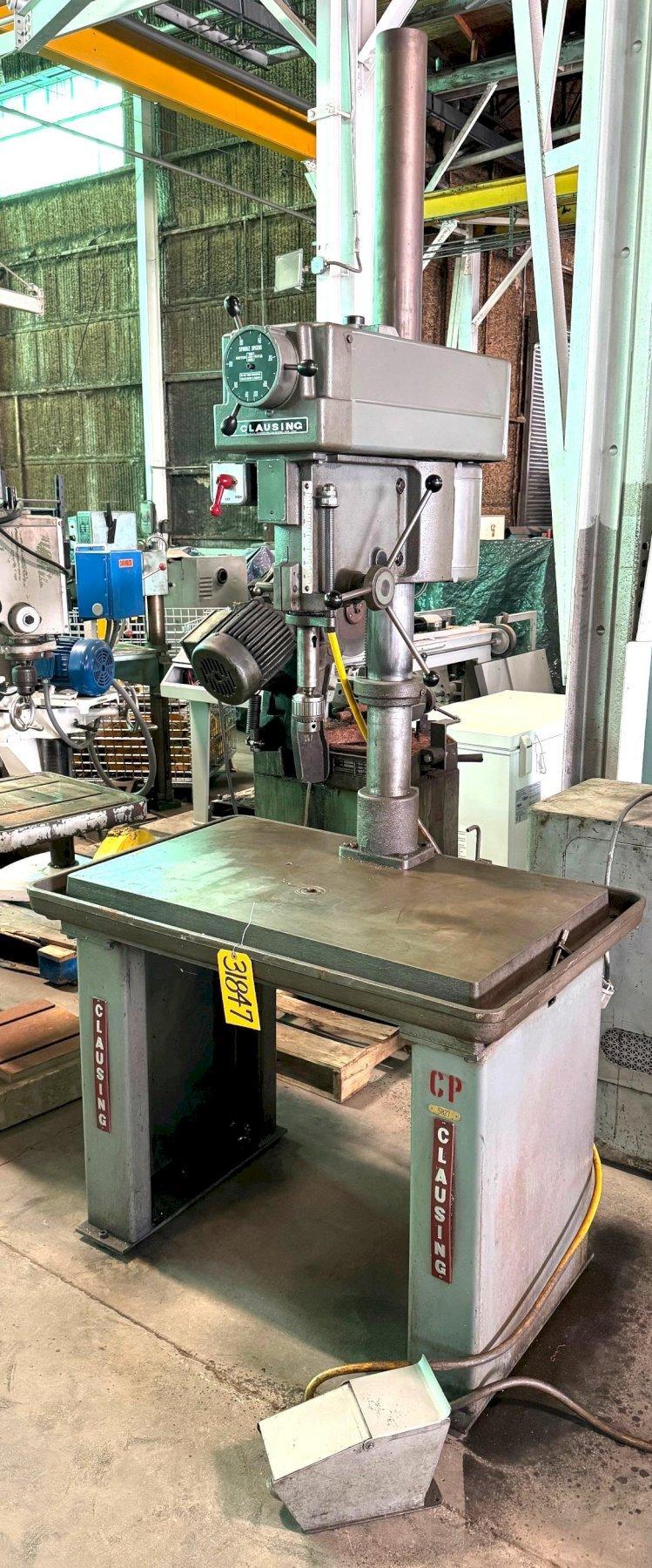

CLAUSING SINGLE SPINDLE DRILL

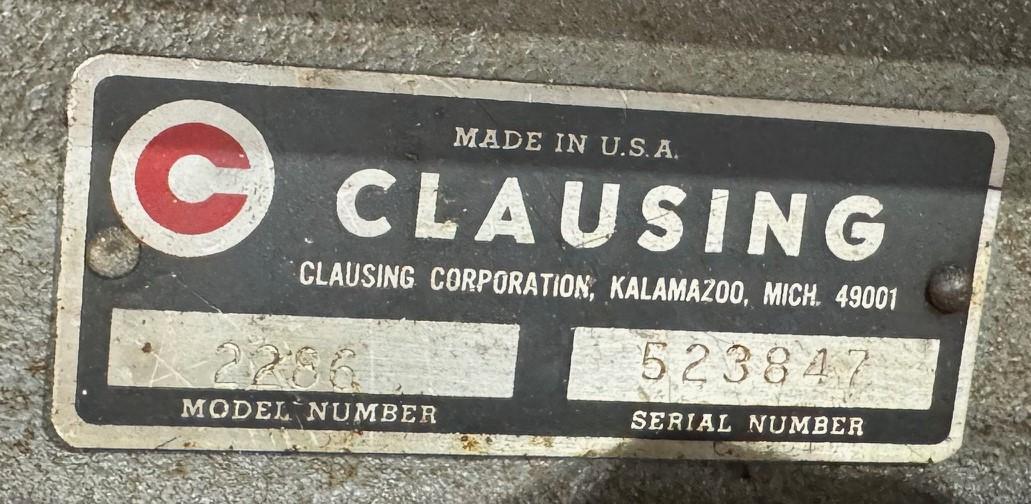

MODEL: 2286
SERIAL NUMBER: 523847

GENERAL SPECIFICATIONS

Drill To Center Of Circle: 20"
Spindle Taper: No. 3 M.T.
Quill Diameter: 2-1/2"
Spindle Travel: 6-1/2"

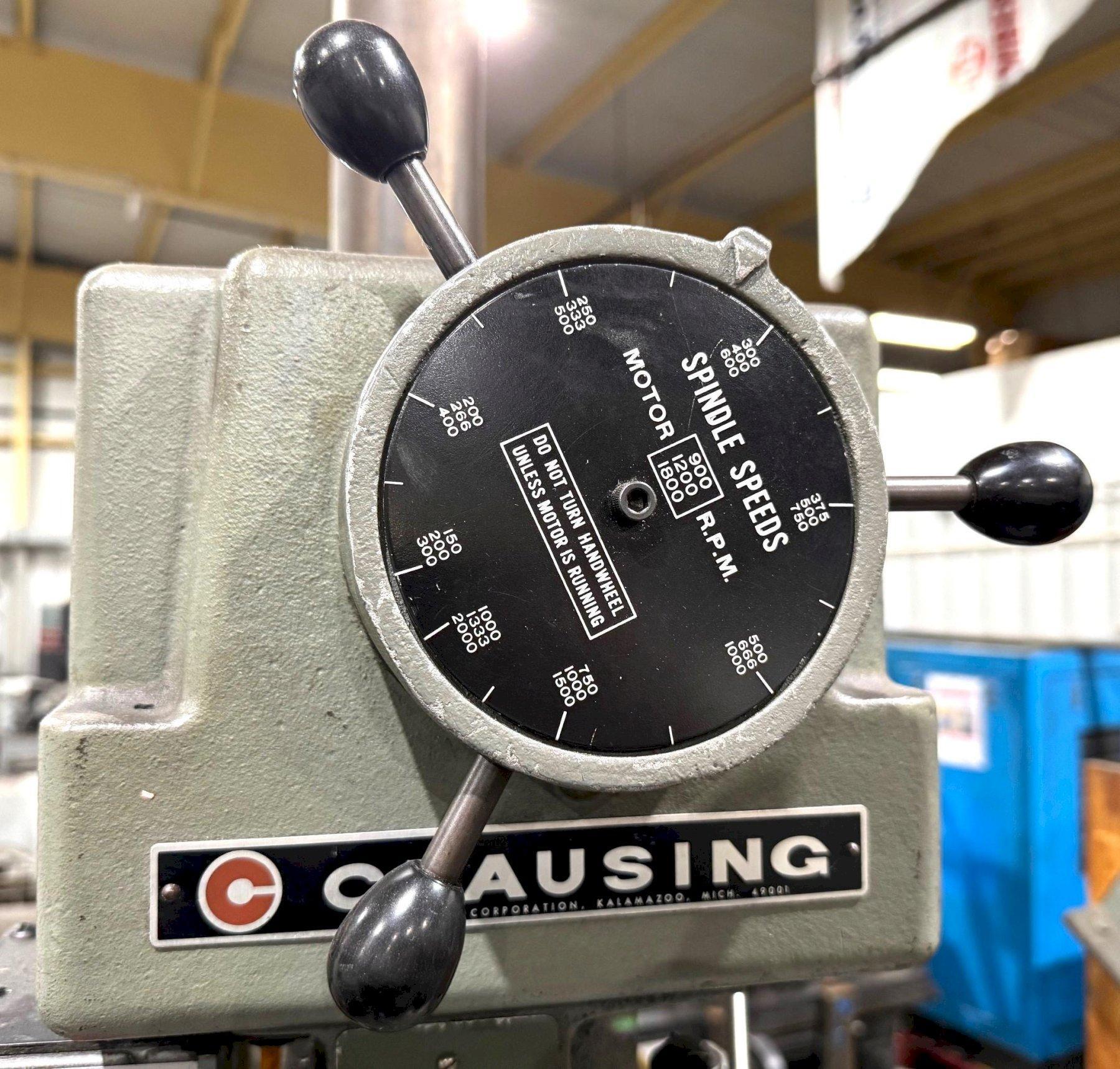

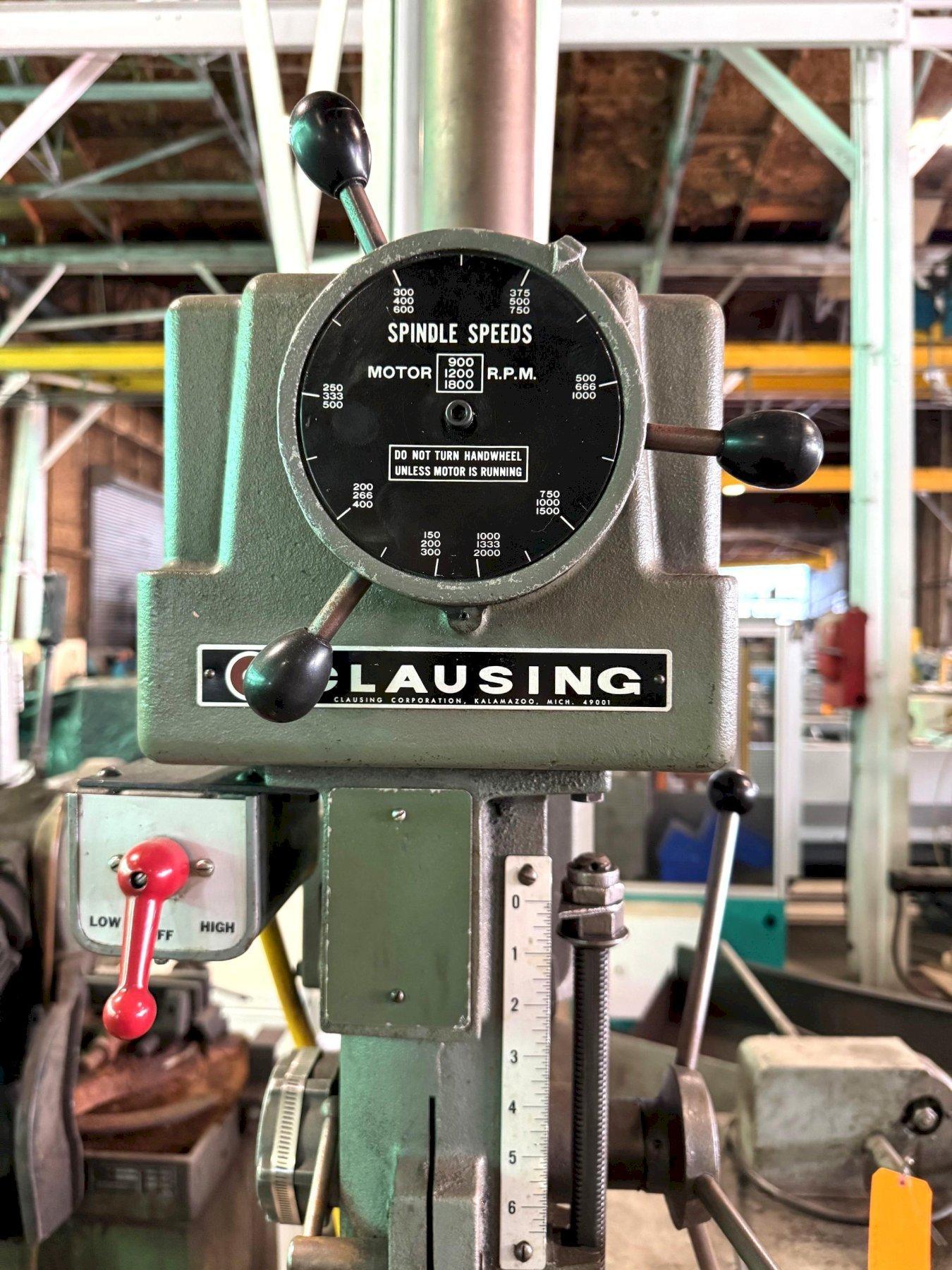

Spindle Speeds, Variable: 150 to 2000 RPM

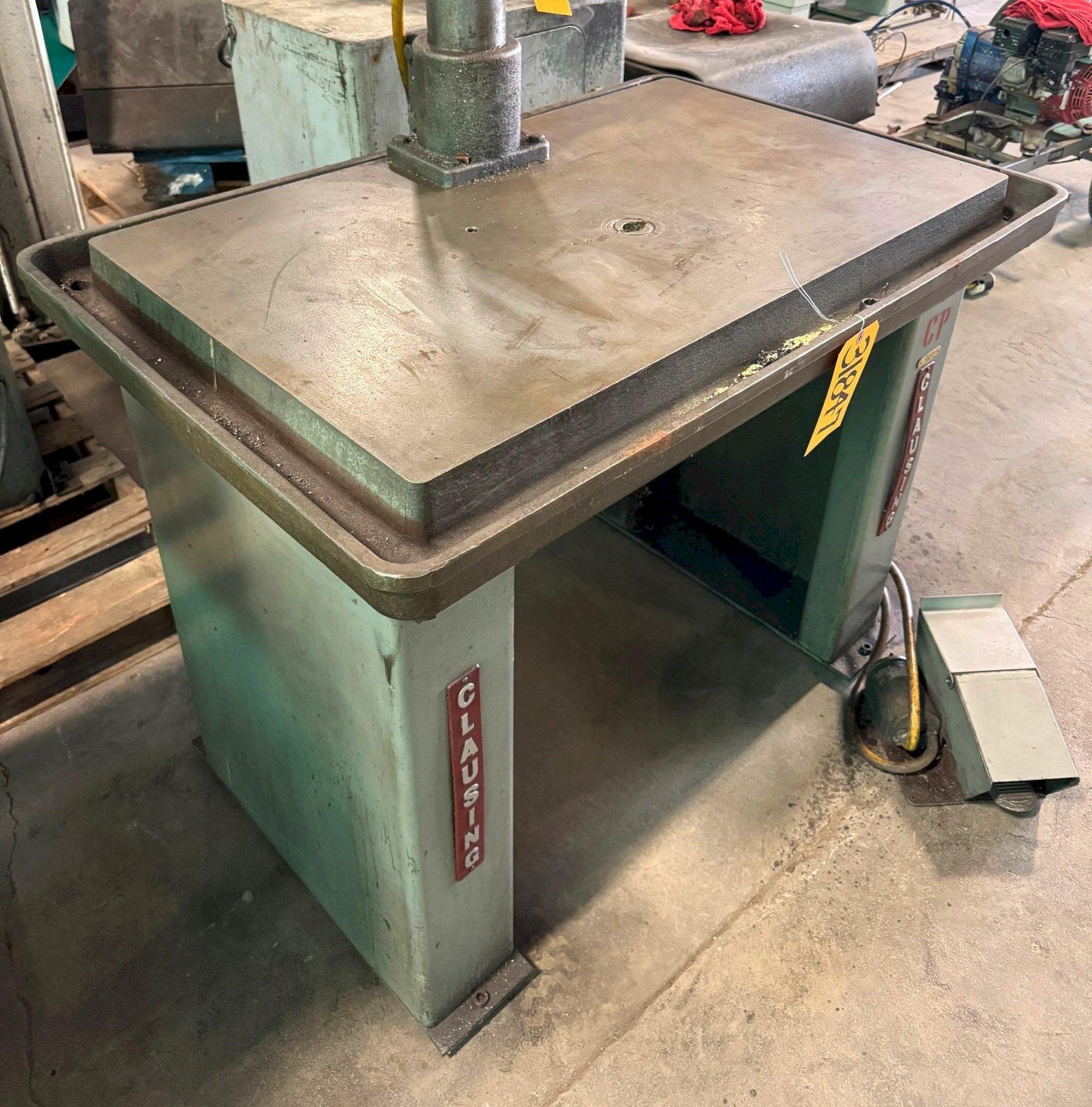

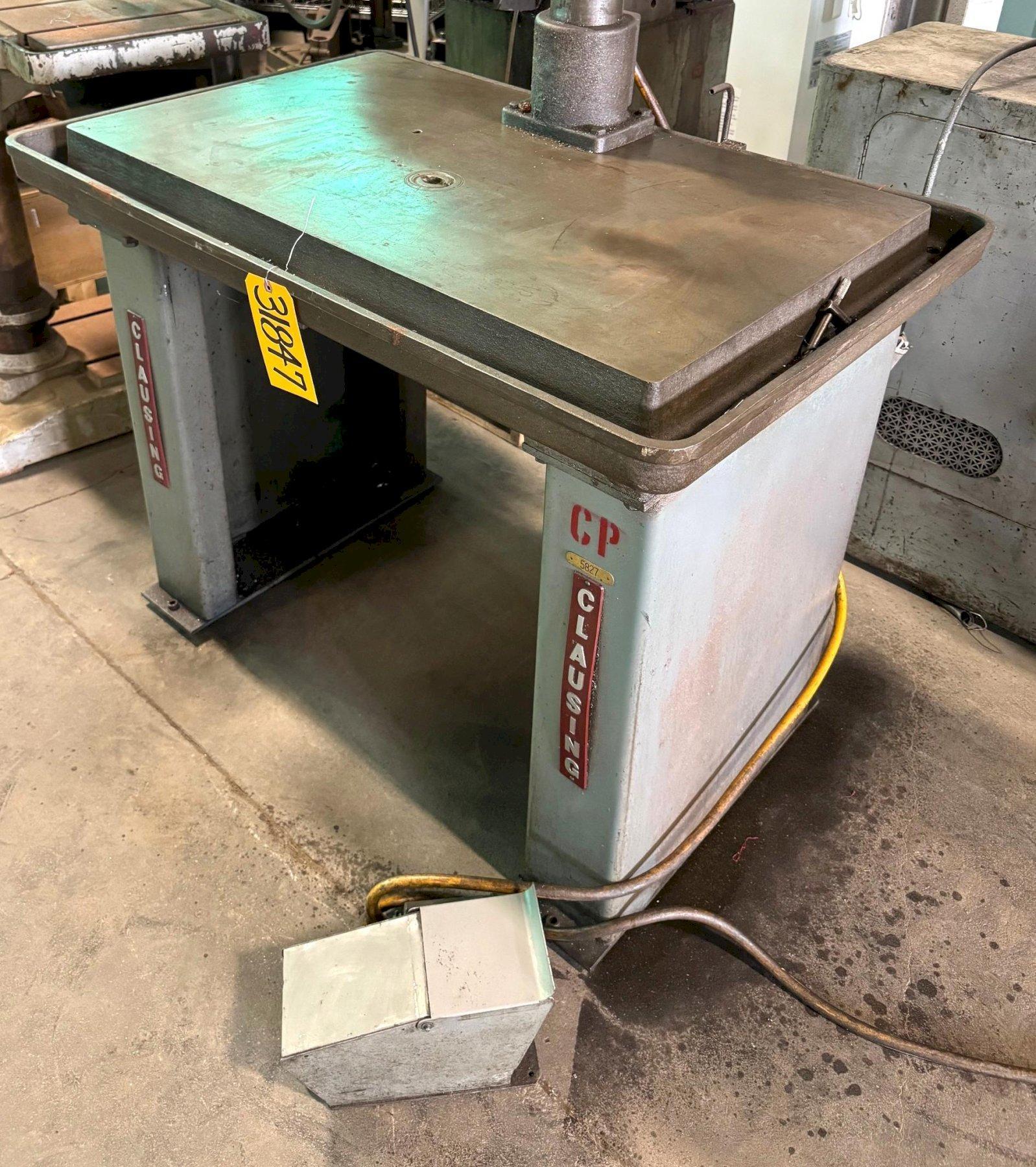

Working Surface Of Table: 24" x 39-3/4"
Overall Table Size: 29-1/2" x 45-1/2"

EQUIPPED WITH

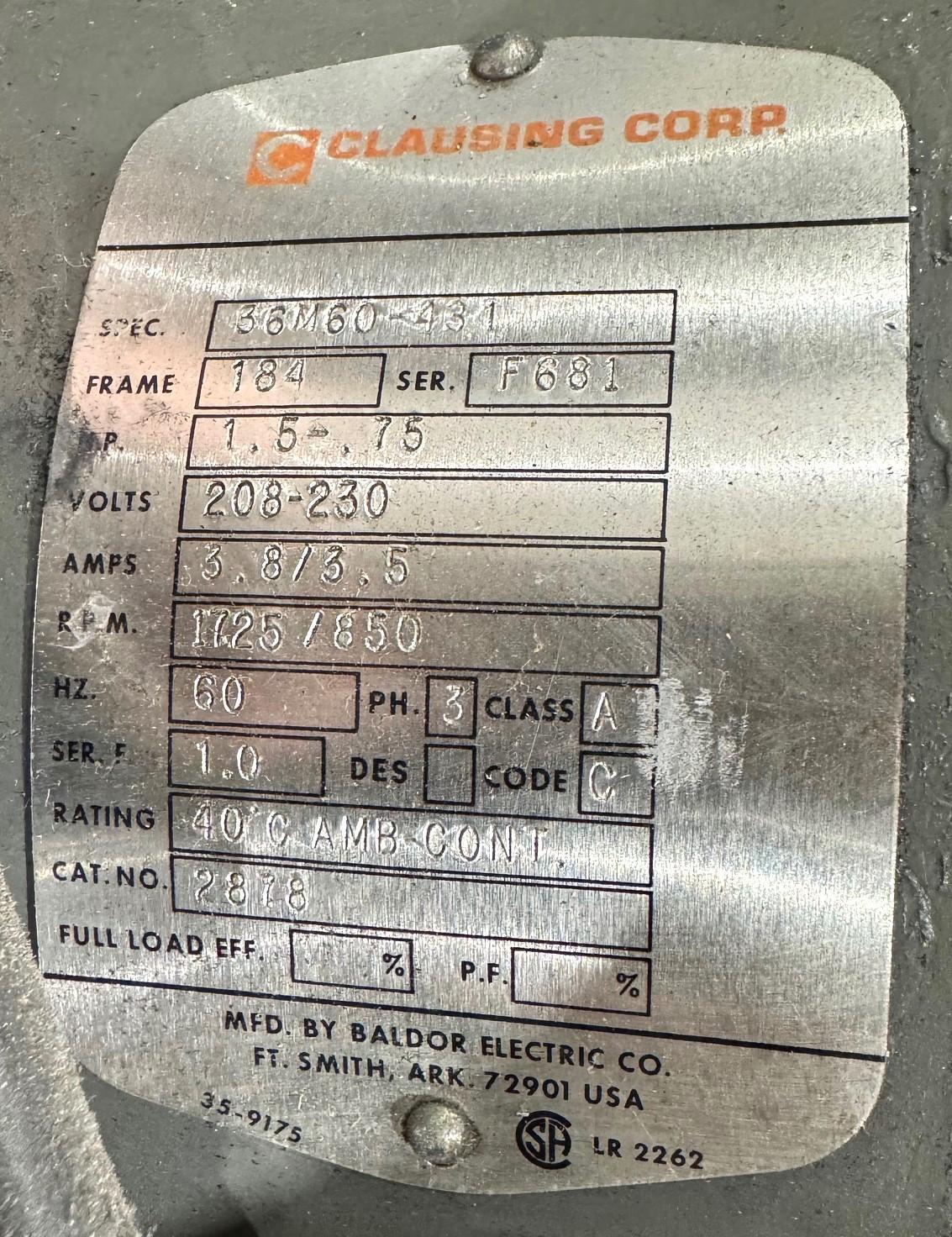

1-1/2 / .75 HP Two Speed Motor, 1725/850 RPM 208-230/60/3

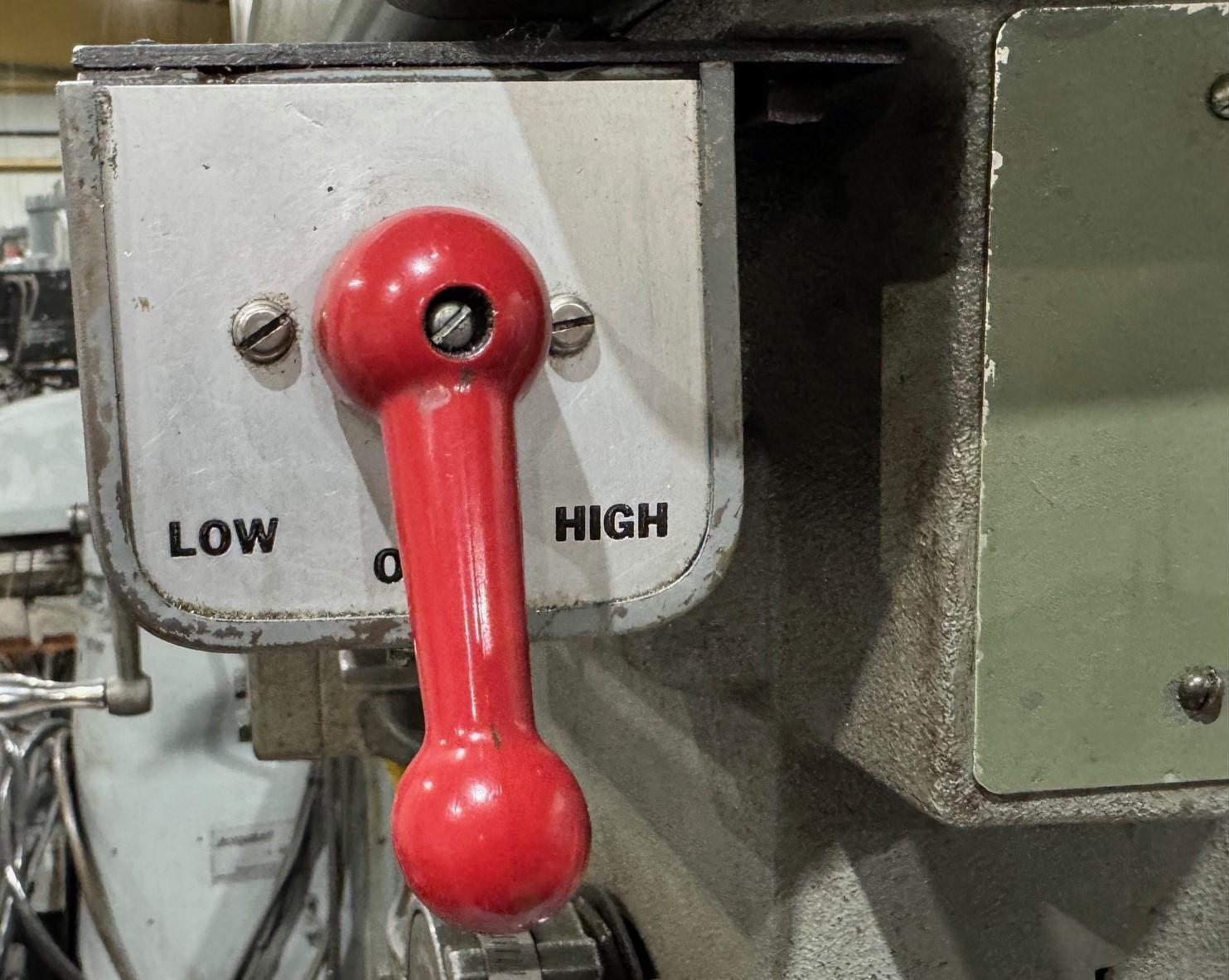

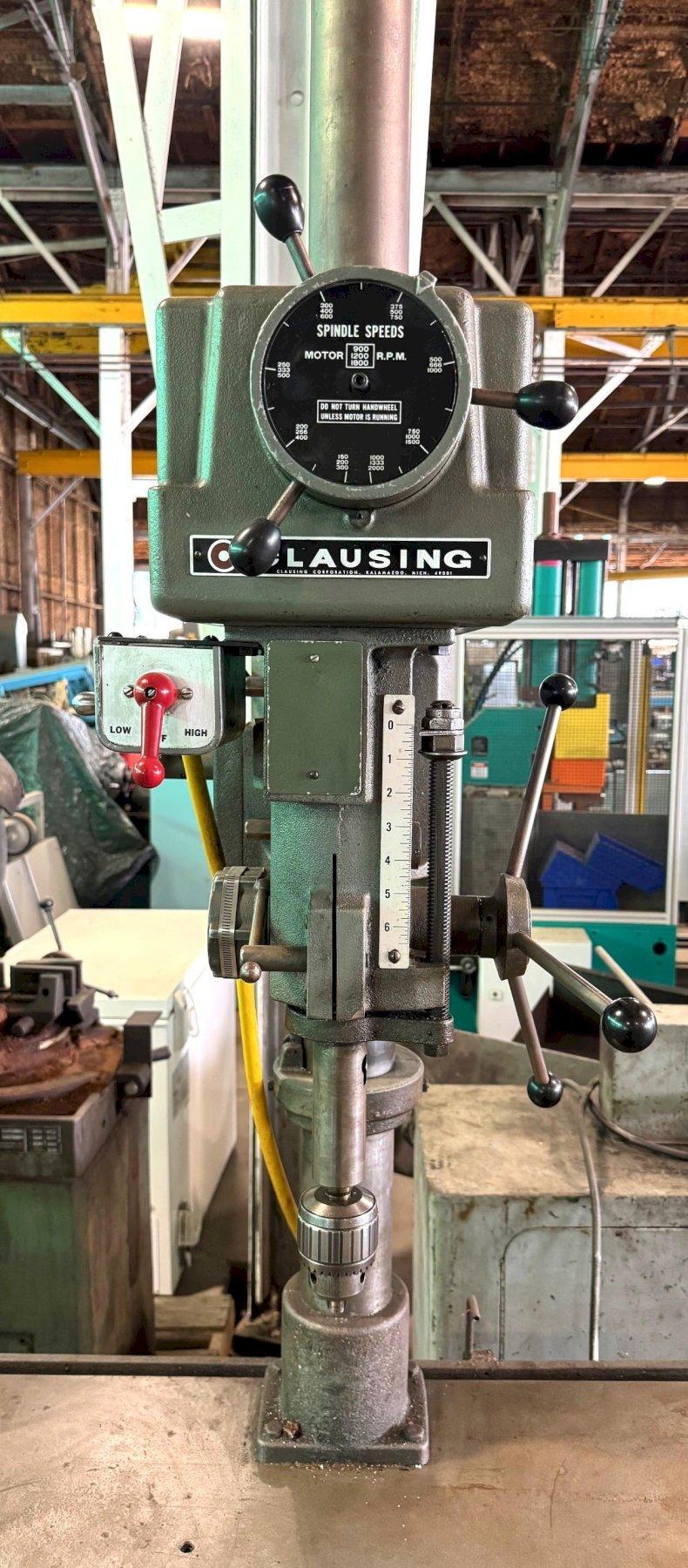

High/Low Speed Switch

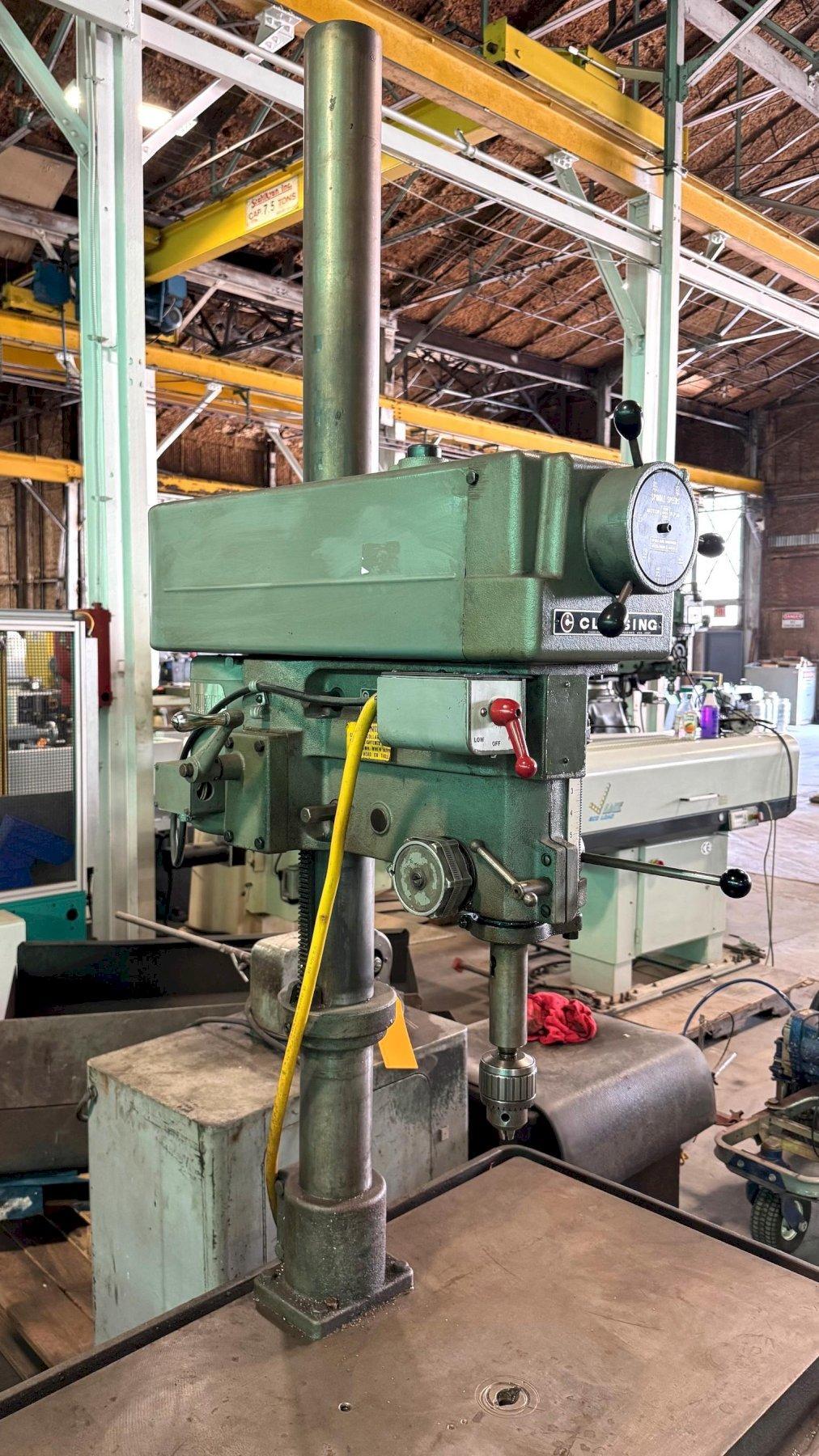

Head Raising Mechanism

Approximate Weight: 800 Lbs.

Shipping Dimensions: 46" R-L x 38" F-B x 77"H

F.O.B. Cincinnati, Ohio 45223

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
