20" Doall Vertical Band Saw 2013-V3, 13" Under Guide, 30-5500 FPM, 26" x 26" Tbl., 3 HP, Excellent

Brand
DOALL

Model
2013-V3

Type
Saws, Band, Vertical

Stock #
32004

Condition
Very Good

Year
2005

Location
Broussard, Louisiana
United States

Request Quote

Specifications

Equipped With

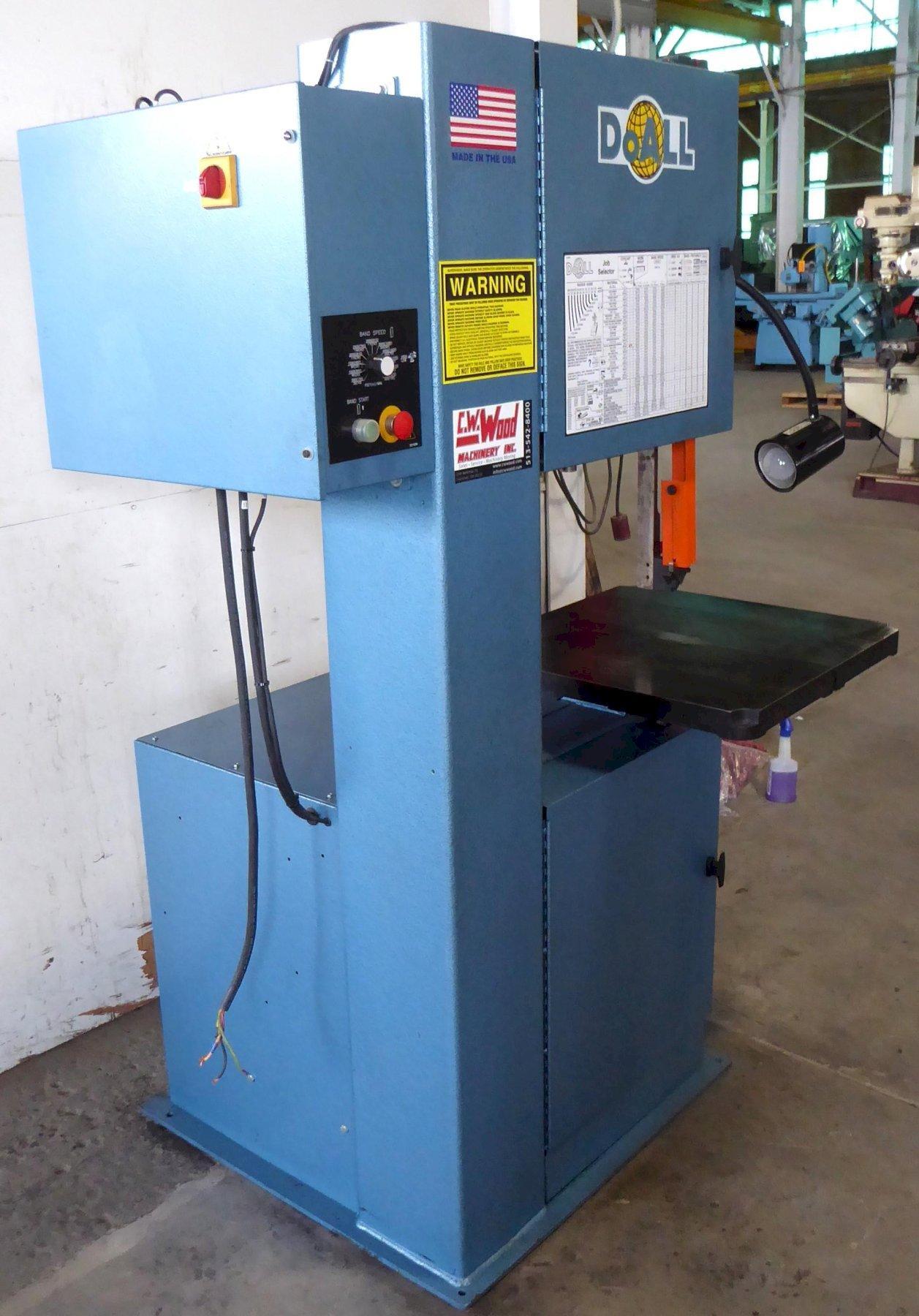

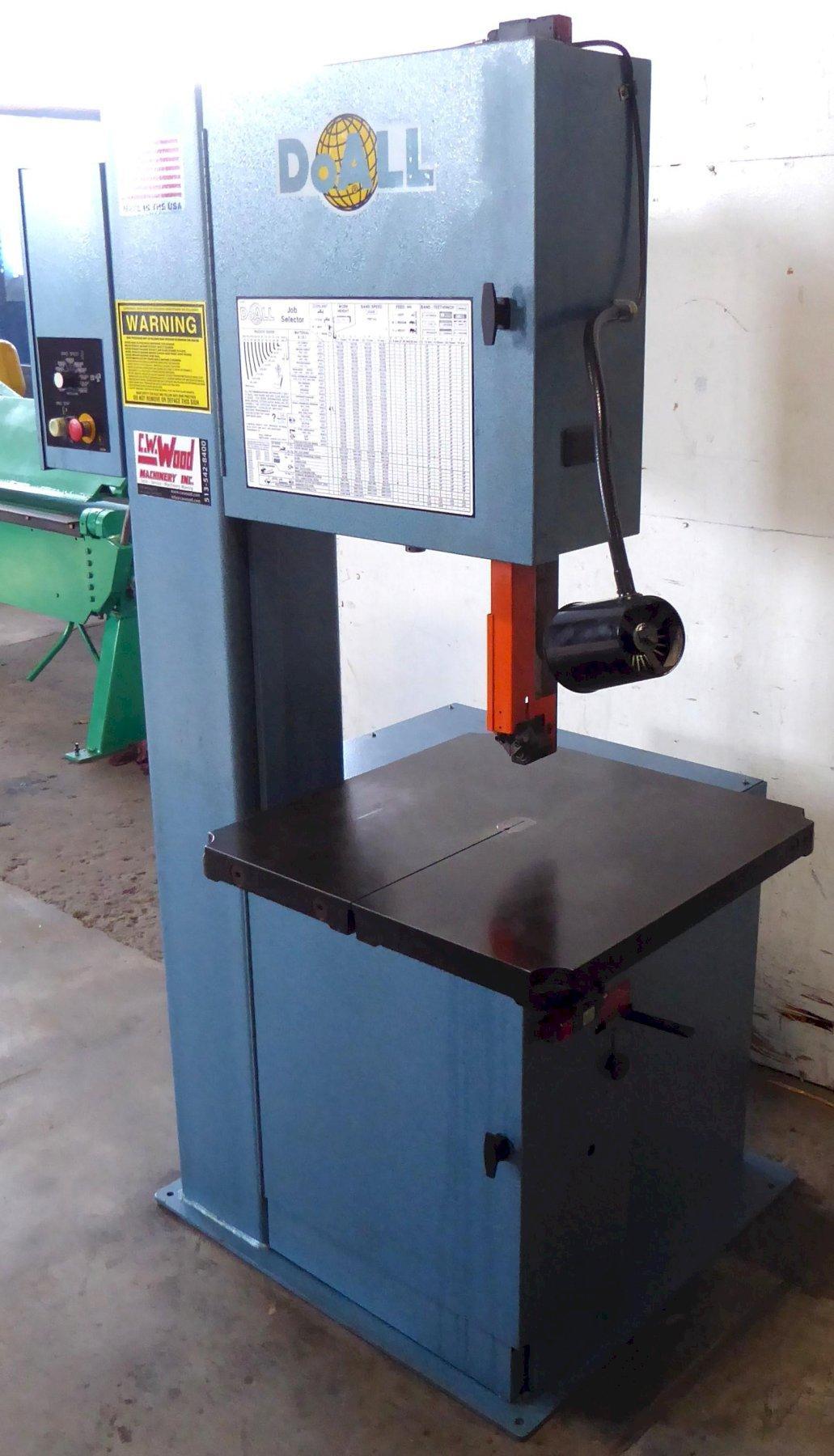

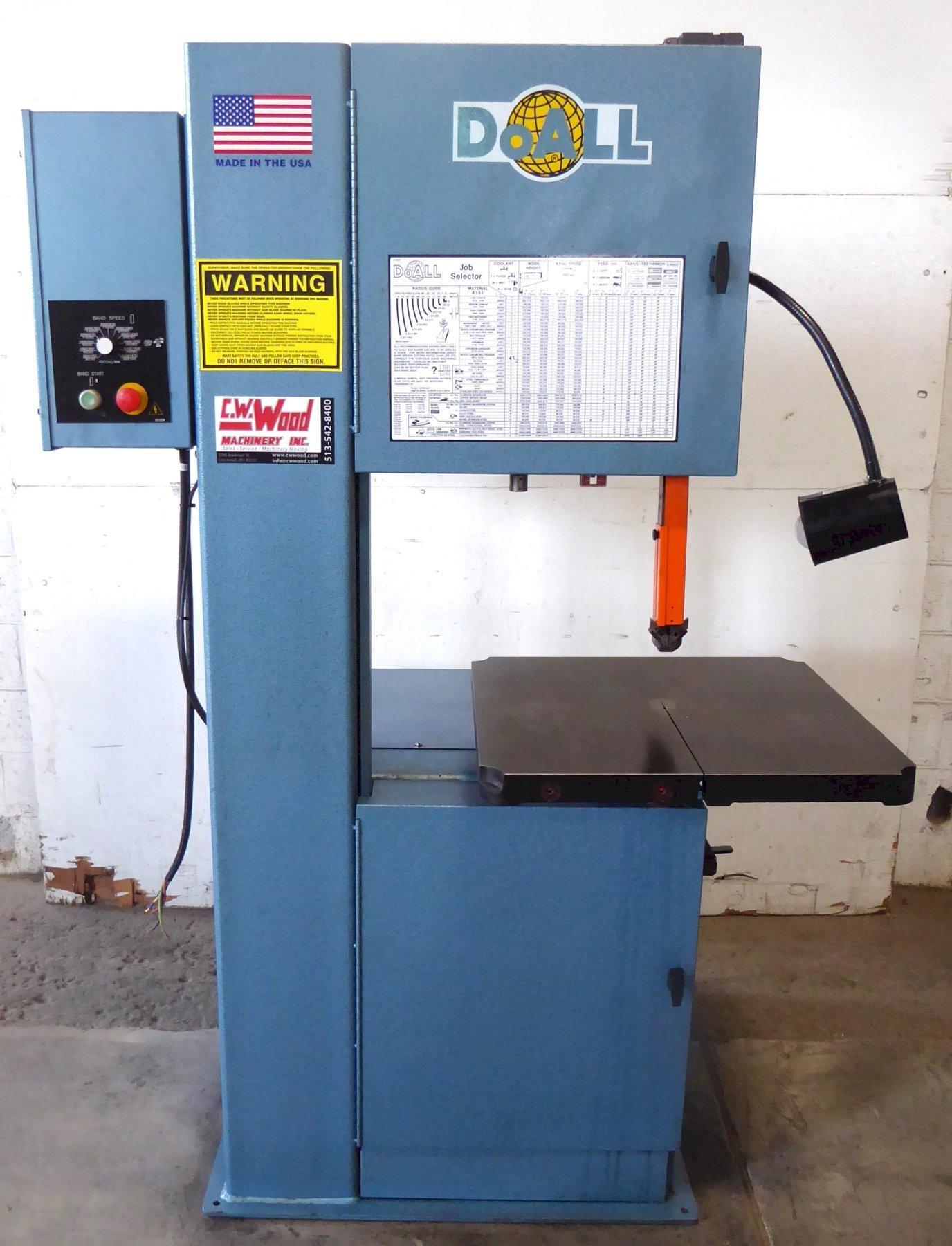

DOALL VERTICAL BAND SAW

MODEL: 2013-V3
SERIAL NUMBER: 572-05128     Year: 2005

GENERAL SPECIFICATIONS

Throat: 20"
Maximum Work Height: 13"
Band Width: 1/8" to 1"
Band Length: 154"
Table Size: 26" x 26"
Table Capacity: 500 Lbs.

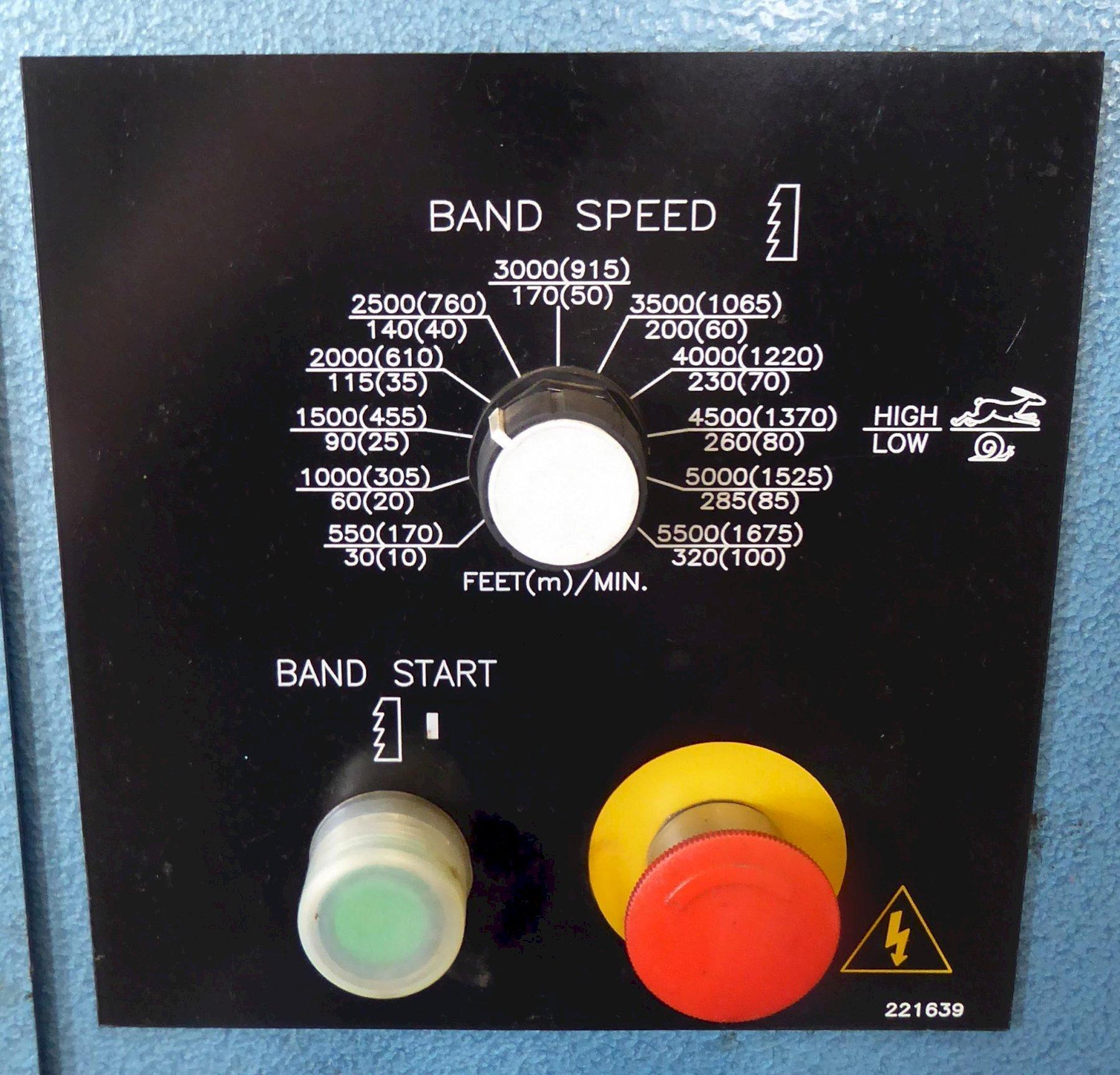

Speeds: 30-320 FPM, 550-5500 FPM
Table Tilts: 45 Degrees Right, 10 Degrees Left

EQUIPPED WITH

3 HP Drive Motor
Variable Frequency AC Drive

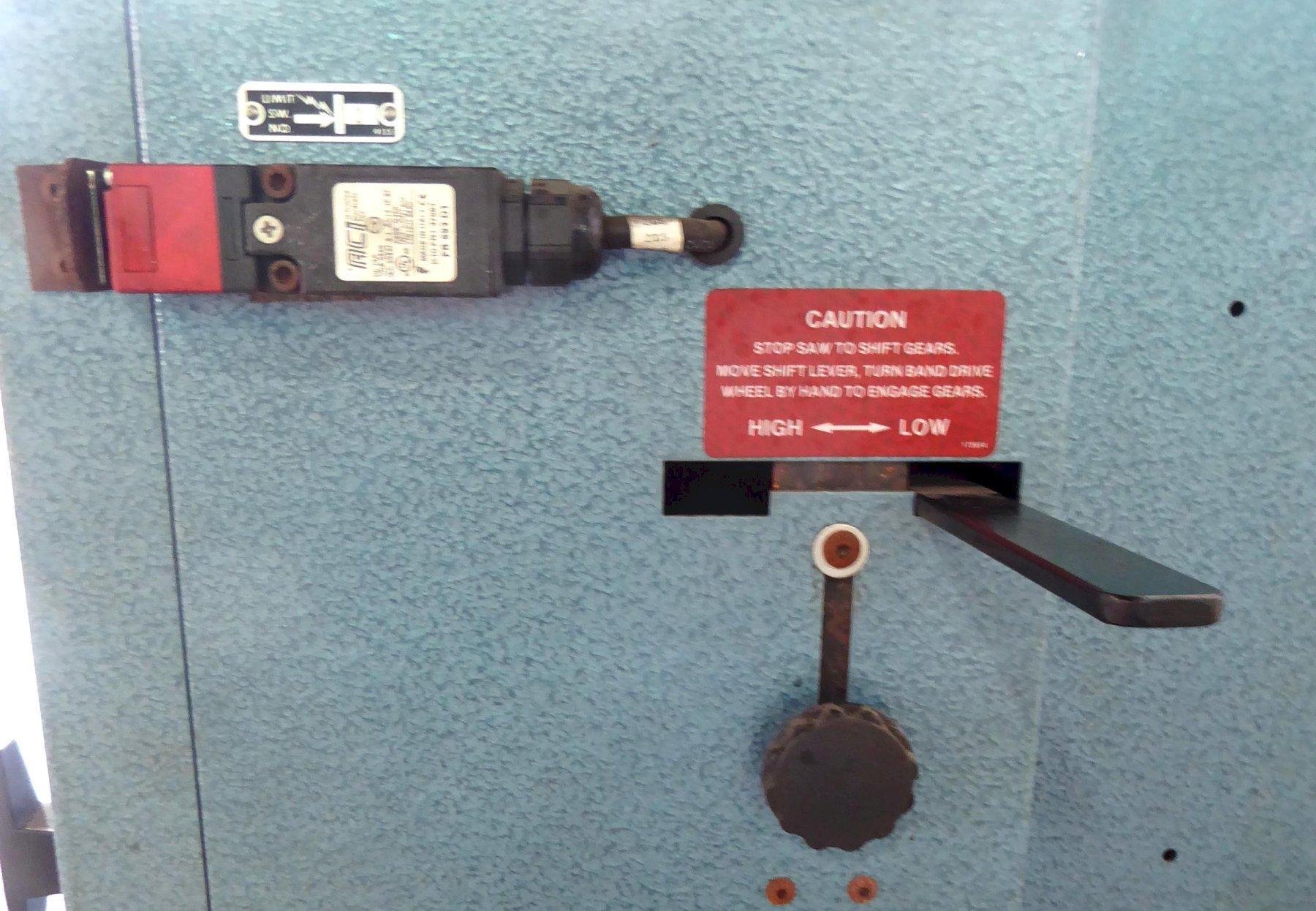

Dual Range Transmission

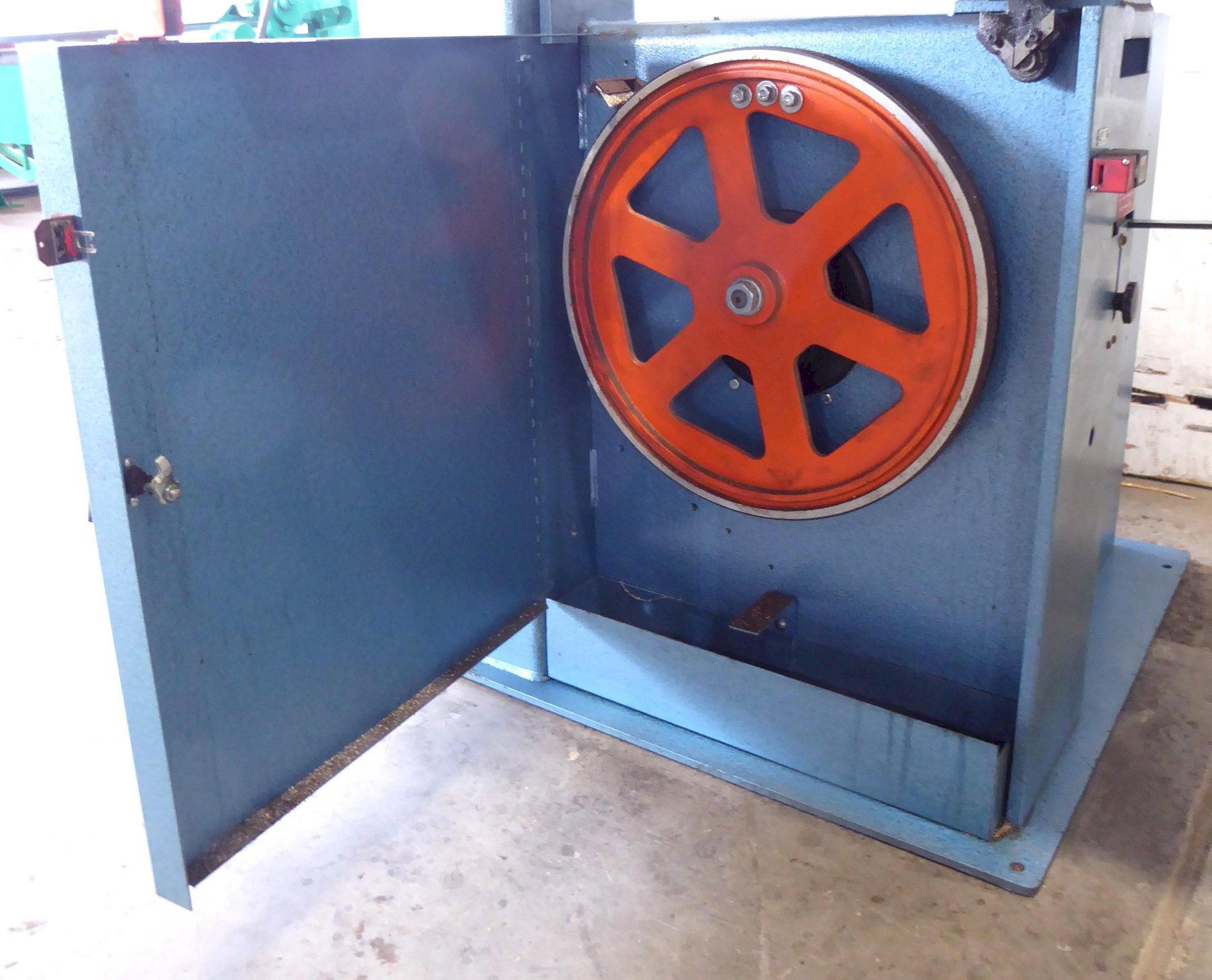

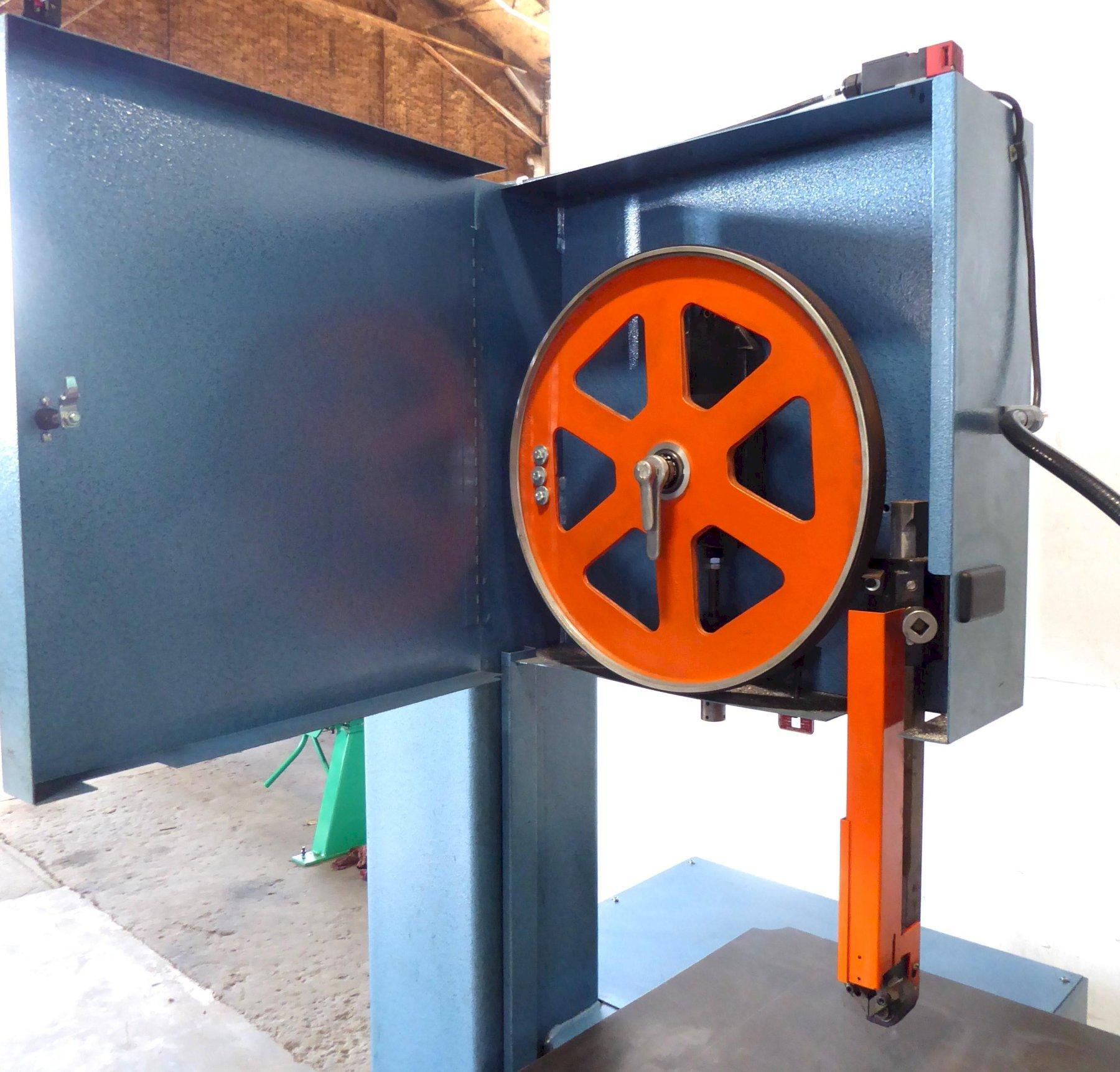

Band Door Interlocks

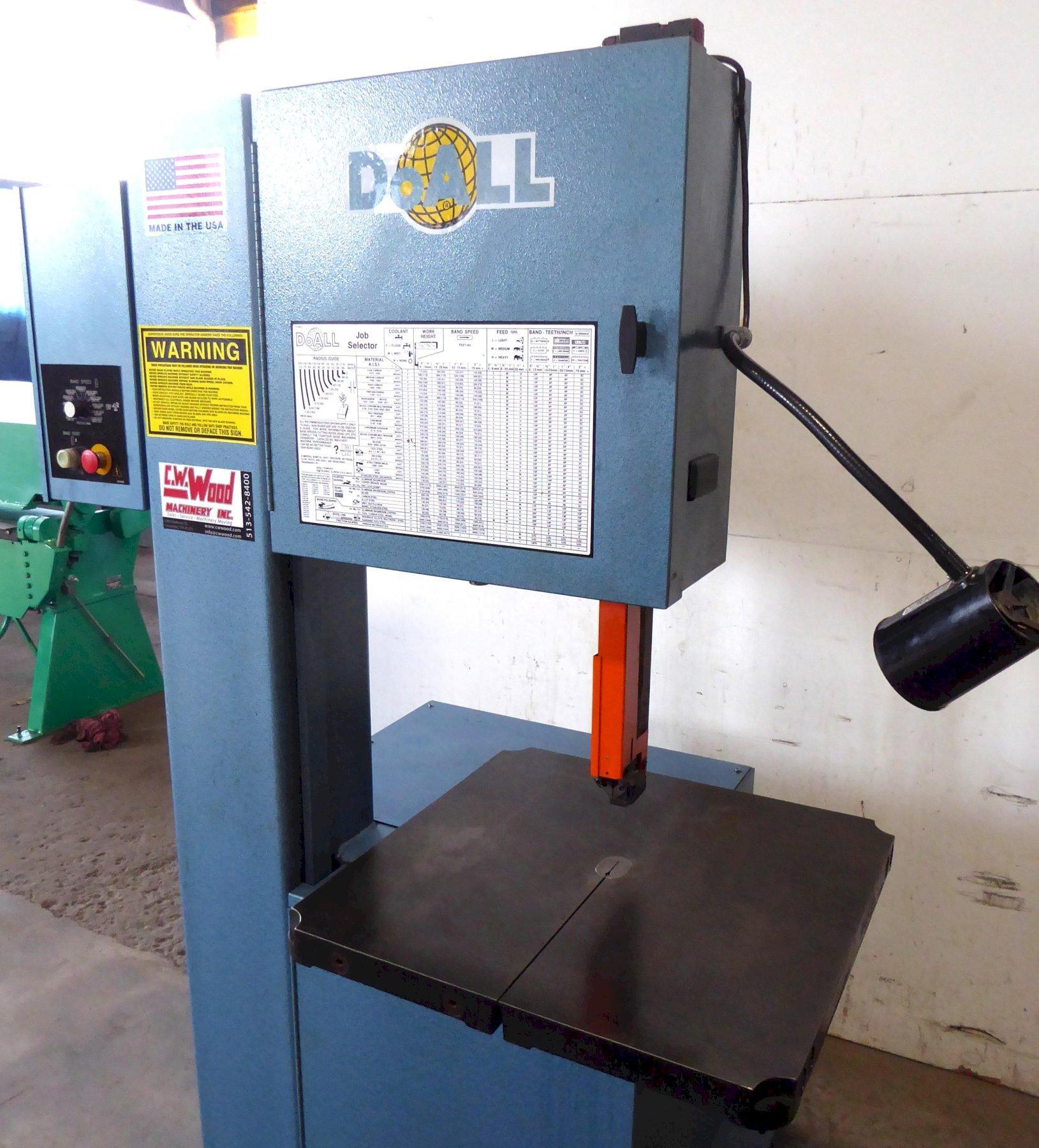

Job Selector

Approximate Weight: 1250 Lbs.

F.O.B. Broussard, Louisiana

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
