20"/29" x 60 Webb Gap Bed Lathe, 28-1350 RPM, Inch/mm, 3" Hole, S.R., 10 HP

Brand
WEBB

Model
20-1/2 x 60

Type
Lathes, Engine

Stock #
31982

Condition
Used

Year
1983

Location
CINCINNATI, Ohio
United States

Request Quote

Specifications

Equipped With

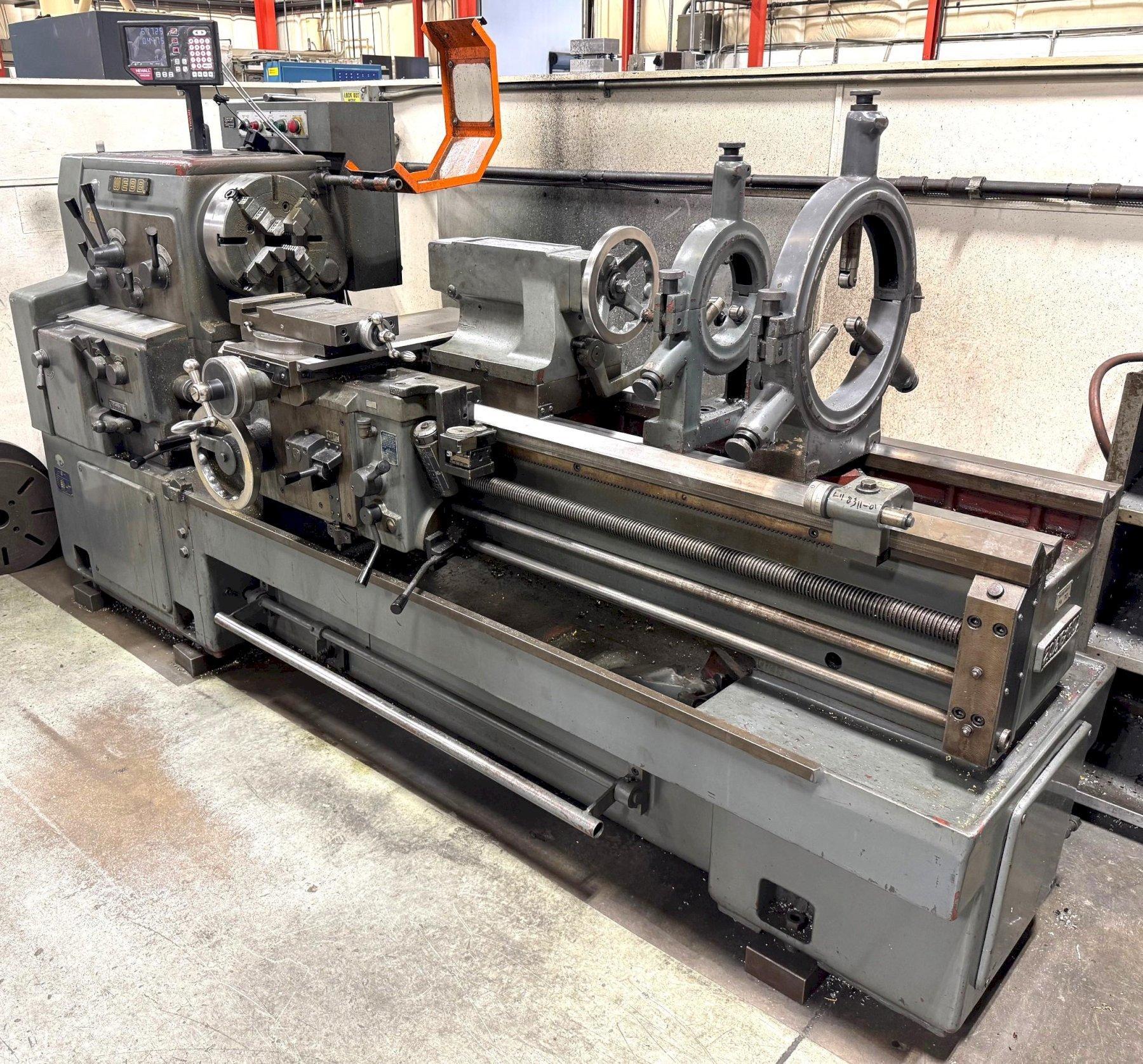

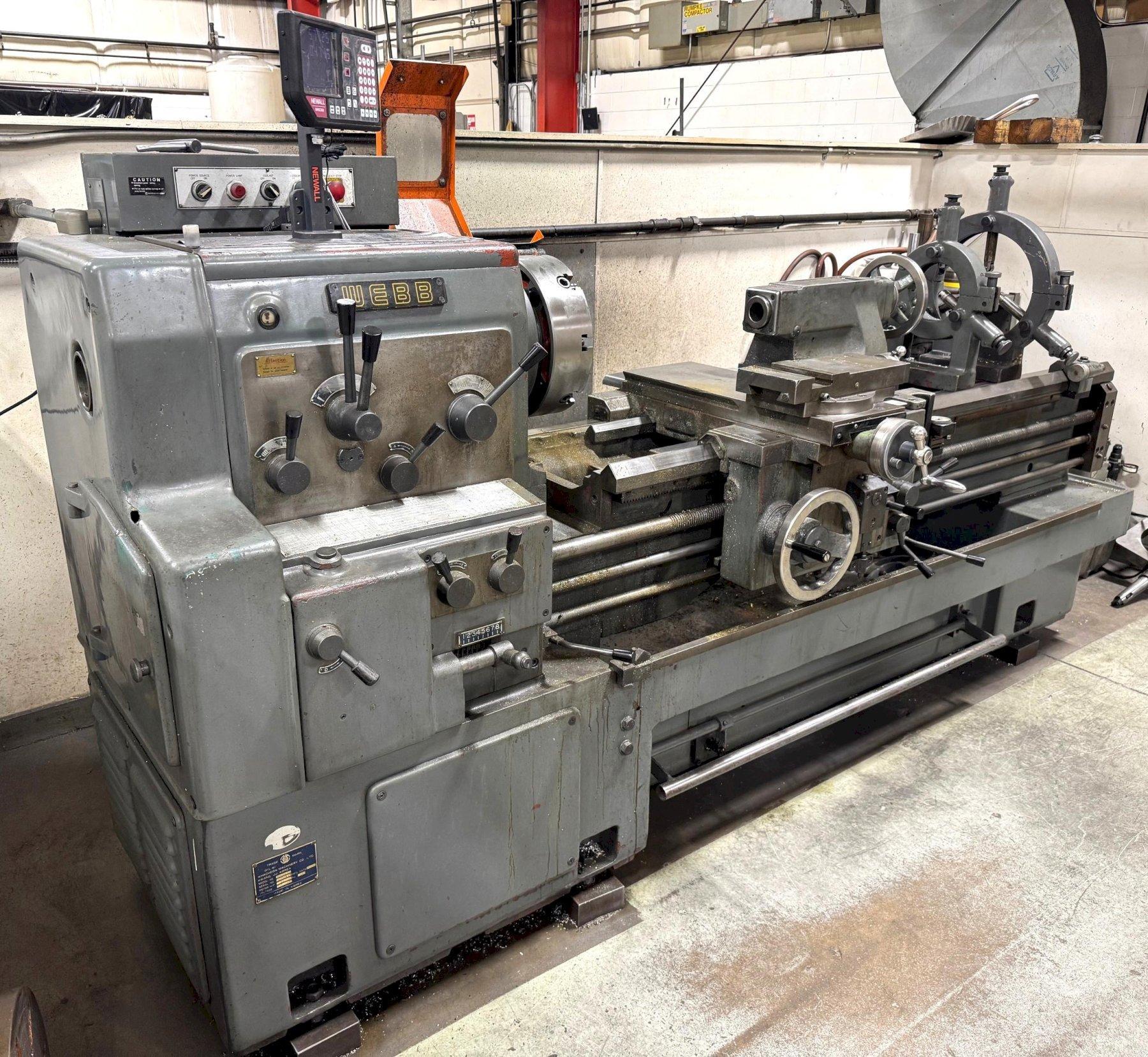

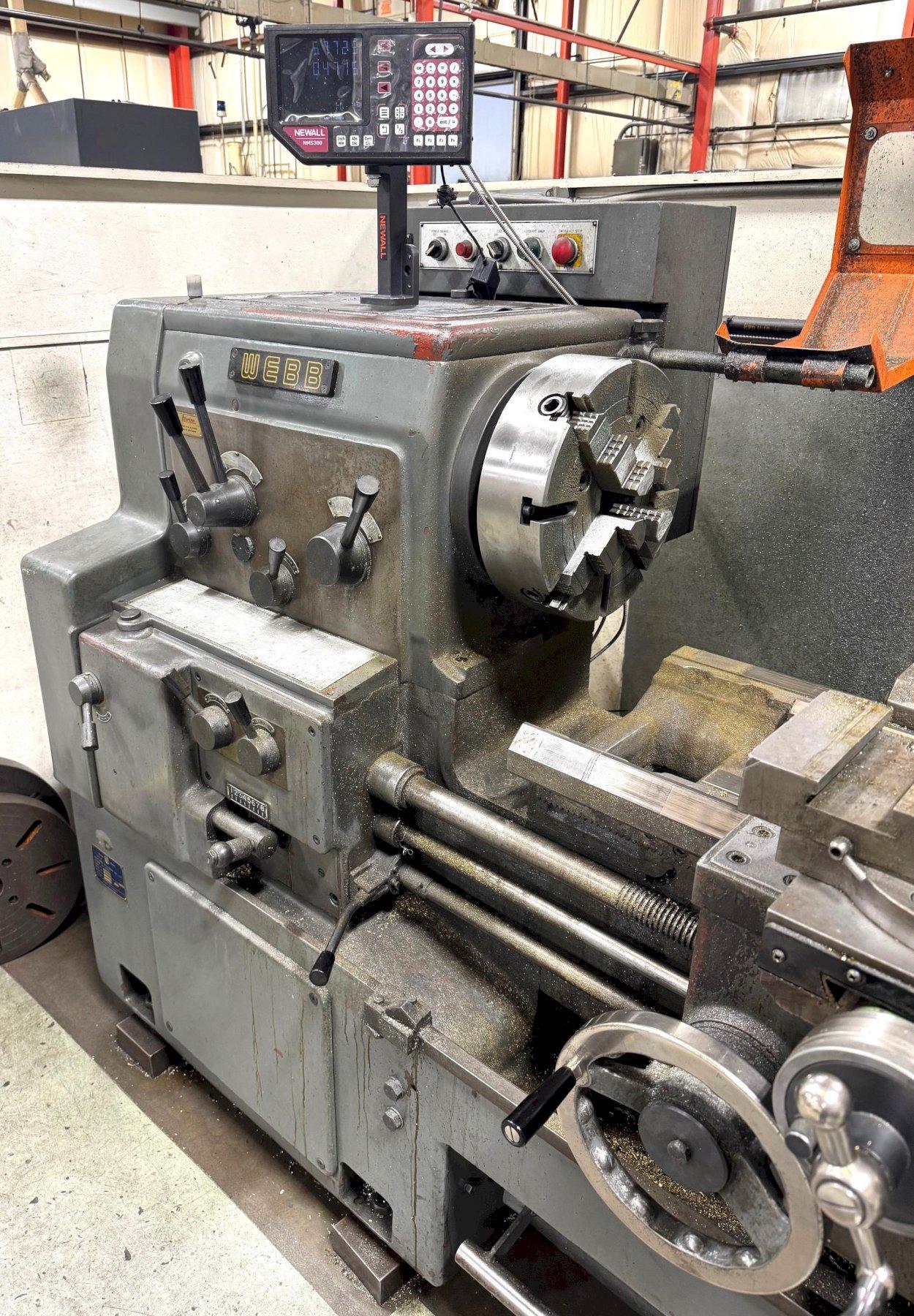

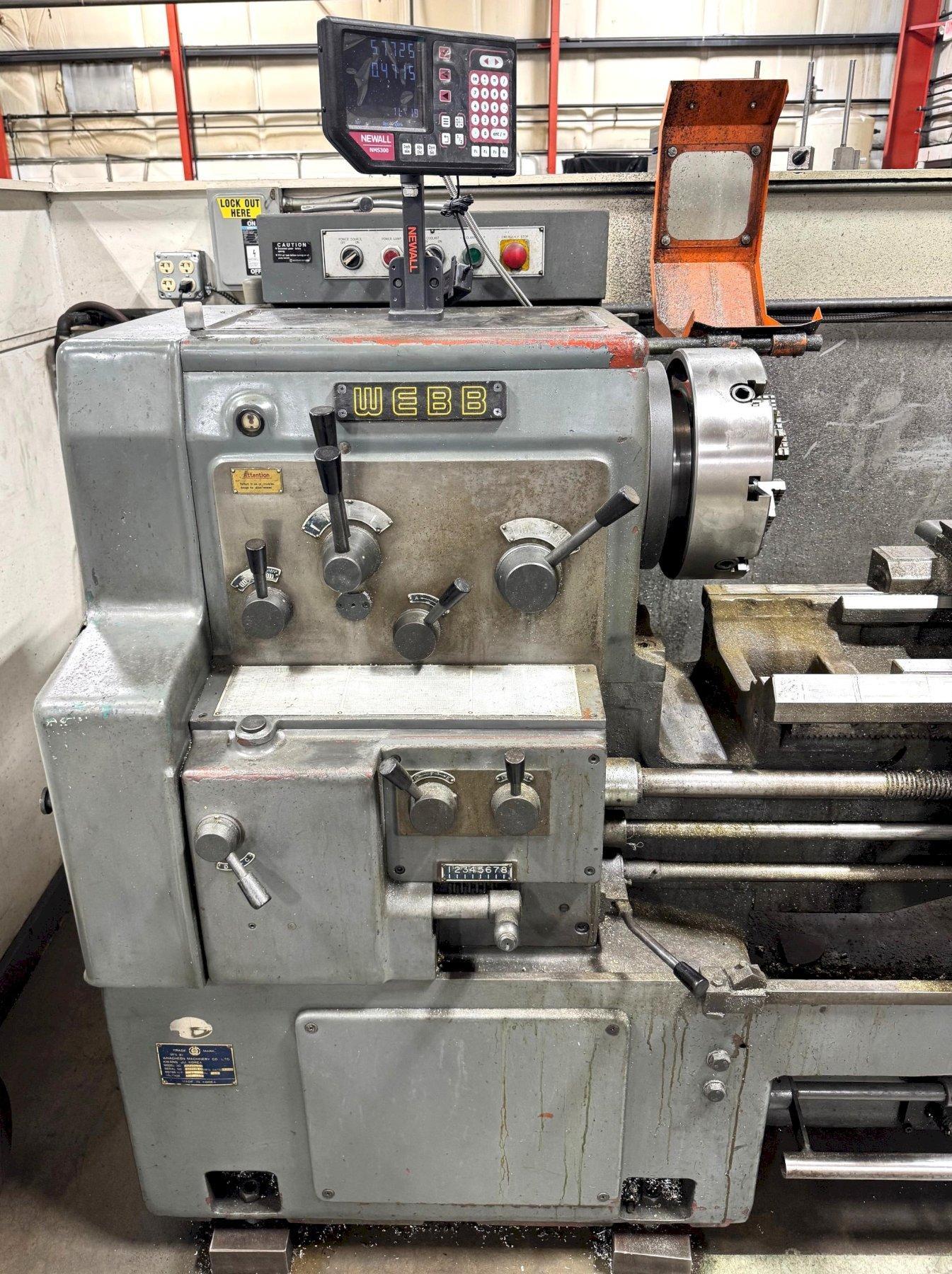

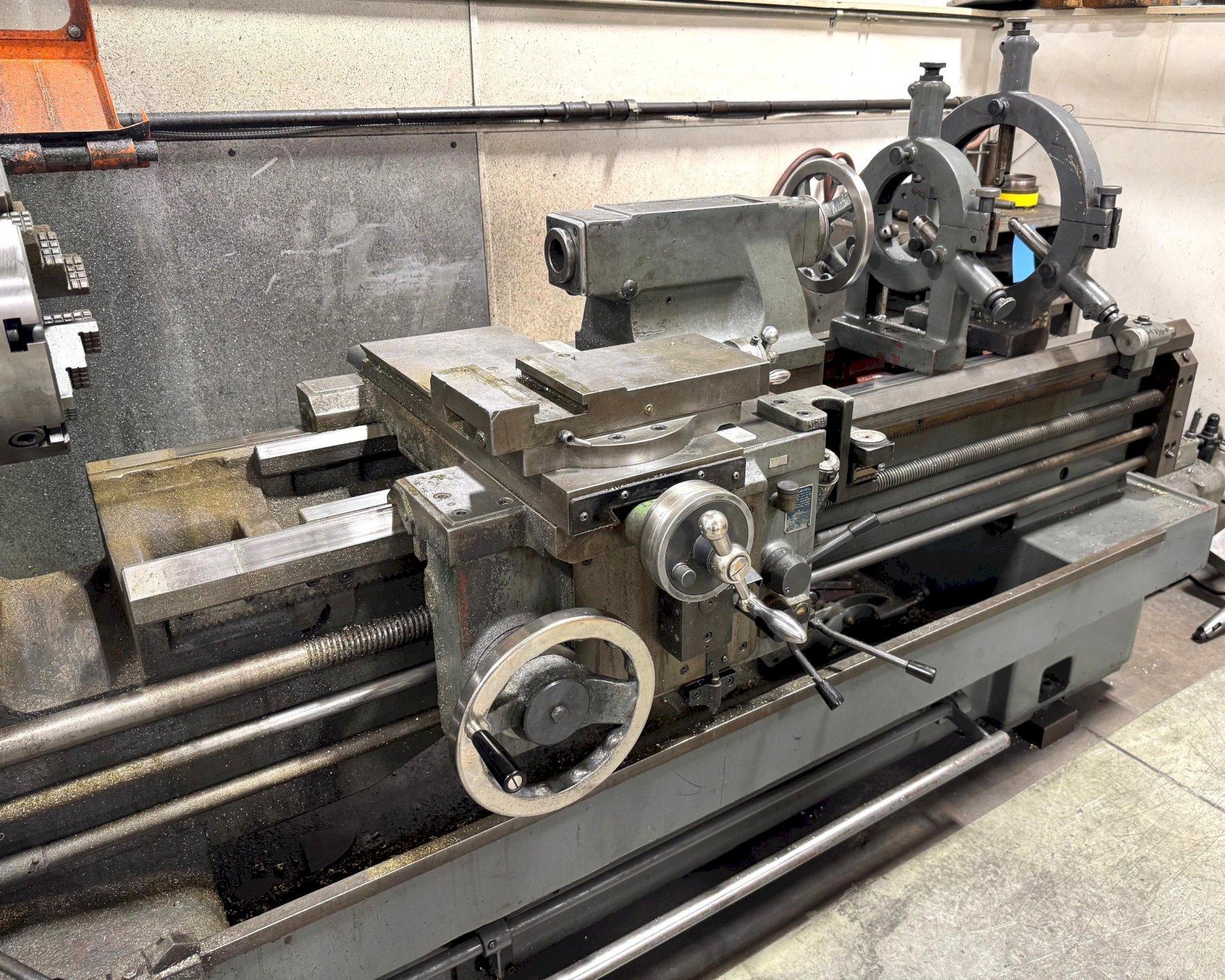

WEBB/WHACHEON GAP BED ENGINE LATHE

MODEL: 20-1/2 x 60
SERIAL NUMBER: 118311 01

GENERAL SPECIFICATIONS

Swing Over Bed: 20-1/2"
Swing Over Gap: 29-1/2"
Swing Over Cross Slide: 11-3/4"
Distance Between Centers: 60"
Spindle Nose: A1-6
Spindle Bore: 3-1/32"
Spindle Speeds: (12) 28 - 1350
Width Of Bed: 16-1/2
Cross Slide Travel: 11-7/8"
Compound Rest Travel: 6-5/8"
Longitudinal Feeds: .0014" - 0.90196"
Cross Feeds: .0015" - .0212"
Inch Threads: 4 - 80 TPI
Metric Threads: 0.25 - 7mm

EQUIPPED WITH

10 HP Main Motor
12" 4-Jaw Chuck

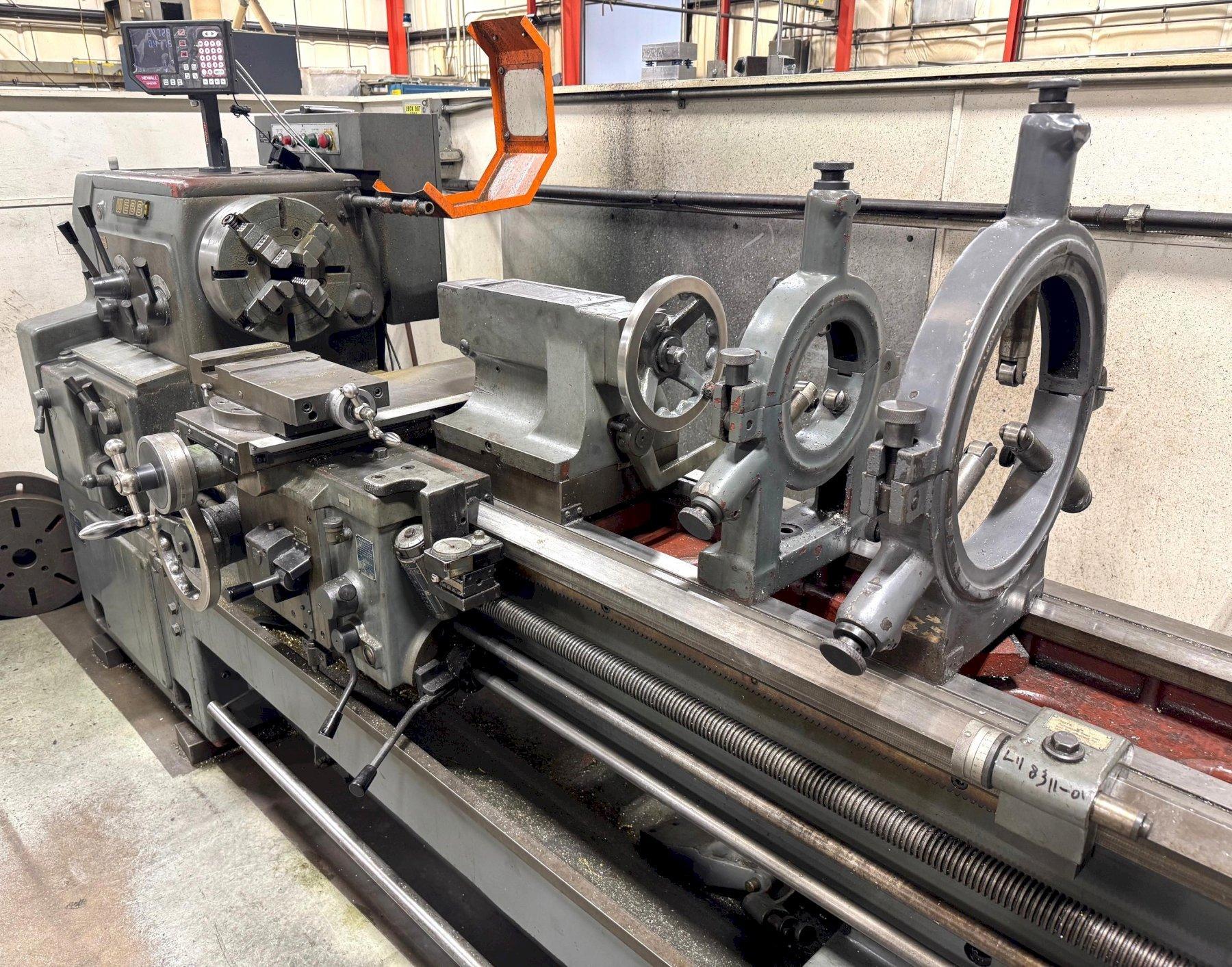

(2) Steady Rest

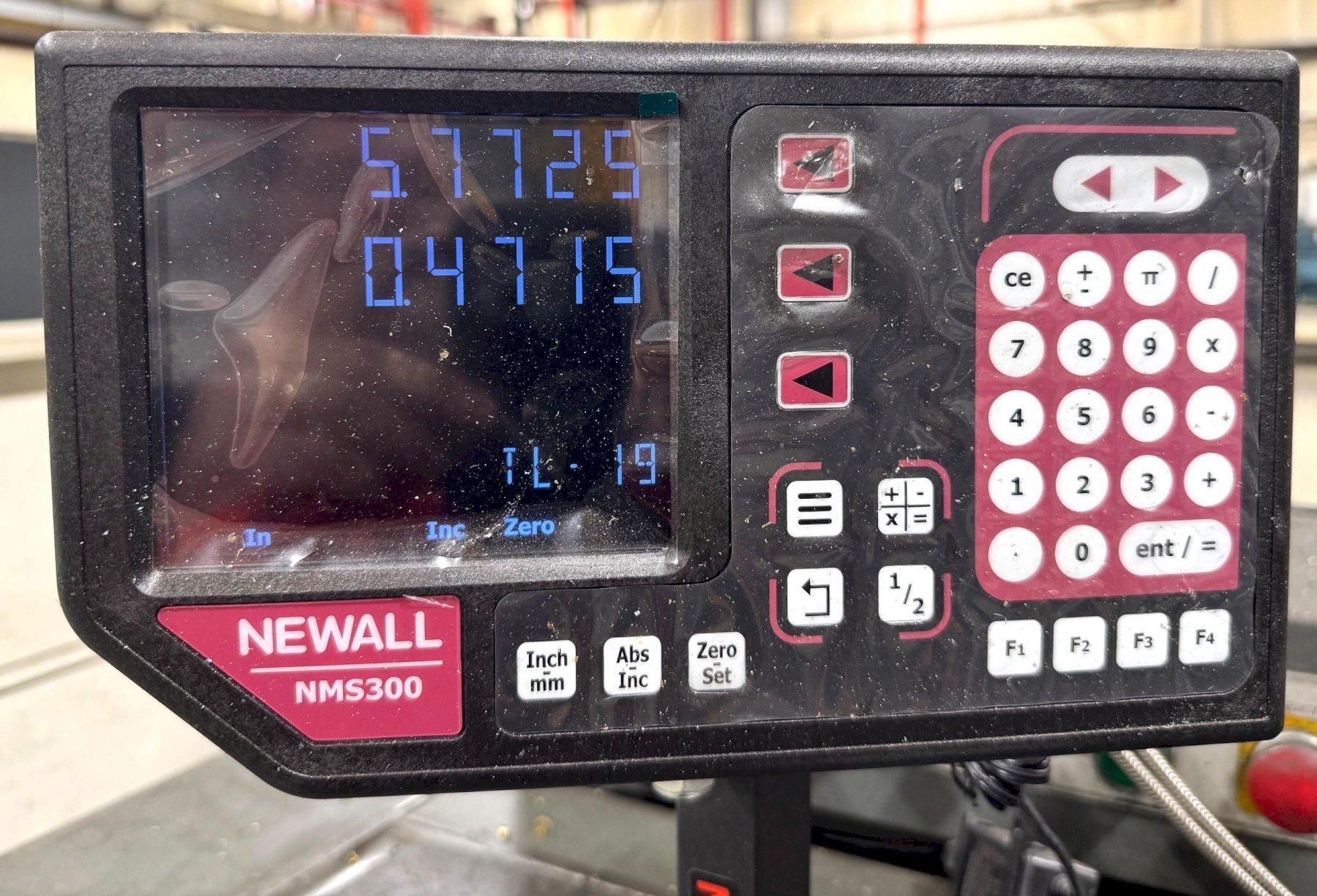

Newall NMS300 Digital Readout
Thread Dial

Approximate Weight:  6500 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
