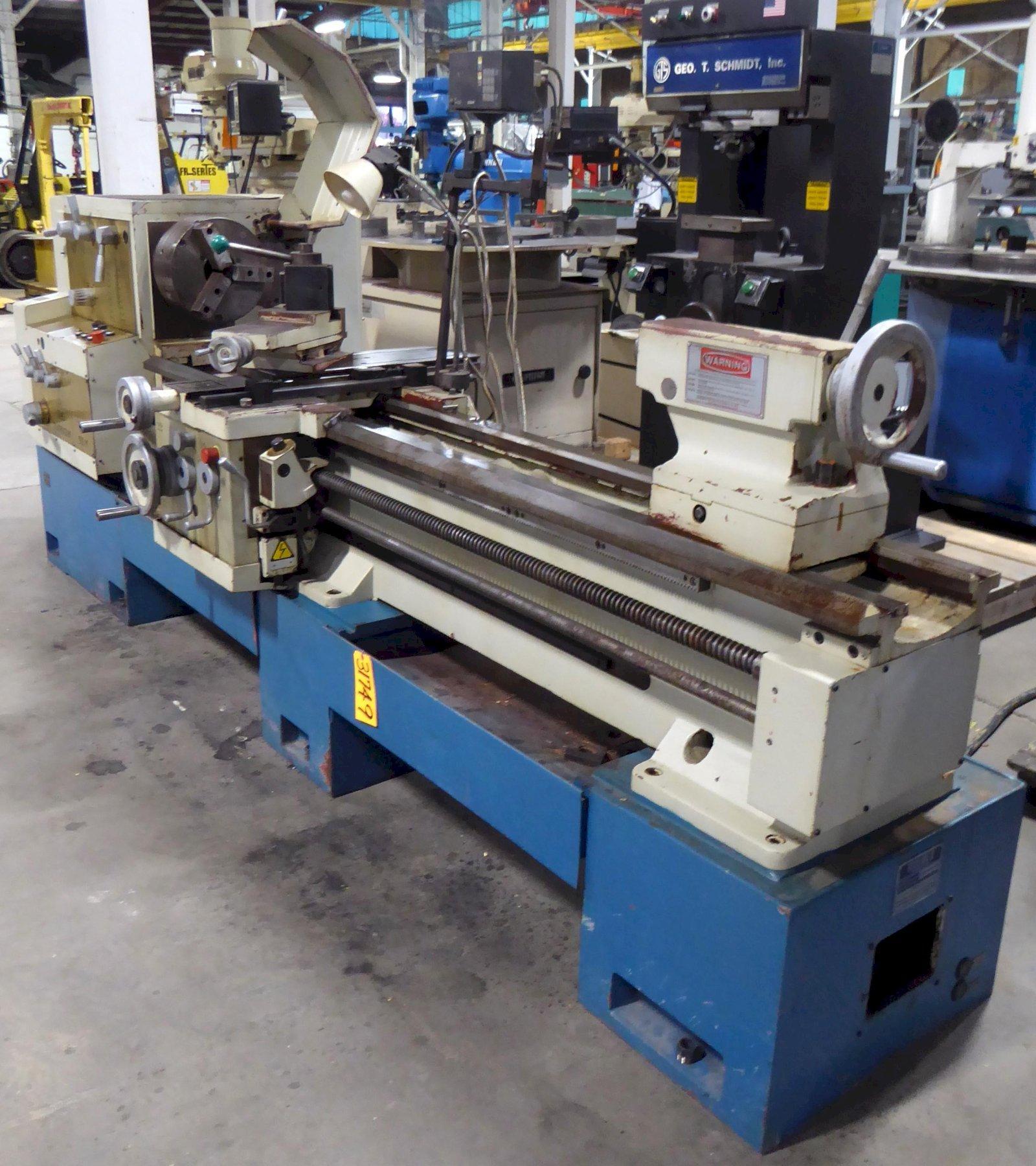

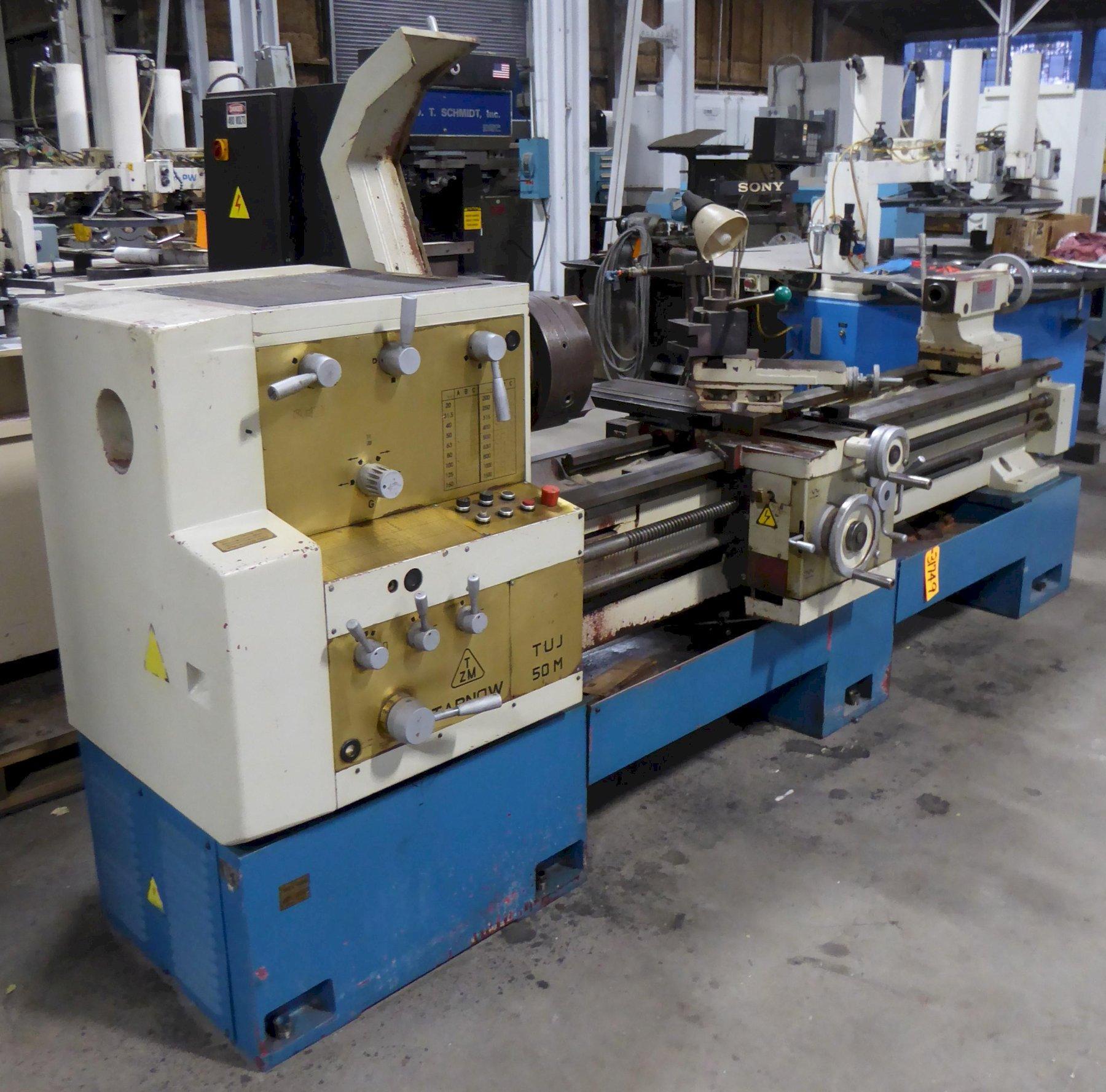

22"/31" x 80" Toolmex Lathe TUJ50M, Inch/mm, 3.5" Hole, 20-1600 RPM, DRO, 15 HP

Brand
TOOLMEX

Model
TUJ 50M/80

Type
Lathes, Engine

Stock #
31749

Condition
Used

Year

Location
Cincinnati, Ohio
United States

Request Quote

Specifications

Equipped With

TARNOW GAP BED ENGINE LATHE

MODEL: TUJ 50M/80
SERIAL NUMBER: 3898

GENERAL SPECIFICATION

Swing Over Bed Ways: 22"
Swing In Gap: 31-1/2"
Swing Over Cross-Slide: 14-1/2"
Distance Between Centers:  80"
Spindle Speeds: (18) 20 to 1600 RPM
Spindle Bore: 3-1/2"
Longitudinal Feeds: (42) .0007 to .72" IPR
Cross Feeds: (42)  1/2 of Longitudinal Feeds
Inch Threads: (70), 1/4" to 56 TPI
Metric Threads: (60), .5 to 112 MM
Tailstock Quill Taper: No. 5 M.T.

EQUIPPED WITH

15 HP Motor

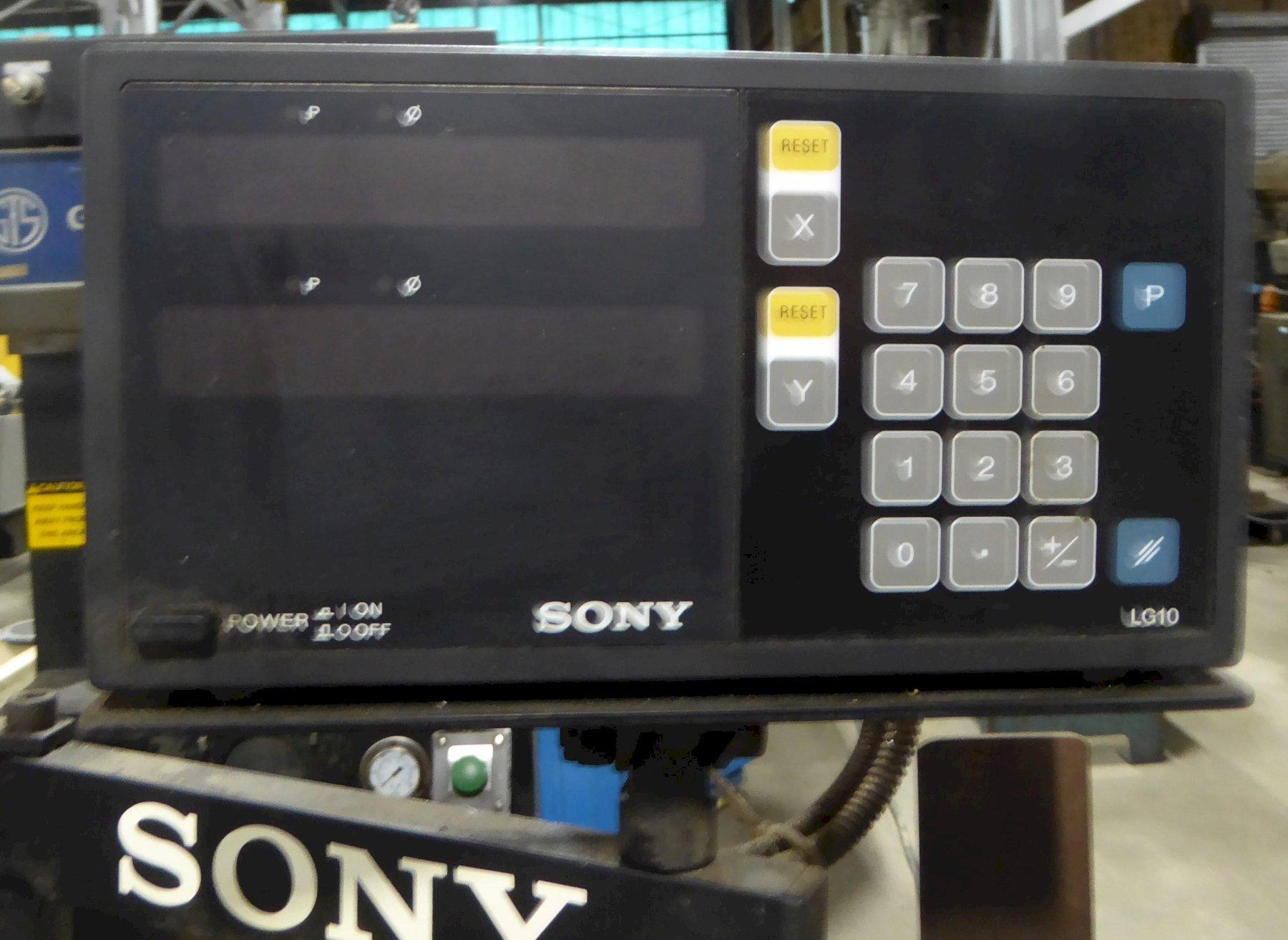

Sony Two-Axis Digital Readout
15" 3-Jaw Chuck
Hardened and Ground Bed Ways
Quick Change Tool Post
Full Length Splash Guard

Approximate Weight: 6000 Lbs.

F.O.B. Cincinnati, Ohio 45223

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
