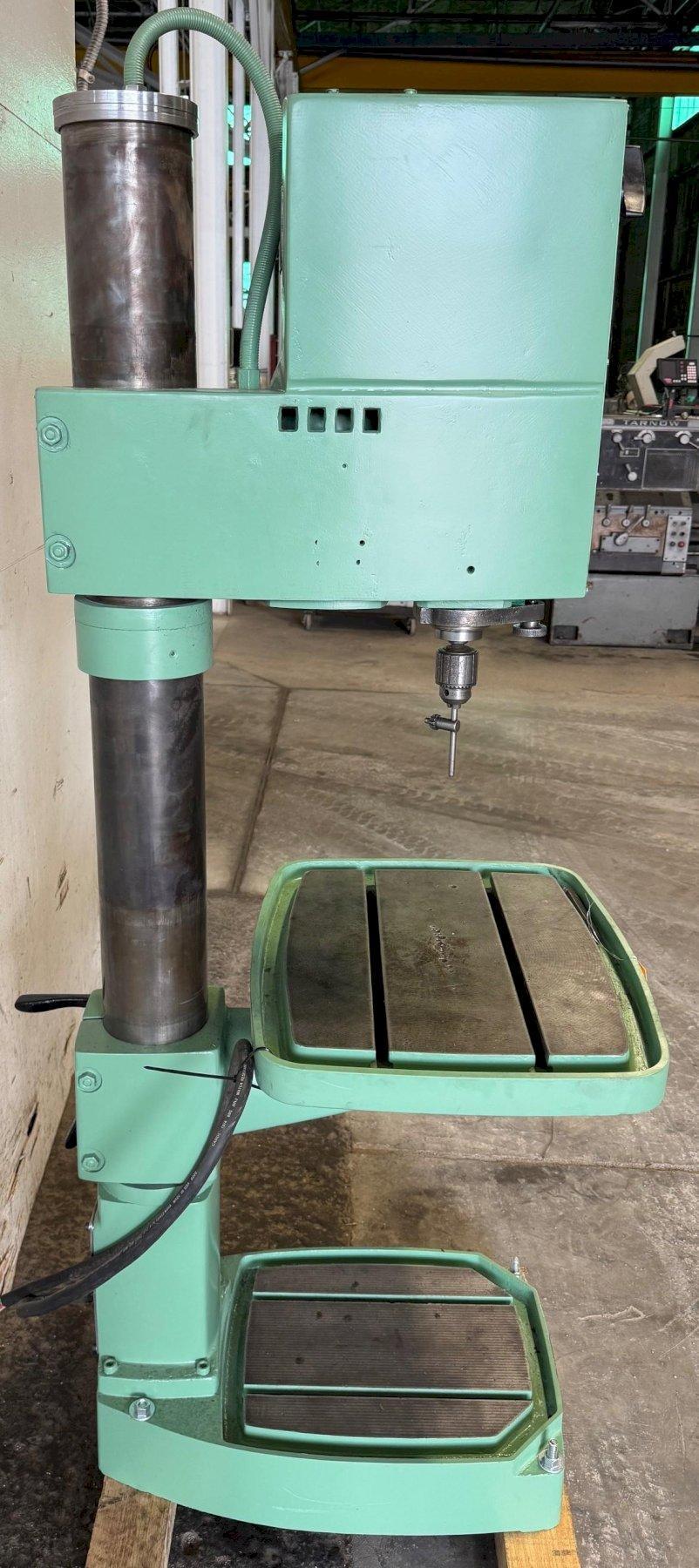

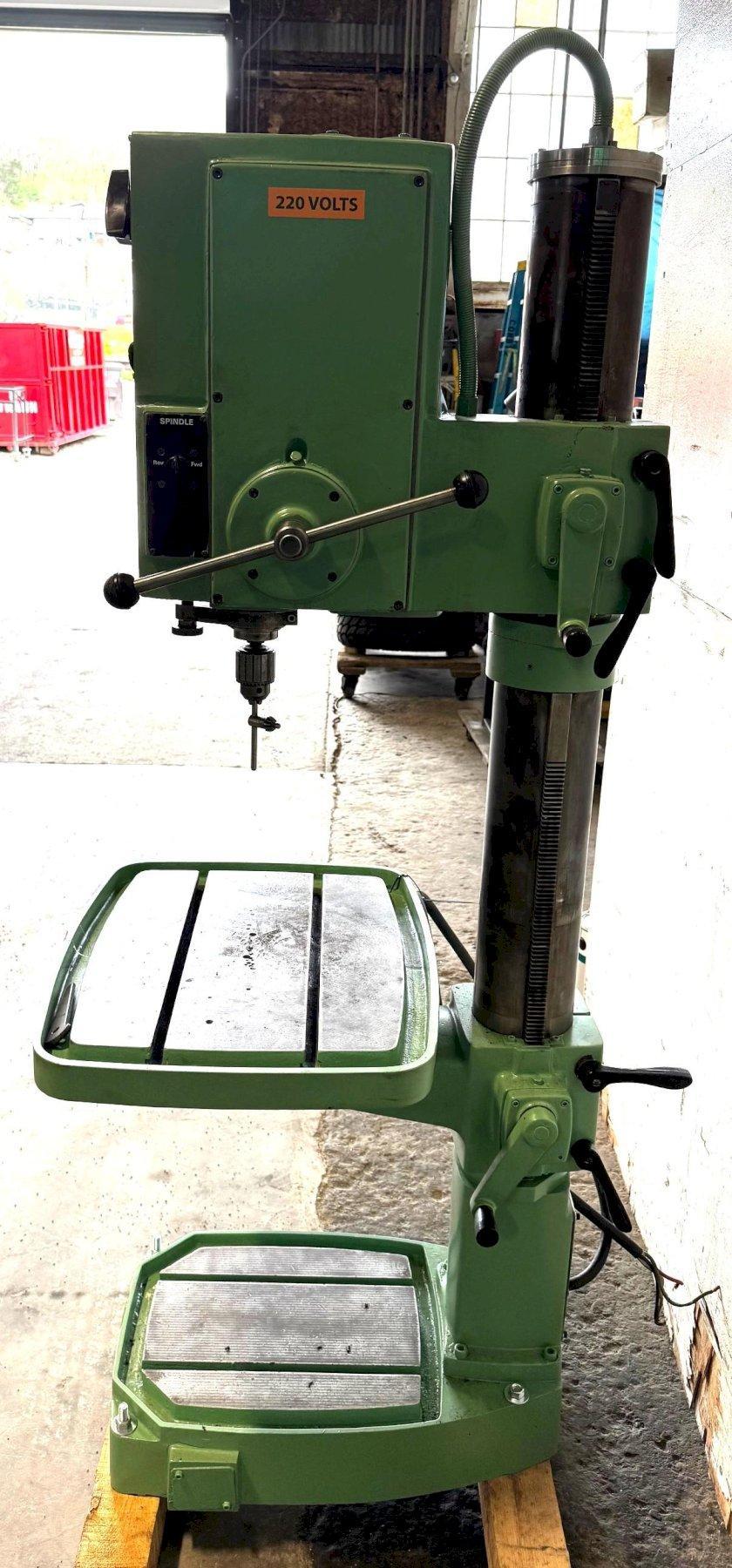

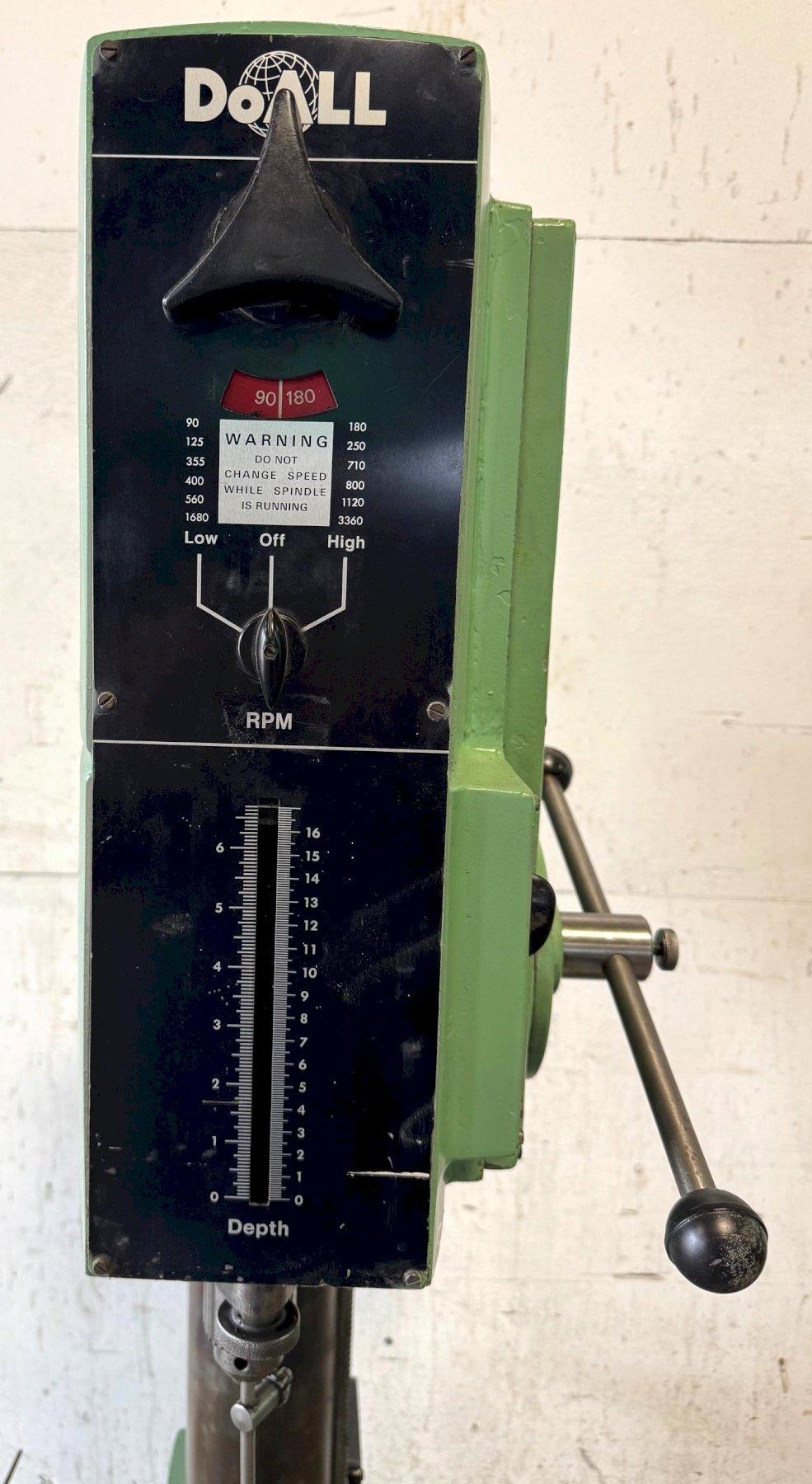

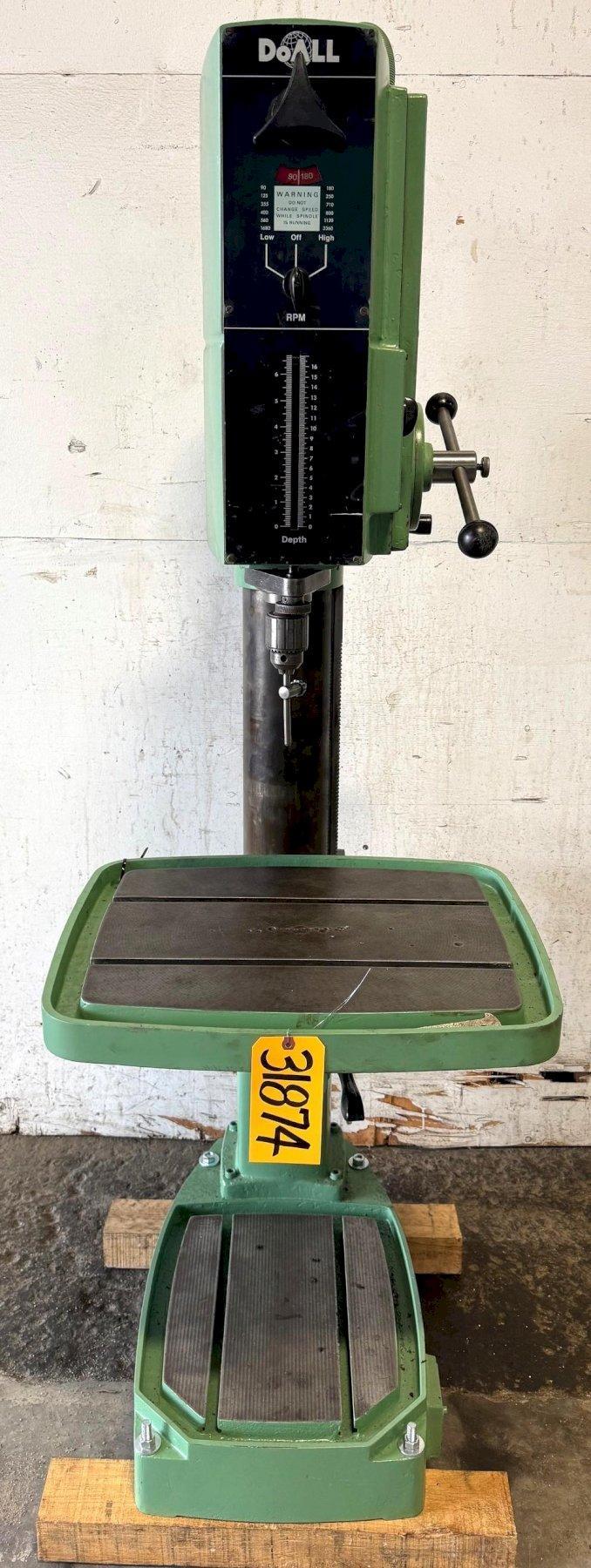

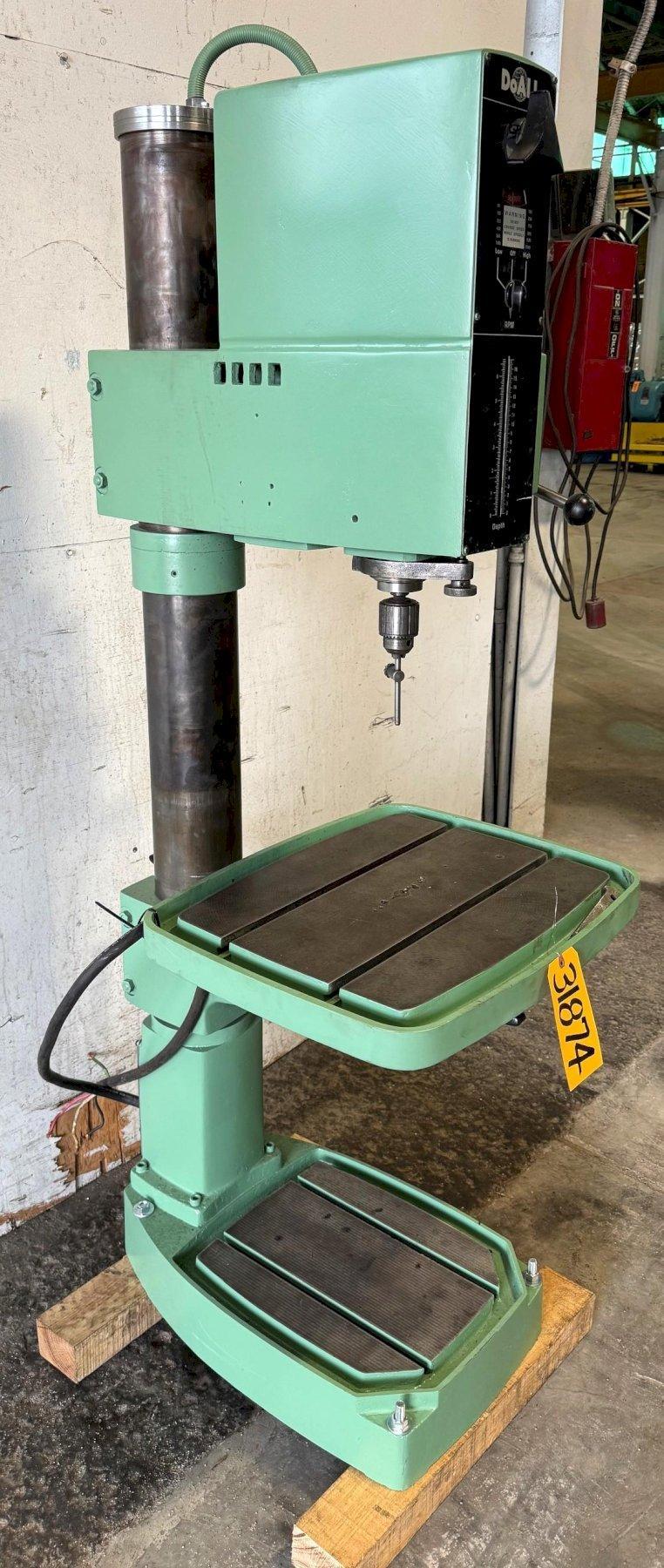

24" Doall Single Spindle Drill DG-24, Gear Head, 90-3360 RPM, 16" x 20" T-Slot Table, Clean

Brand
DOALL

Model
DG-24

Type
Drills, Heavy Duty & Sensitive, Single Spindle

Stock #
31874

Condition
Used

Year

Location
Cincinnati, Ohio
United States

Request Quote

Specifications

Equipped With

DOALL SINGLE SPINDLE DRILL

MODEL: DG-24
SERIAL NUMBER: 28/8001

GENERAL SPECIFICATIONS

Gear Head Drive
Hand Feed
Drills To Center: 24"

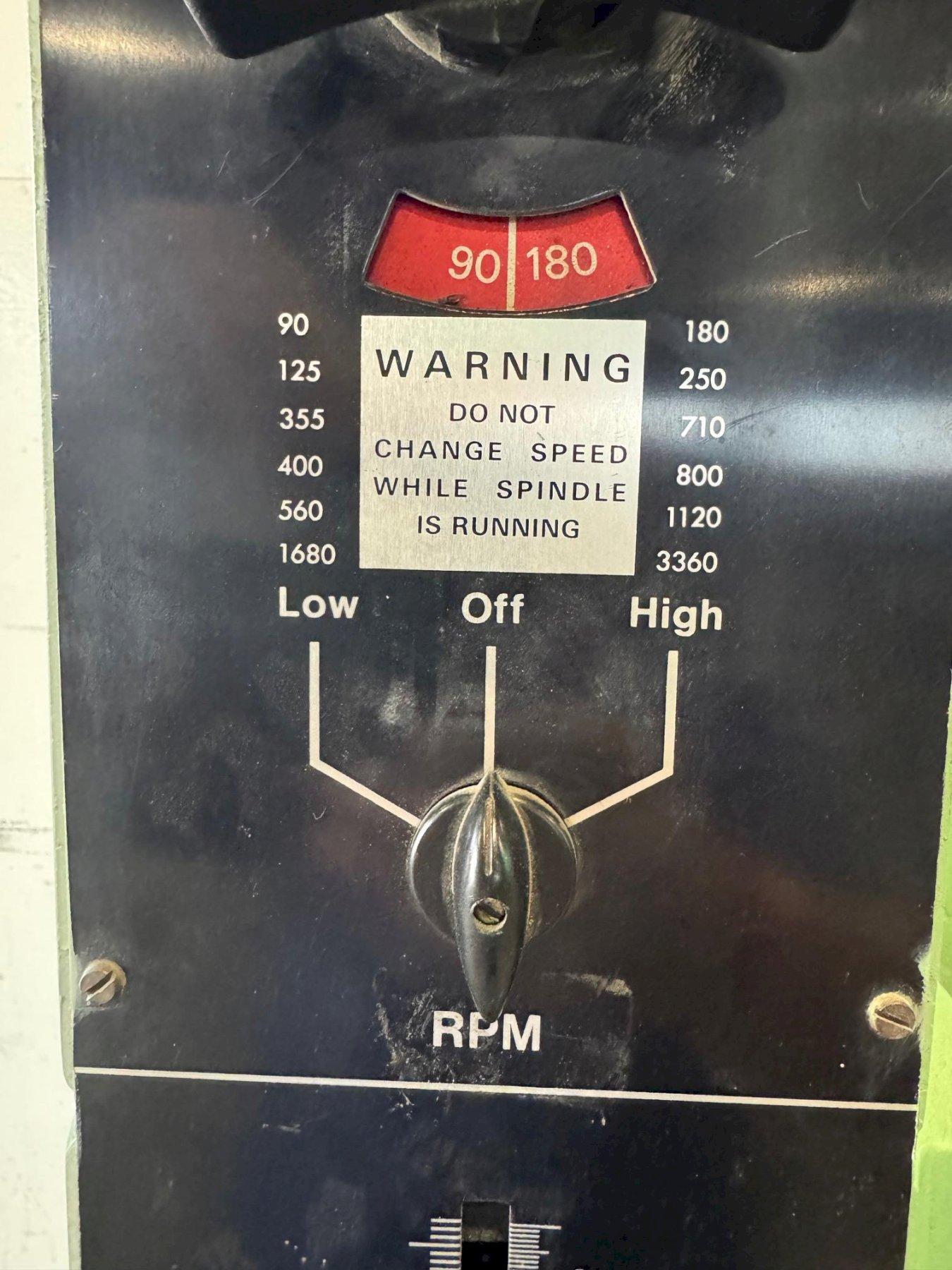

Spindle Speeds: (12) 90 to 3360 RPM
Spindle Taper: No. 3 MT
Quill Travel: 6-3/4"
Column Diameter: 5-1/2"
Overall Table Size: 20" x 24"

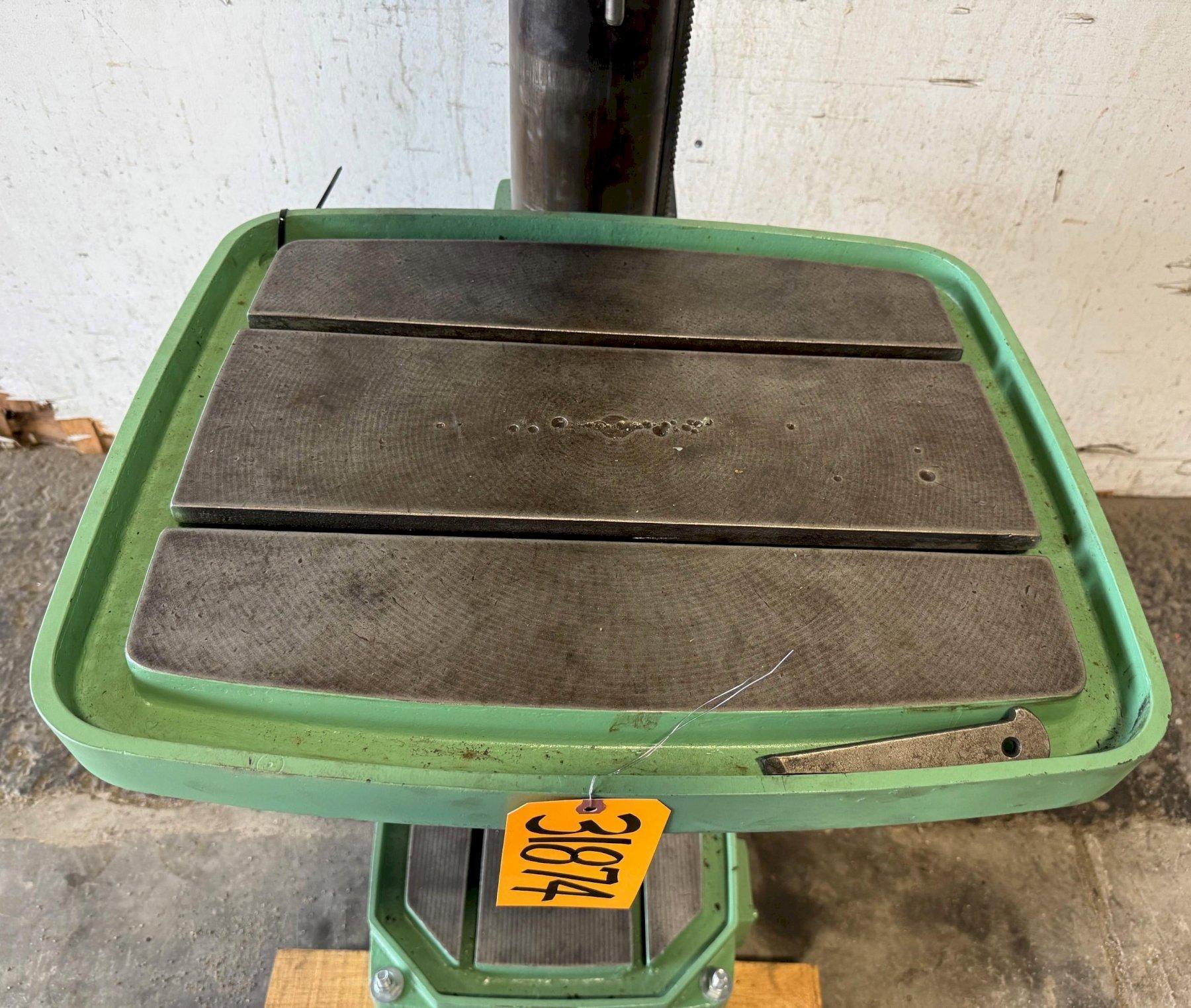

Working Surface Of Table: 16-1/2" x 20-1/2", (2) T-Slots
Drilling Capacity, Mild Steel: 1-1/4"
Drilling Capacity, Cast Iron: 1-1/2"

EQUIPPED WITH

1.9 / 1.3 HP Two Speed Motor, 220/60/3
Forward/Reverse Switch
T-Slotted Base
Head and Table Raising Mechanisms
Depth Stop

Approximate Weight: 1200 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
