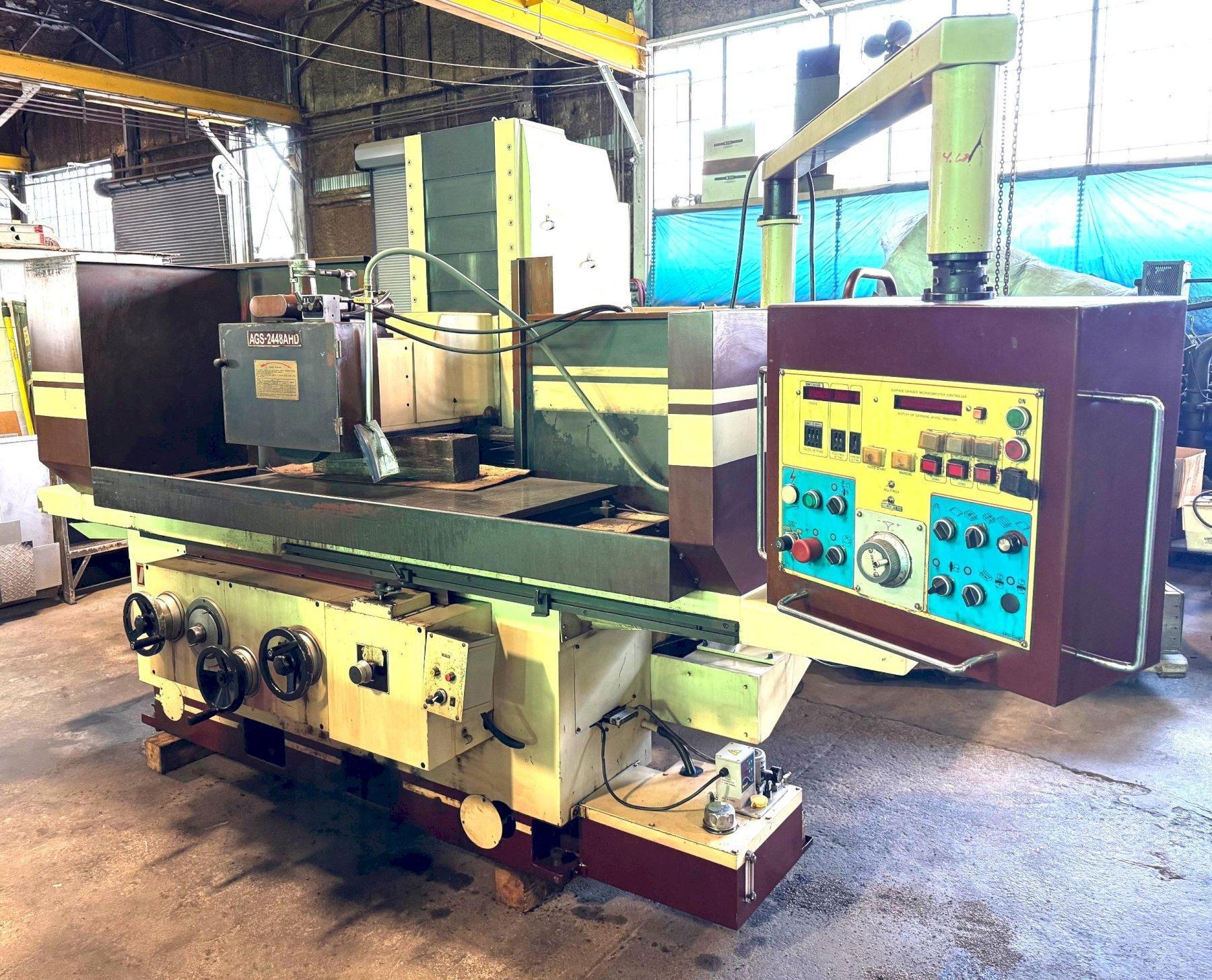

ACER SURFACE GRINDER

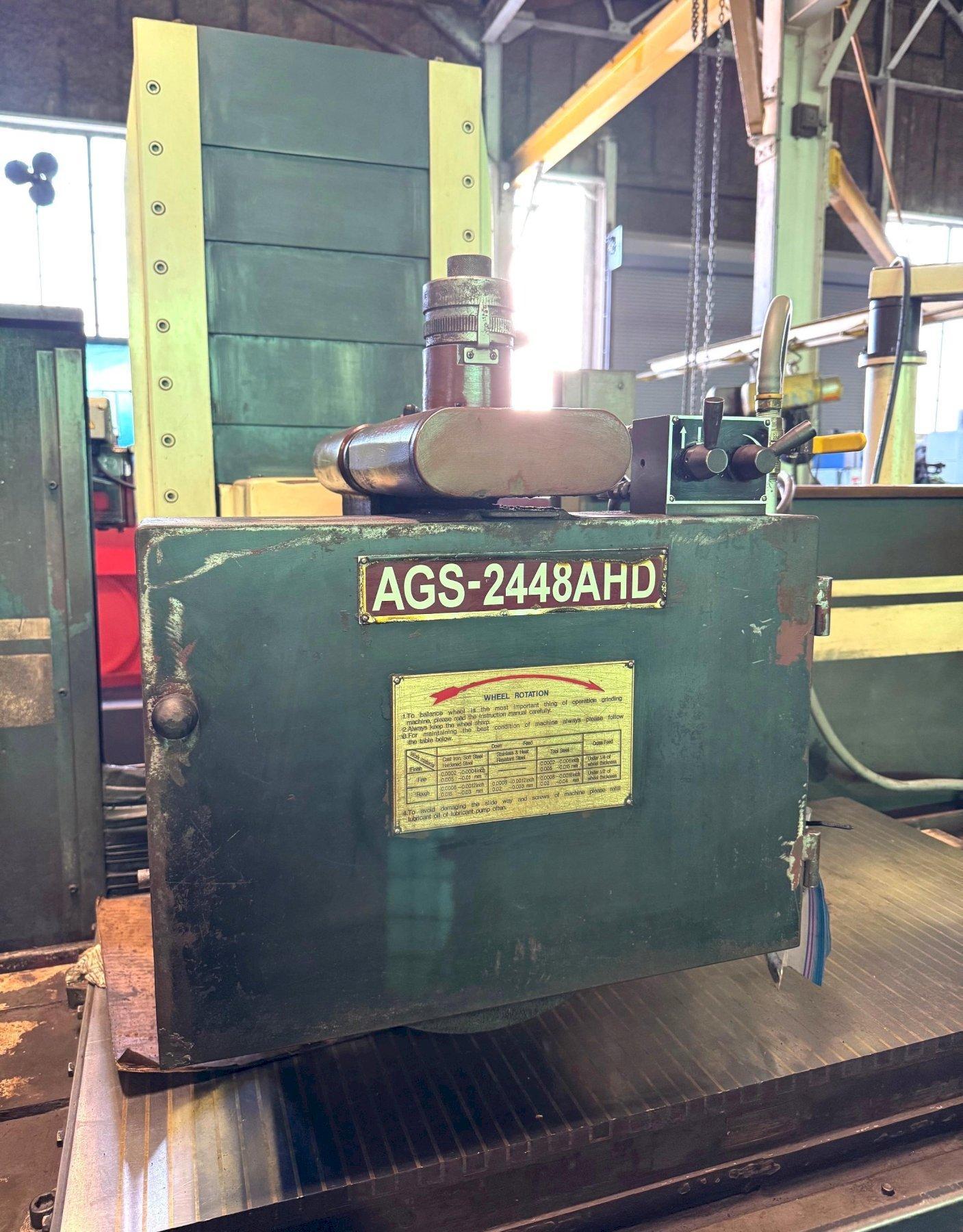

MODEL: AGS-2448AHD
SERIAL NUMBER: 97040395
GENERAL SPECIFICATIONS
Working Surface Of Table: 23-1/2" x 47-1/4"
Maximum Grinding Width: 23-1/2"
Maximum Grinding Length: 47-1/4"
Maximum Table Travel: 51-1/4"
Maximum Head Crossfeed Travel: 24-1/4"
Maximum Distance Between Table Surface and Spindle Center: 33"
Variable Table Speed: 16 - 80 FPM
Automatic Crossfeed Movement: 0 - 1-1/2
Downfeed Hand Wheel Dial, Per Graduation: .0005"
Downfeed Hand Wheel Dial, Per Revolution: .05"
Crossfeed Hand Wheel Dial, Per Graduation: .001"
Crossfeed Hand Wheel Dial, Per Revolution: .2"
Grinding Wheel: 20" x 5" x 2"
Spindle Speed: 1150 RPM
Load Capacity: 3500 Lbs.
EQUIPPED WITH
10 HP Spindle Motor
5 HP Hydraulic Pump Motor
24" x 48" Kanetsu Electromagnetic Chuck w/Variable Chuck Control
Incremental Downfeed
Coolant System w/Paper Filter and Magnetic Separator
Hydraulic Overhead Dresser
Automatic Lubrication
Approximate Weight: 16,000 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
