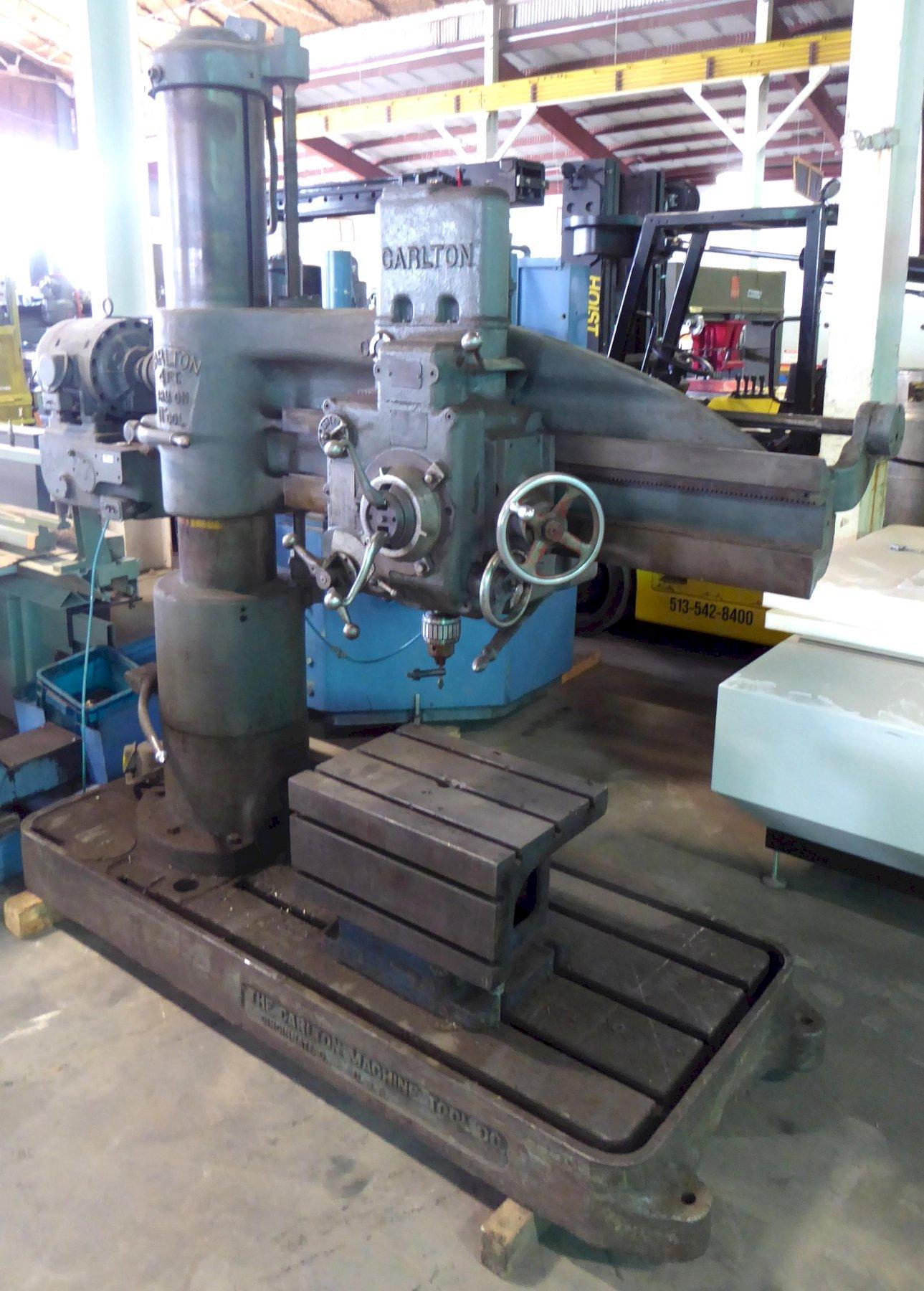

4' x 11" Carlton Radial Drill, 60-1500 RPM, 4 M.T., Box Table, Low Price

Brand
CARLTON

Model
1A

Type
Drills, Radial

Stock #
31601

Condition
Used

Year

Location
Cincinnati, Ohio
United States

Specifications

Equipped With

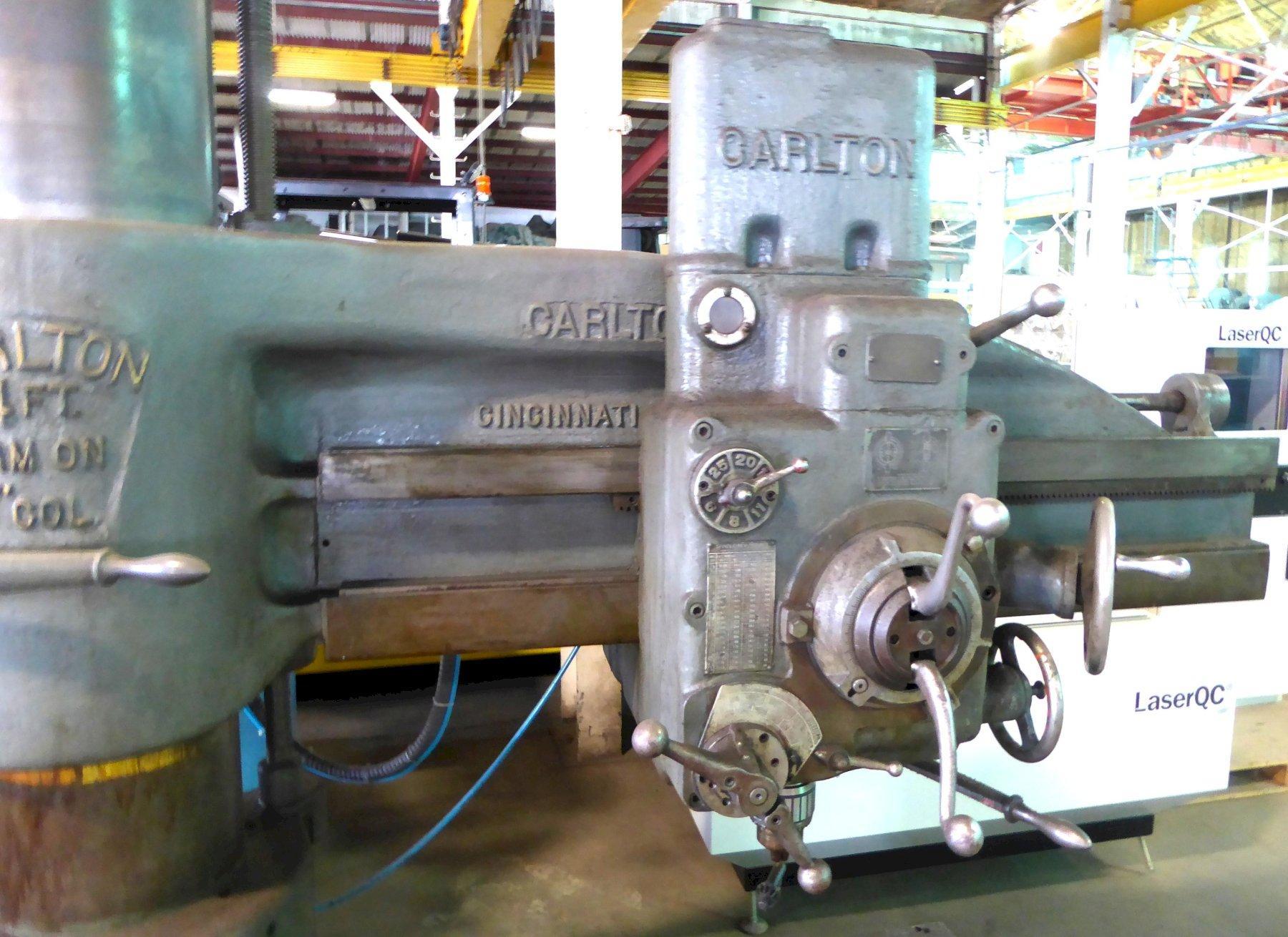

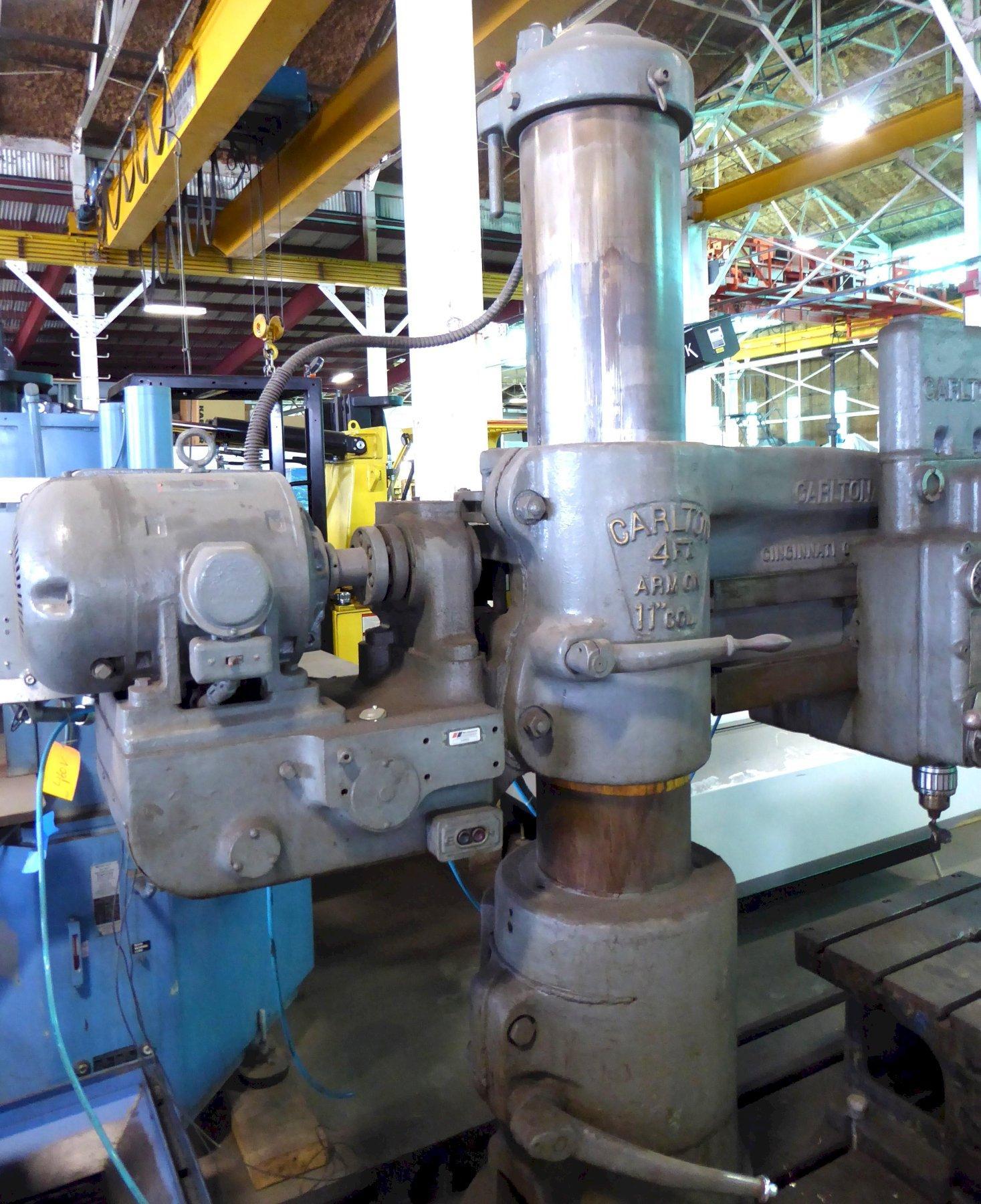

CARLTON RADIAL DRILL

MODEL: 1A
SERIAL NUMBER: 1A 2190

GENERAL SPECIFICATIONS

Arm Length: 4'
Column Diameter: 11"
Spindle Speeds: (12) 60 to 1500 RPM
Feeds: (6) .004 to .025
Face of Column to Center of Spindle: 4' Max., 9" Min.
Maximum Spindle Radius: 4'8-1/2"
Minimum Spindle Radius: 17-1/2"
Maximum Spindle to Base: 4'7-1/4"
Minimum Spindle to Base: 14-3/4"
Vertical Travel of Spindle in Head: 12"
Morse Taper in Spindle: No. 4
Spindle Diameter: 2-1/2"
Traverse of Arm on Column: 2'4-1/2"
Traverse of Head on Arm: 3'3"
Drills to Center of Circle: 8'

EQUIPPED WITH

5 HP Drive Motor
Power Elevation

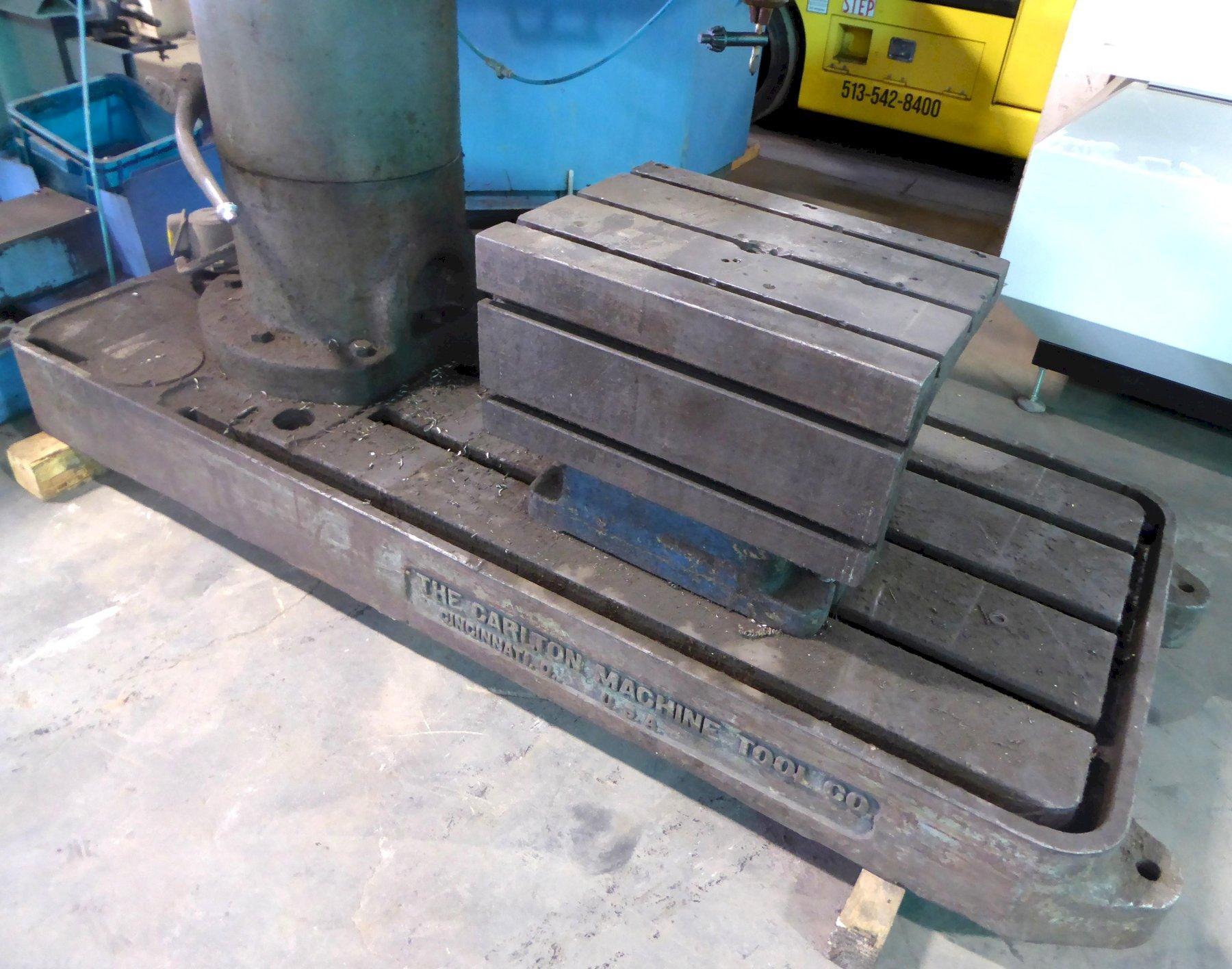

Box Table

Approximate Weight: 9000 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
