45 Ton Heim Mechanical Press Brake, 14" x 126" Flanged Bed, 3" Stroke, 12" SH, A.C., 1999

Brand
HEIM

Model
45-10

Type
Brakes, Press

Stock #
31599

Condition
Used

Year
1999

Location
Cincinnati, Ohio
United States

Request Quote

Specifications

Tonnage 45 tons
OA Length 126 inches
OA (Overall) Length 126 inches
BH 110 inches
BH (Between Housings) 110 inches
Stroke 3 inches
CNC Control no
Weight 7500 pounds

Equipped With

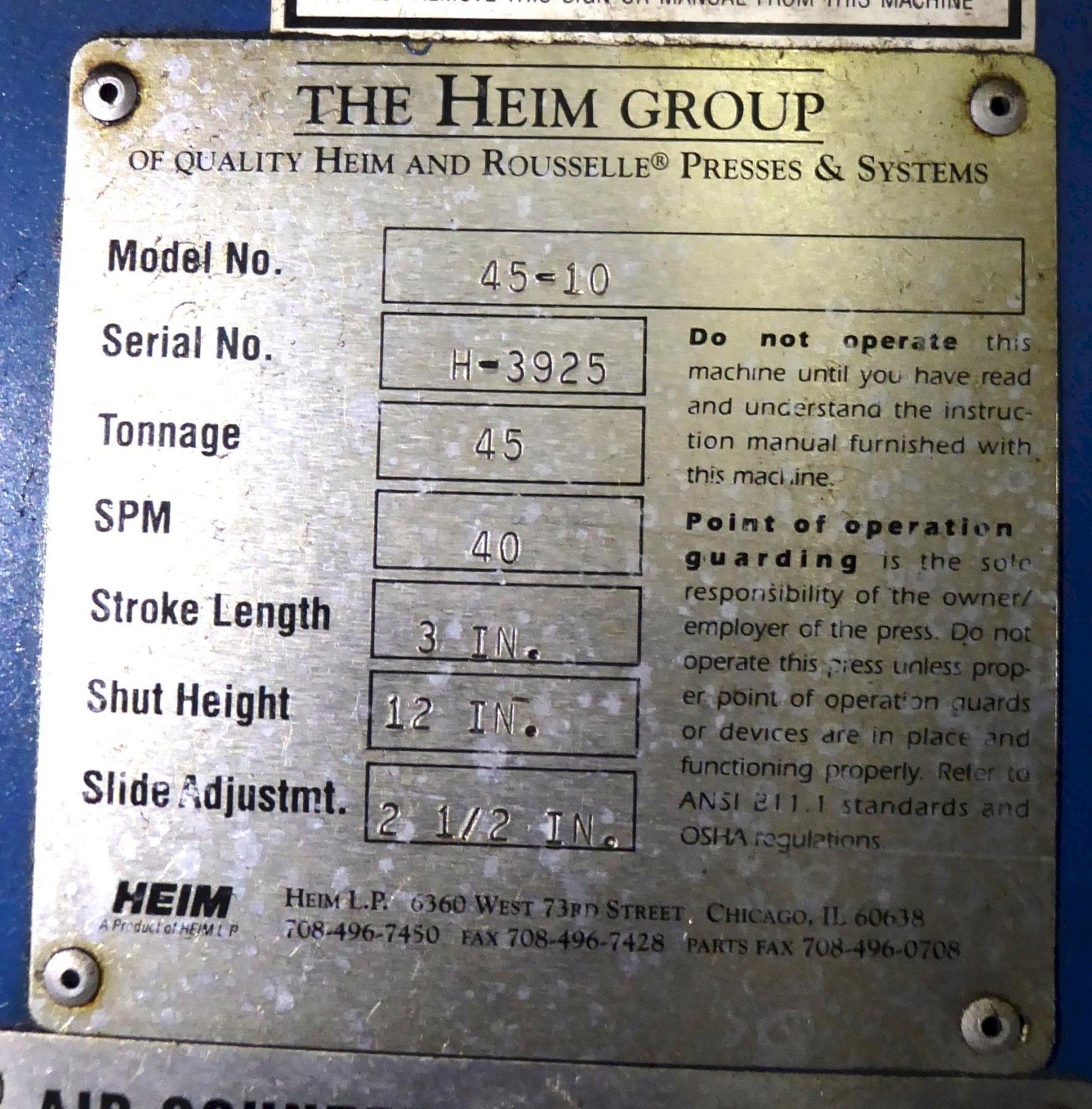

HEIM MECHANICAL PRESS BRAKE

MODEL: 45-10
SERIAL NUMBER: H-3925  Year: 1999

GENERAL SPECIFICATIONS

Permanently Flanged Bed and Ram
Tonnage, Near Bottom: 45
Tonnage, Mid Stroke: 30
Bed Size: 14" x 126"
Ram Size: 12" x 126"
Distance Between Housings: 110"
Stroke: 3"
Shut Height: 12"
Ram Adjustment: 2-1/2"
Strokes Per Minute: 40

EQUIPPED WITH

2 HP Motor

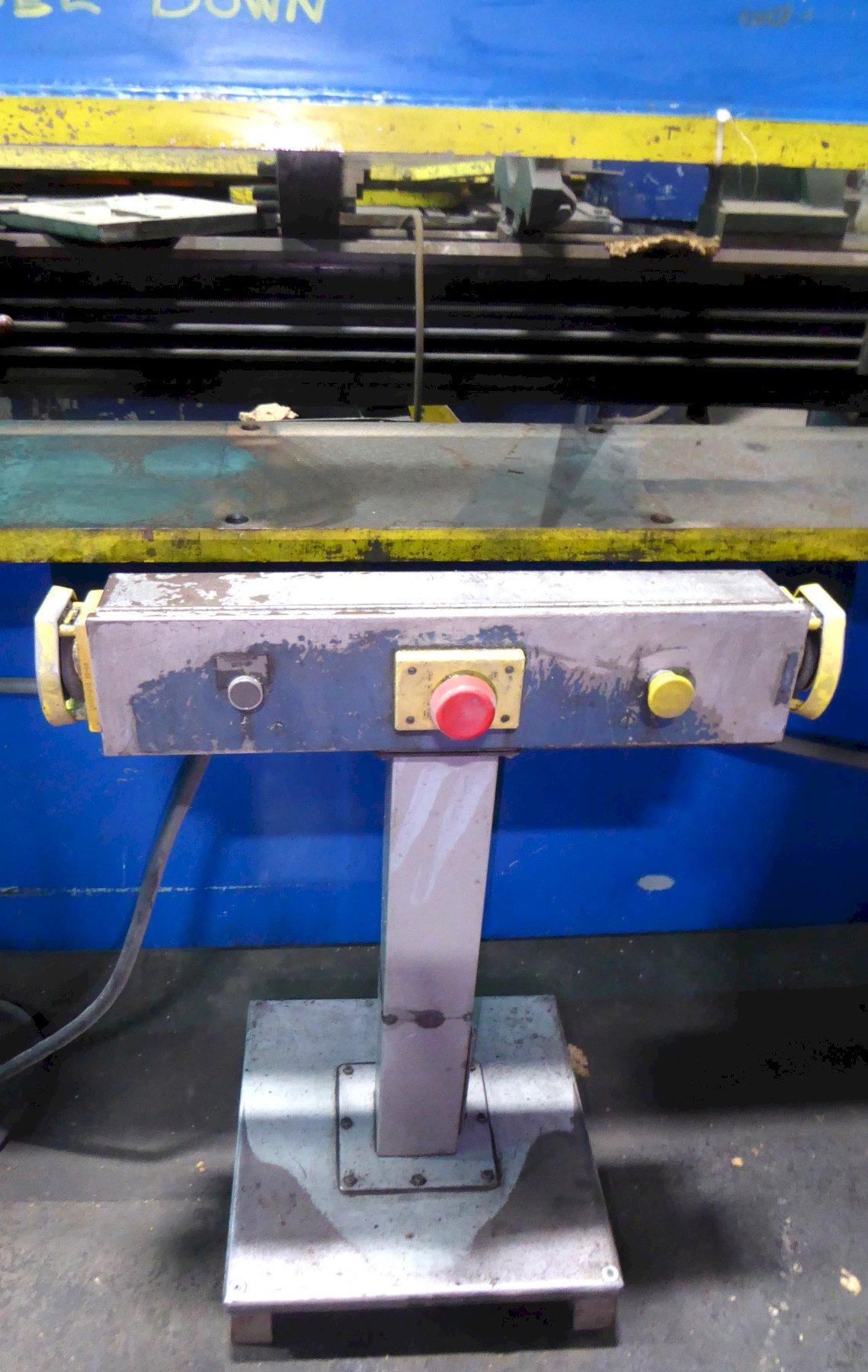

Pedestal Control w/Dual Palm Buttons

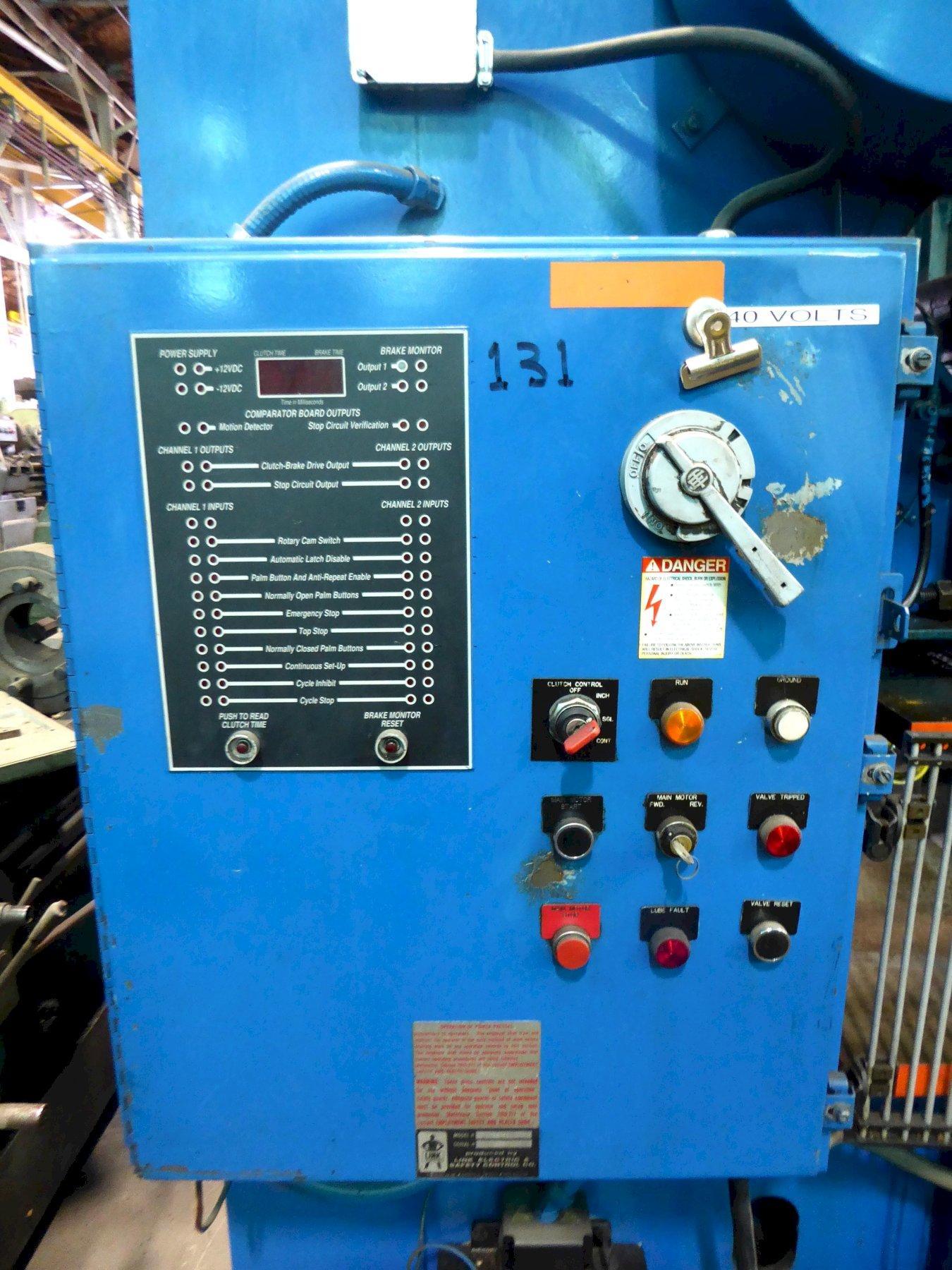

PLC Control
Air Clutch
Power Ram Adjustment
(2) Air Counterbalances
Bijur Automatic Lubrication
Holes On Flanged Bed and Ram On 18" Centers

Approximate Weight: 7500 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
