5' x 1/4" Akbend Plate Roll ASM-S140-15/5, 5.5" Top Roll, 2011

Brand
AKYAPAK

Model
ASM-S140-15/5.OMJ

Type
Rolls, Plate Bending (incld Pinch)

Stock #
31918

Condition
Used

Year
2011

Location
Cincinnati, Ohio
United States

Request Quote

Specifications

Length of Rolls 5 feet
(Init/Dbl Pinch or Pyramid) single
Max Thickness .250 inches
# Rolls 3
CNC Control no
Weight 3200 pounds

Equipped With

AKYAPAK/AKBEND PLATE ROLL

MODEL: ASM-S140-15/5.OMJ
SERIAL NUMBER: M140-132      Year: 2011

GENERAL SPECIFICATIONS

Working Length: 5'
Pre-Bending Thickness: 3/16"
Maximum Thickness: 1/4"
Top Roll Diameter: 5.5"
Minimum Bending Diameter: 8.3"
Roll Speed: 19.7 FPM

EQUIPPED WITH

3 HP Motor

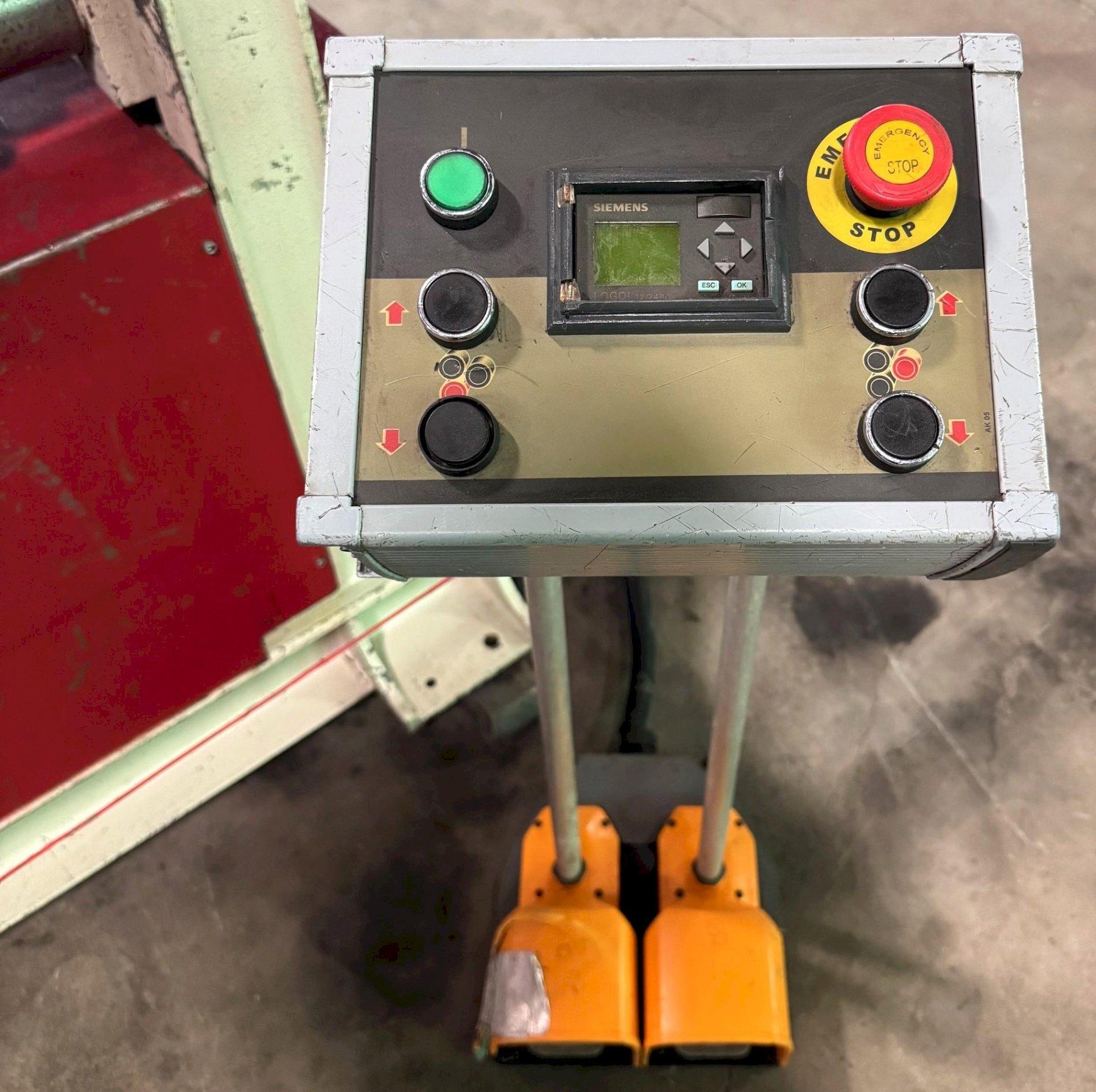

Pedestal Control

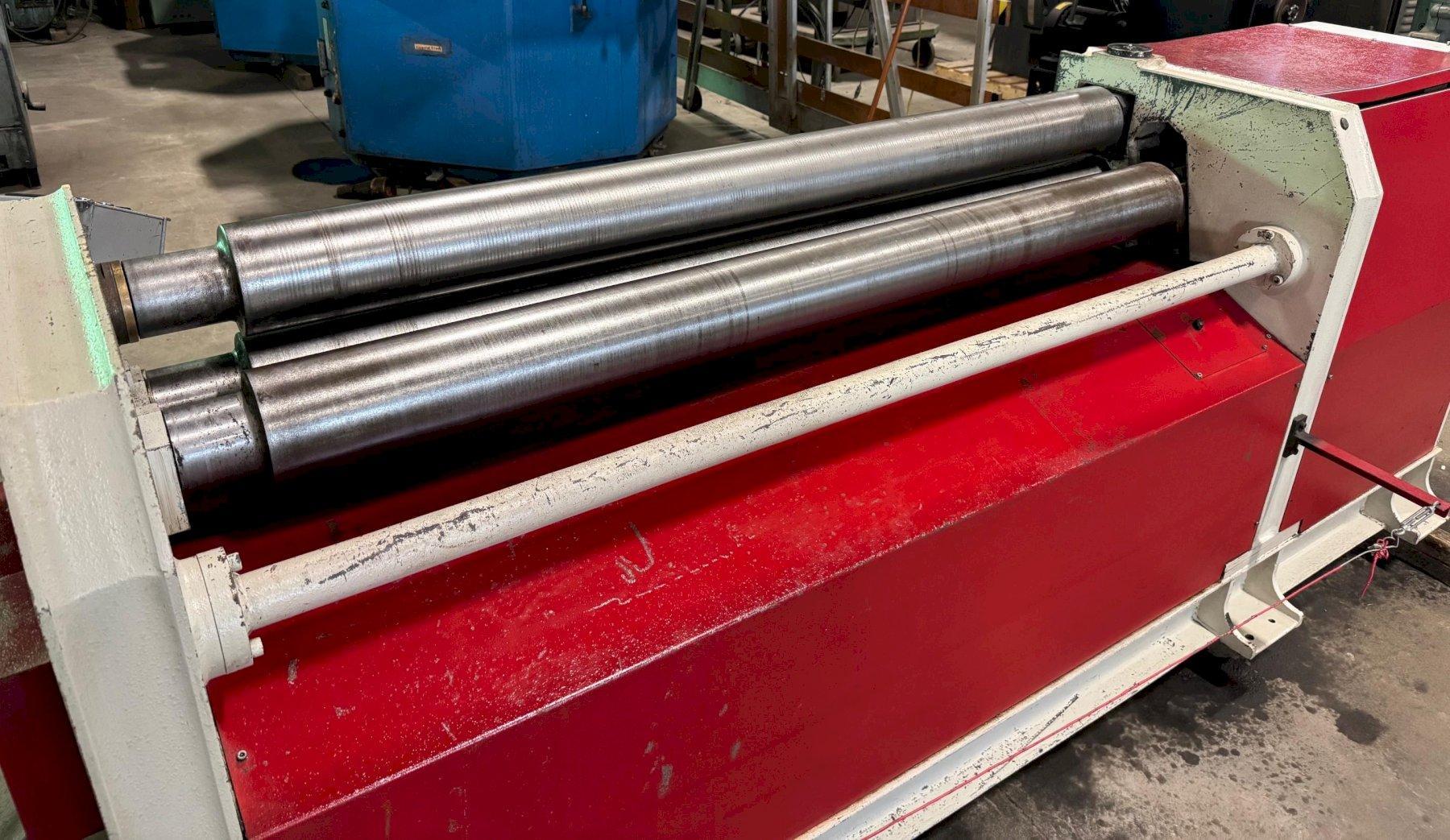

Hardened Rolls
Motorized Rear Roll

Approximate Weight: 3200 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
