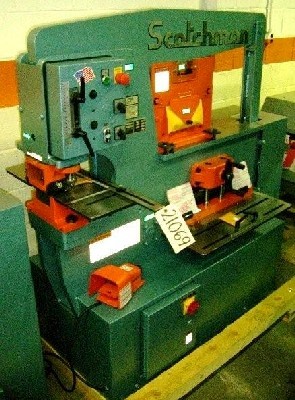

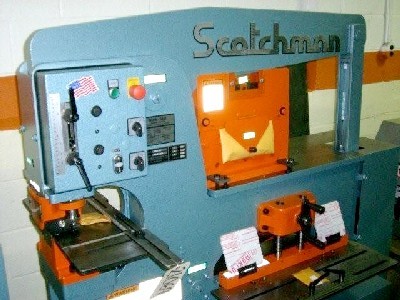

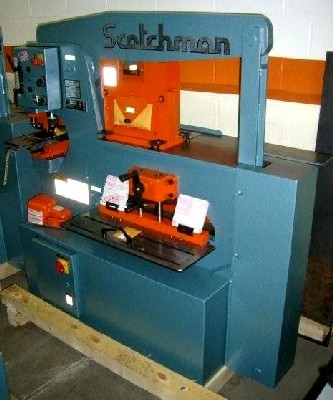

(NEW) SCOTCHMAN HYDRAULIC IRONWORKER
MODEL: 6509-24M
STANDARD FEATURES

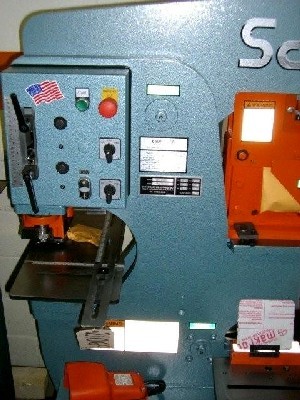

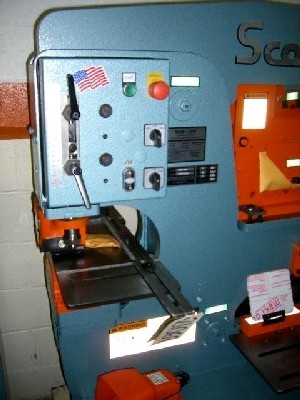

65 Ton Punch Station
Keyed Punch Ram For Safety
Die Holder Complete With 2" Die Insert
Punch Nut With Wrench and Stripper
Punch Jog Control
Adjustable Electric Stroke Control With Scale
Electric Remote Foot Pedal
Flat Bar Shear With 4-Way Reversible Blade
Tool Table Work Area
Two-Stage Hydraulic Pump

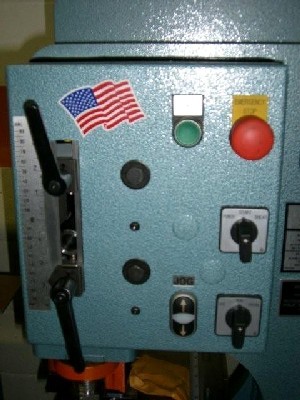

Electrical Box Supplied With Emergency Palm Button and Lock-Out
Tag-Out Accommodations
230/460 Volt/3 Phase Electrics (Must Specify Voltage)
All Guards Necessary To Comply With ANSI B 11-5 Standards
Forklift Accommodations
Three-Year Warranty
Made In USA
CAPACITIES AND SPECIFICATIONS: Rated On: A 36 Mild Steel/65,000 psi Tensile
Punching Capacity: 65 Ton
1-1/16" In 3/4"
Special Tooling: 4" Maximum Diameter
Throat Depth: 9"
Flat Bar Shear: 24" Length
1" x 6"
3/4" x 10"
3/8" x 16"
1/4" x 24"
Optional Saber Blade: 1" x 8"
1/2" x 16"

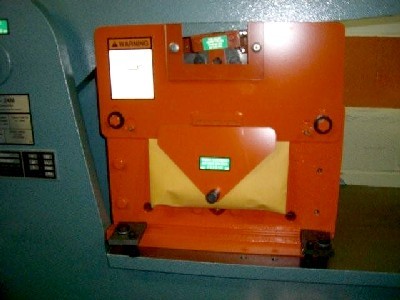

Angle Shear, 90 Degrees: 6" x 6" x 3/8"
45 Degrees: 3" x 3" x 3/8"
With Bar Shear: 4" x 4" x 1/2"
Brake 12"*: 40 Ton
Brake 24"*: 30 Ton
Pipe Notcher, Schedule 40 I.D.*: 3/4", 1", 1-1/4, 1-1/2", 2"
Rectangle Notcher*: 2" x 2-1/2" x 3/8"
90 Degree V-Notcher*: 6" x 6" x 5/16"
Channel Shear: 2" to 5" Adjustable
Rod Shear
Round Rod: 1/4" to 1-1/4", 9 Cavity
Square Rod: 1/4" to 1", 1 Cavity
Square Tube Shear*: 1/2" to 2", 14 Gauge
Picket Tool Housing*: 1/2", 3/4", 1"
Strokes Per Minute, Light Material: 40 SPM
Strokes Per Minute, Heavy Material: 17 SPM
Hydraulics: 2500 PSI
Standard Motor: 5 HP, 3 Phase 230/460/208//380/575 V
Optional Motor: 5 HP, 1 Phase 230 V
*Optional Equipment Available
Dimensions: 24"W x 60"L x 66"H
Approximate Weight: 2750 Lbs.
F.O.B. Philip, South Dakota
FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
