8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase
8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase
8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase
8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase
8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase
8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase
8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase
8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase
  • 8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase
  • 8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase
  • 8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase
  • 8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase
  • 8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase
  • 8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase
  • 8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase
  • 8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase

8" x 17" EMCO Bench Top Lathe Compact 8, 1 Phase

Brand
EMCO

Model
Compact 8

Type
Lathes, Bench Top

Stock #
31931

Condition
Used

Year

Location
Cincinnati, Ohio
United States

Request Quote

Specifications

Swing 8 inches
Centers 17 inches
Spindle Bore .8 inches
Power .5 horsepower
CNC Control no

Equipped With

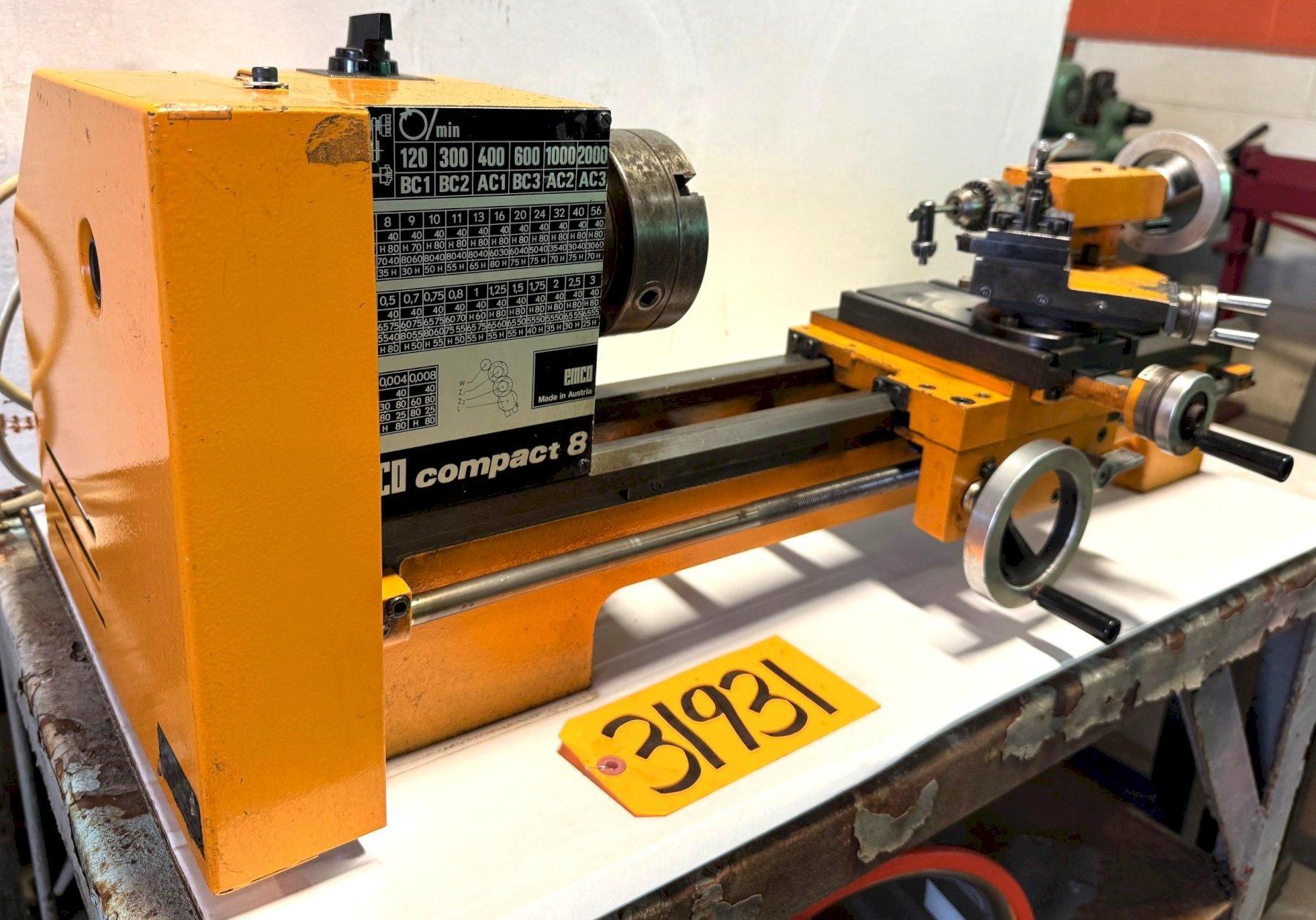

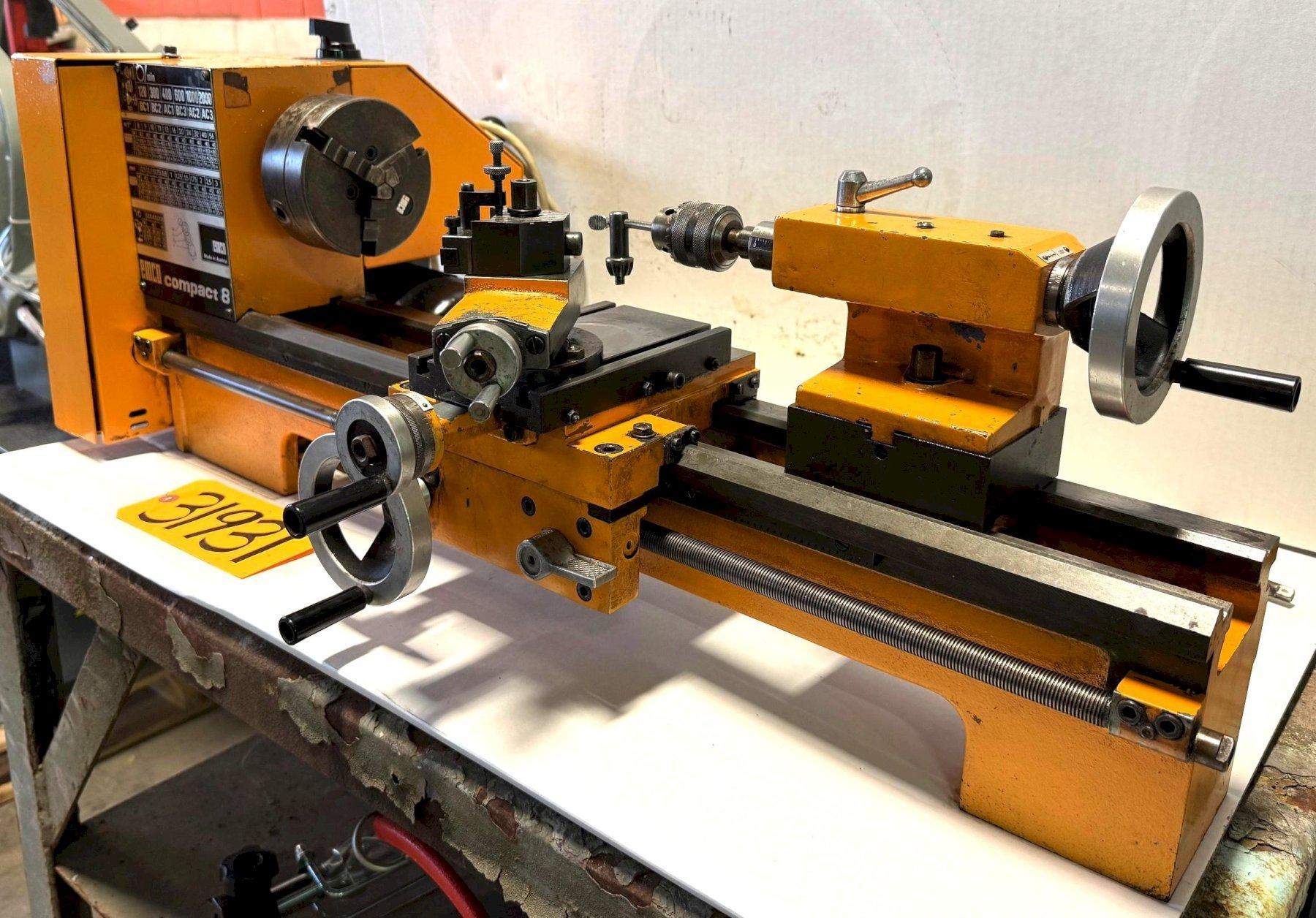

EMCO BENCH TOP LATHE

MODEL: Compact 8

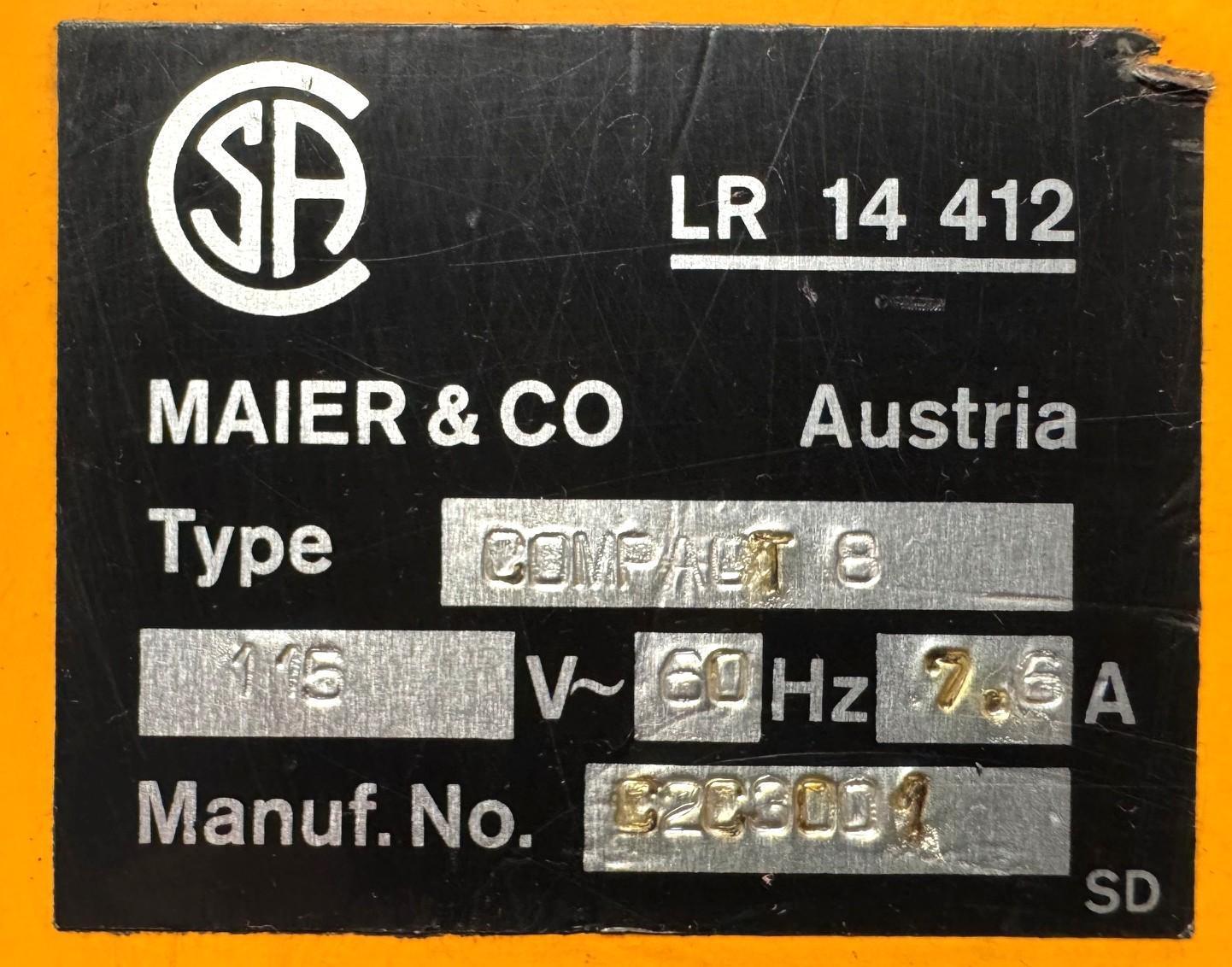

SERIAL NUMBER: C2C3001

GENERAL SPECIFICATIONS

Swing Over Bed: 8"
Distance Between Centers: 17.7"
Swing Over Cross Slide: 4.6"
Hole Through Spindle: .8"

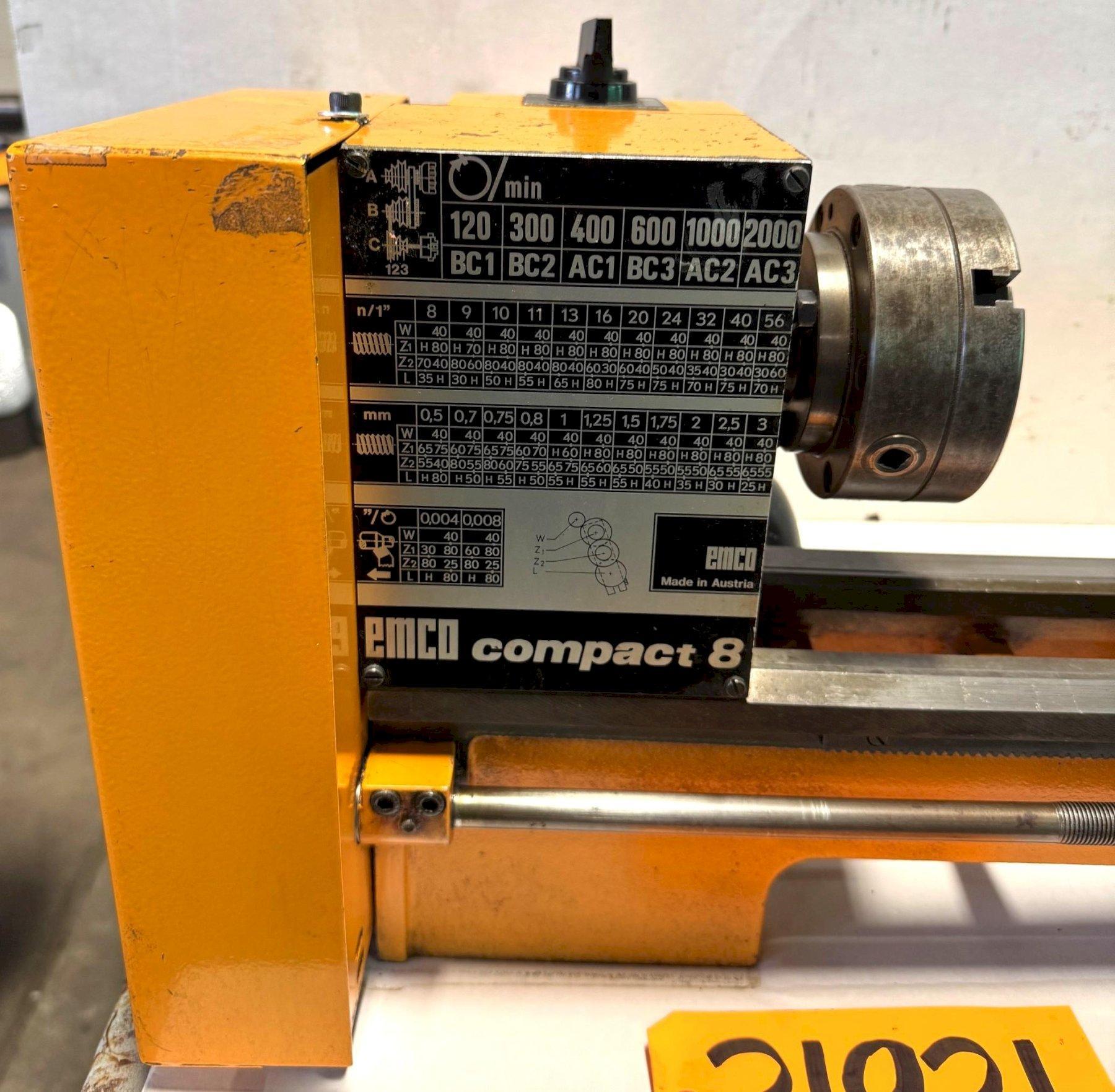

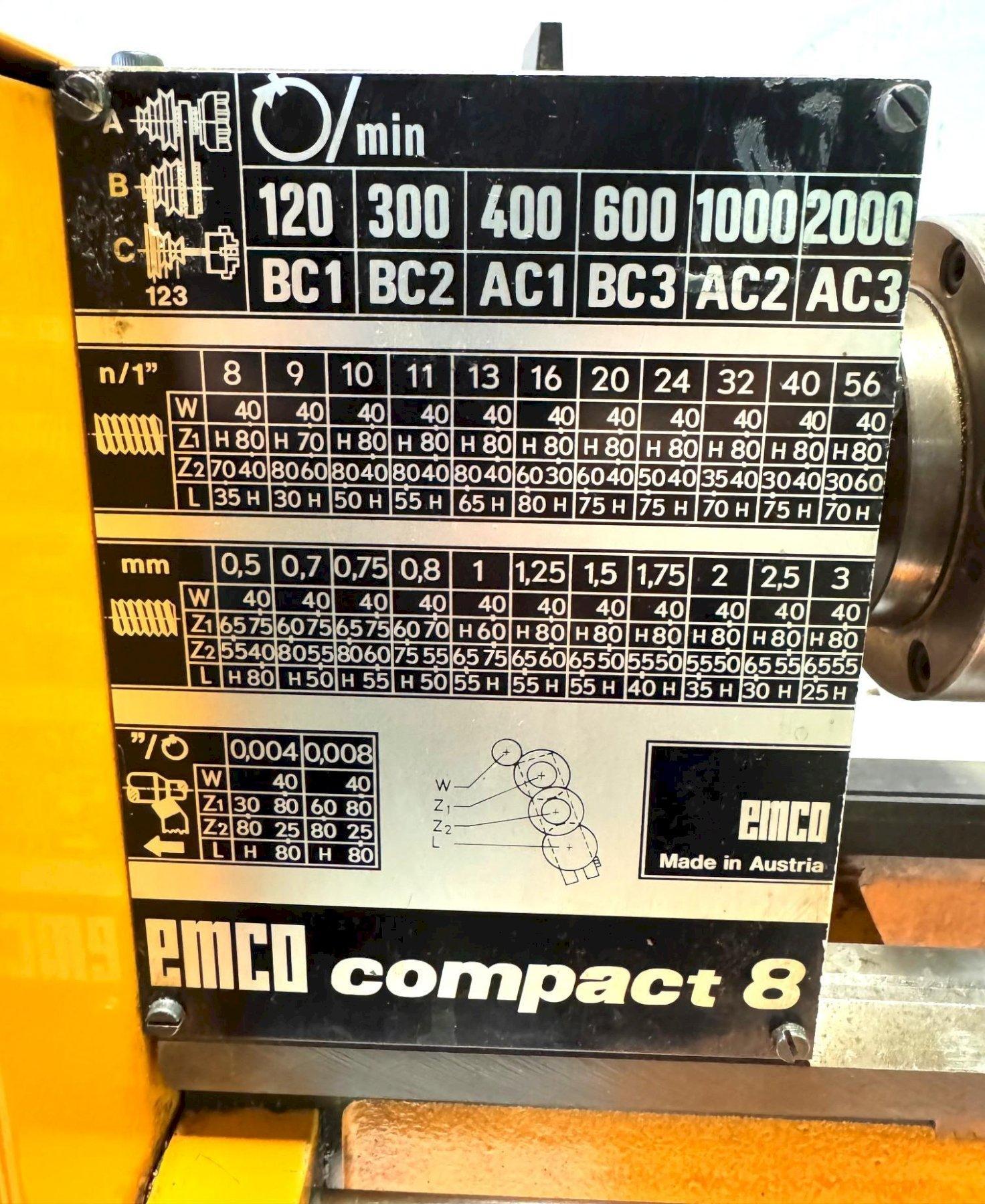

Spindle Speeds: (6) 100 - 1700 RPM
Feeds Via Leadscrew: .09"/18mm
Threads, Metric: 0.4 - 3mm
Threads, Inch: 10 - 44 TPI
Threads, Module: .2 - .7

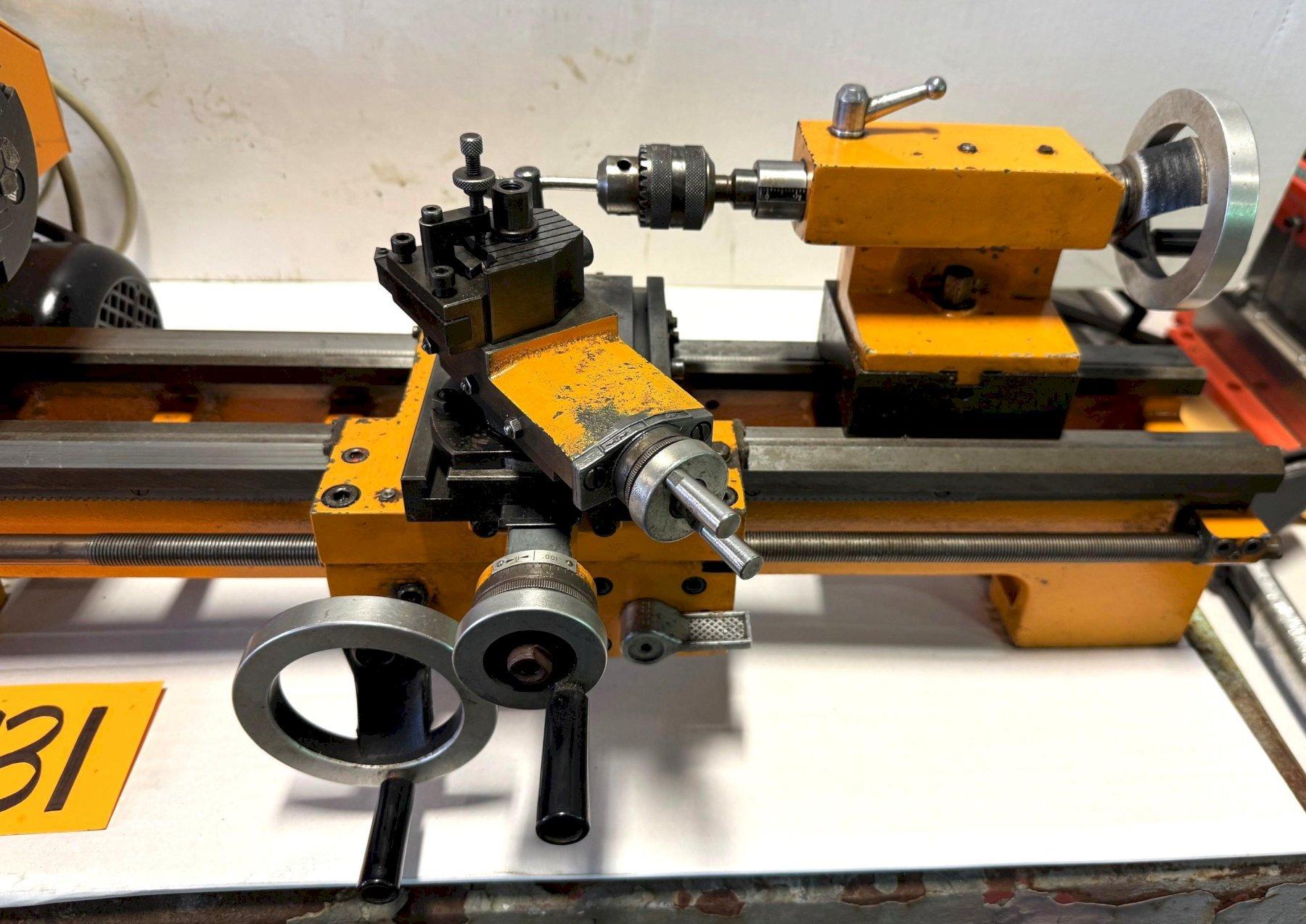

Tailstock Spindle Diameter: 1"
Tailstock Spindle Travel: 1.6"
Tailstock Spindle Taper: No. 2 M.T.

EQUIPPED WITH

1/2 HP Motor, 115/60/1

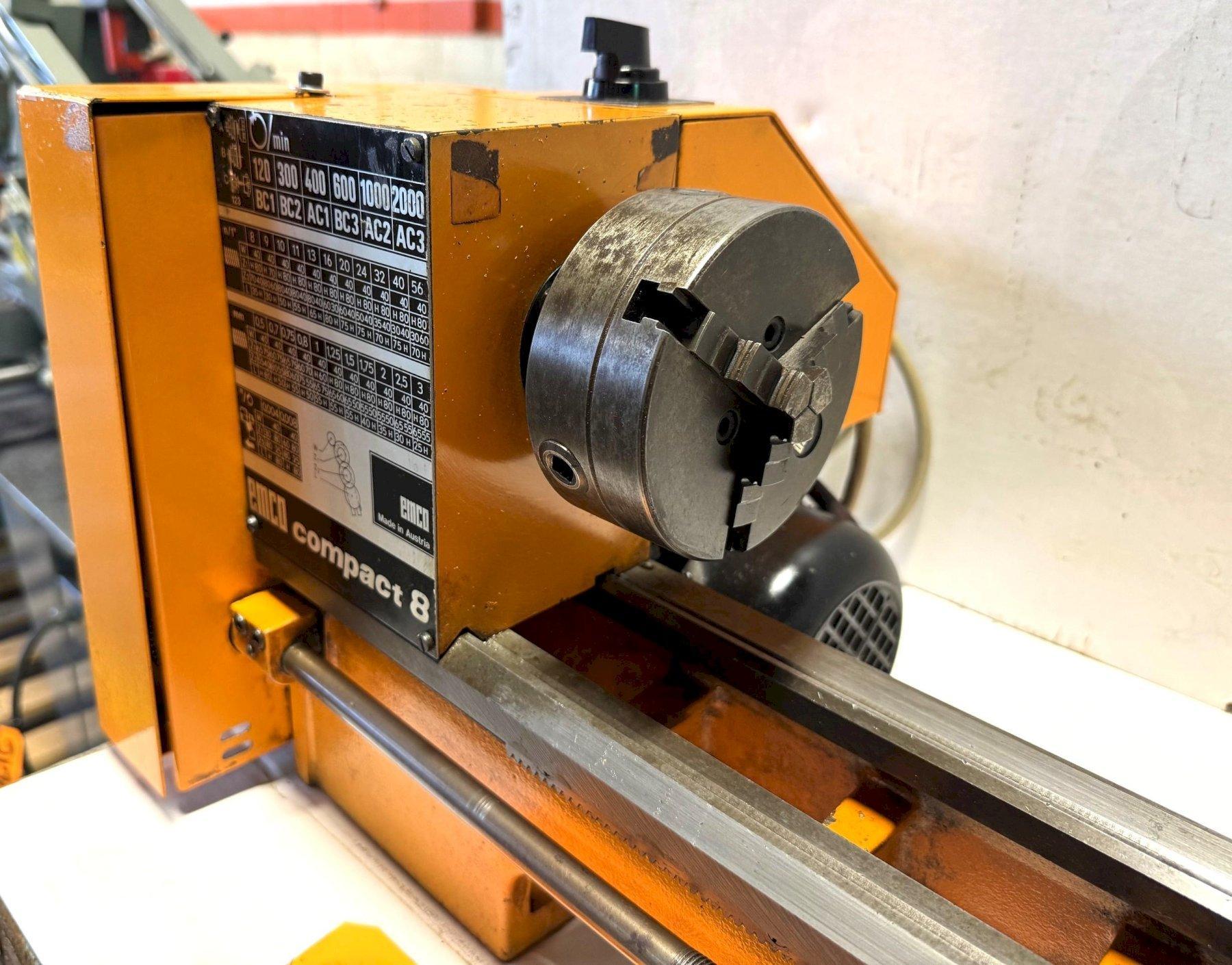

4-1/2" 3-Jaw Chuck

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
