Specifications
Equipped With

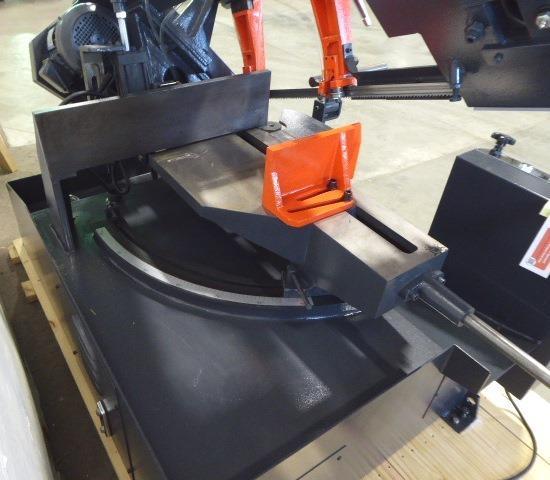

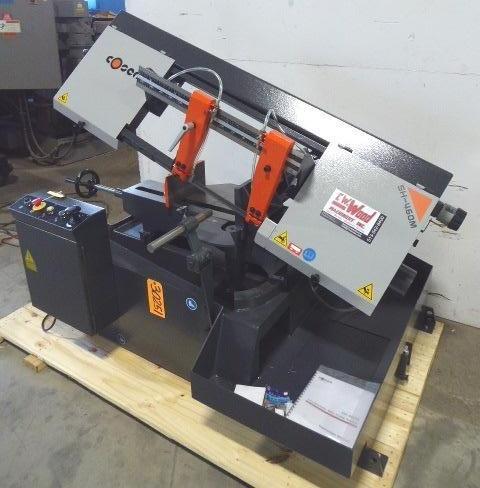

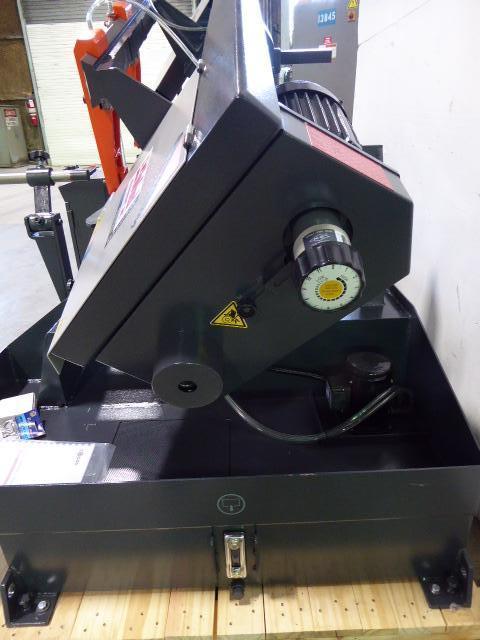

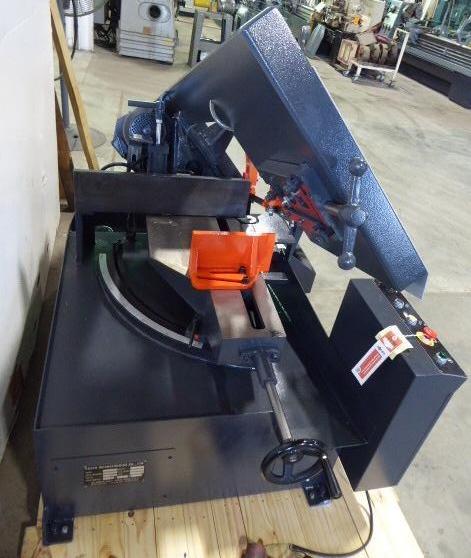

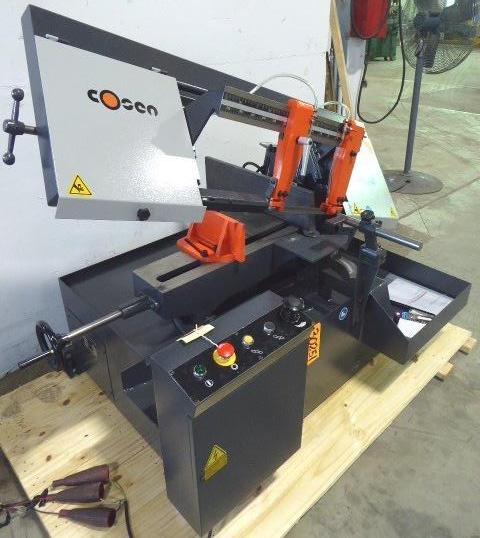

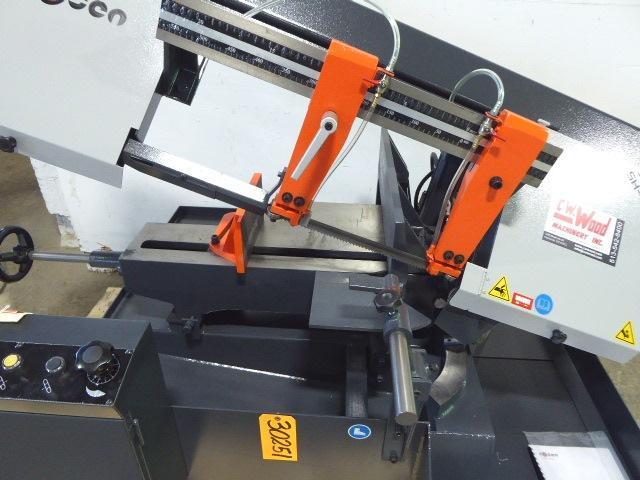

(NEW) COSEN SEMI-AUTOMATIC MITER CUTTING HORIZONTAL BAND SAW
MODEL: SH-460M
FACTORY SPECIFICATIONS
Miter Capacity: 60 Degrees Maximum
Cutting Capacity, Round, 90 Degrees: 10"
Cutting Capacity, Round, 45 Degrees: 9"
Cutting Capacity, Round, 30 Degrees: 4.3"
Cutting Capacity, Square, 90 Degrees: 9" x 9"
Cutting Capacity, Square, 45 Degrees: 7.5" x 7.5"
Cutting Capacity, Square, 30 Degrees: 4.3" x 4.3"
Cutting Capacity, Rectangle, 90 Degrees: 9"H x 18.1"W
Cutting Capacity, Rectangle, 45 Degrees: 9"H x 9"W
Cutting Capacity, Rectangle, 30 Degrees: 9"H x 4.3"H
Blade Speeds: 95, 150, 213, 321 FPM
Blade Size: 138" x 1" x .035"
Bed Height: 25.4"
EQUIPPED WITH
2 HP Blade Drive Motor
1/4 HP Hydraulic Motor

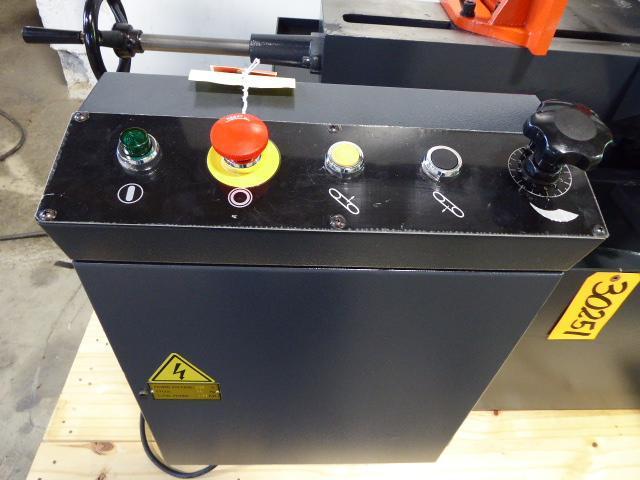

Operator's Control Station
Automatic Head Return
Work Height Selector
Cast Iron Guide Arms
Adjustable Material Stop
Manual Blade Tension
Powered Blade Brush
Coolant System
Carbide Blade Guides
Shipping Dimensions: 48" x 73" x 45"H
Approximate Weight: 1450 Lbs.
F.O.B. Charlotte, North Carolina
FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
