Specifications
Equipped With

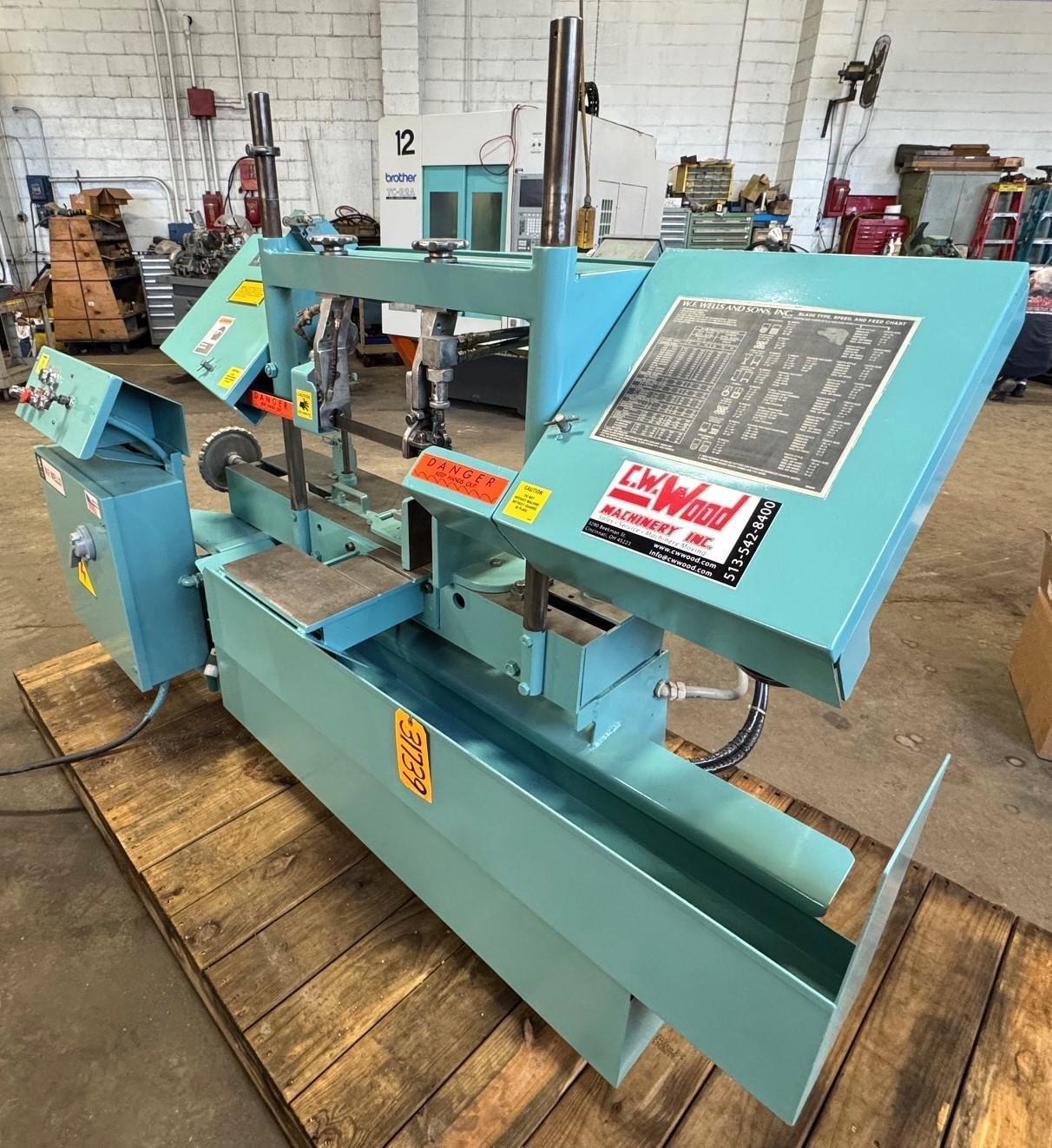

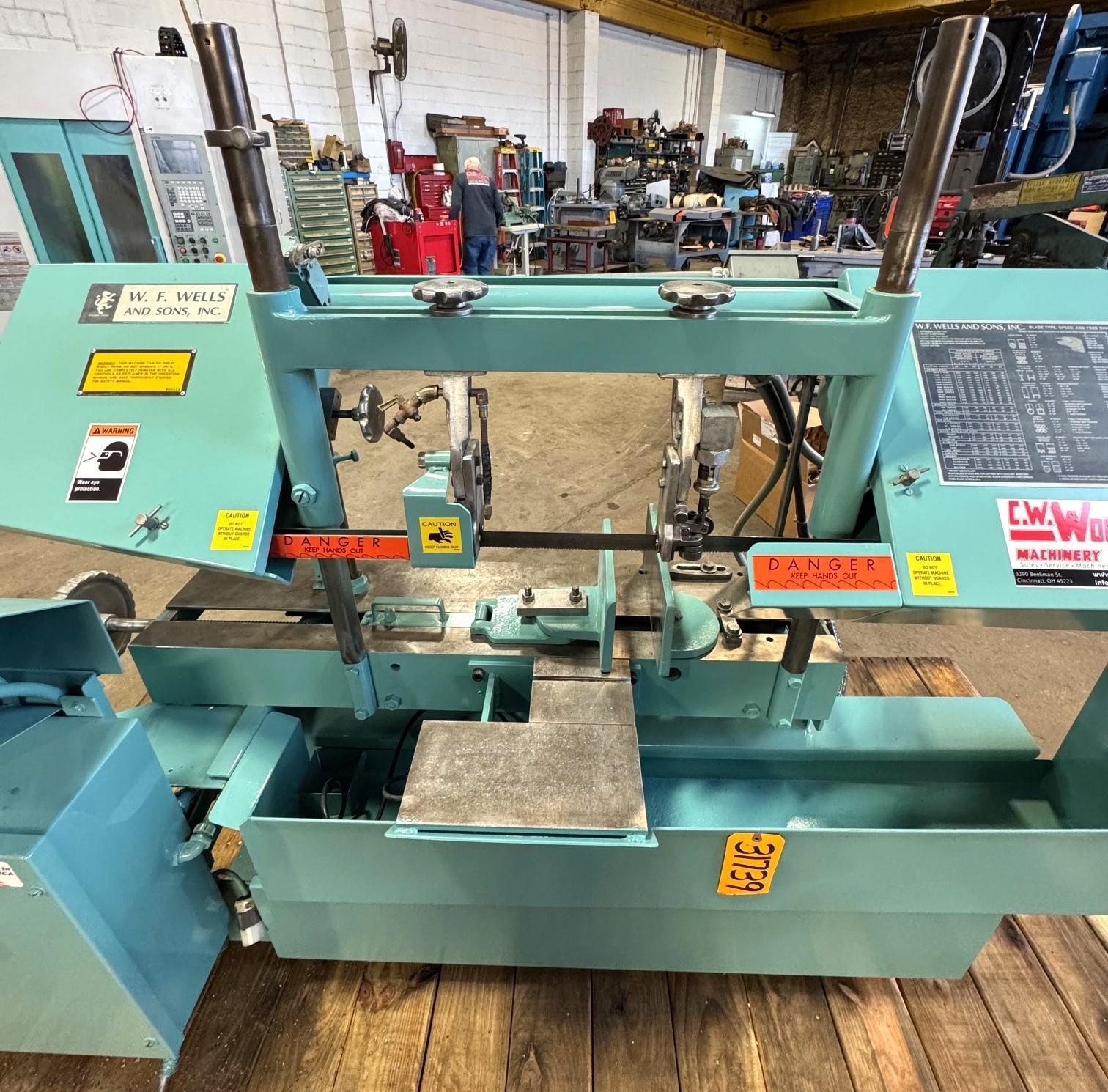

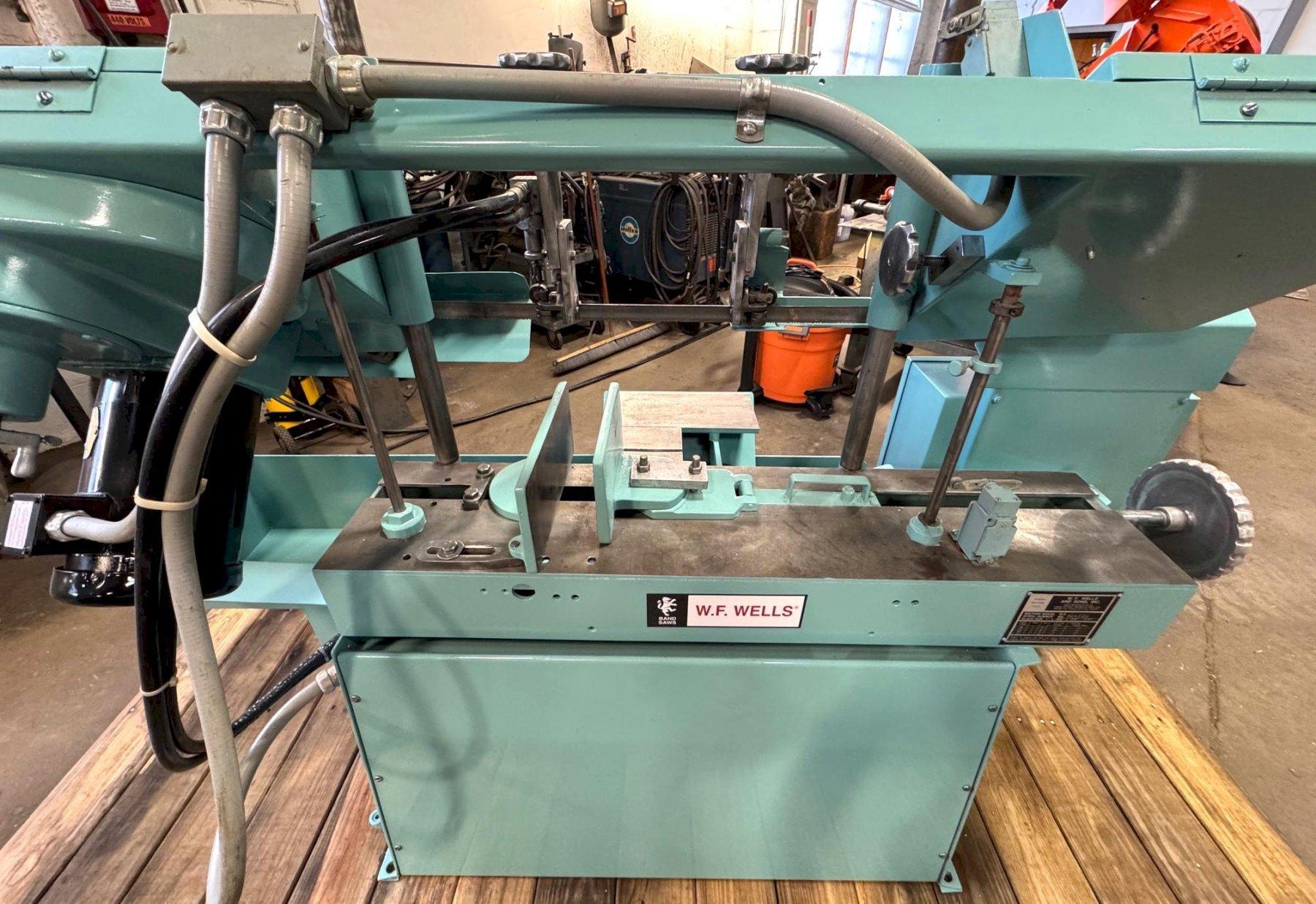

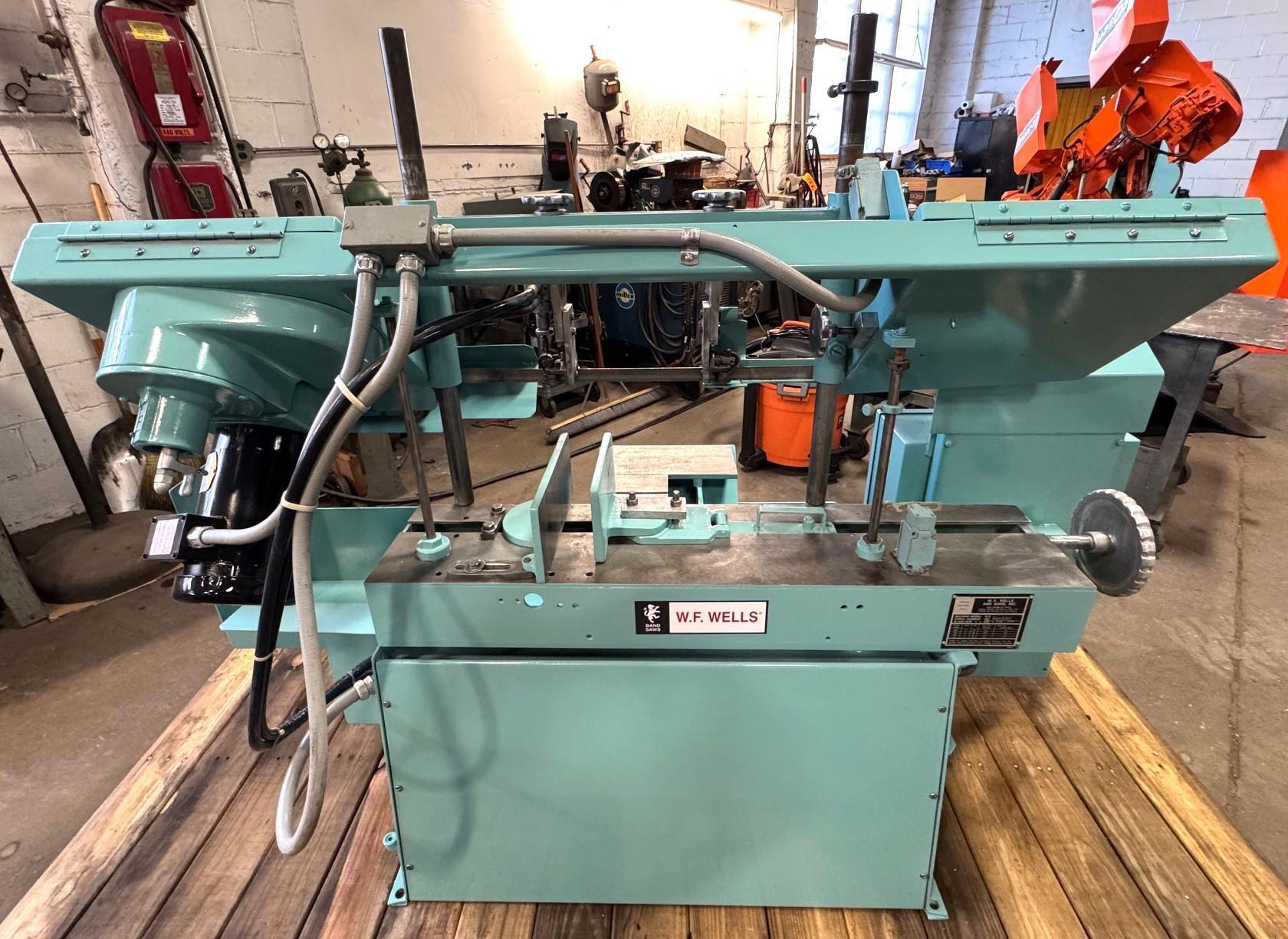

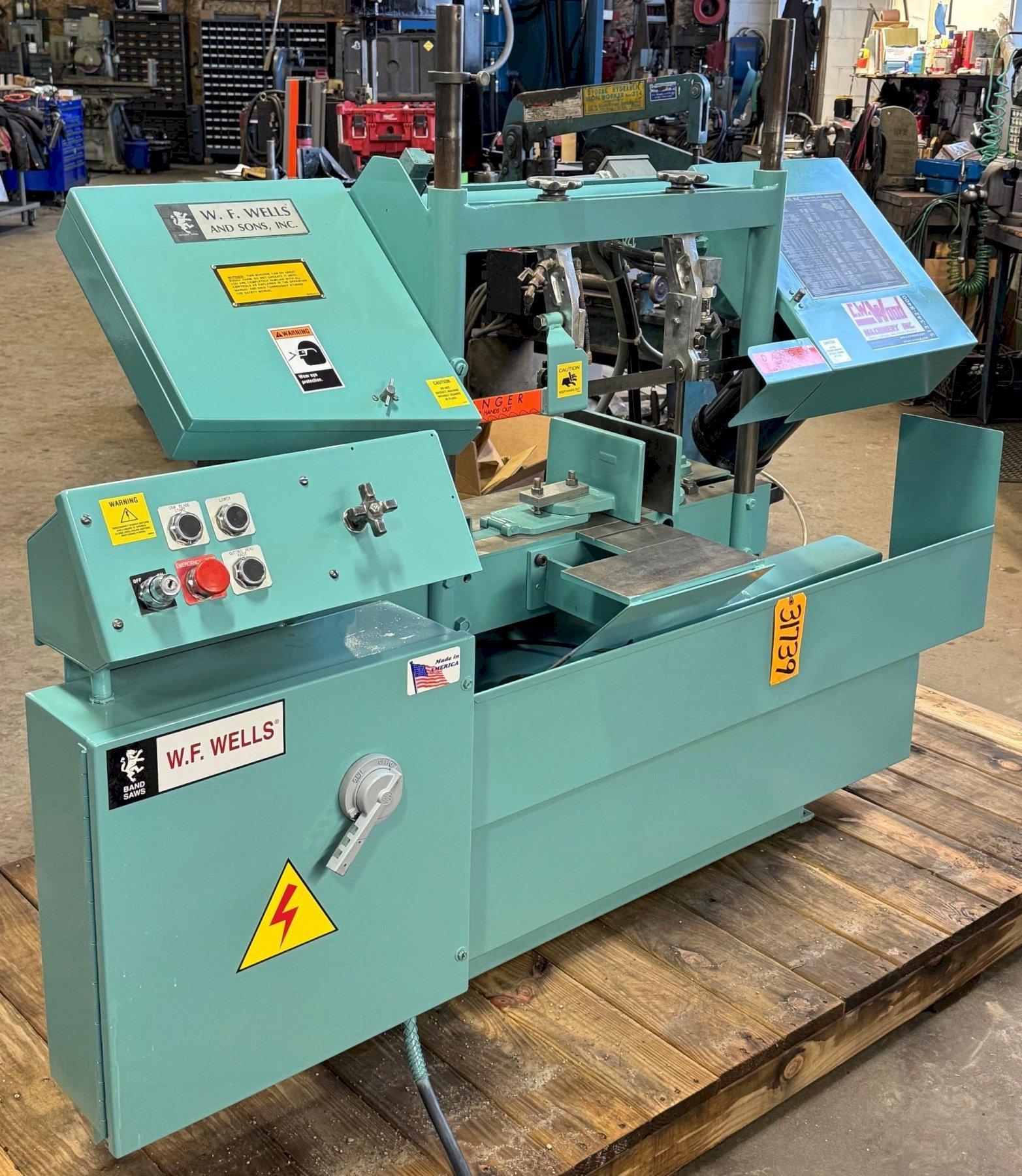

W.F. WELLS TWIN POST HORIZONTAL BAND SAW

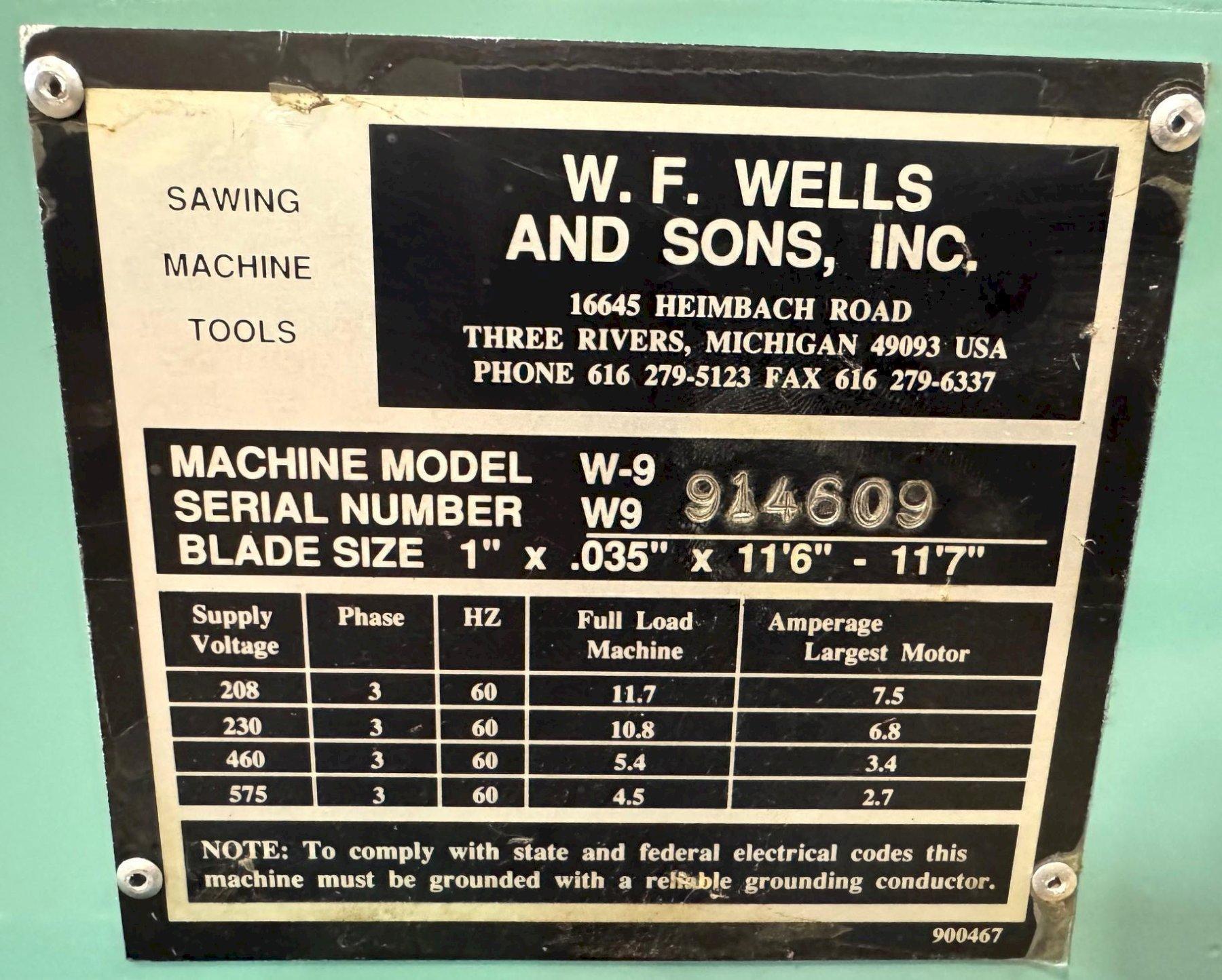

MODEL: W-9
SERIAL NUMBER: 914609
GENERAL SPECIFICATIONS
Capacity, 90 Degrees, Rectangle: 9"H x 18"W
Capacity, 90 Degrees, Round: 9"
Capacity, 45 Degrees, Rectangle: 9"H x 8"W
Capacity, 45 Degrees, Round: 8"
Maximum Workload: 2000 Lbs.
Blade Size: 138" x 1" x .035"
Blade Speeds: 60 - 300 FPM
Wheel Diameter: 14-1/2"
EQUIPPED WITH
3 HP Blade Drive Motor, 230/460/60/3

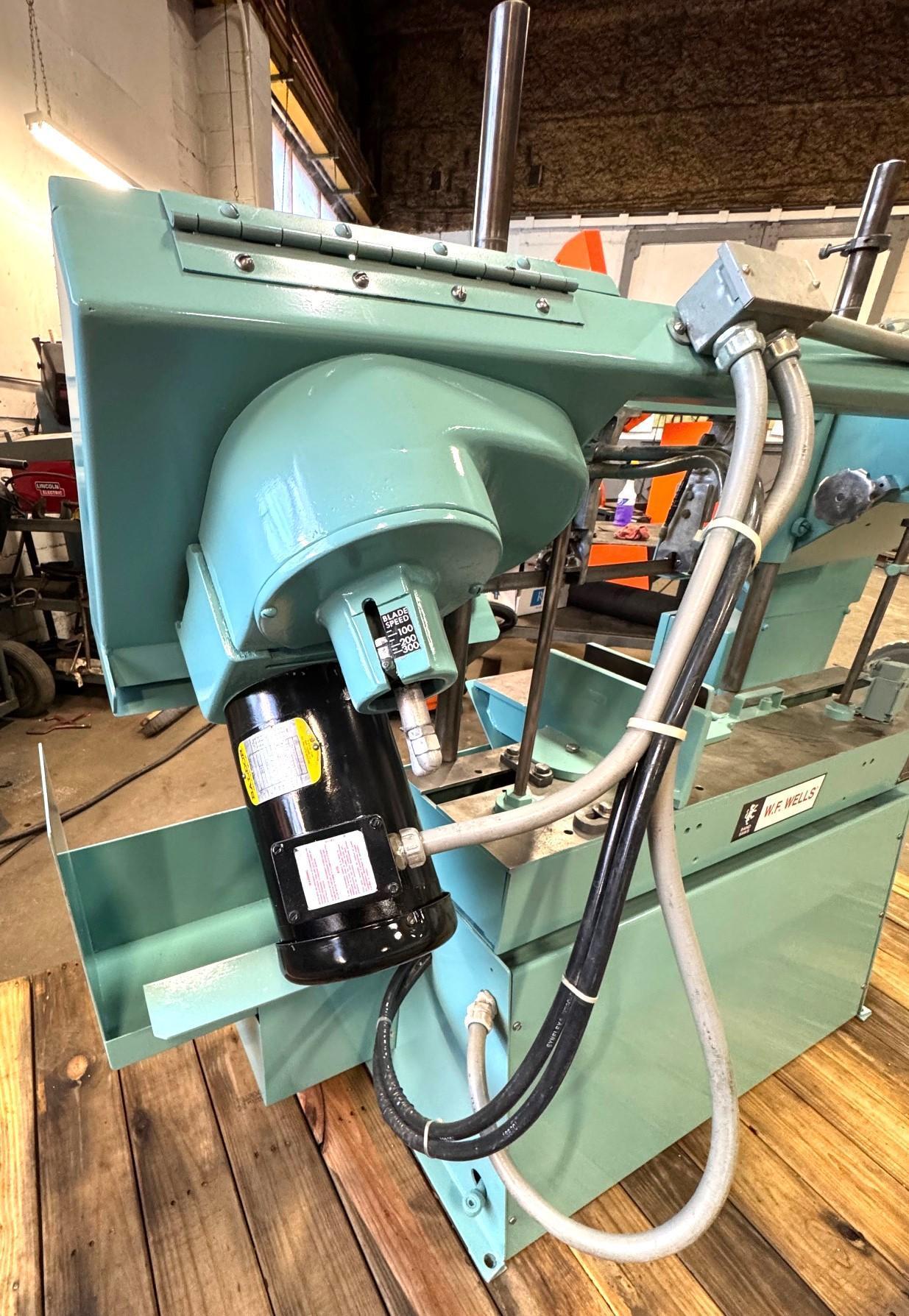

1/3 HP Hydraulic Motor

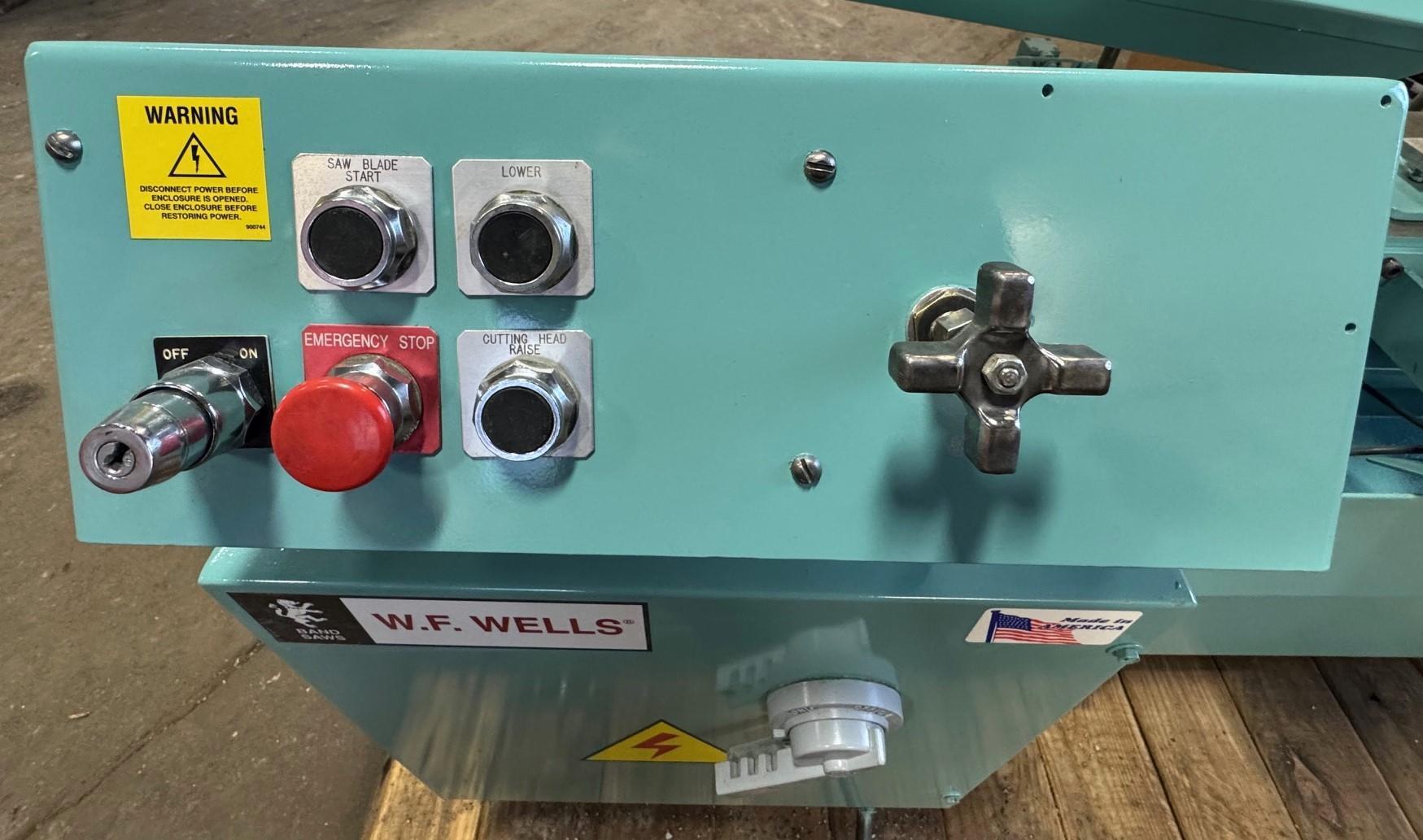

Hydraulic Control Of Cutting Head
Manual Screw Vise Control
Manual Blade Tension
Approximate Weight: 900 Lbs.
F.O.B. Cincinnati, Ohio 45223
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
