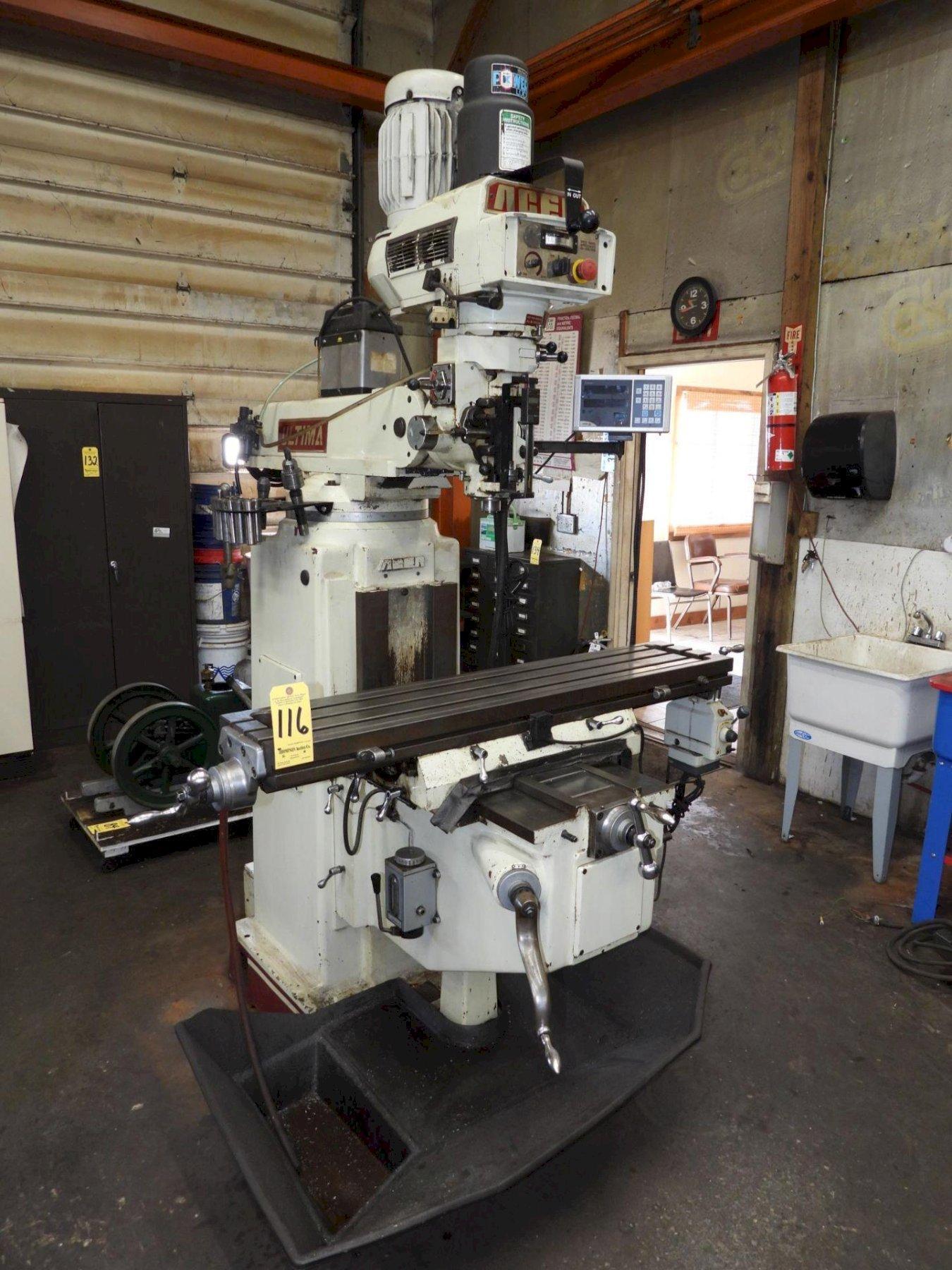

Acer Vertical Mill Ultima EVS-3VKH, 3 HP V-Speed, 10" x 50" P.F. Table, DRO
  • Acer Vertical Mill Ultima EVS-3VKH, 3 HP V-Speed, 10" x 50" P.F. Table, DRO

Acer Vertical Mill Ultima EVS-3VKH, 3 HP V-Speed, 10" x 50" P.F. Table, DRO

Brand
ACER

Model
EVS-3VKH

Type
Millers, Vertical

Stock #
31920

Condition
Used

Year

Location
Cincinnati, Ohio
United States

Request Quote

Specifications

Table-W 10 inches
Table-L 50 inches
Travel-Long 34 inches
Travel-Cross 16 inches
Power 3 horsepower
RPM 4200
Taper R-8
Weight 3500 pounds

Equipped With

ACER VERTICAL MILLING MACHINE

MODEL: Ultima EVS-3VKH Ultima
SERIAL NUMBER: 98020220

GENERAL SPECIFICATIONS

Table Size: 10" x 50"
Longitudinal Travel: 34"
Cross Travel: 16"
Vertical Knee Travel: 16"
Ram Travel: 20"
Maximum Weight Of Workpiece: 850 Lbs.
Turret Rotation: 360 Degrees
Spindle Speeds, Variable: 60 to 4200 RPM
Spindle Taper: R-8
Quill Travel: 5"
Power Quill Feeds: (3) .0015, .003, .006

EQUIPPED WITH

3 HP Spindle Motor
Fagor Two Axis Digital Readout
Kurt Power Draw Bar
Power Feed X-Axis
One-Shot Lubrication

Approximate Weight: 3500 Lbs.

Shipping Dimensions:

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
