Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006
Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006
Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006
Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006
Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006
Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006
Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006
Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006
  • Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006
  • Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006
  • Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006
  • Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006
  • Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006
  • Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006
  • Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006
  • Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006

Brother CNC Drill & Tap Center TC-R2A, 10K RPM, 14 ATC, Pallet Changer, 2006

Brand
BROTHER

Model
TC-R2A

Type
Drilling & Tapping Centers

Stock #
31708

Condition
Used

Year
2006

Location
Cincinnati, Ohio
United States

Request Quote

Specifications

X 16.5 inches
Y 12.6 inches
Z 10.6 inches
Power 15 horsepower
RPM 10000
# ATC 14
Taper 30
CNC Control yes
Type of CNC Control CNC-AOO

Equipped With

BROTHER CNC DRILL TAP VERTICAL MACHINING CENTER

MODEL: TC-RCB
SERIAL NUMBER: 11876    Year: 2006

GENERAL SPECIFICATIONS

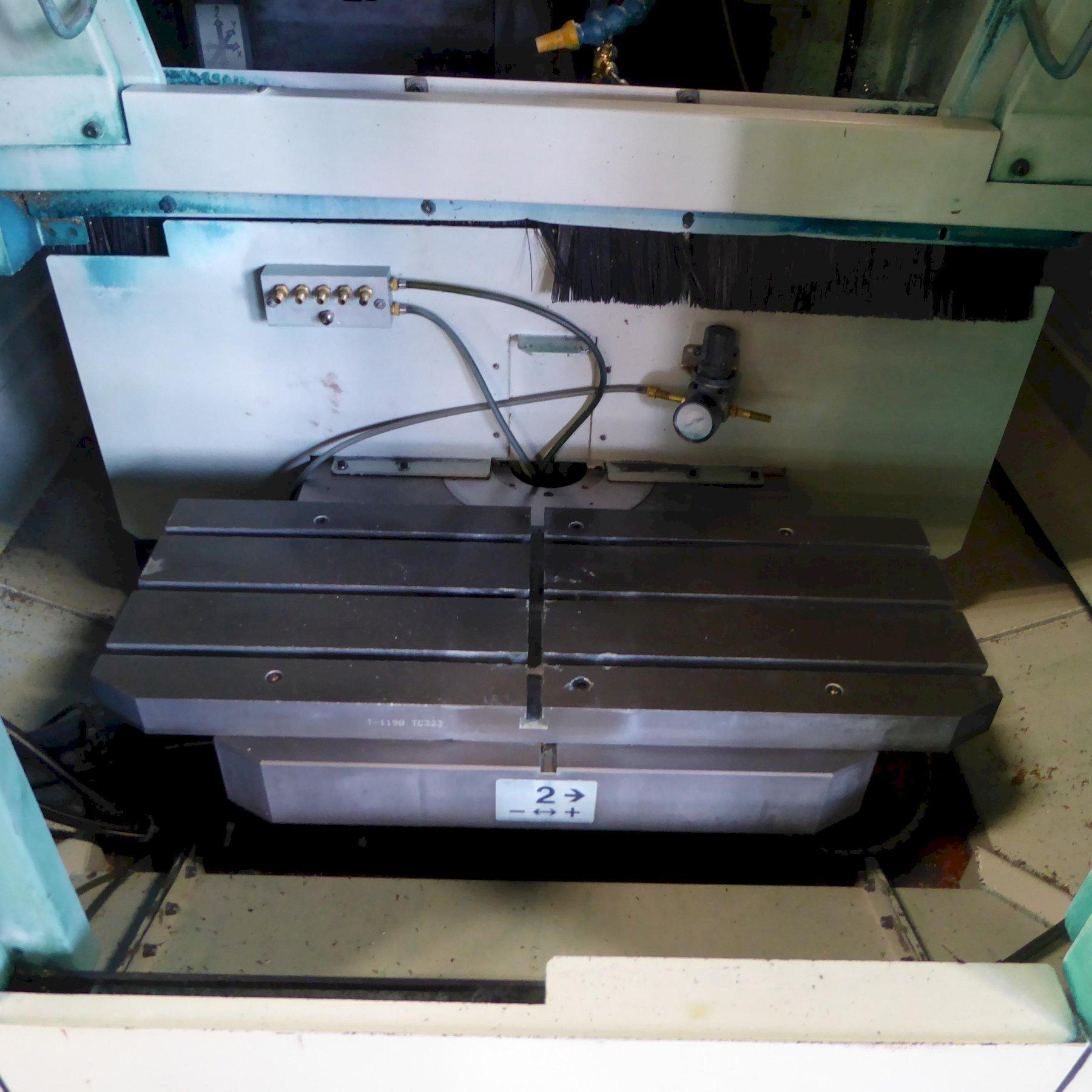

Table Size: 19.7" x 11.8 " (Each Side)
Table Capacity: 256 Lbs. (One Side)
Table Position Time: 2.9 Sec/180 Degrees
X-Axis Travel: 16.5"
Y-Axis Travel: 12.8"
Z-Axis Travel: 12"
X-Axis Rapid Feed Rate: 1181 IPM
Y-Axis Rapid Feed Rate: 1181 IPM
Z-Axis Rapid Feed Rate: 1965 IPM
Spindle Speed: 10,000 RPM
Spindle Taper: No. 30

EQUIPPED WITH

15 HP Main Motor
CNC-B00 CNC Control

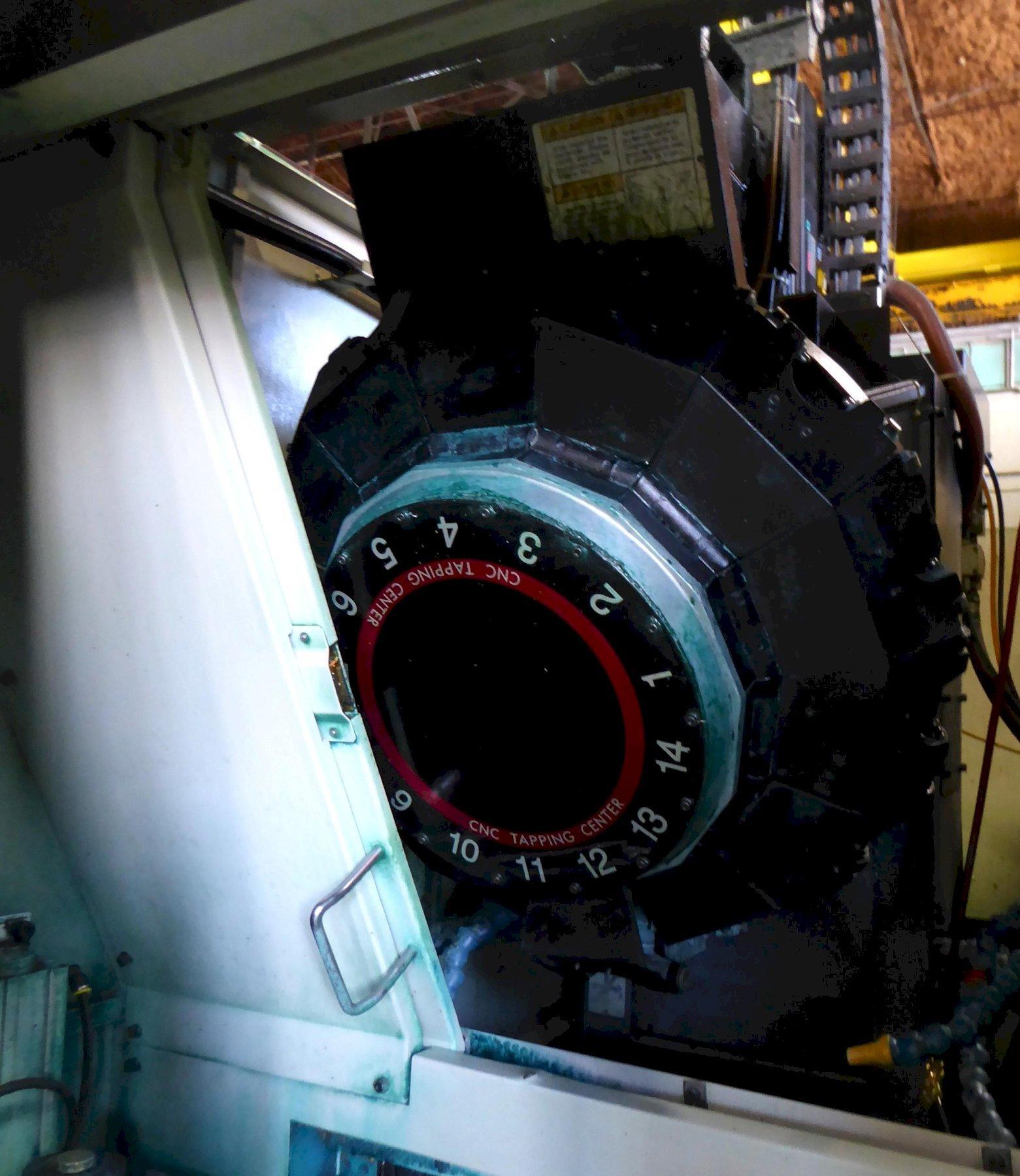

14 Position Turret
180 Degree Pallet Changer
Coolant System

Approximate Weight: 5700 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
