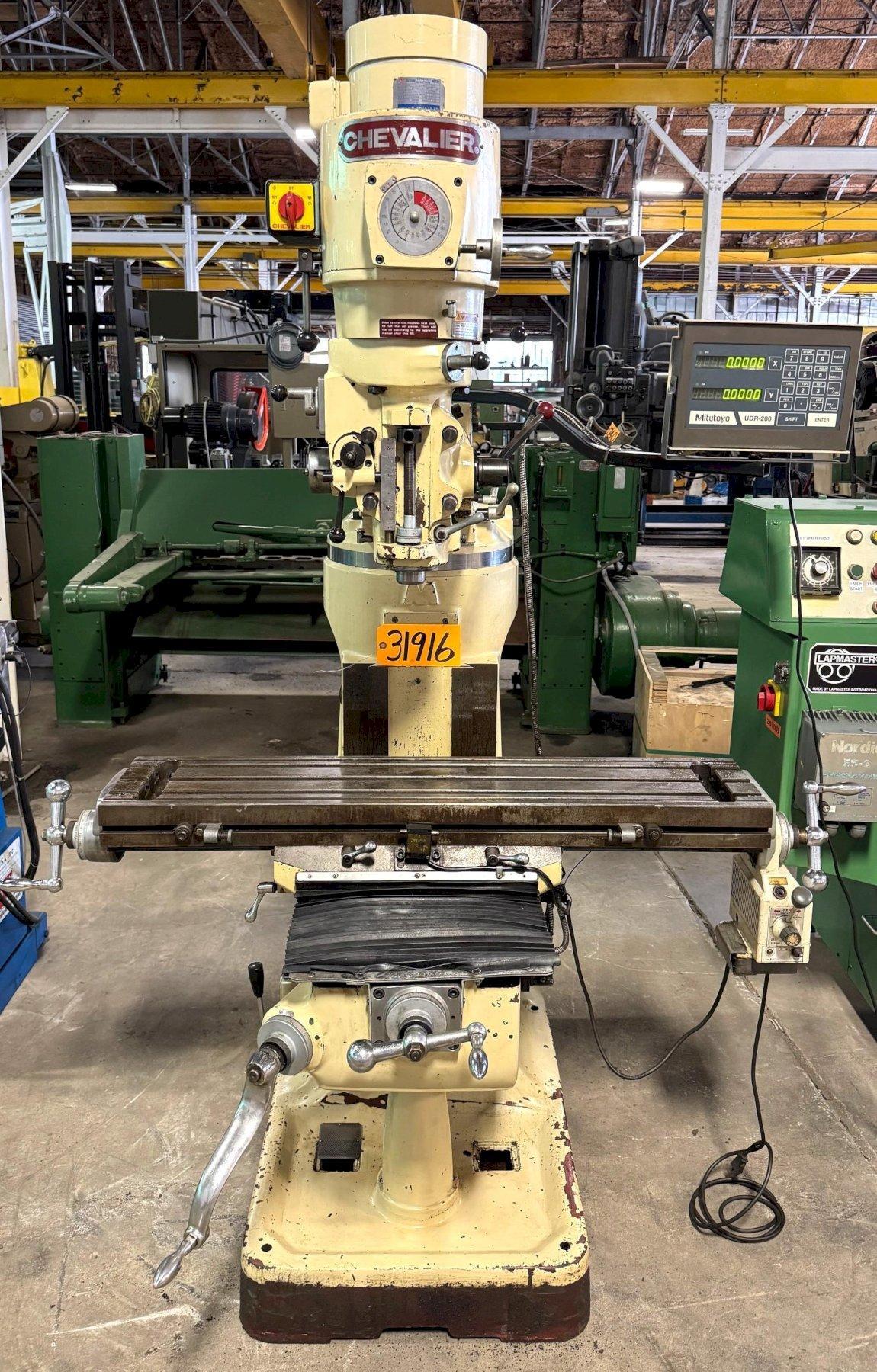

Chevalier Vertical Mill FM-3VS, 3 HP, V-Speed, 9" x 42" P.F. Tbl., DRO
  • Chevalier Vertical Mill FM-3VS, 3 HP, V-Speed, 9" x 42" P.F. Tbl., DRO

Chevalier Vertical Mill FM-3VS, 3 HP, V-Speed, 9" x 42" P.F. Tbl., DRO

Brand
CHEVALIER

Model
FM-3VS

Type
Millers, Vertical

Stock #
31916

Condition
Used

Year

Location
CINCINNATI, Ohio
United States

Request Quote

Specifications

Equipped With

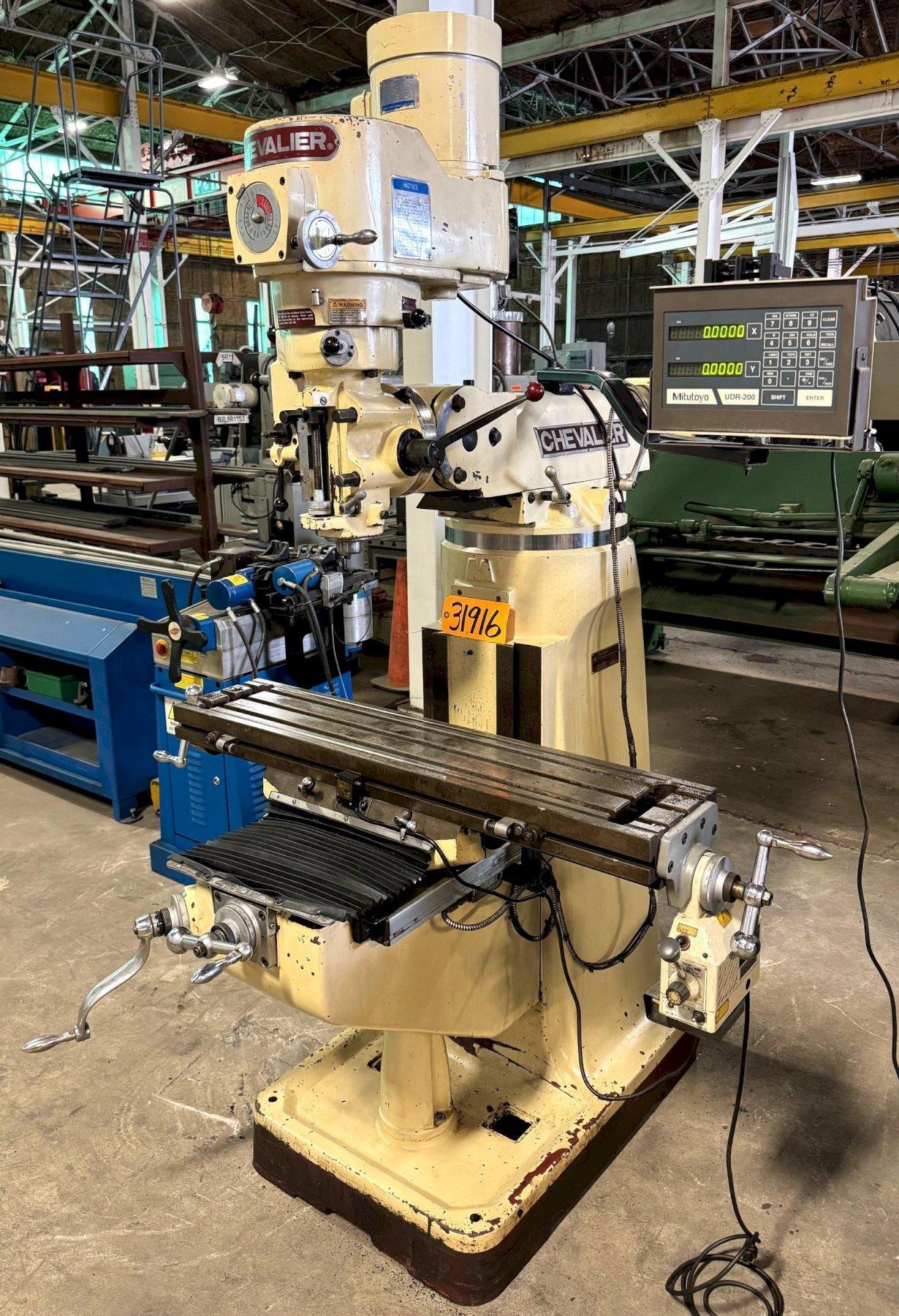

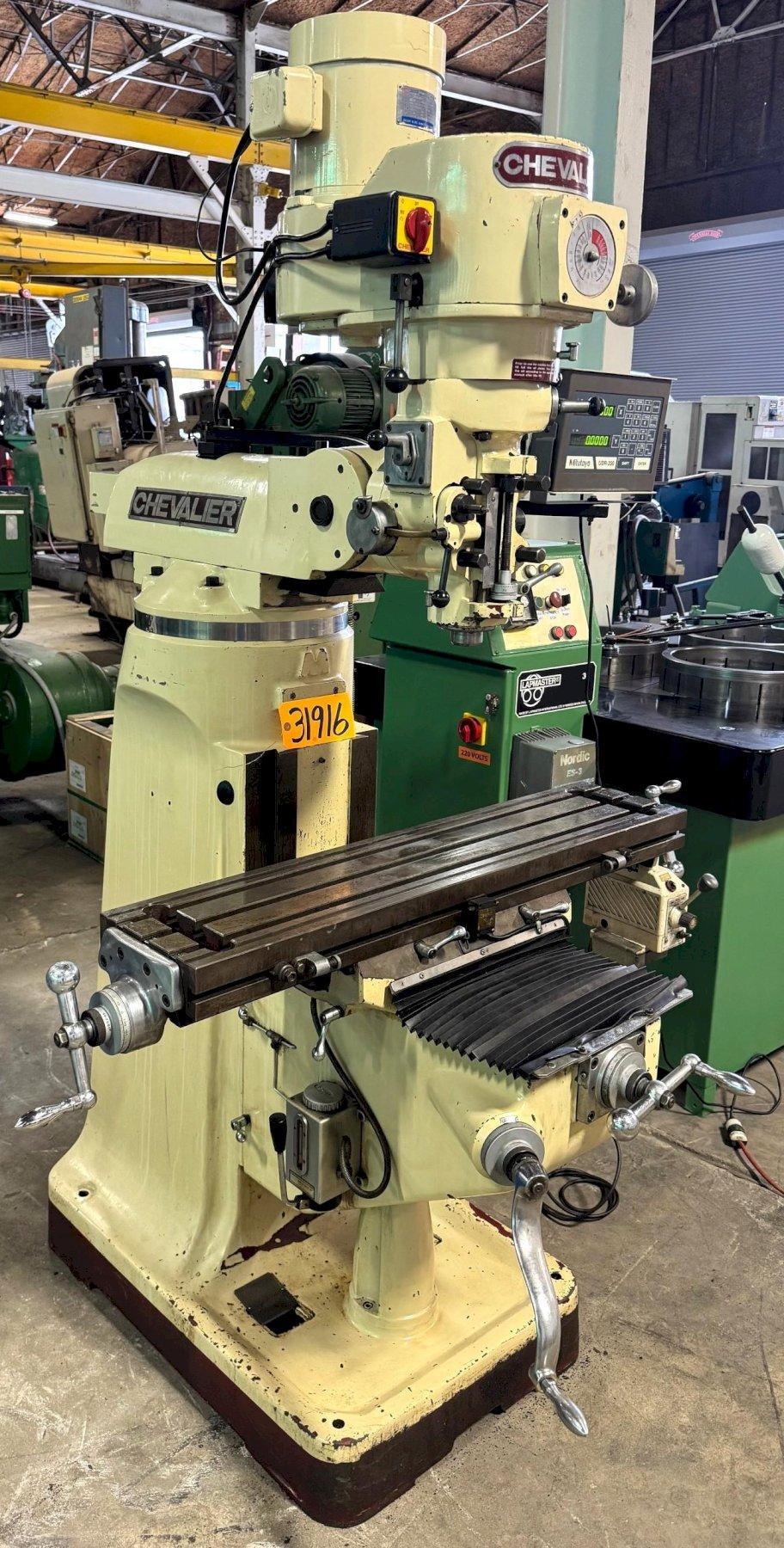

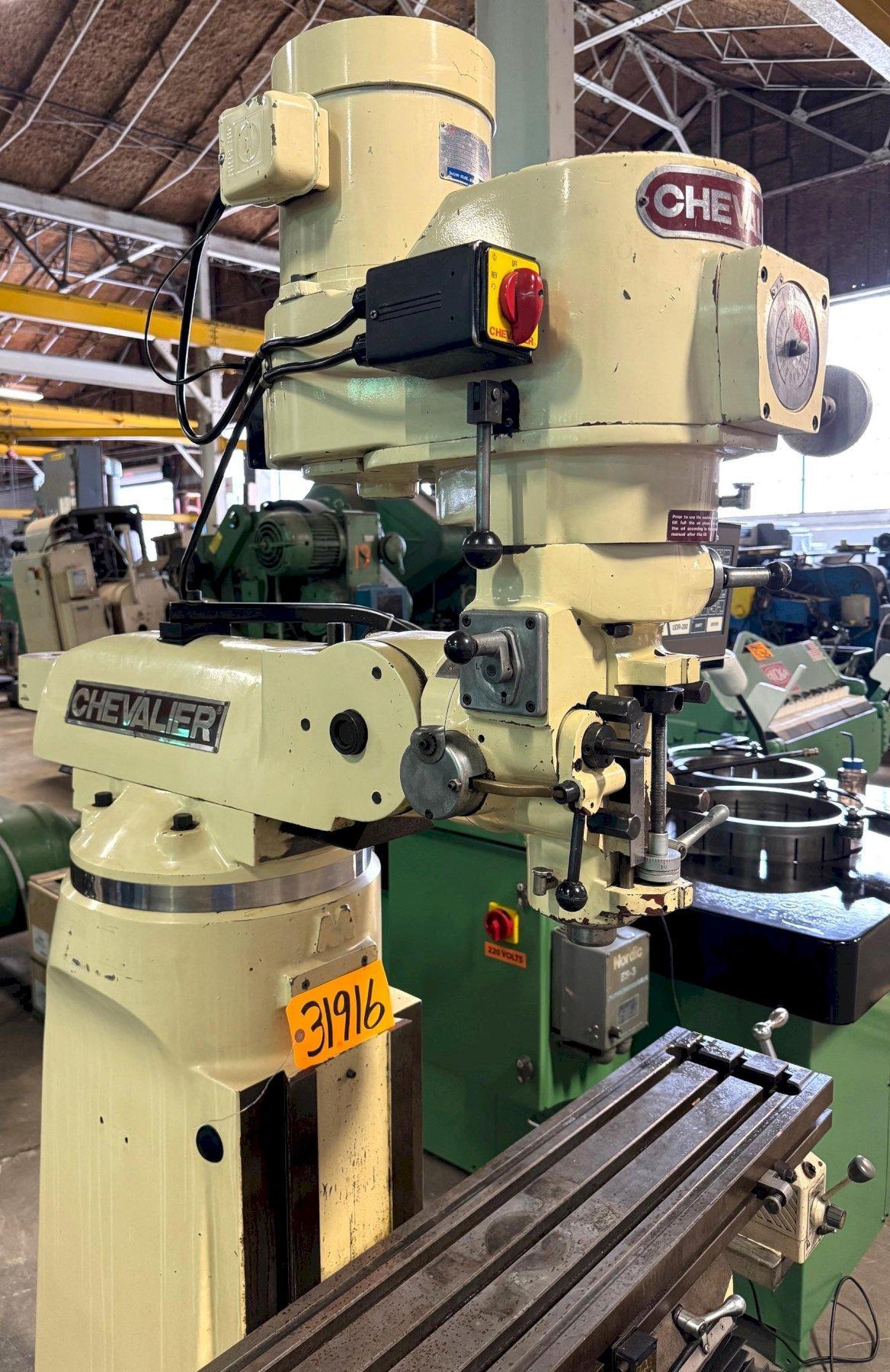

CHEVALIER VERTICAL MILLING MACHINE

MODEL: FM-3VS
SERIAL NUMBER: BM 843779

GENERAL SPECIFICATIONS

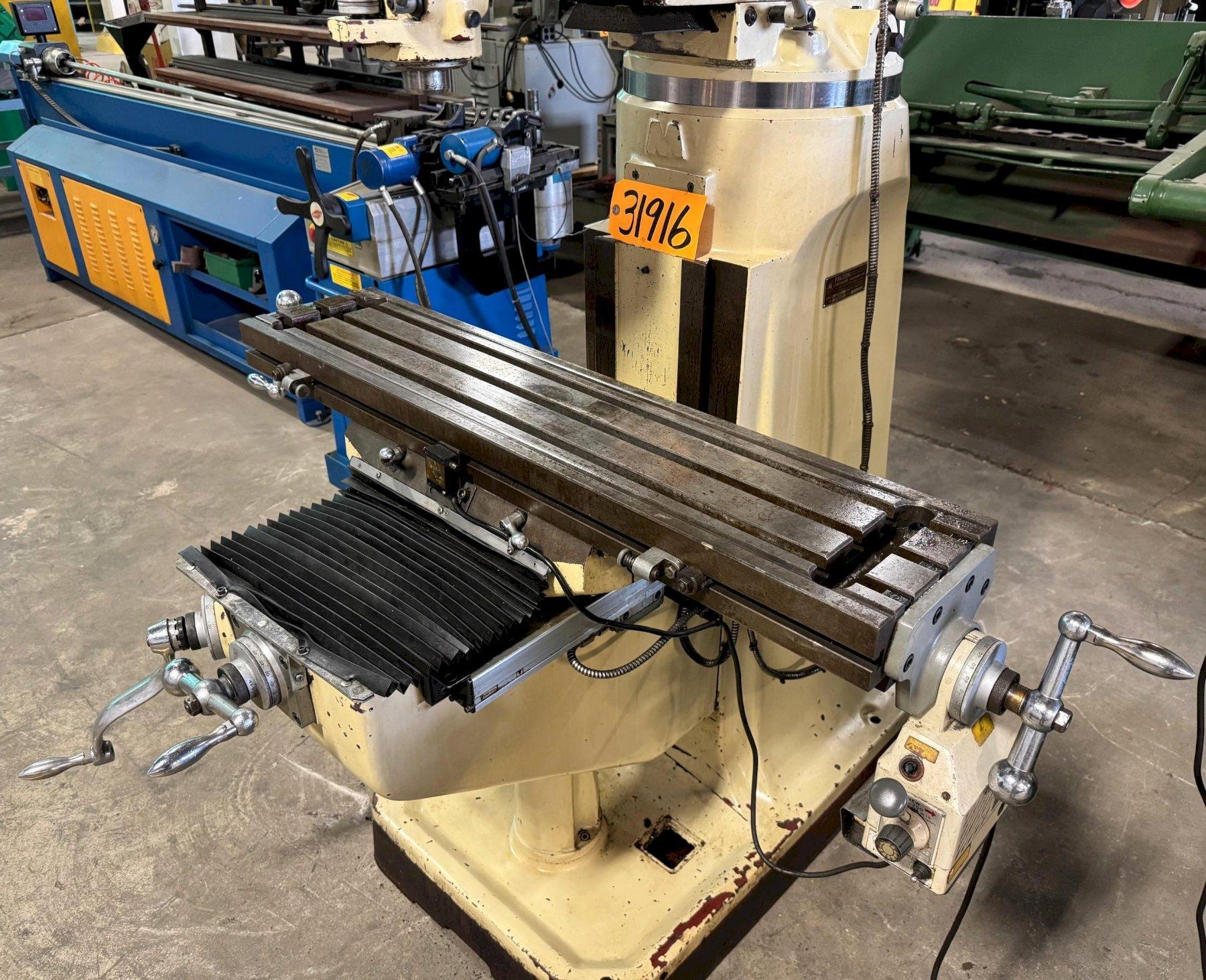

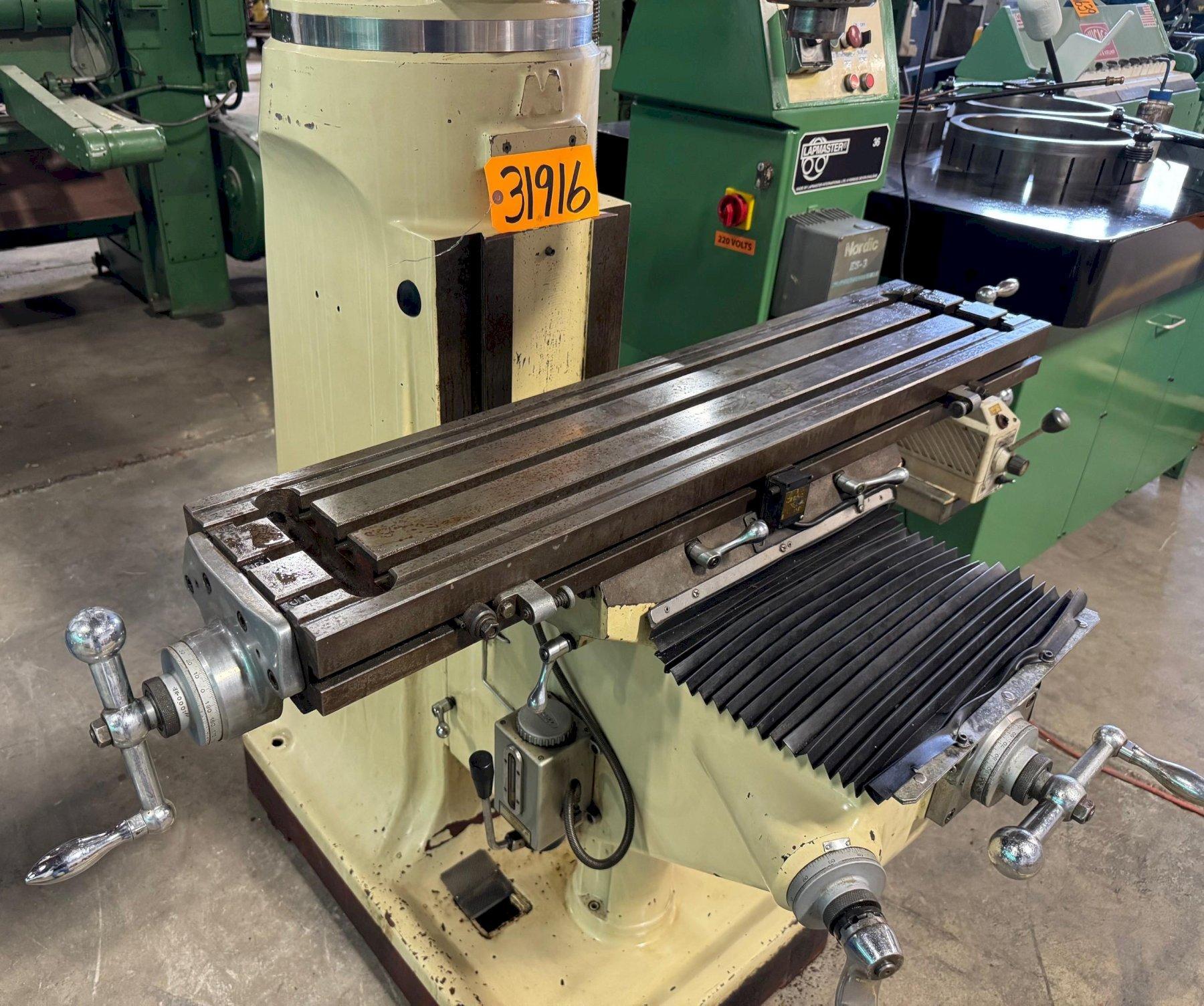

Table Size: 9" x 42"
Longitudinal Travel: 24"
Cross Travel: 12"
Vertical Knee Travel: 16"
Ram Travel: 12"
Turret Rotation: 360 Degrees

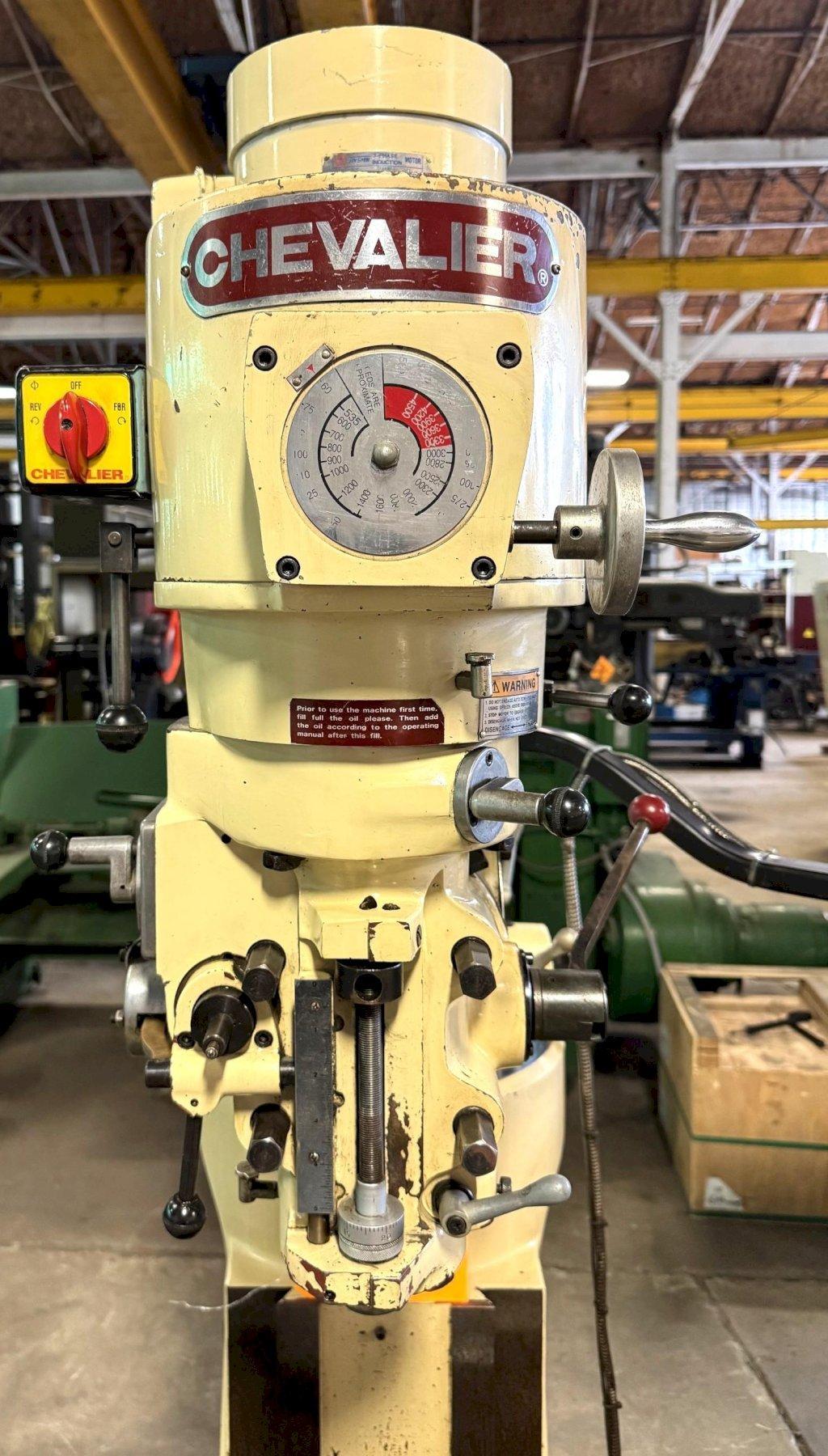

Spindle Speeds, Infinitely Variable: 60 to 4200 RPM
Spindle Feeds: (3) .0015", .003", .006"
Spindle Taper: R-8
Quill Travel: 5"

EQUIPPED WITH

3 HP Spindle Motor, 230/60/3

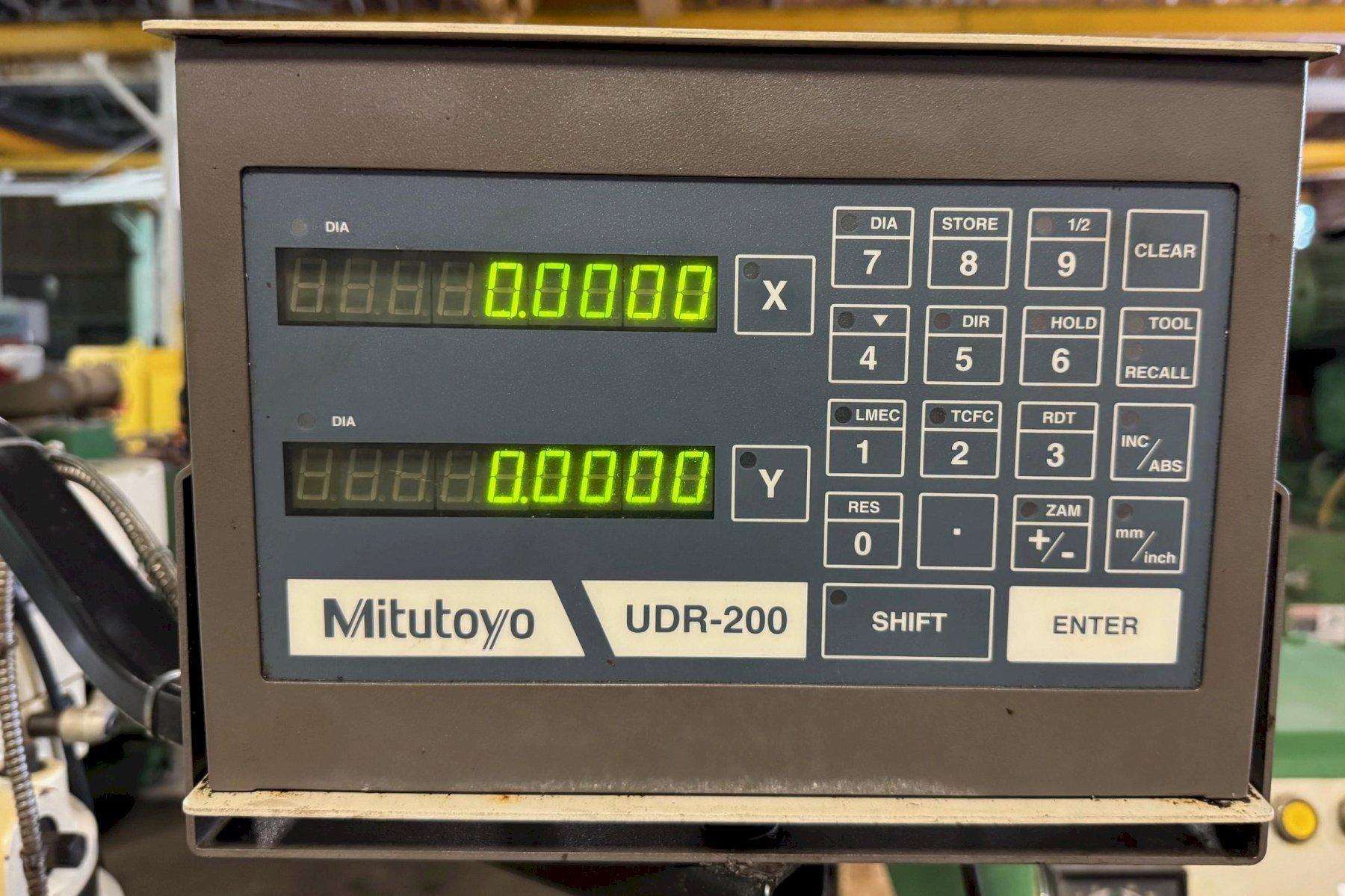

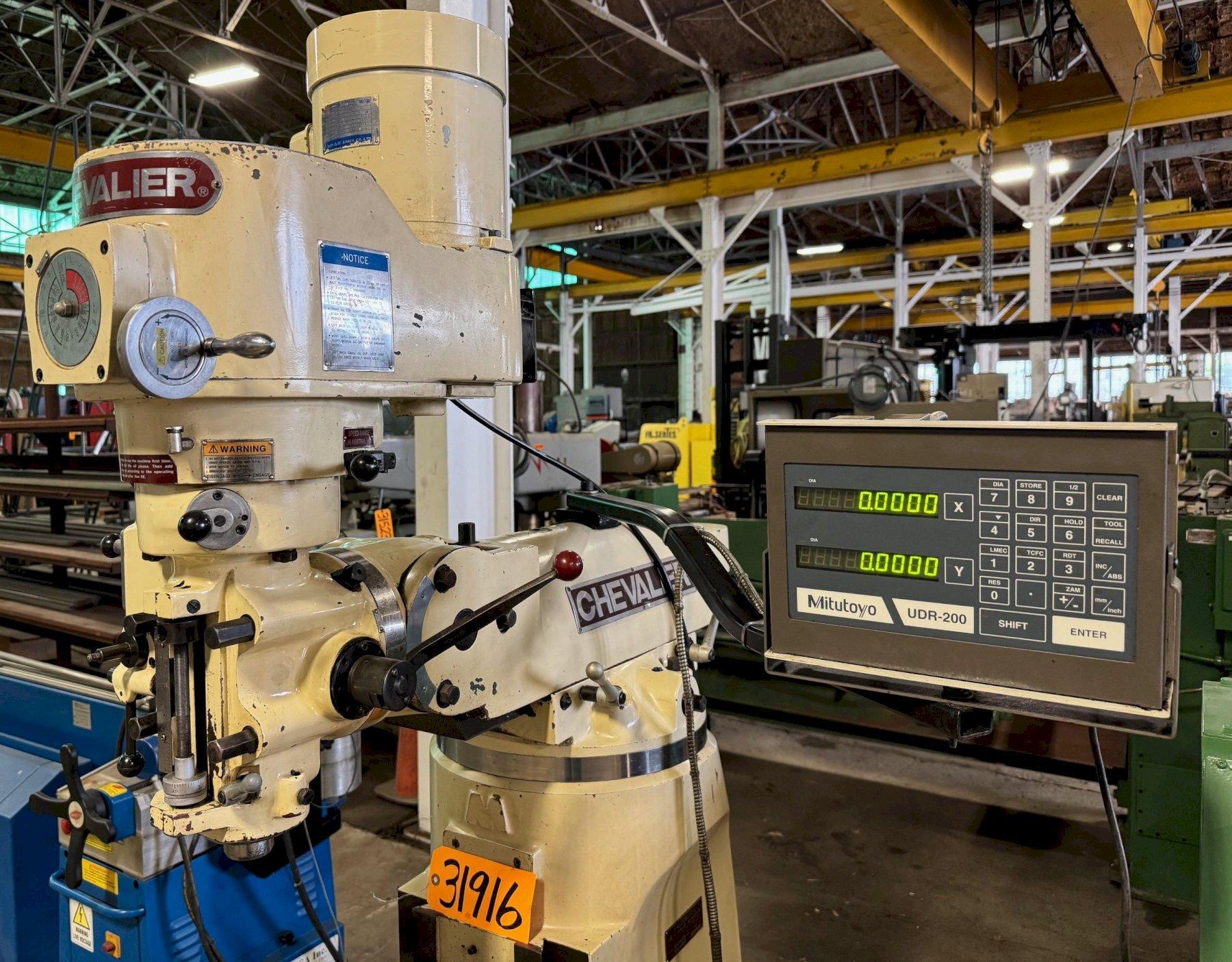

Mitutoyo UDR-200 Two-Axis Digital Readout

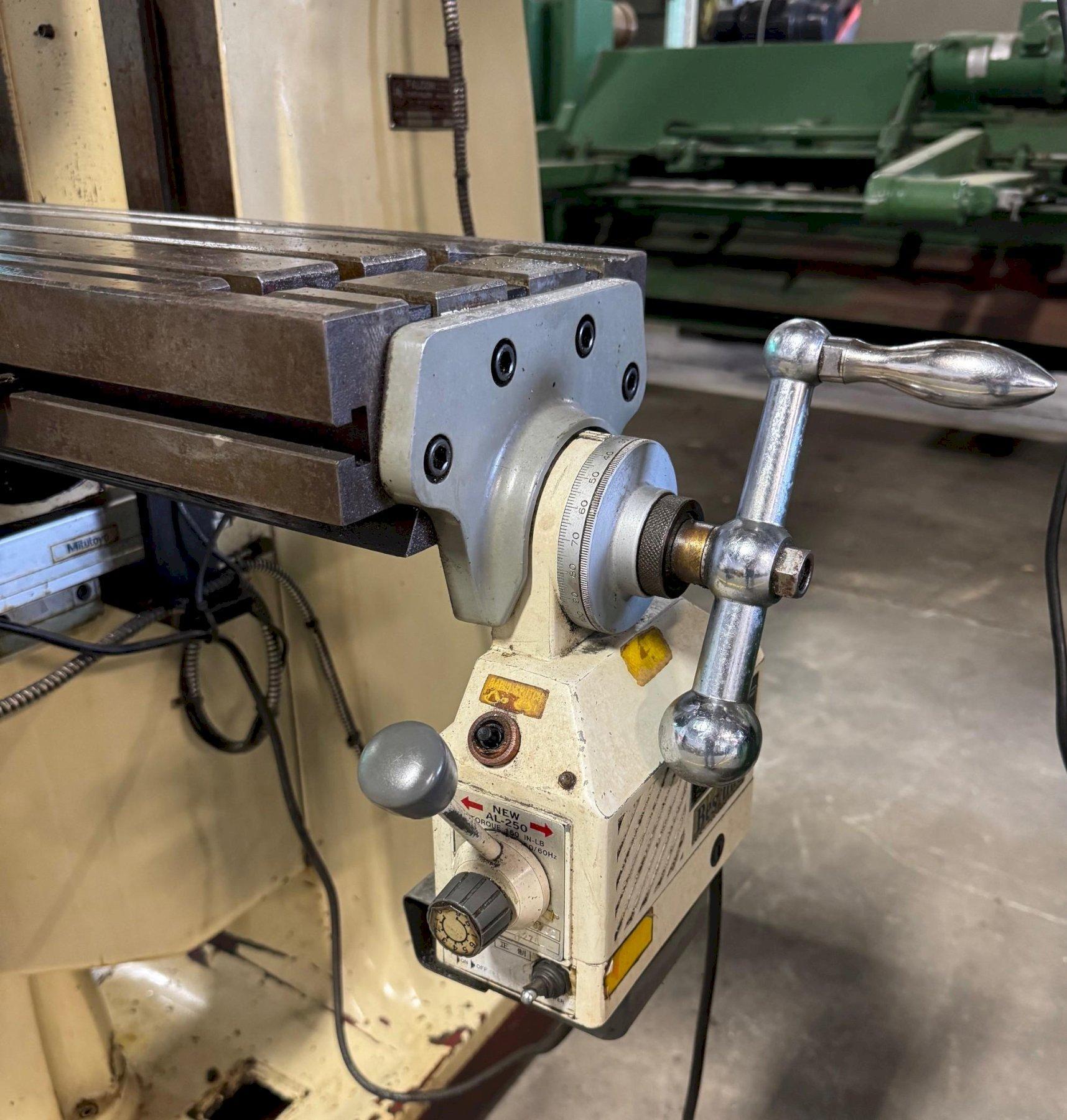

Align AL-250 X-Axis Power Feed
One-Shot Lubrication
Forward/Reverse Switch

Approximate Weight: 2400 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
