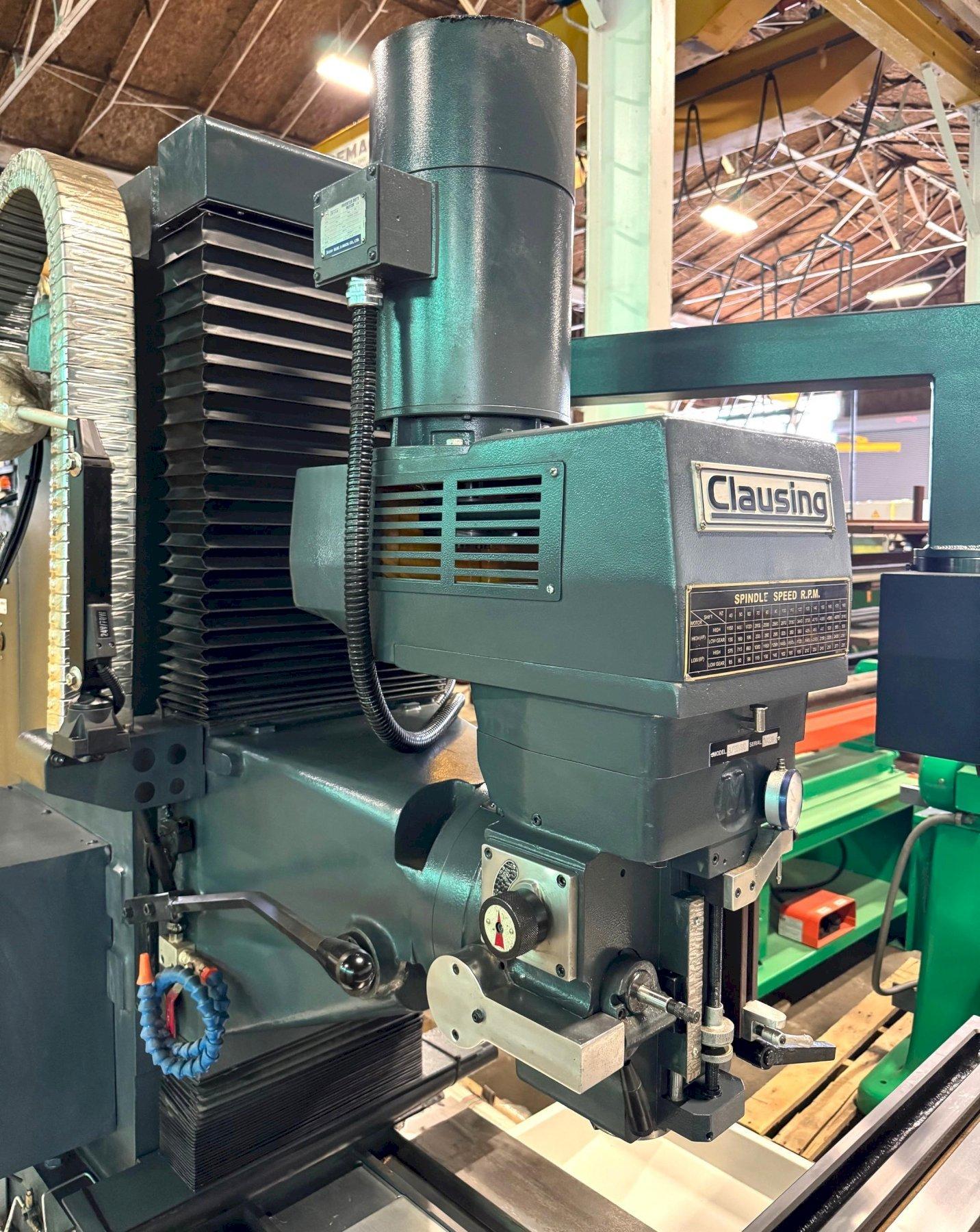

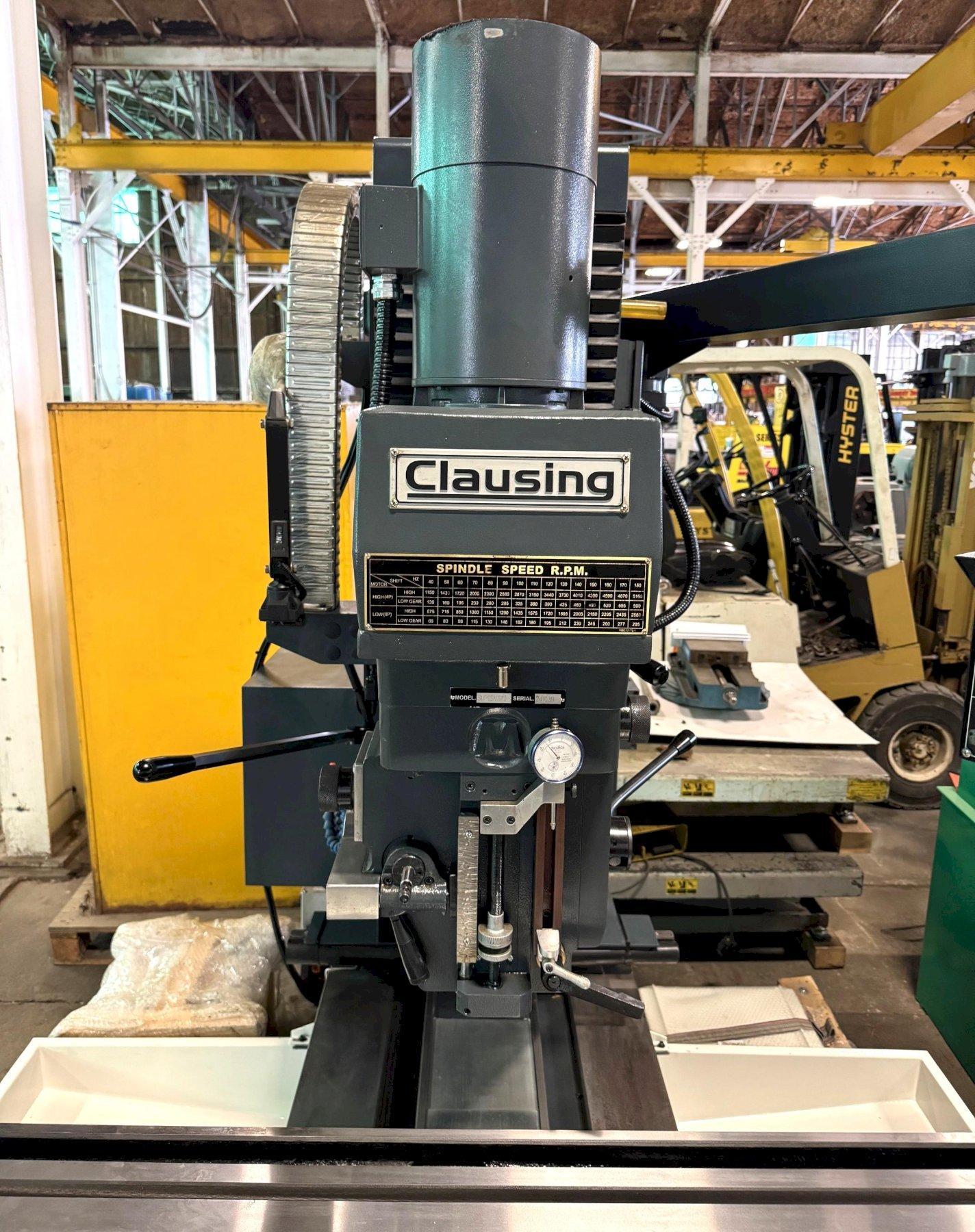

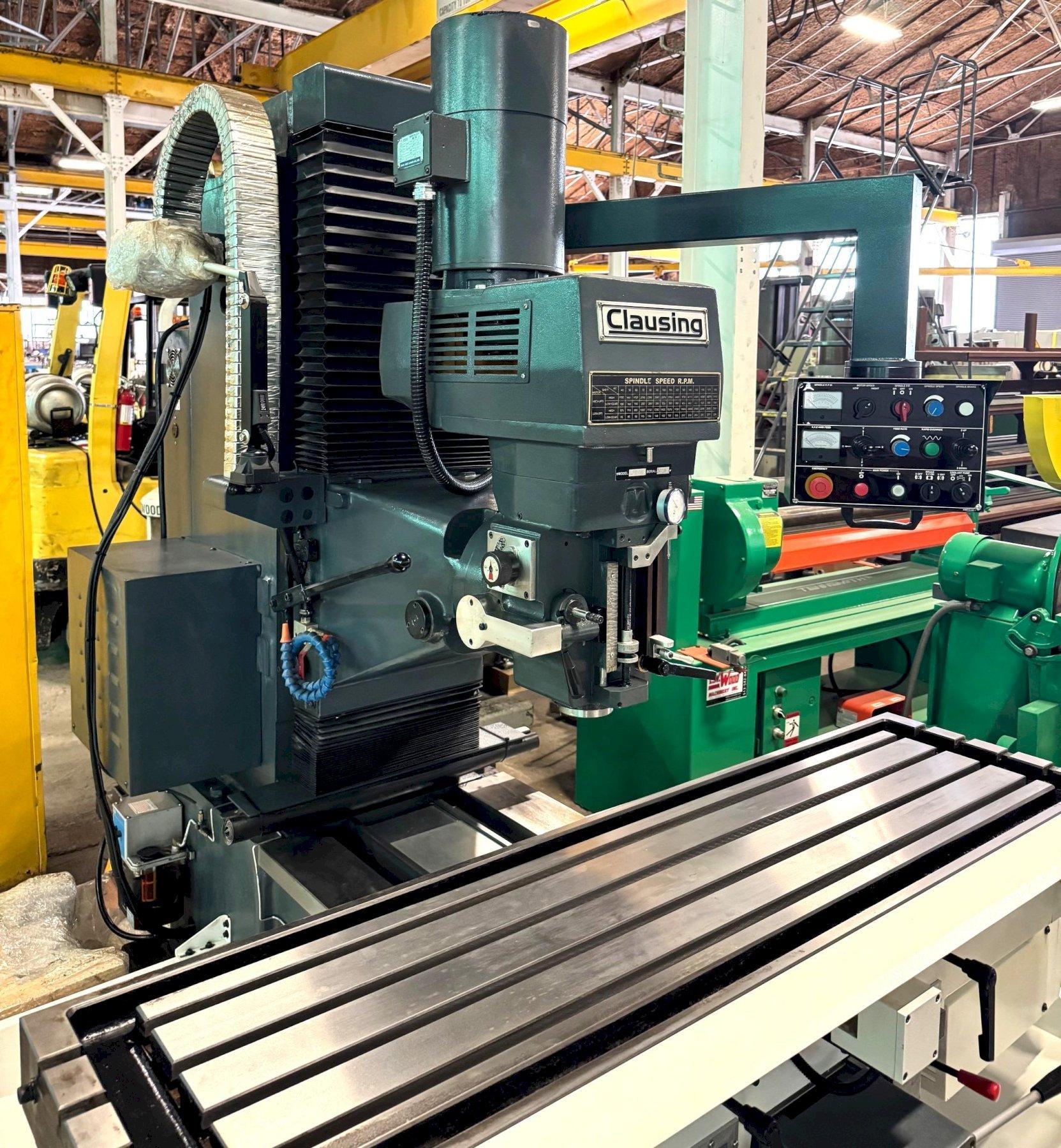

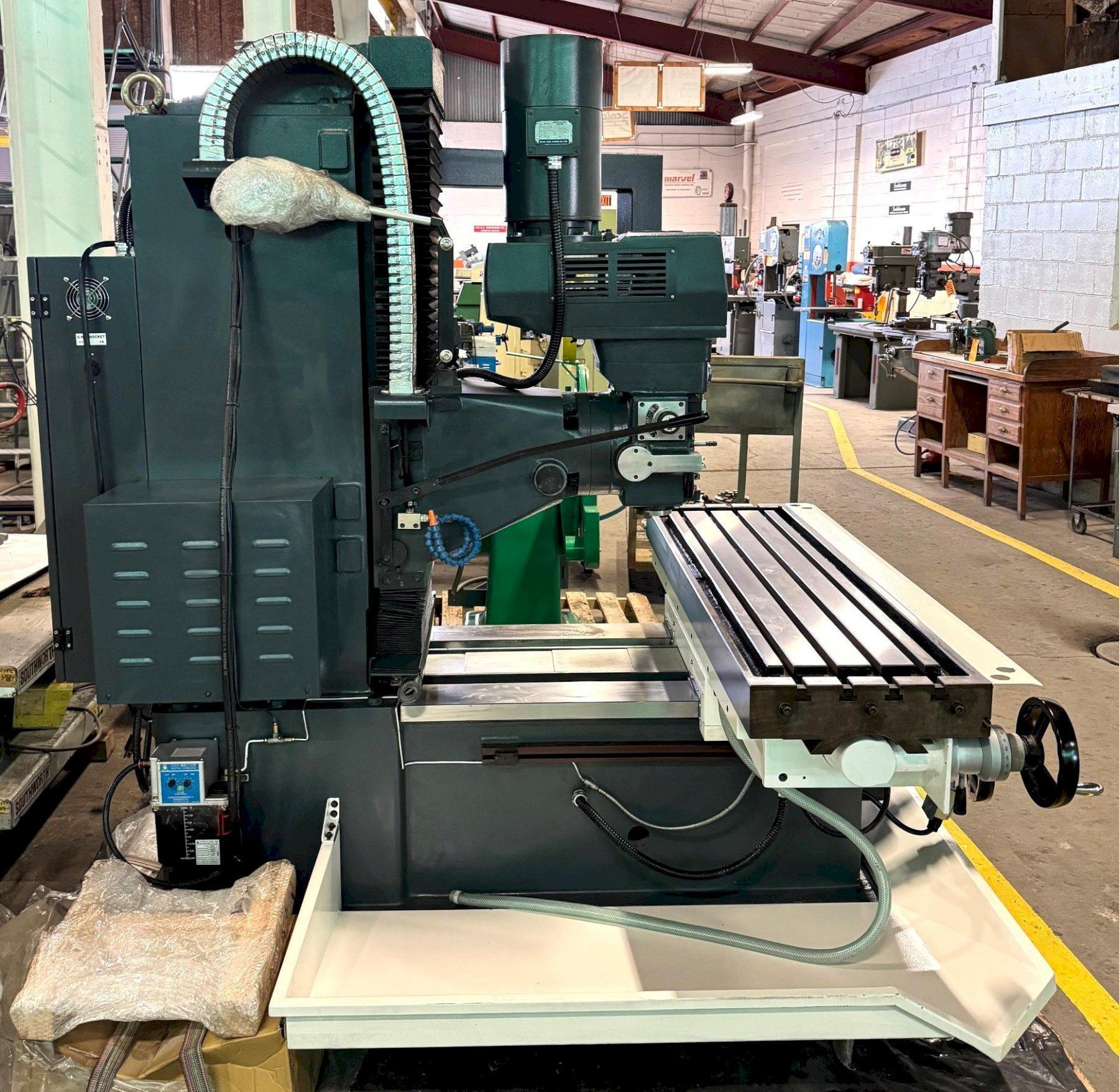

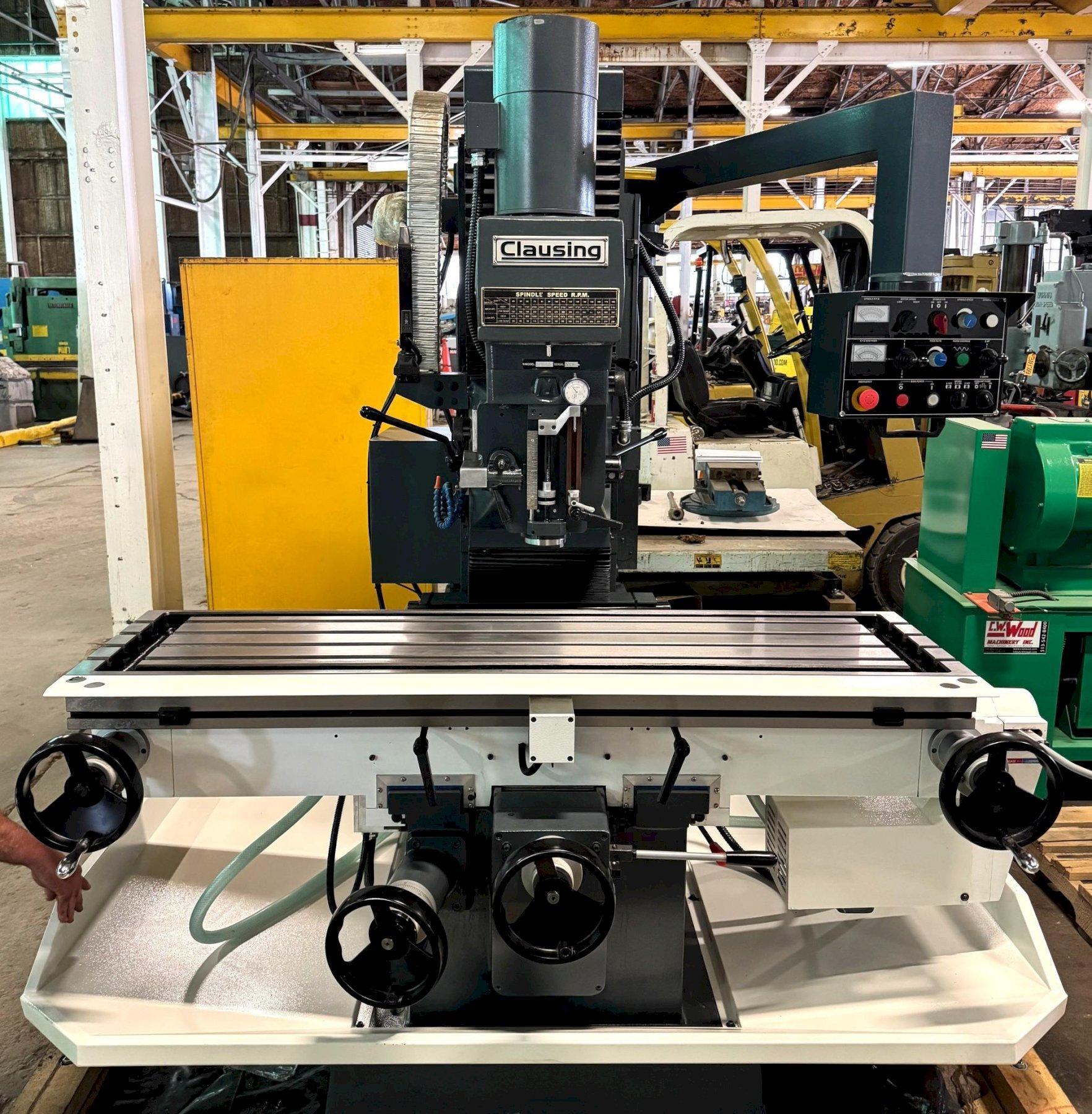

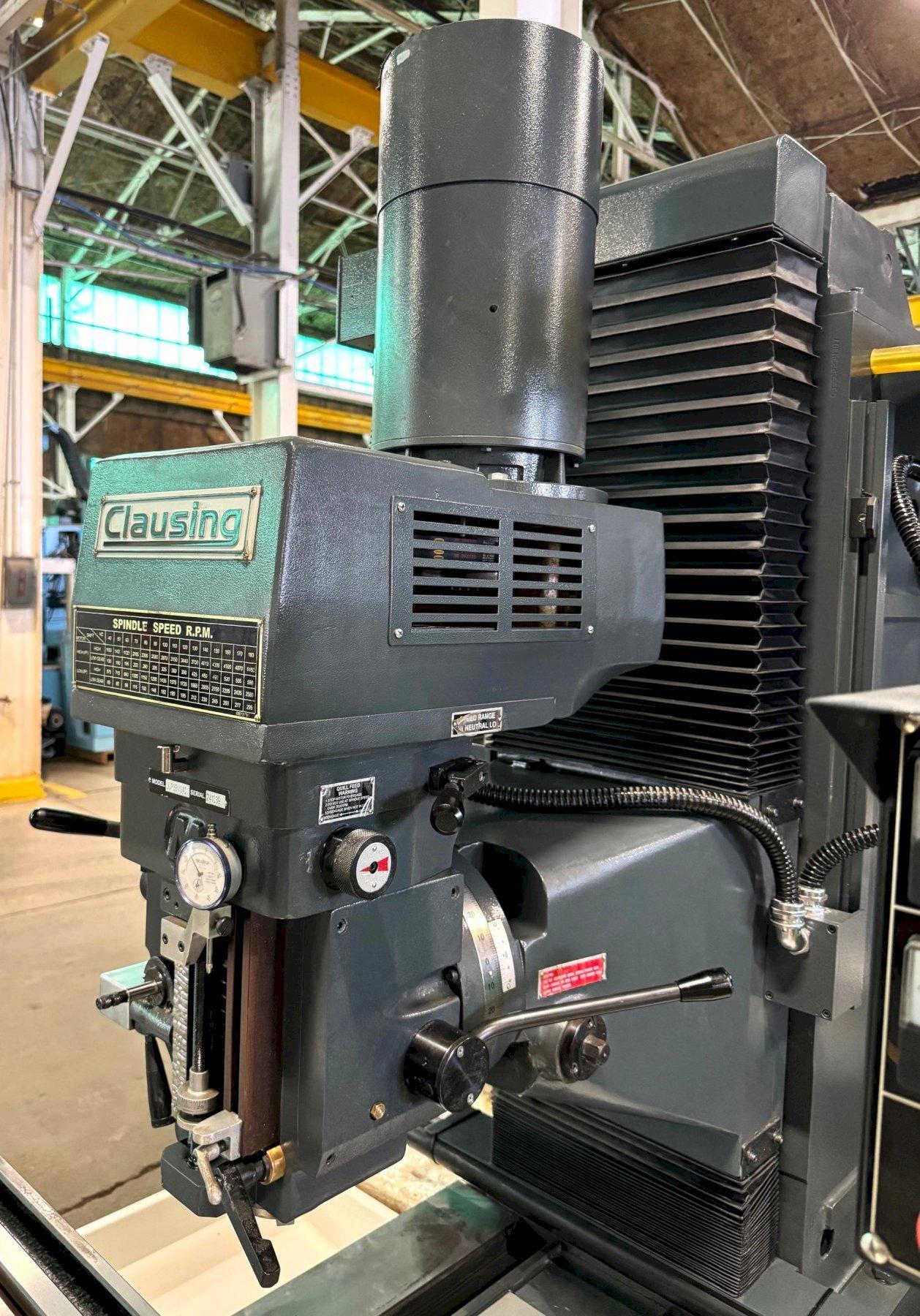

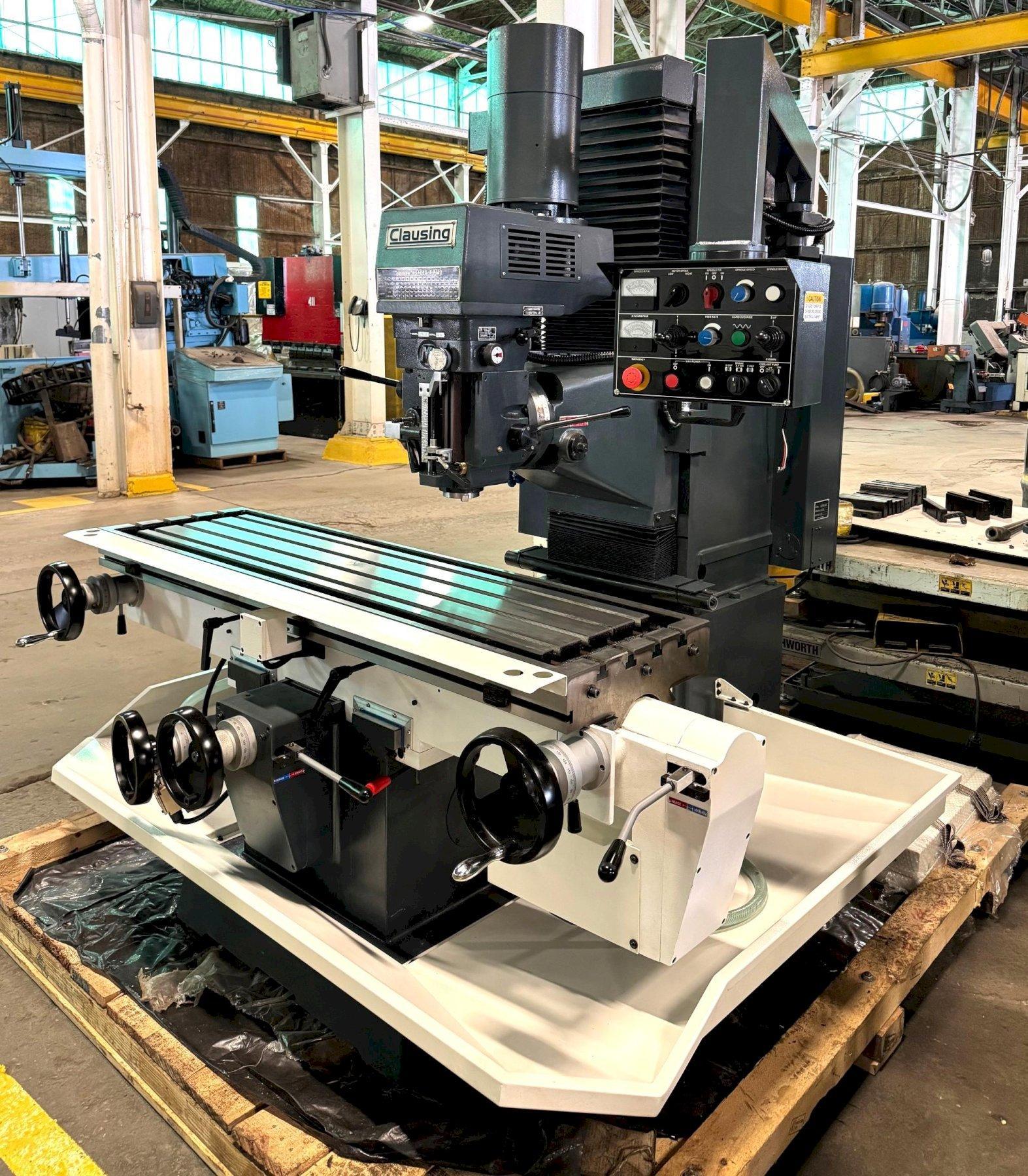

CLAUSING BED TYPE VERTICAL MILL

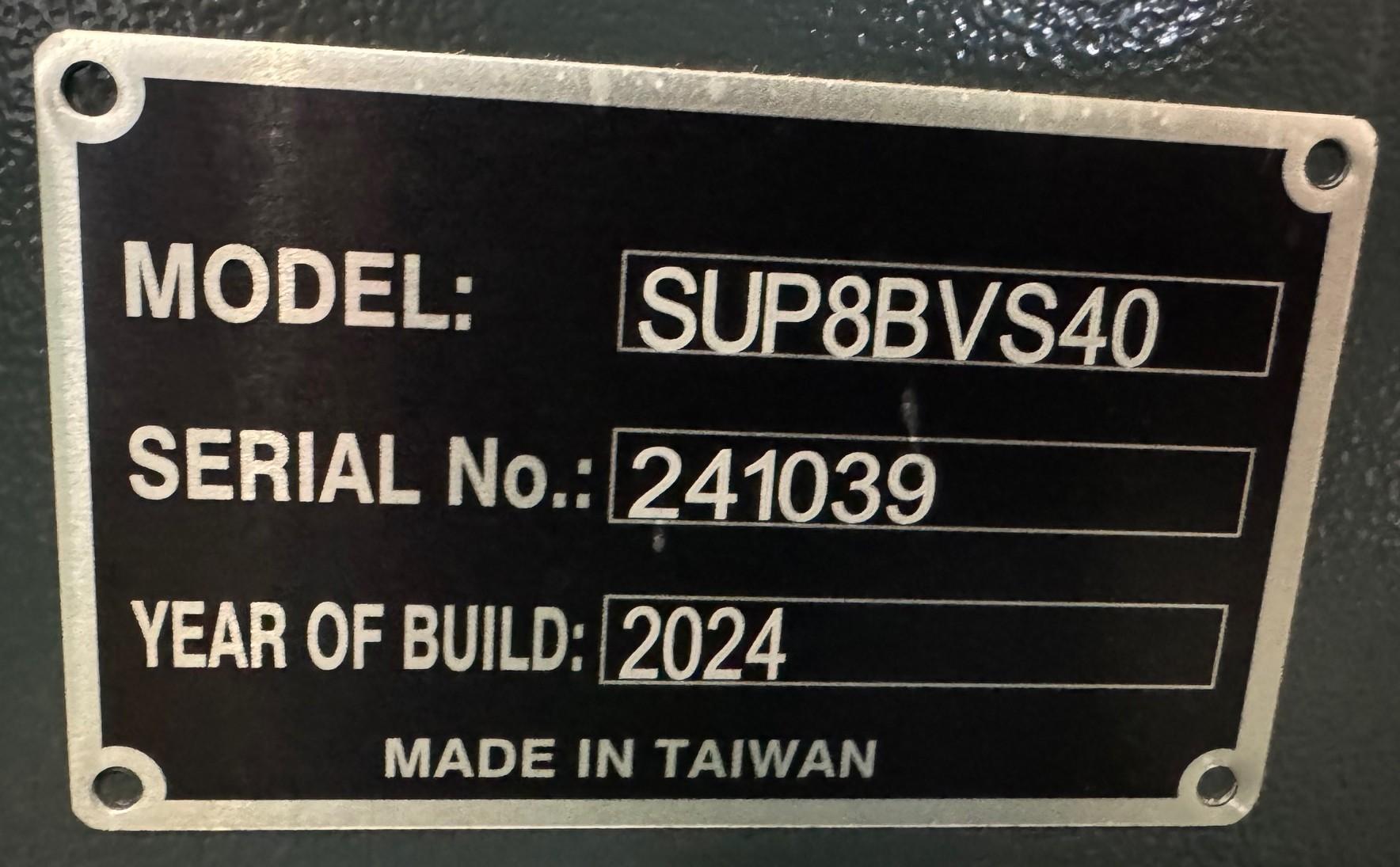

MODEL: SUP8BVS40
SERIAL NUMBER: 241039  Year: 2024*

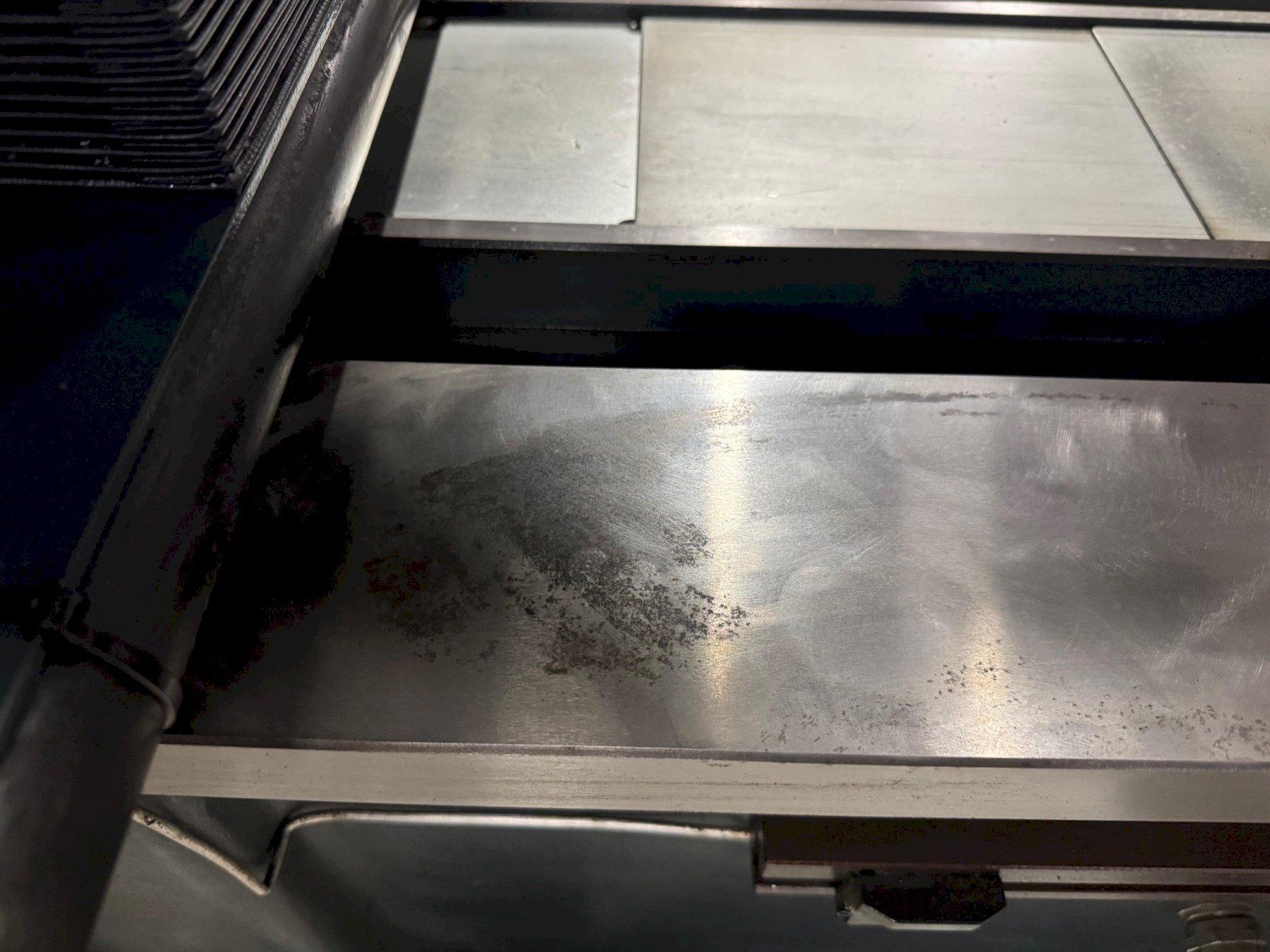

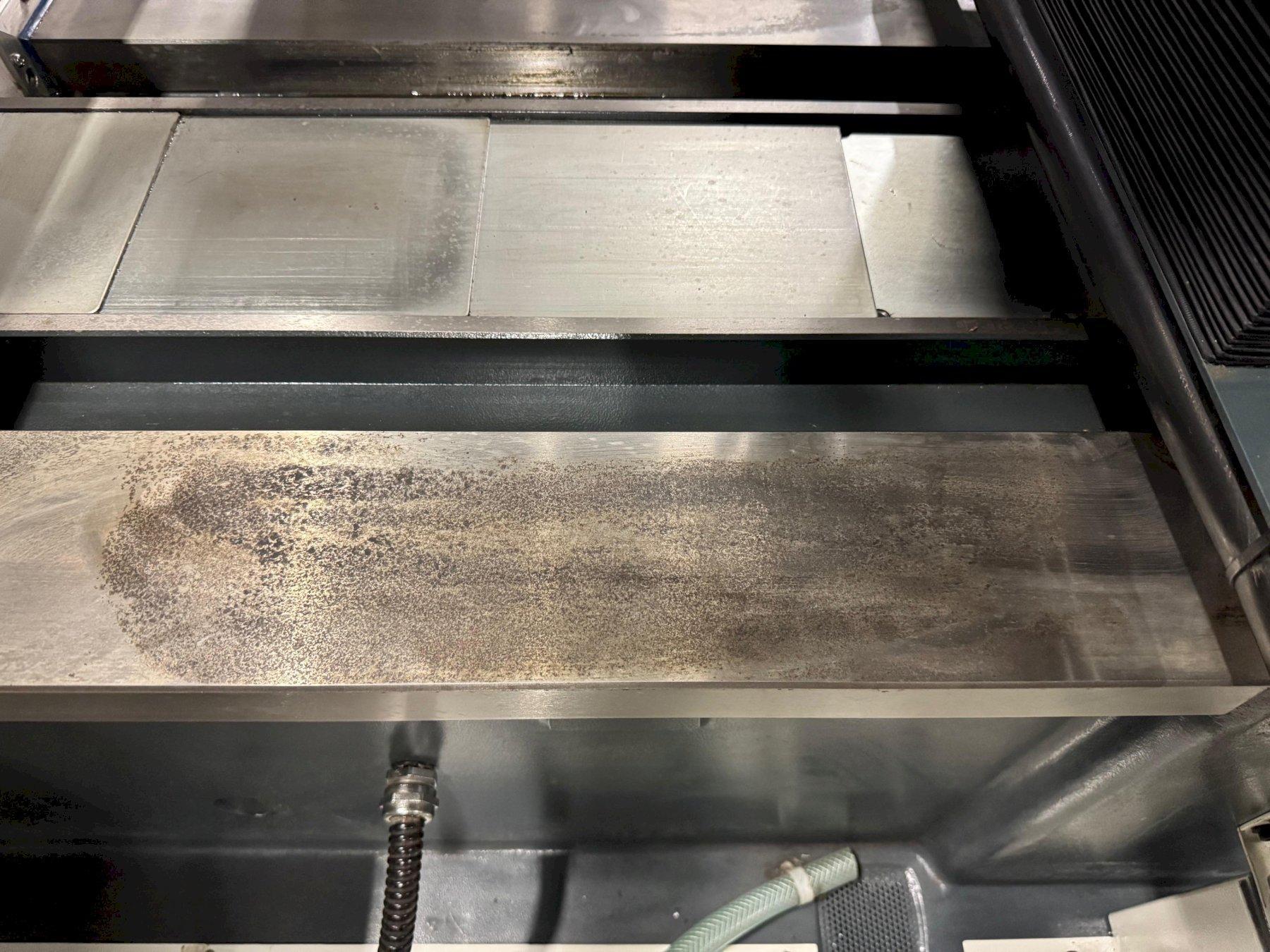

*Machine is new/never used. Original buyer refused machine on delivery because of water on machine which occurred during shipping. Please see photos that show some minor discoloration in a couple spots.

GENERAL SPECIFICATIONS

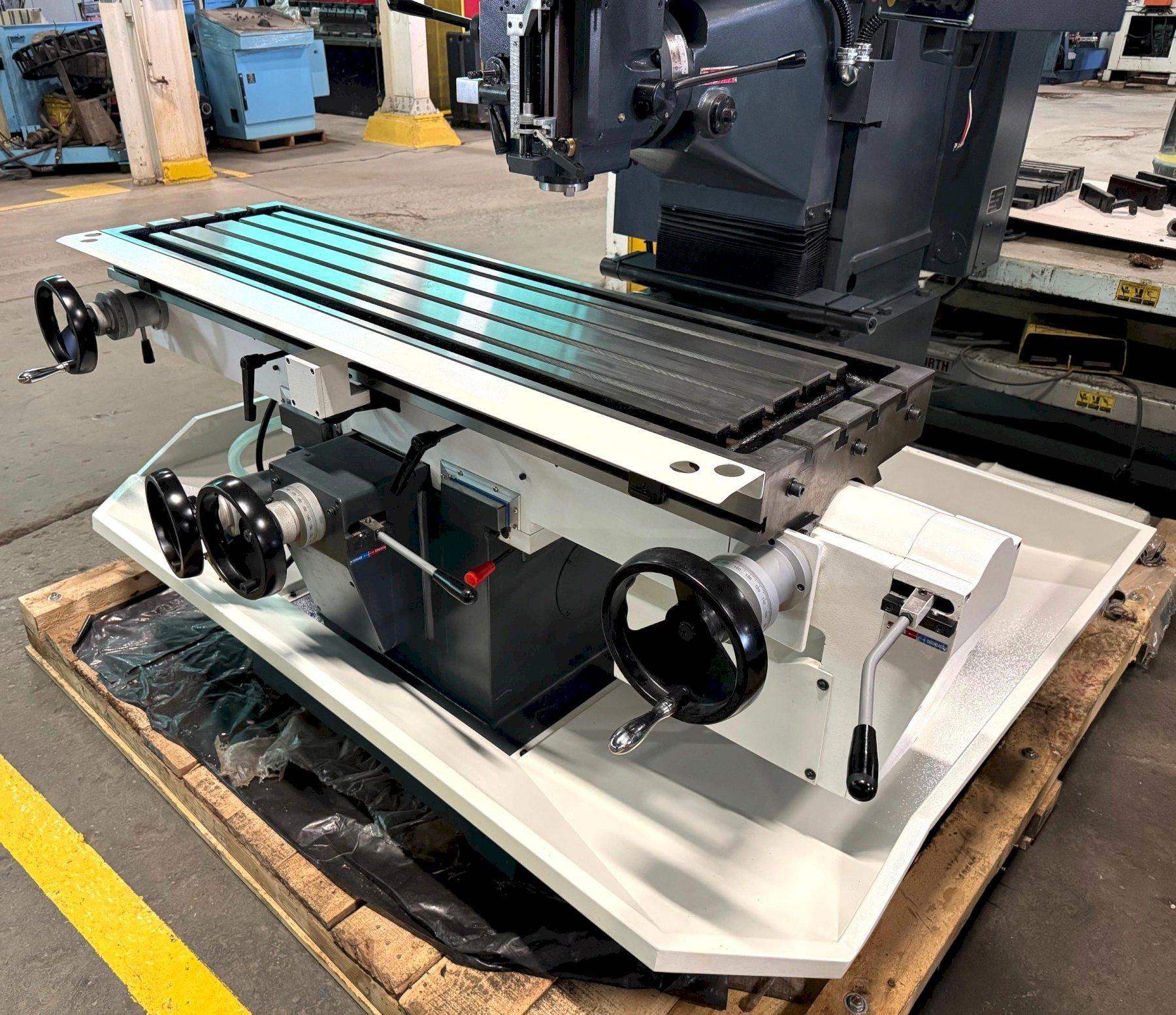

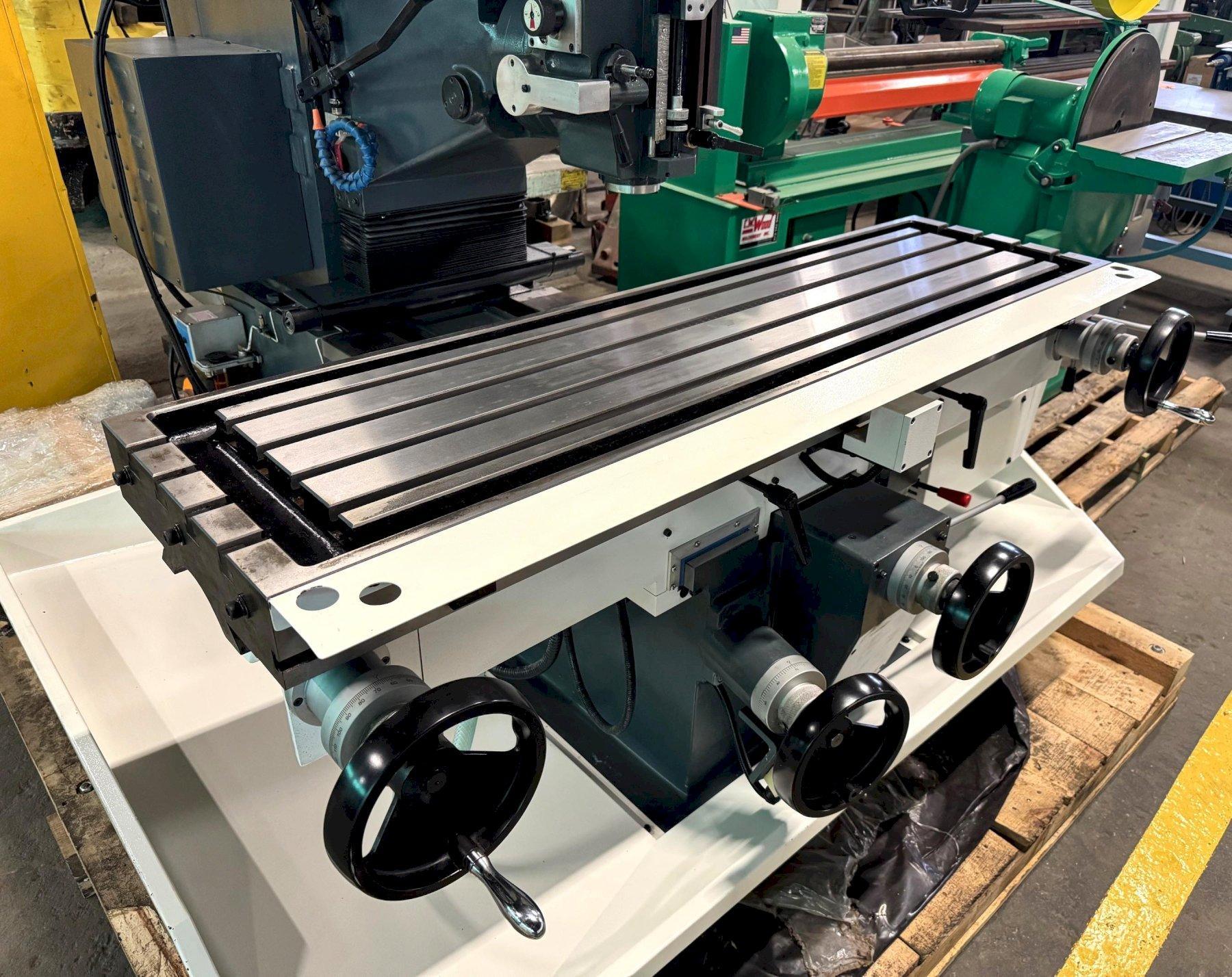

Table Size: 16-3/4" x 62"
Number Of T-Slots: 4
Table Load Capacity: 2000 Lbs.
Longitudinal Travel (X Axis): 47.24"
Cross Travel (Y Axis): 22.83"
Vertical Travel (Z Axis): 23.62"
Quill Diameter: 4.33"
Quill Travel: 6"
Head Tilt (Left or Right): 90 Degrees
Feedrate X & Y Axis: .71 - 31 IPM
Rapid Traverse Rate X & Y Axes: 100 IPM
Feed Rate Z Axis: 75 IPM
Spindle Speeds, Variable: 70 - 4300 RPM
Number Of Speed Ranges: 2
Low Gear Range: 70 - 500 RPM
High Gear Range: 570 - 4300 RPM
Spindle Taper: NMTB 40
Quill Feed: .0016", .003", .006"

EQUIPPED WITH

7-1/2 HP Spindle Motor
1 HP X and Y Axis Motor w/Brake
1/2 HP Z-Axis Motor w/Brake
Inverter Variable Speed Drive w/Two Speed Ranges
Hardened and Ground Spindle
Hardened and Ground Ways
Telescopic Z-Axis Ballscrew Cover
Coolant System
Halogen Work Light
Automatic Lubrication System

2025 New Price: 43,500.00

Approximate Weight: 7200 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
