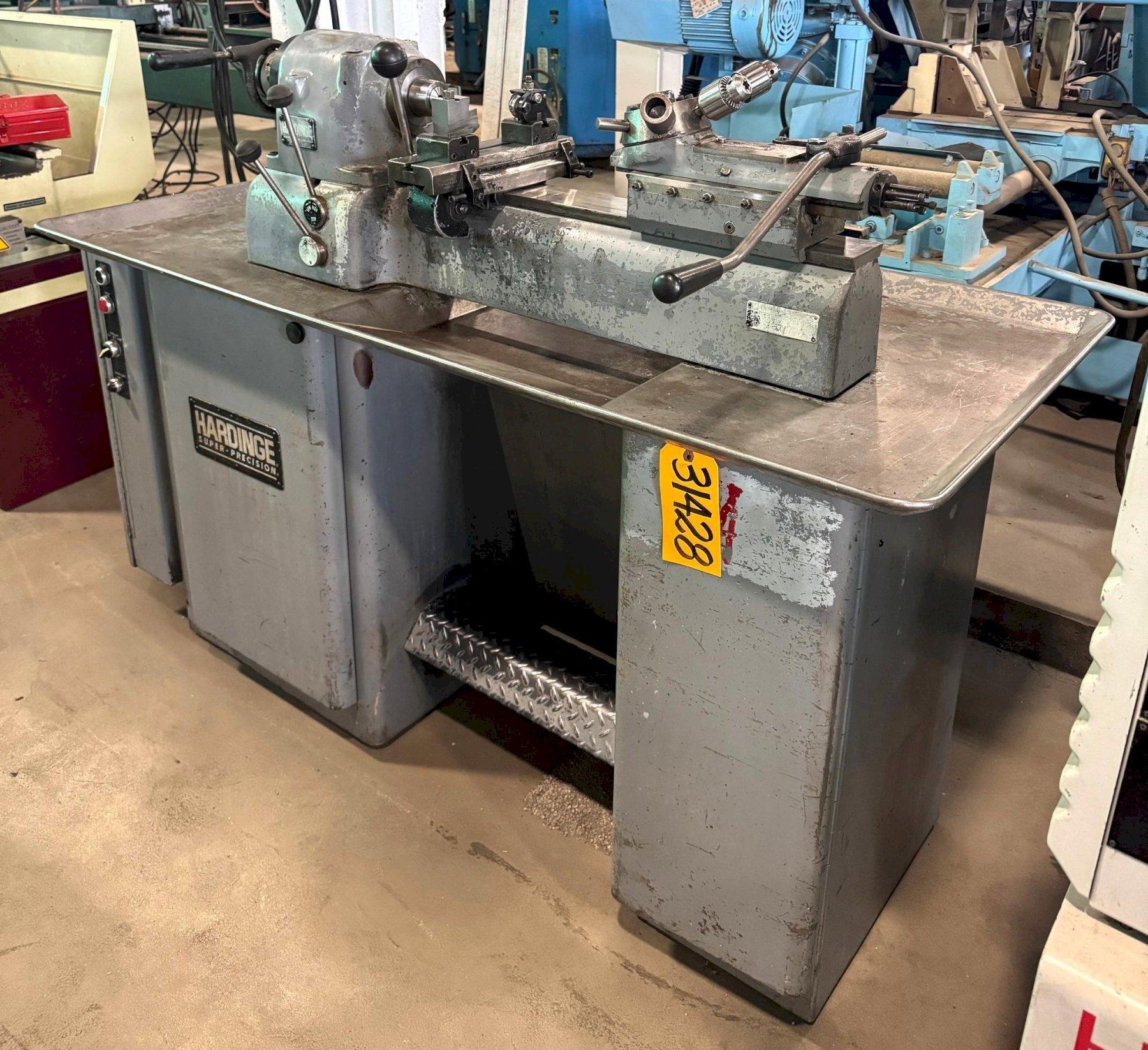

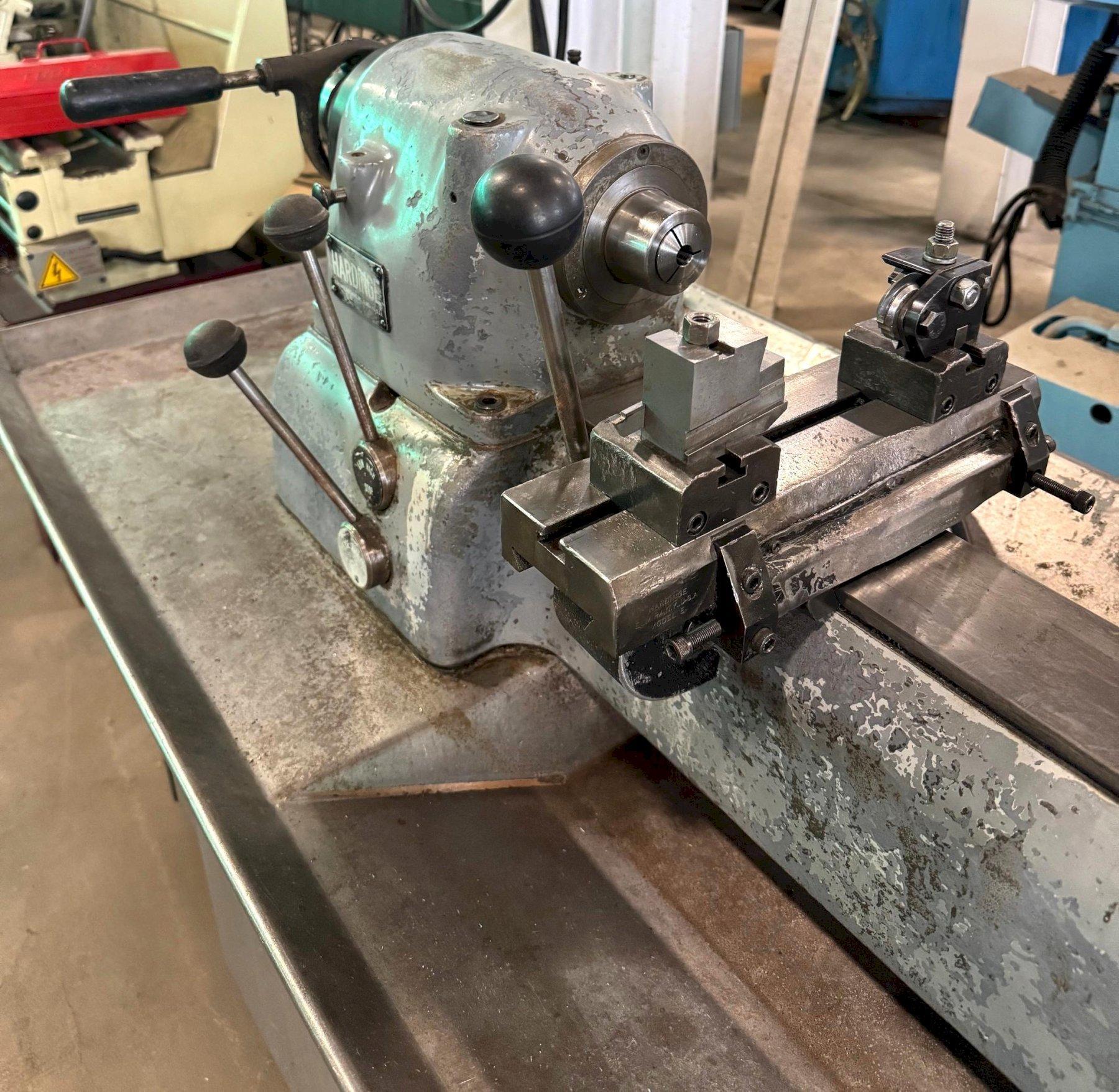

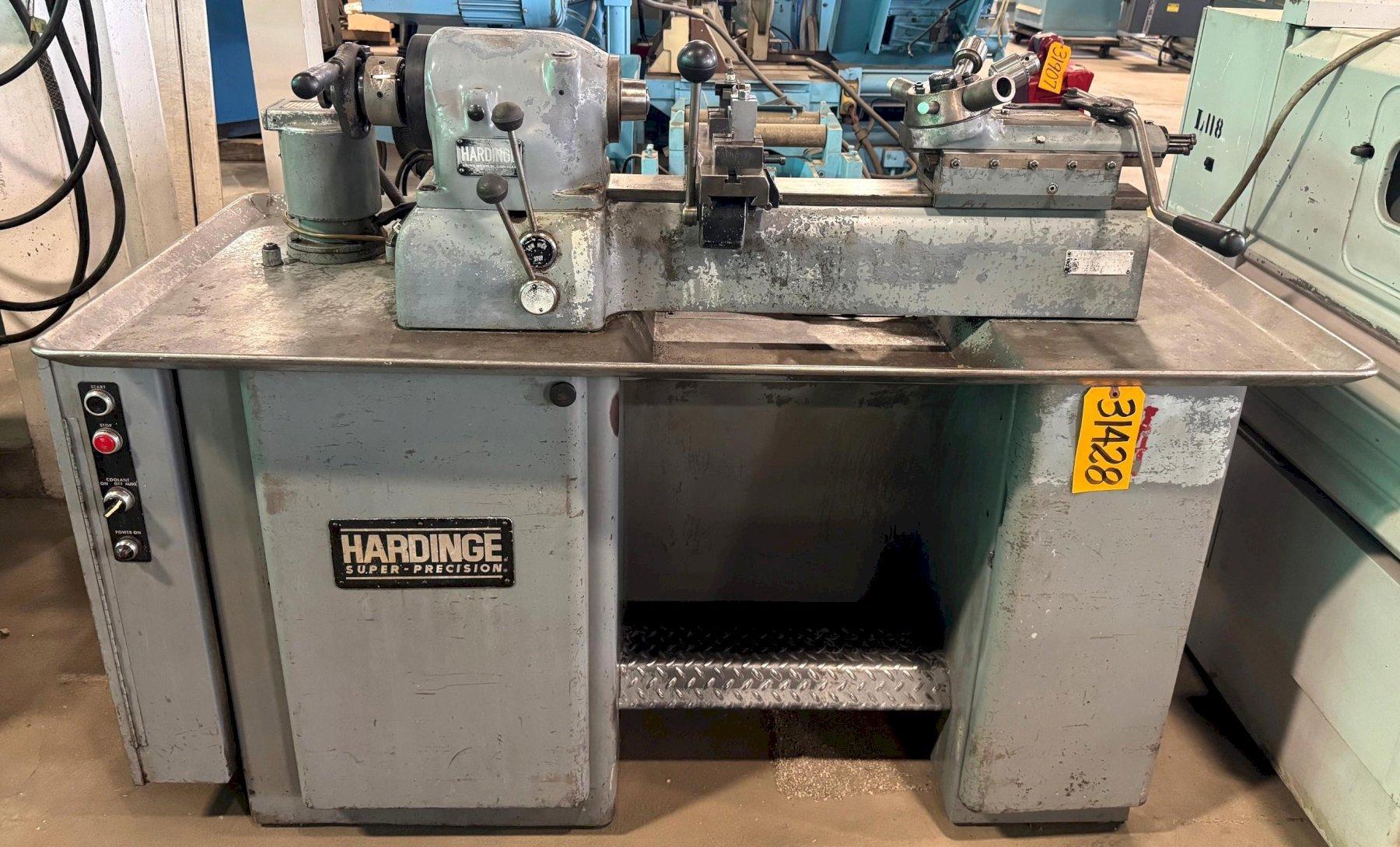

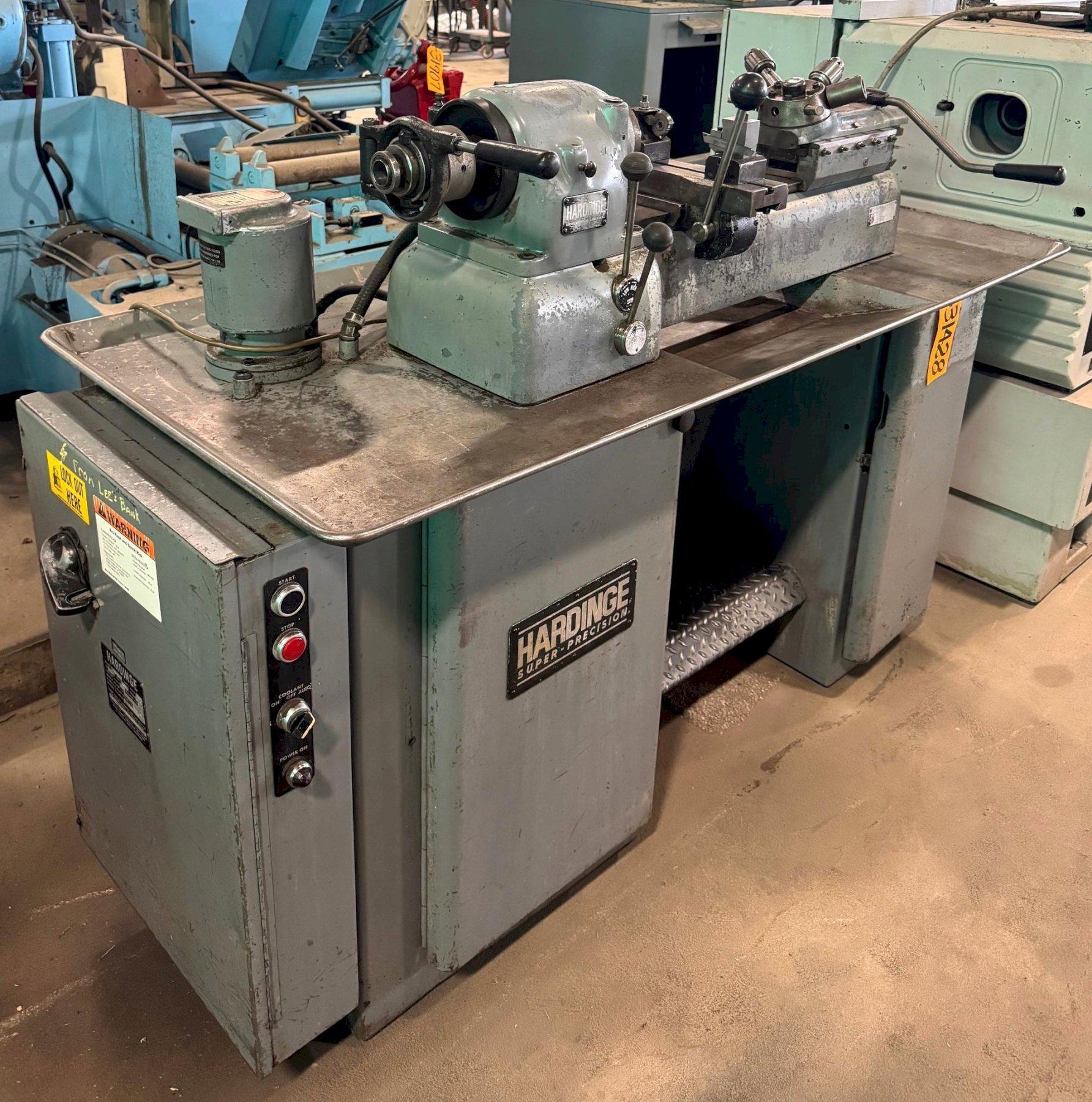

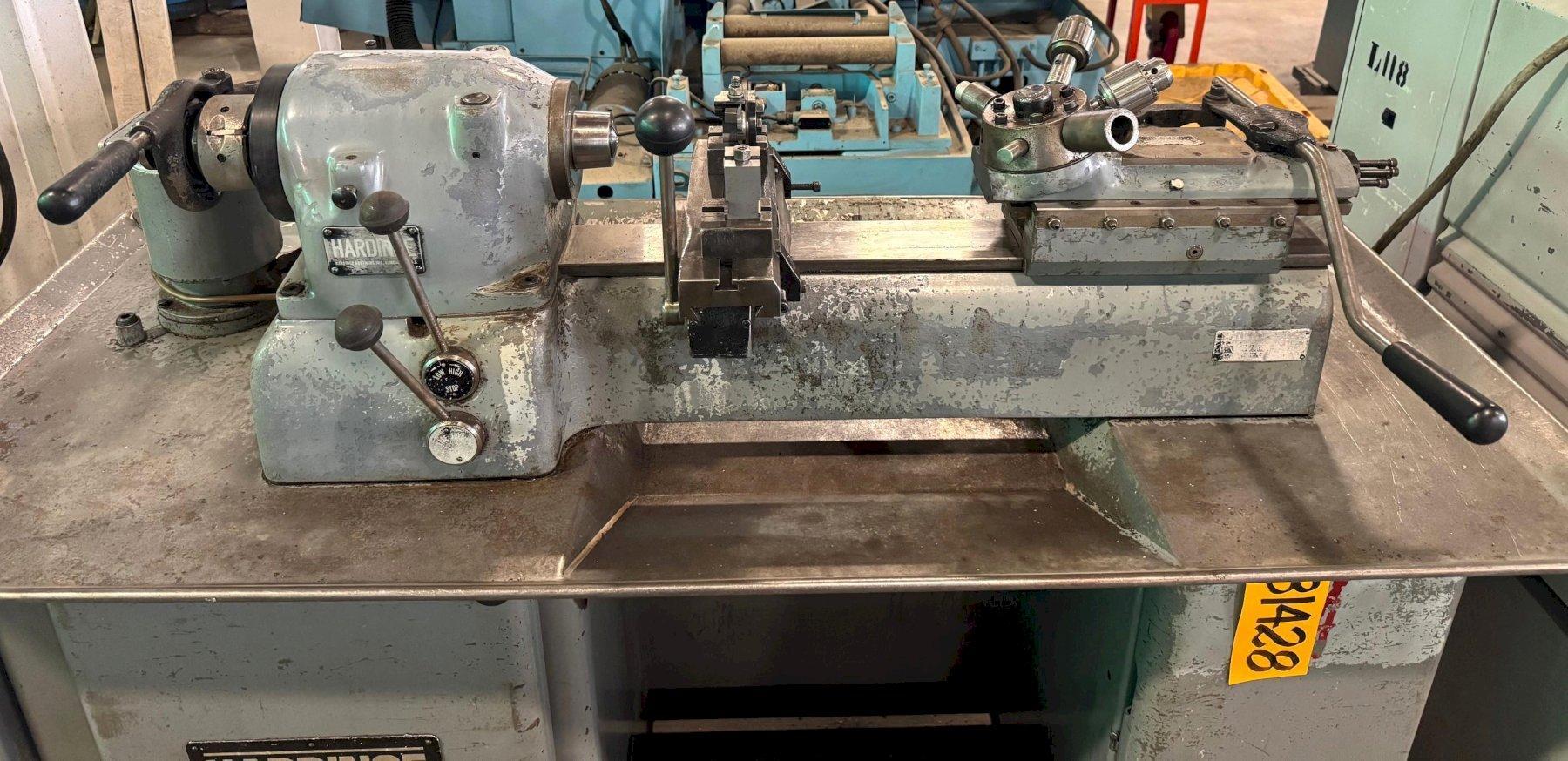

Hardinge Second Operation Lathe DSM59-R, Dbl. Tool Cross Slide, Turret, 5C Closer, 1 HP
Hardinge Second Operation Lathe DSM59-R, Dbl. Tool Cross Slide, Turret, 5C Closer, 1 HP
Hardinge Second Operation Lathe DSM59-R, Dbl. Tool Cross Slide, Turret, 5C Closer, 1 HP
Hardinge Second Operation Lathe DSM59-R, Dbl. Tool Cross Slide, Turret, 5C Closer, 1 HP
Hardinge Second Operation Lathe DSM59-R, Dbl. Tool Cross Slide, Turret, 5C Closer, 1 HP
Hardinge Second Operation Lathe DSM59-R, Dbl. Tool Cross Slide, Turret, 5C Closer, 1 HP
Hardinge Second Operation Lathe DSM59-R, Dbl. Tool Cross Slide, Turret, 5C Closer, 1 HP
  • Hardinge Second Operation Lathe DSM59-R, Dbl. Tool Cross Slide, Turret, 5C Closer, 1 HP
  • Hardinge Second Operation Lathe DSM59-R, Dbl. Tool Cross Slide, Turret, 5C Closer, 1 HP
  • Hardinge Second Operation Lathe DSM59-R, Dbl. Tool Cross Slide, Turret, 5C Closer, 1 HP
  • Hardinge Second Operation Lathe DSM59-R, Dbl. Tool Cross Slide, Turret, 5C Closer, 1 HP
  • Hardinge Second Operation Lathe DSM59-R, Dbl. Tool Cross Slide, Turret, 5C Closer, 1 HP
  • Hardinge Second Operation Lathe DSM59-R, Dbl. Tool Cross Slide, Turret, 5C Closer, 1 HP
  • Hardinge Second Operation Lathe DSM59-R, Dbl. Tool Cross Slide, Turret, 5C Closer, 1 HP

Hardinge Second Operation Lathe DSM59-R, Dbl. Tool Cross Slide, Turret, 5C Closer, 1 HP

Brand
HARDINGE

Model
DSM59-R

Type
Lathes, Second Operation (Incl Speed Lathes)

Stock #
31428

Condition
Used

Year

Location
Cincinnati, Ohio
United States

Request Quote

Specifications

Equipped With

HARDINGE SECOND OPERATION LATHE

MODEL: DSM59-R
SERIAL NUMBER: V-59-15112

GENERAL SPECIFICATIONS

Swing Over Bed: 9"
Length Of Bed: 36"
Spindle Speeds: (10) 450 - 4000 RPM
Travel Of Double Tool Cross Slide: 3-3/4"

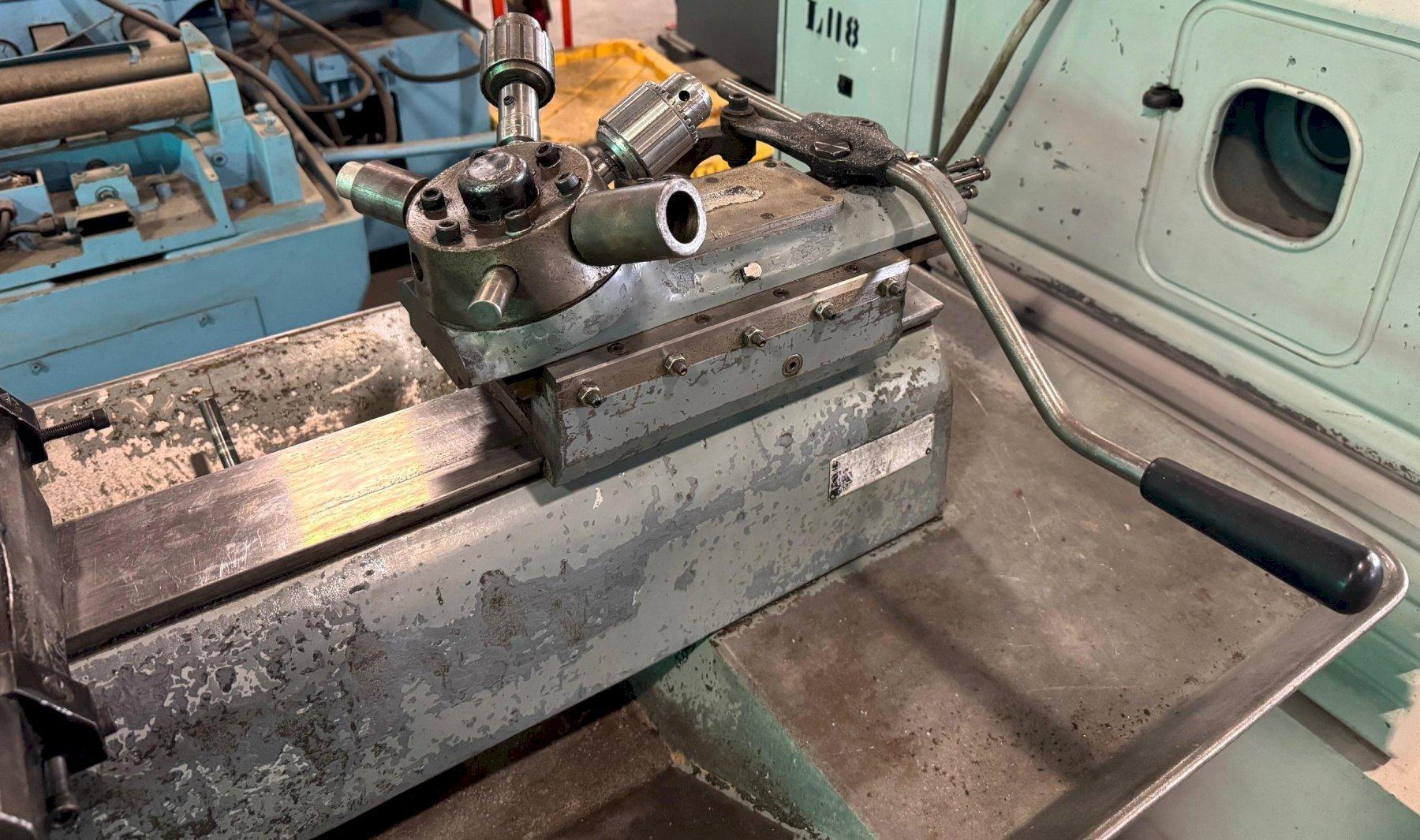

Travel Of Turret Slide: 4"
Diameter Of Turret Holes: 5/8"
Spindle Capacity
 With Round 5C Collets: 1-1/16"
 With Hexagon 5C Collets: 7/8"
 With Square 5C Collets: 3/4"
 With Step Chucks: 1-1/6" - 6"
 With Jaw Chucks: 5"
 With Jaw Chucks (Through Spindle): 1-5/32"

EQUIPPED WITH

Double Tool Cross Slide

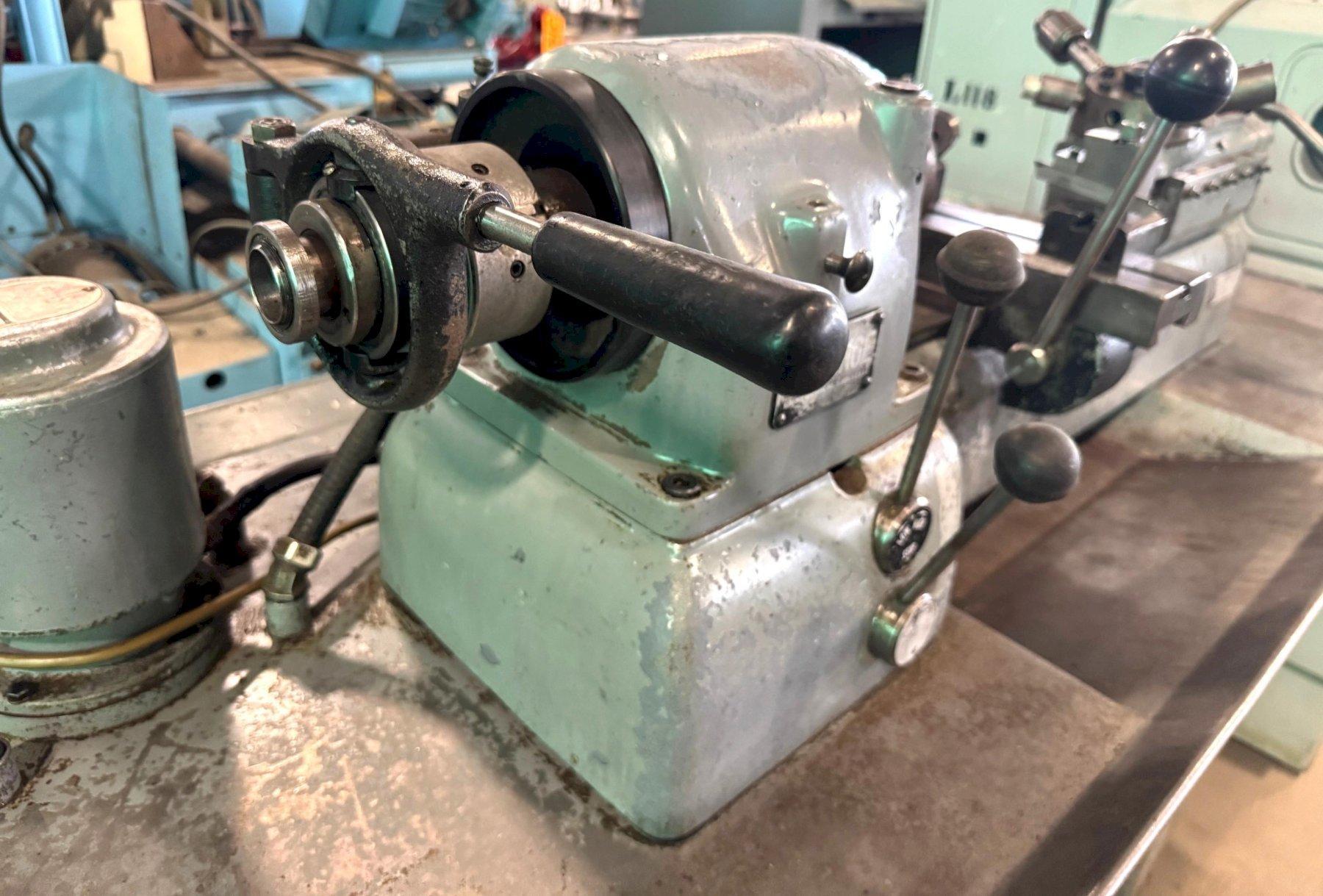

Collet Closer

Approximate Weight: 1000 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
