SWI TRAK Vertical Machining Center LPM, 8000 RPM, 16 ATC, 2018

Brand
SWI TRAK

Model
LPM

Type
Machining Centers, Vertical

Stock #
31623

Condition
Very Good

Year
2018

Location
Cincinnati, Ohio
United States

Request Quote

Specifications

CNC Control yes
Type of CNC Control Proto Trak PMX
# Axis 3
Table Size 35-3/8" x 19-5/8"
Table Capacity 1000 pounds
X-Axis Travel 31 inches
Y-Axis Travel 18.5 inches
Z-Axis Travel 21 inches
Spindle Speed 8000 RPM
Spindle Taper CAT 40
Main Motor 15 HP
Tool Changer Capacity 16
Max Distance Spindle To Table Top 24 inches
Weight 11000 pounds

Equipped With

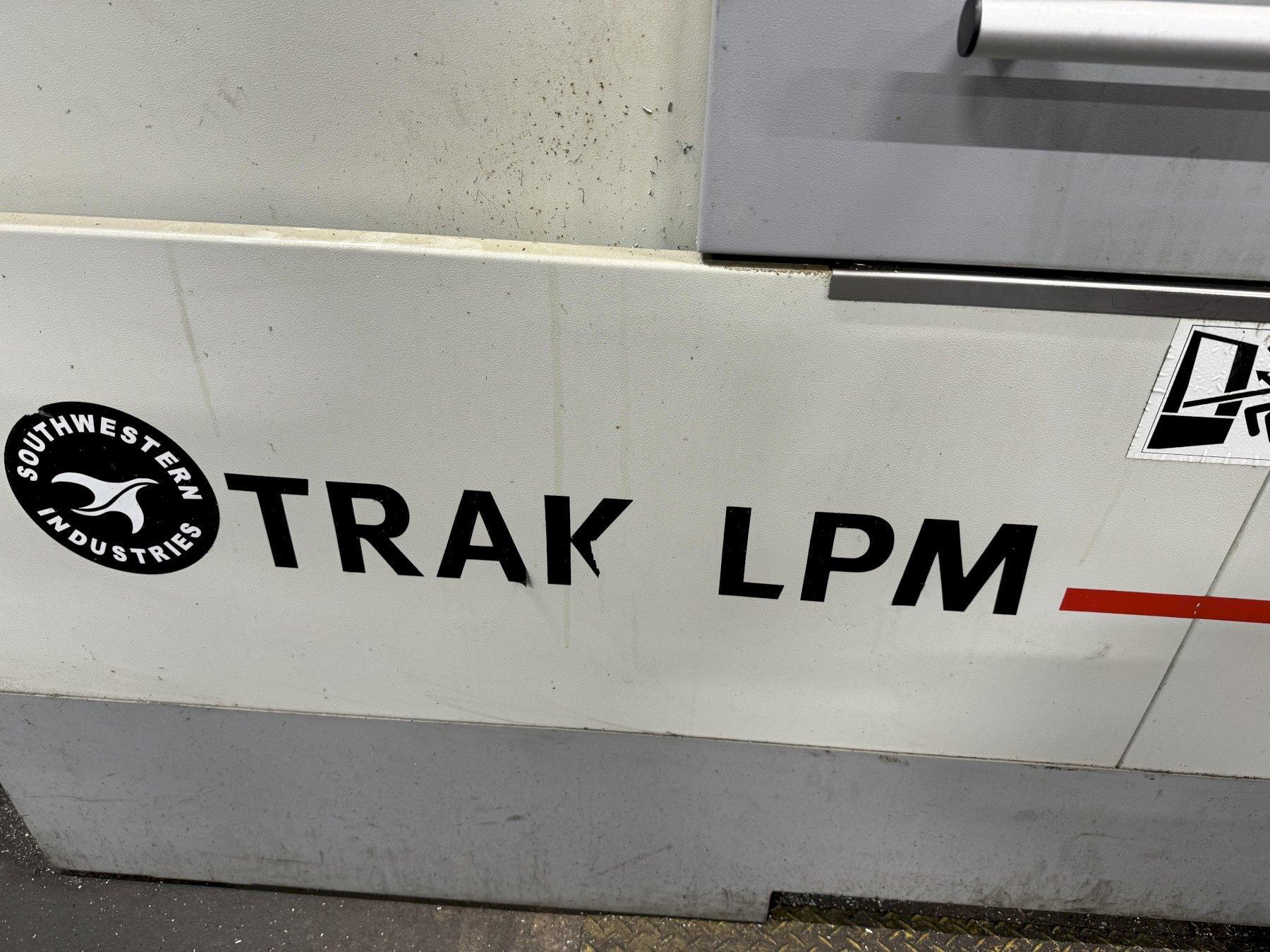

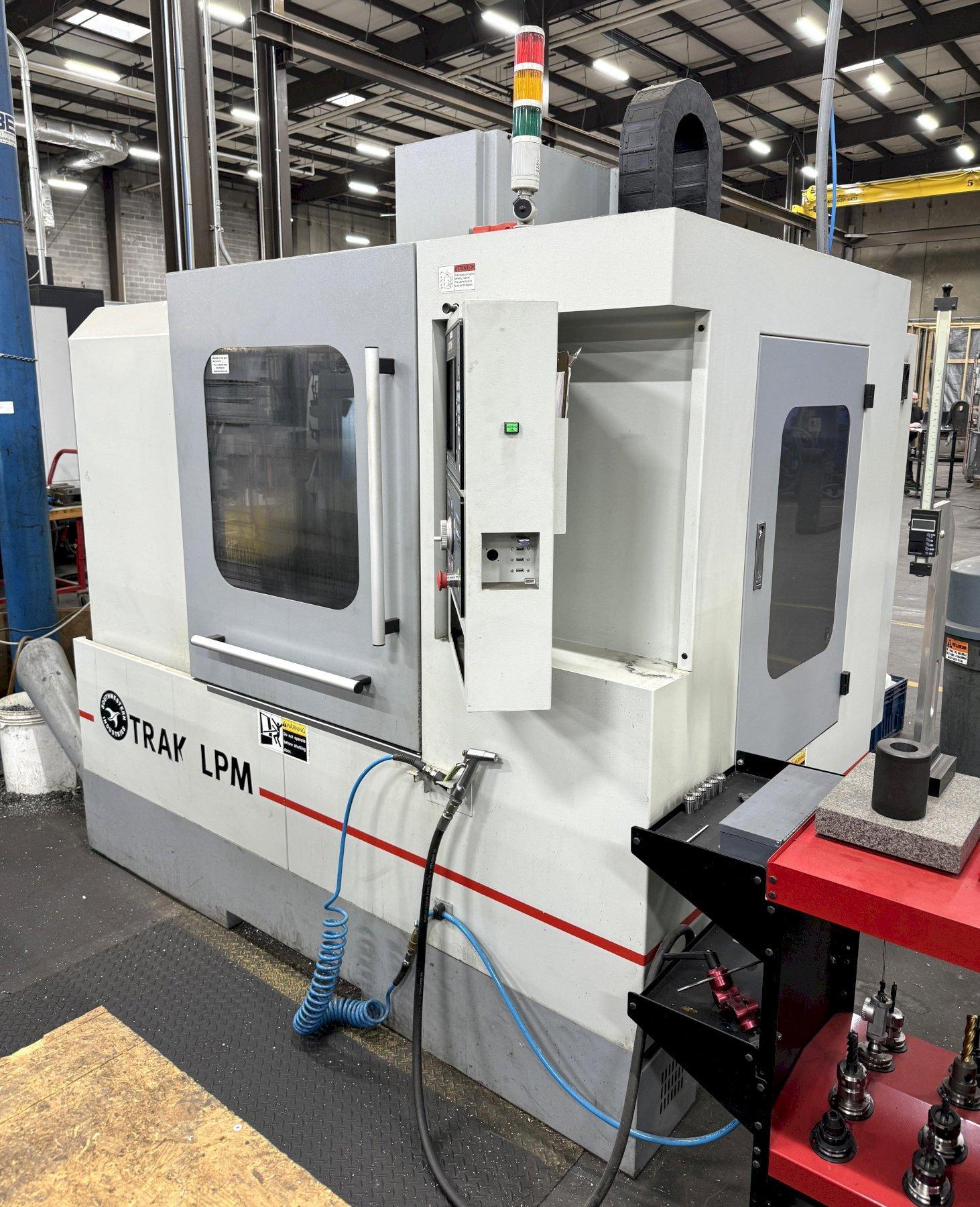

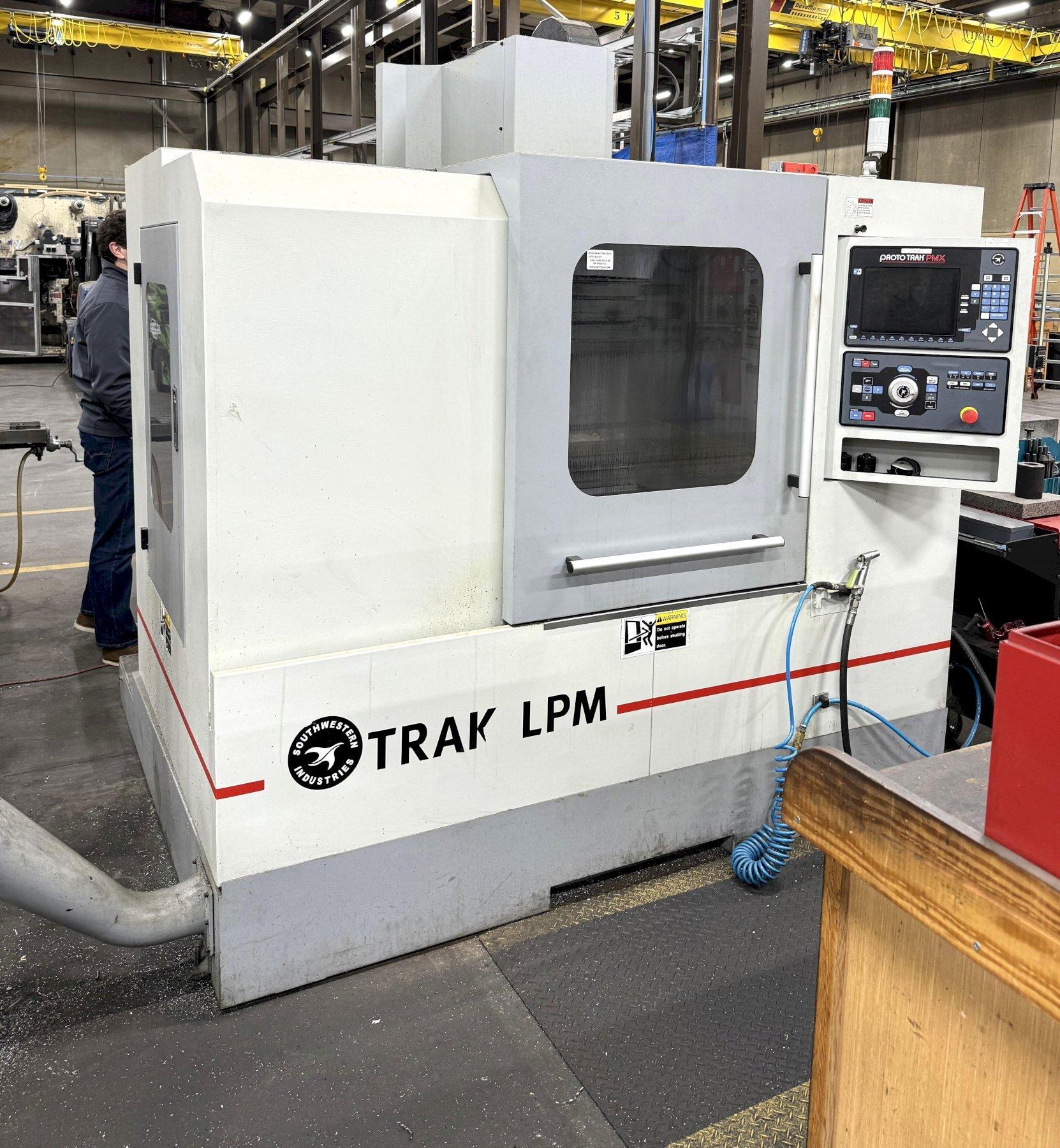

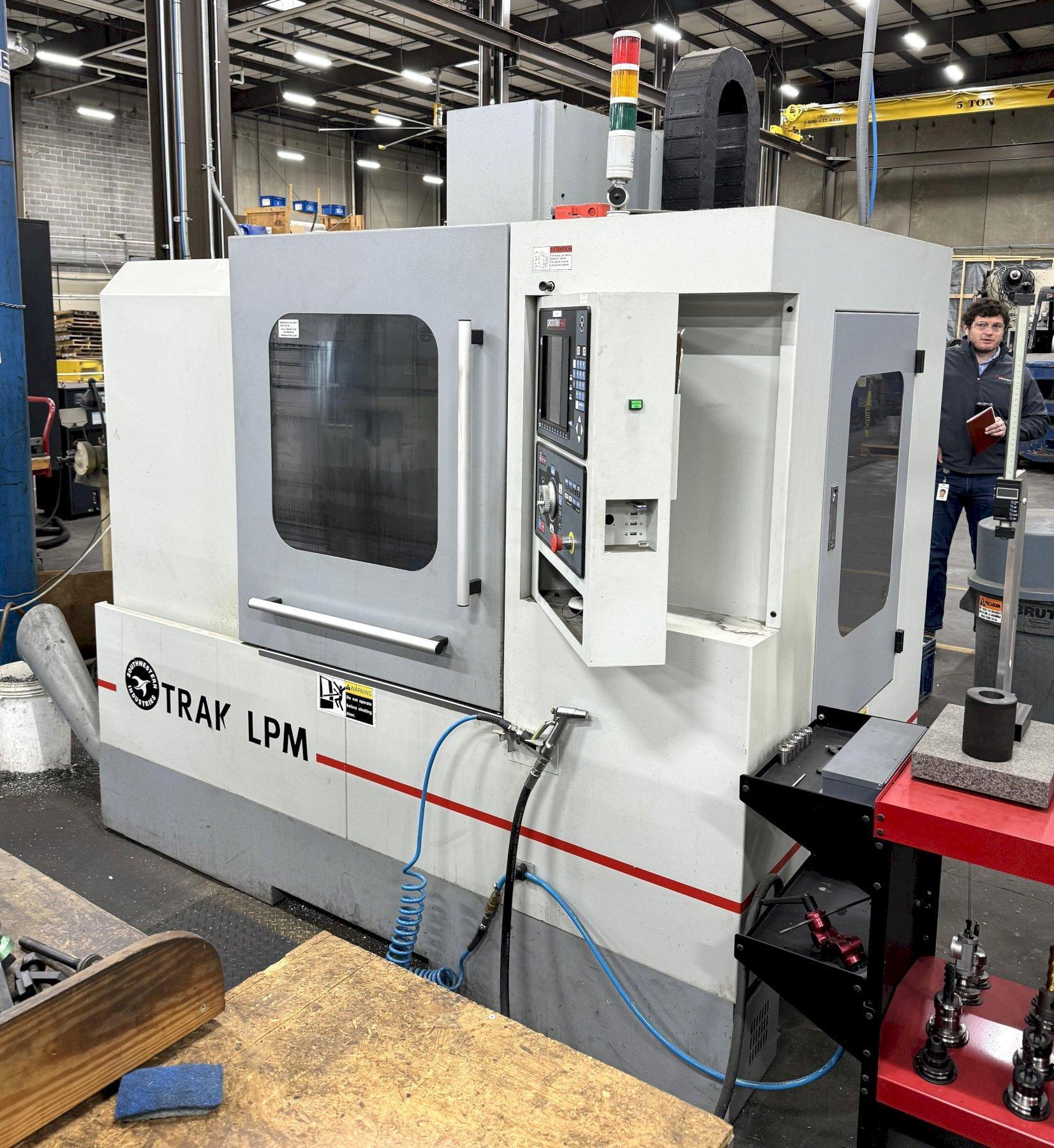

SWI TRAK CNC VERTICAL MACHINING CENTER

MODEL: LPM

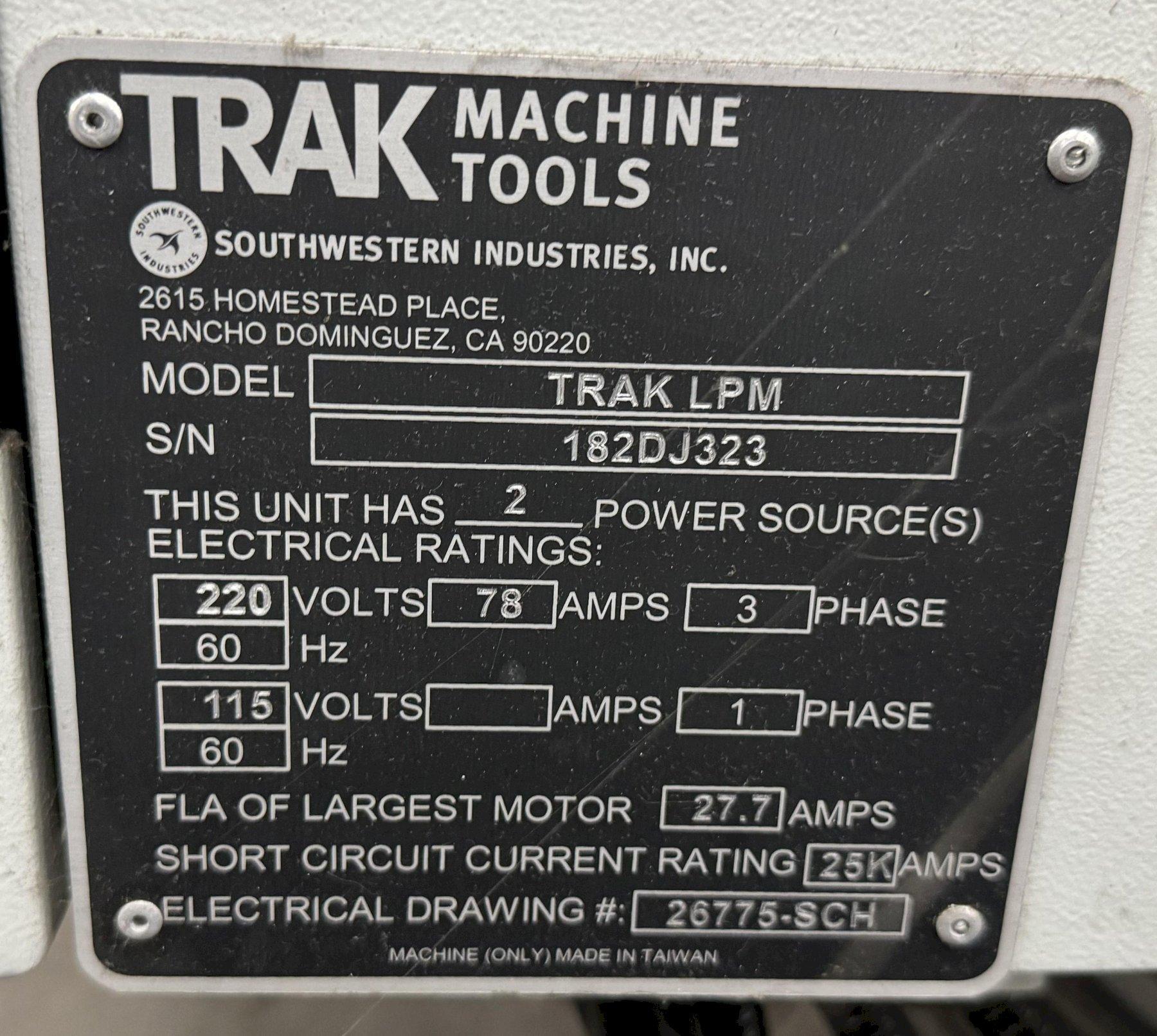

SERIAL NUMBER: 182DJ323  Year: 2018

GENERAL SPECIFICATIONS

Table Size: 35-3/8" x 19-5/8"
X-Axis Travel: 31"
Y-Axis Travel: 18.5"
Z-Axis Travel: 21"
Maximum Table Load: 1000 Lbs.
Rapid Traverse X & Y Axis: 800 IPM
Rapid Traverse, Z-Axis: 700 IPM
Spindle Speed: 8000 RPM
Spindle Taper: CAT 40
Spindle Nose Diameter: 2-3/4"
Spindle Nose To Table, Maximum: 24"
Spindle Nose To Table, Minimum: 3-3/8"
Maximum Clearance, Spindle Center To Column: 19-1/4"

EQUIPPED WITH

15 HP Spindle Motor

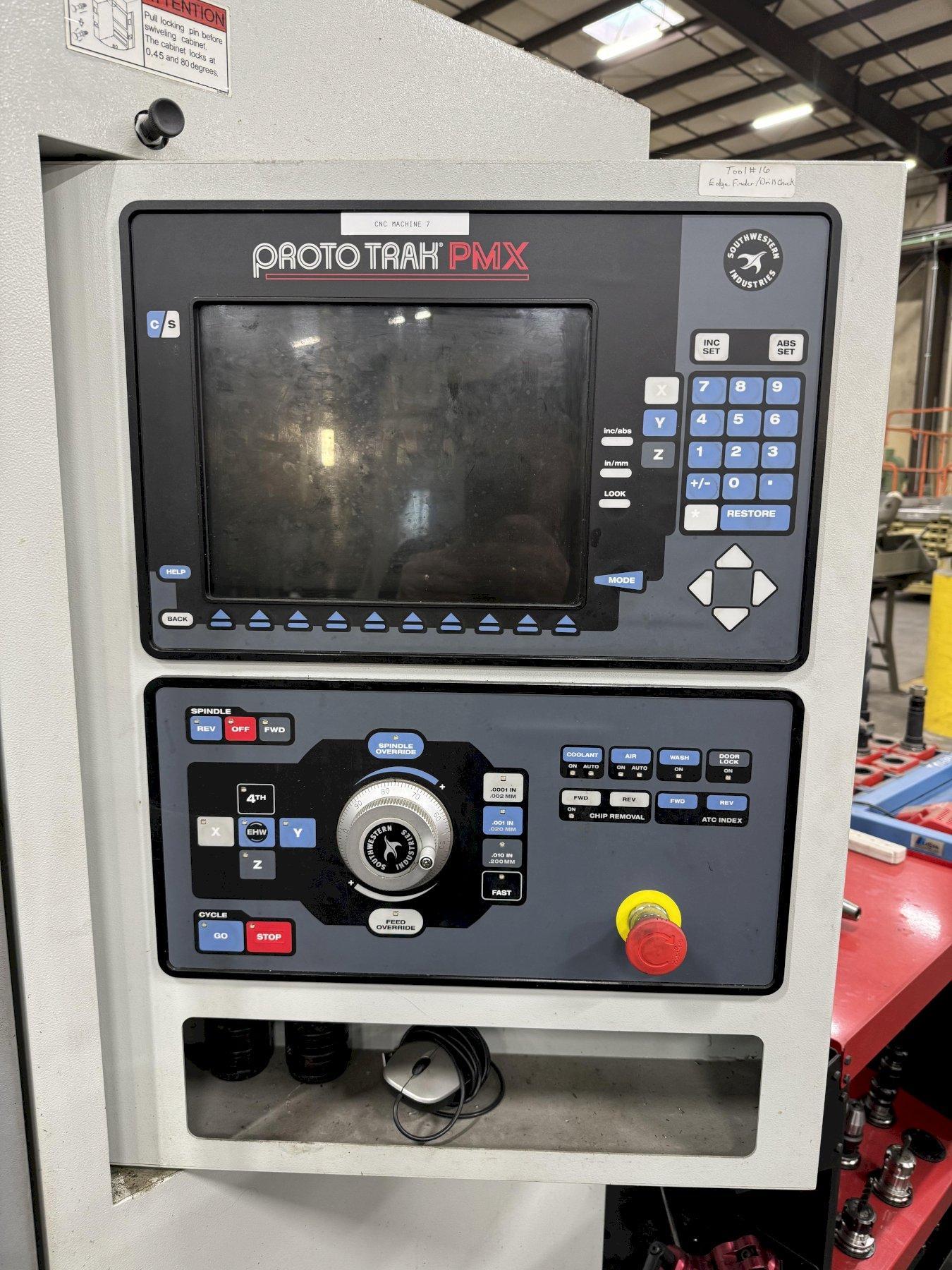

Proto Trak PMX Control
16 ATC
Chip Auger

Approximate Weight: 9000 Lbs.

NOTE: Machine is being sold on consignment for local customer. Can be inspected under power at their facility.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
